60-Ton Laboratory Pellet Press with Built-in Hydraulic Pump
Reference: MP60A
Manufacturer: Across International
60-Ton Laboratory Pellet Press with Built-in Hydraulic Pump
In stock
Optional Must Have Accessories
Payment Providers

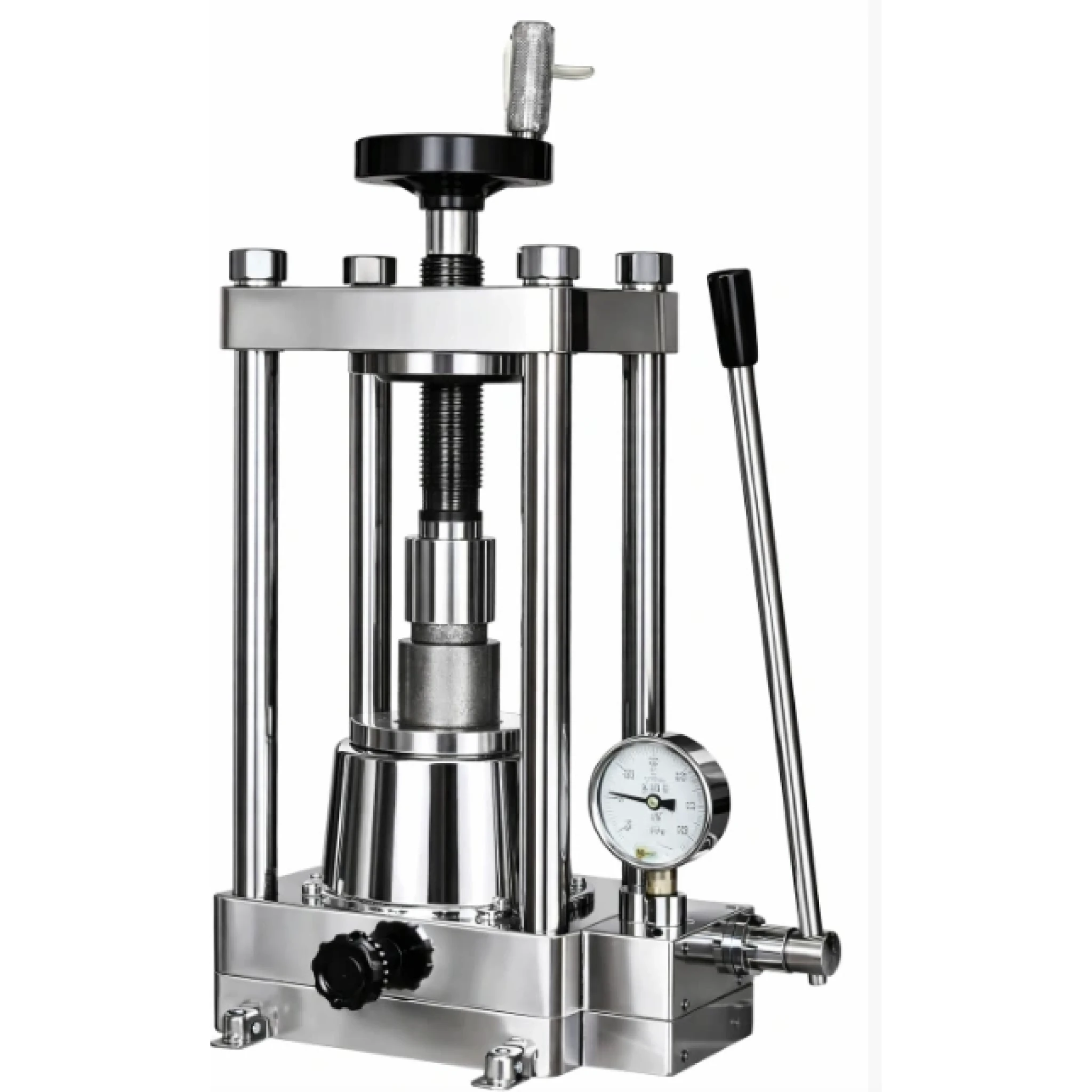

MP60A desktop manual pellet presses can press up to 60 metric tons. It is frequently used in materials and chemistry research laboratories to prepare compound samples. It has built in hydraulic pump with auto return function. Great for operation in a glove-box under oxidizing and inert gas atmosphere as well.
Caution: always wear protective goggles during operation!
The MP60A delivers up to 60 tons (600 kN) for large pellets and powders that need high force to compact. A rapid pre-pressing mode closes the gap to the sample quickly before full pressure is applied, saving pump strokes on every cycle.
Pressure holds within 1 MPa over 10 minutes, so a sample can dwell under load for consistent compaction. The 150 mm working table and 225 x 225 x 300 mm working space leave room for large die sets, and the piston stroke runs up to 50 mm.
Overall the press measures 450 x 260 x 650 mm. Oil, hex keys, wrenches, spare o-rings and the manual are included.
Model | MP-60A |
Maximum Rated Working Pressure | 60 tons (600 kN) |
Maximum System Pressure | 40 MPa (400 kgf/cm²) |
Piston Diameter | Ø139 mm |
Maximum Piston Stroke | 0–50 mm |
Pressure Stability | ≤ 1 MPa / 10 min |
Motion Mode | Rapid pre-pressing |
Working Mode | Variable-diameter oil cylinder |
Working Table Diameter | 150 mm |
Working Space | 225 × 225 × 300 mm |
Overall Dimensions | 450 × 260 × 650 mm |
Standard Package
| MP60A pellet press | 1 pc |
| Oil tin | 1 pc |
| Hex L-key | 2 pcs |
| Double open-end wrench | 3 pcs |
| Sealing o-ring | 4 pc |
| Operation manual | 1 pc |
