76mm Diameter ID 250°C Heated Die w/ Digital Controller
Reference: SDS76.H
Manufacturer: Across International

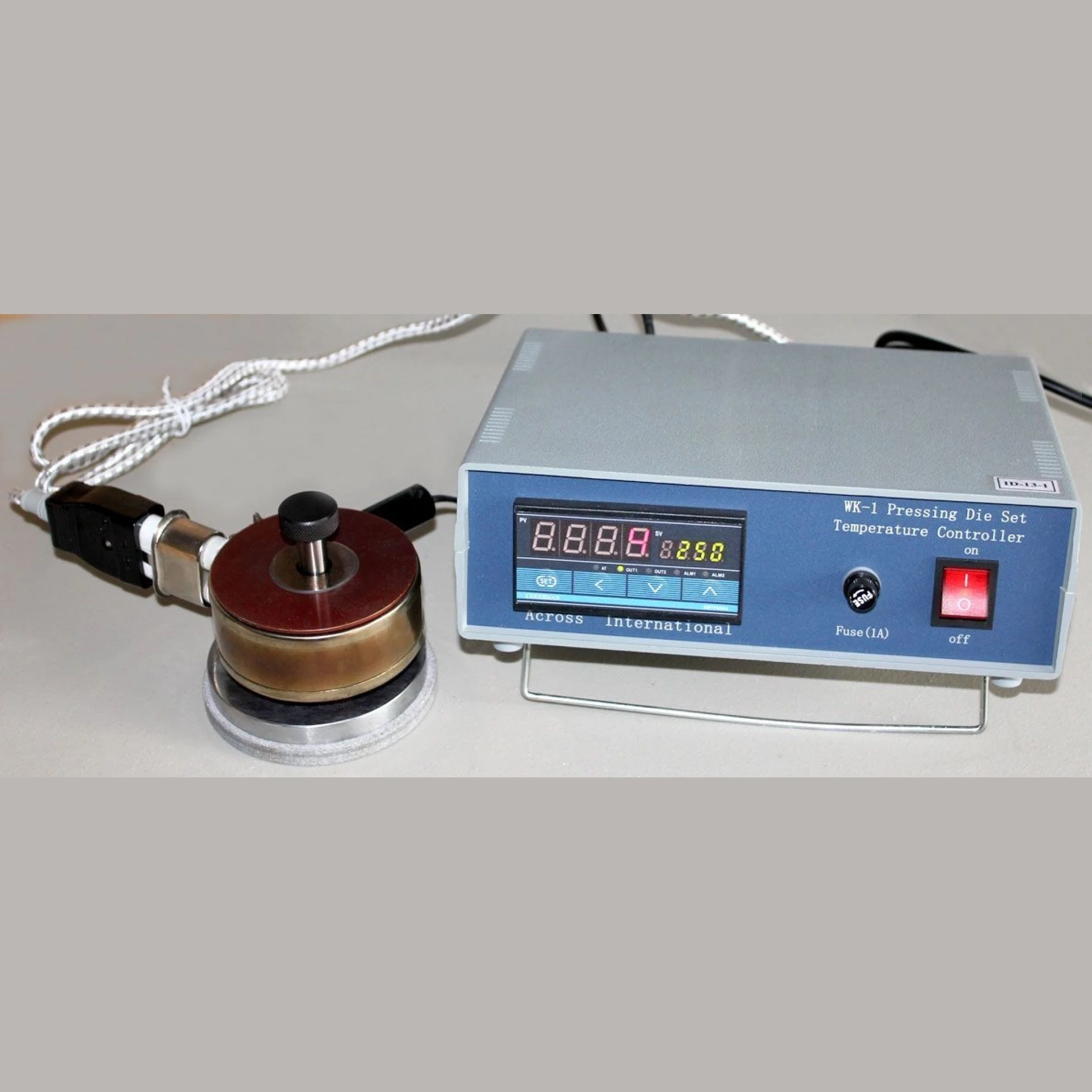

A set of 76mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 76mm diameter cylinder-shape pellets. Heating system with programmable digital temperature controller allows heating up to 250C.
In stock
Payment Providers

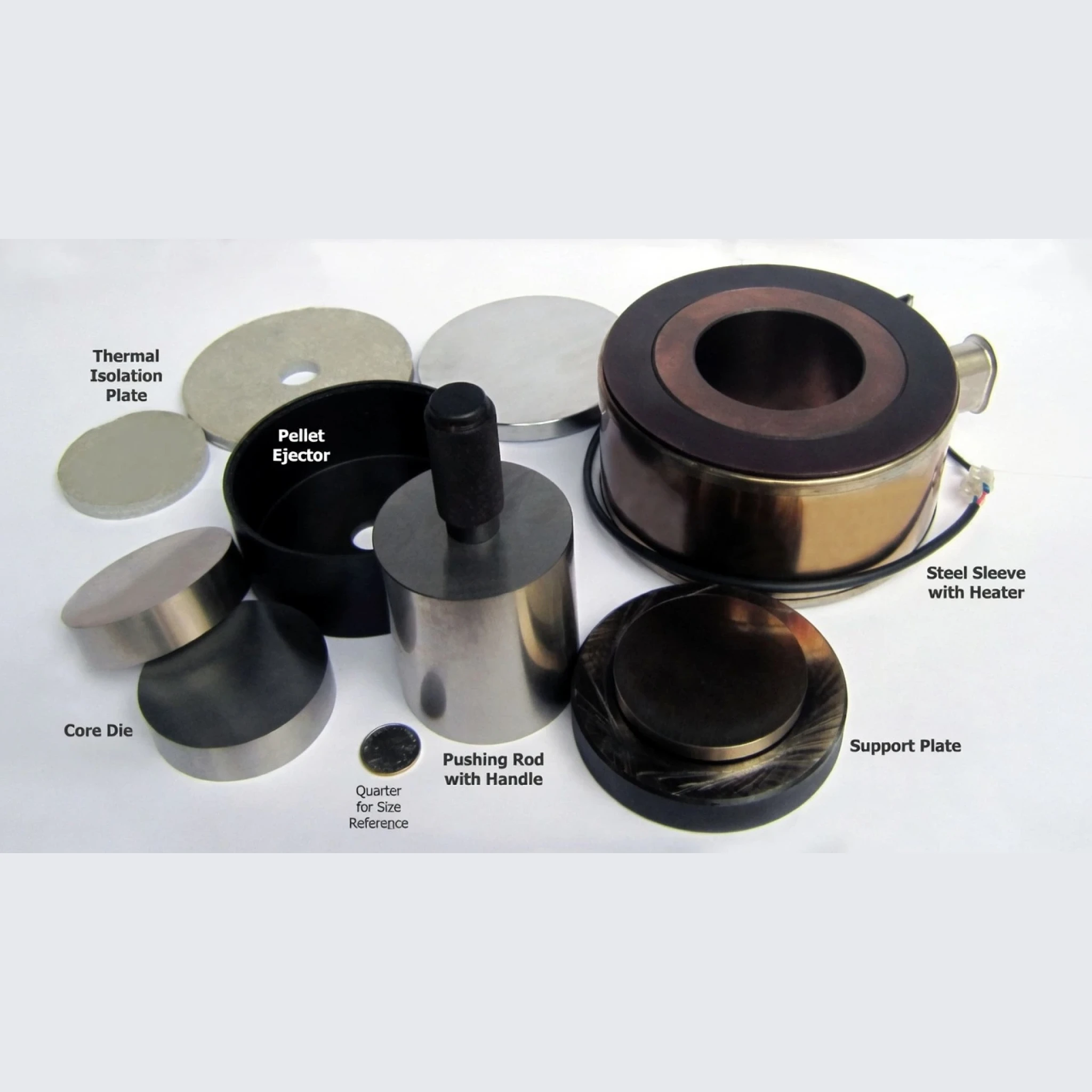

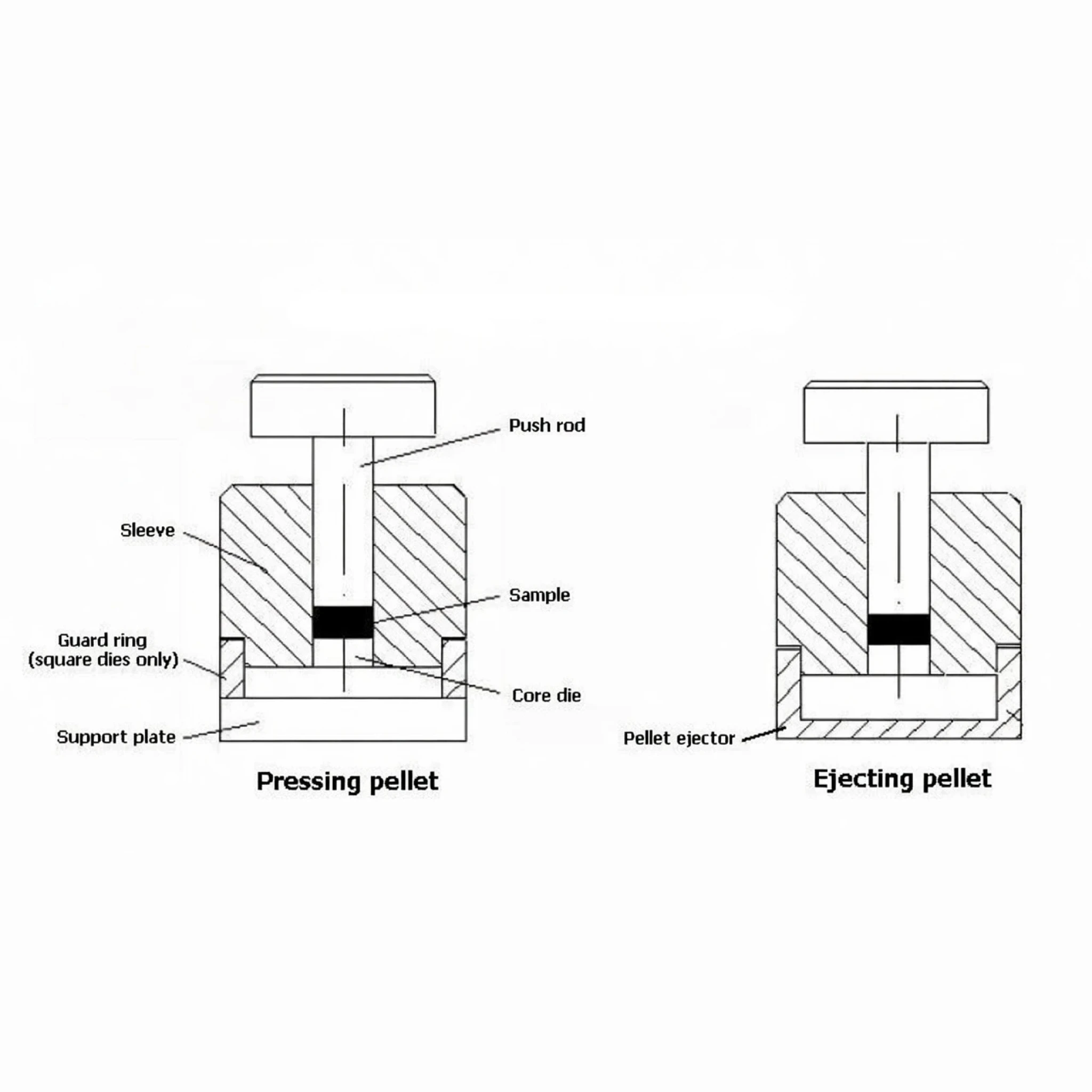

Die set includes
- One 76mm ID cylinder-shape core dies made of highly polished hardened steel
- One steel sleeve with PT-100 heater and sensor
- One steel support plate
- One thermal isolation plate
- One push rod
- One cylinder pellet ejector

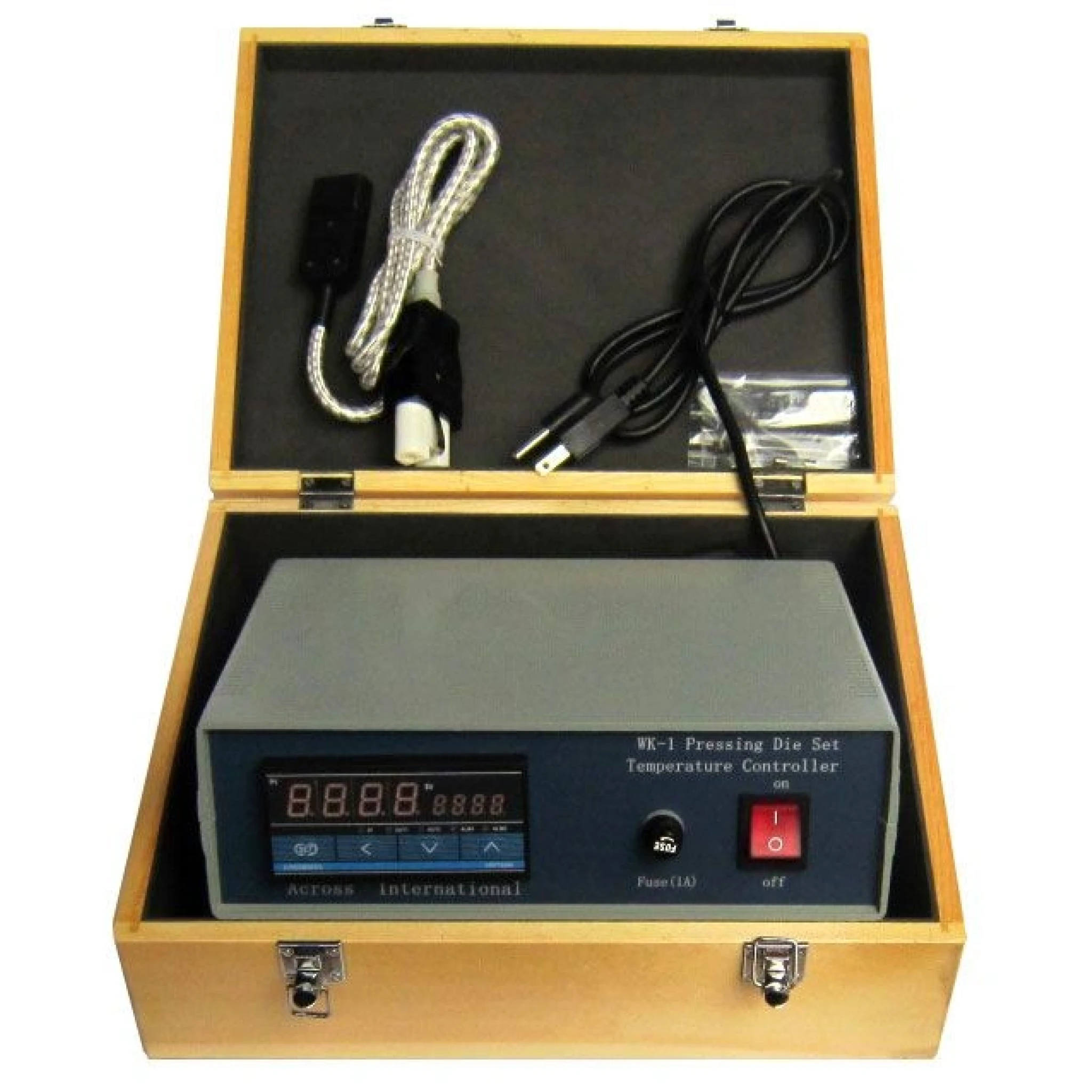

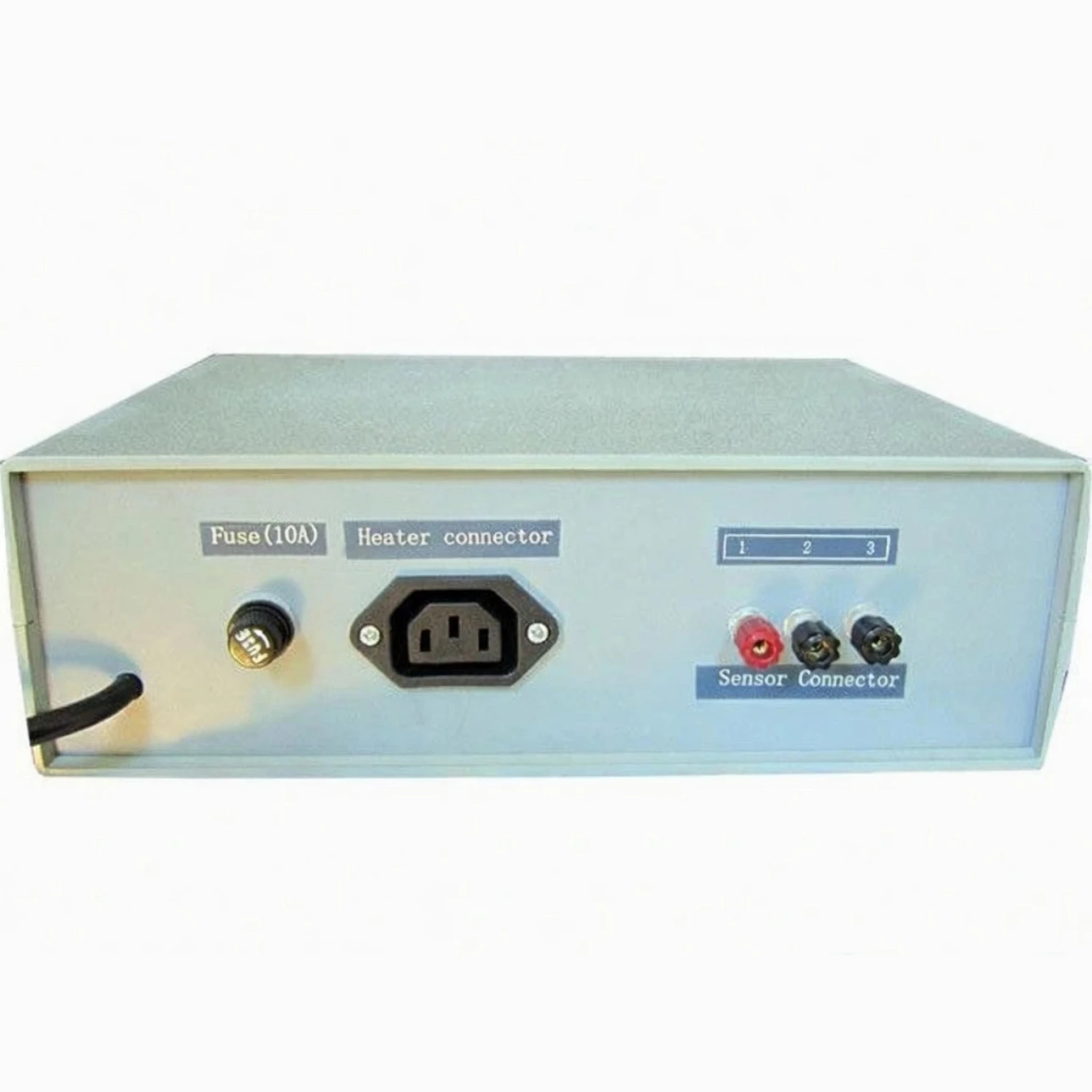

- One WK-1 digital temperature controller
Important
- Always wear protection goggles during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never apply pressure beyond 300 tons
| Electrical Requirements | 110V 60Hz 800 watts |
| Maximum Pressure | 300 tons |
| Maximum Temperature | 250°C |
| Rockwell Hardness | Rc 62 |
| Diameter (ID) | 76 mm |
| Sleeve Diameter (OD) | 160 mm |
| Height | 135 mm (assembled without sample) |
| Max. Load Height | 30 mm |
| Temperature Step | 1°C |
| Temperature Sampling | 3 times per second |
| Accuracy | +/- 1% |
| Working Environment | 0-50°C, <35% RH humidity |
| Pressing Die Tolerance | 0.01-0.02 mm (10-20 micron) |
| Material | Cr12 hardened carbon mold steel |
