25mm ID Round Easy-Retrieve Dry Pressing Die Set
Reference: SDS25.K
Manufacturer: Across International

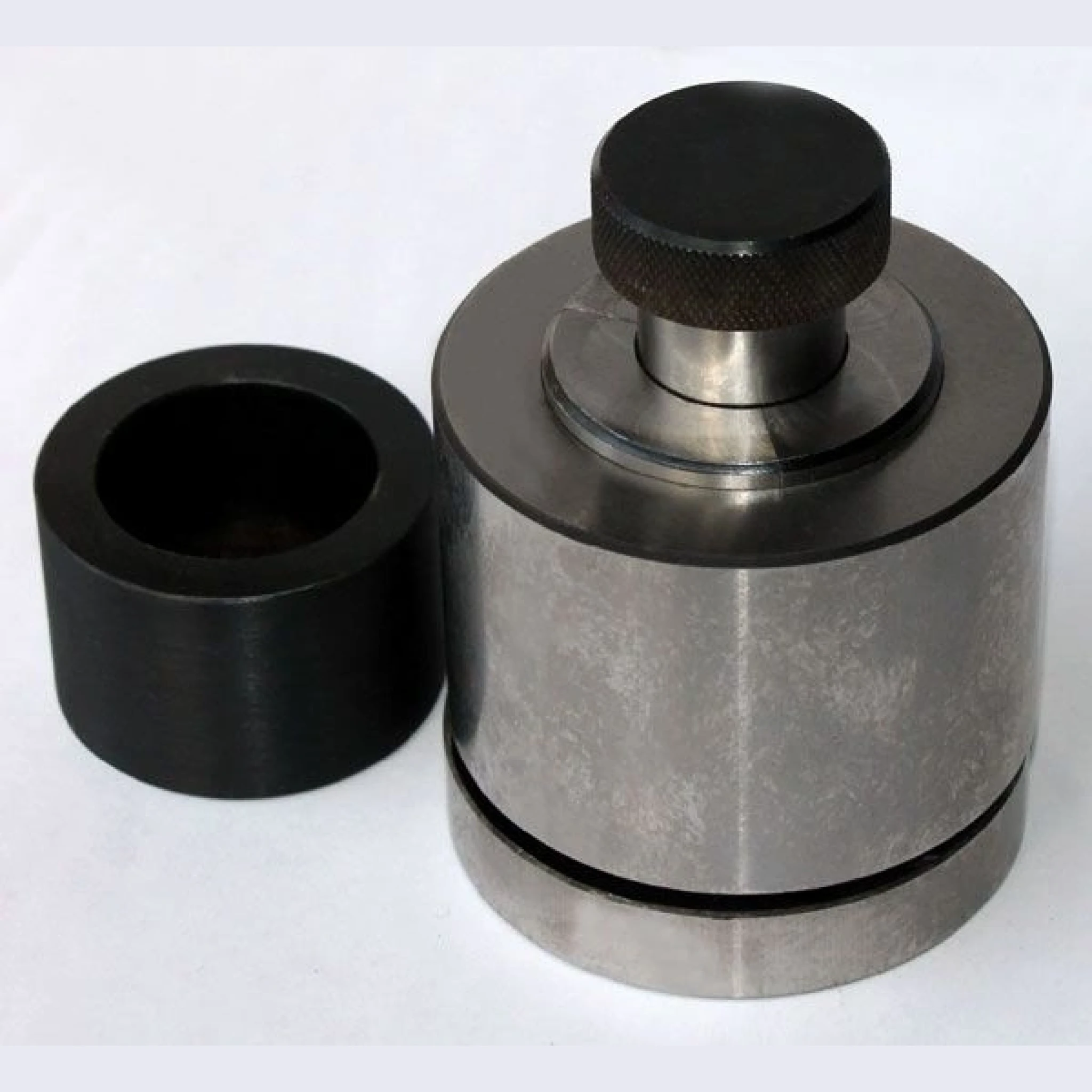

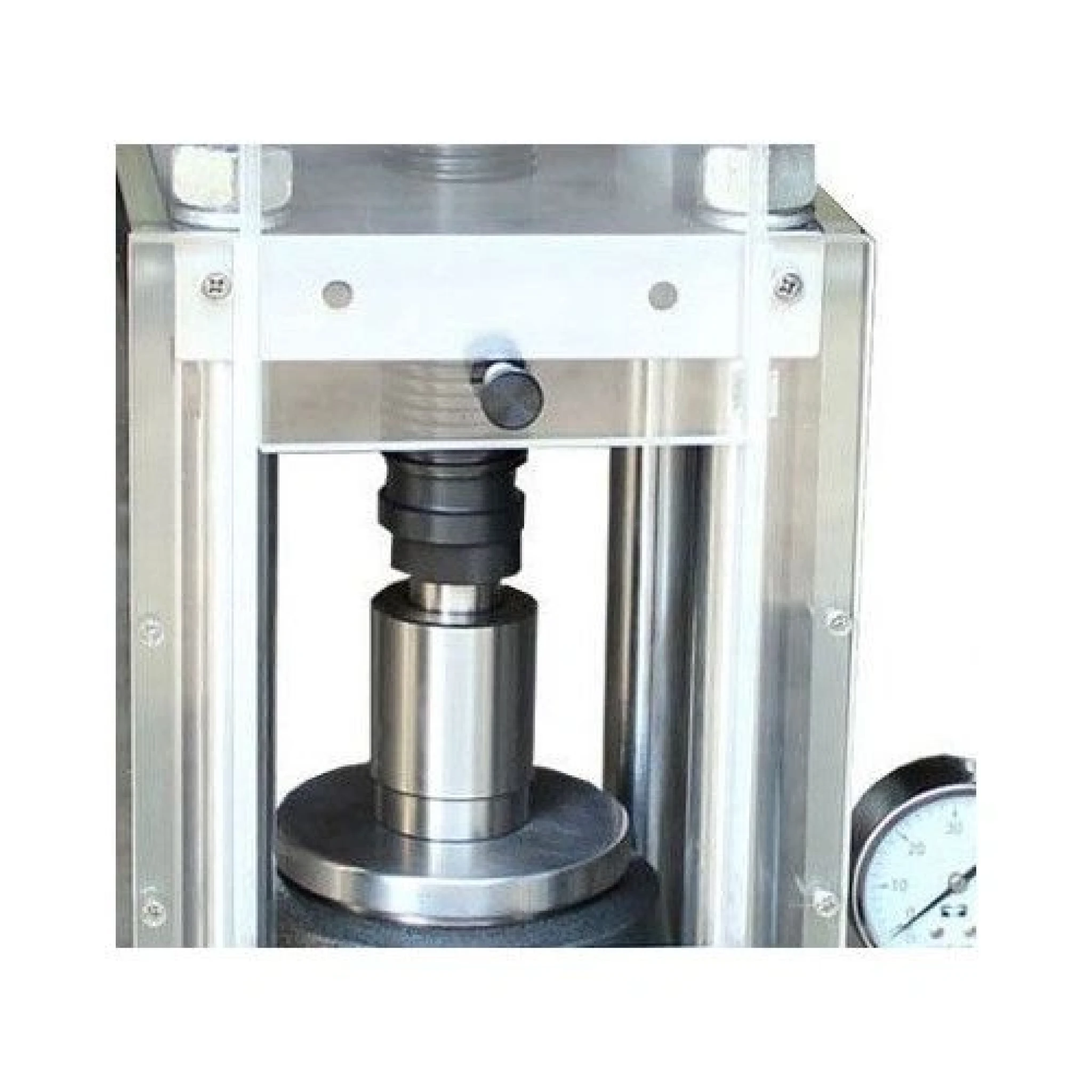

A set of round easy-retrieve 25mm diameter (ID) hardened steel trapezoidal split sleeve dry pressing die set for pellet presses, ready for you to make 25mm diameter cylinder-shaped pellets.
These die sets are professionally built for you to work with samples that tend to stick to the inner surface of the sleeve, trapezoidal split inner sleeves with pellet ejector make sample releasing a snap.
In stock
Payment Providers

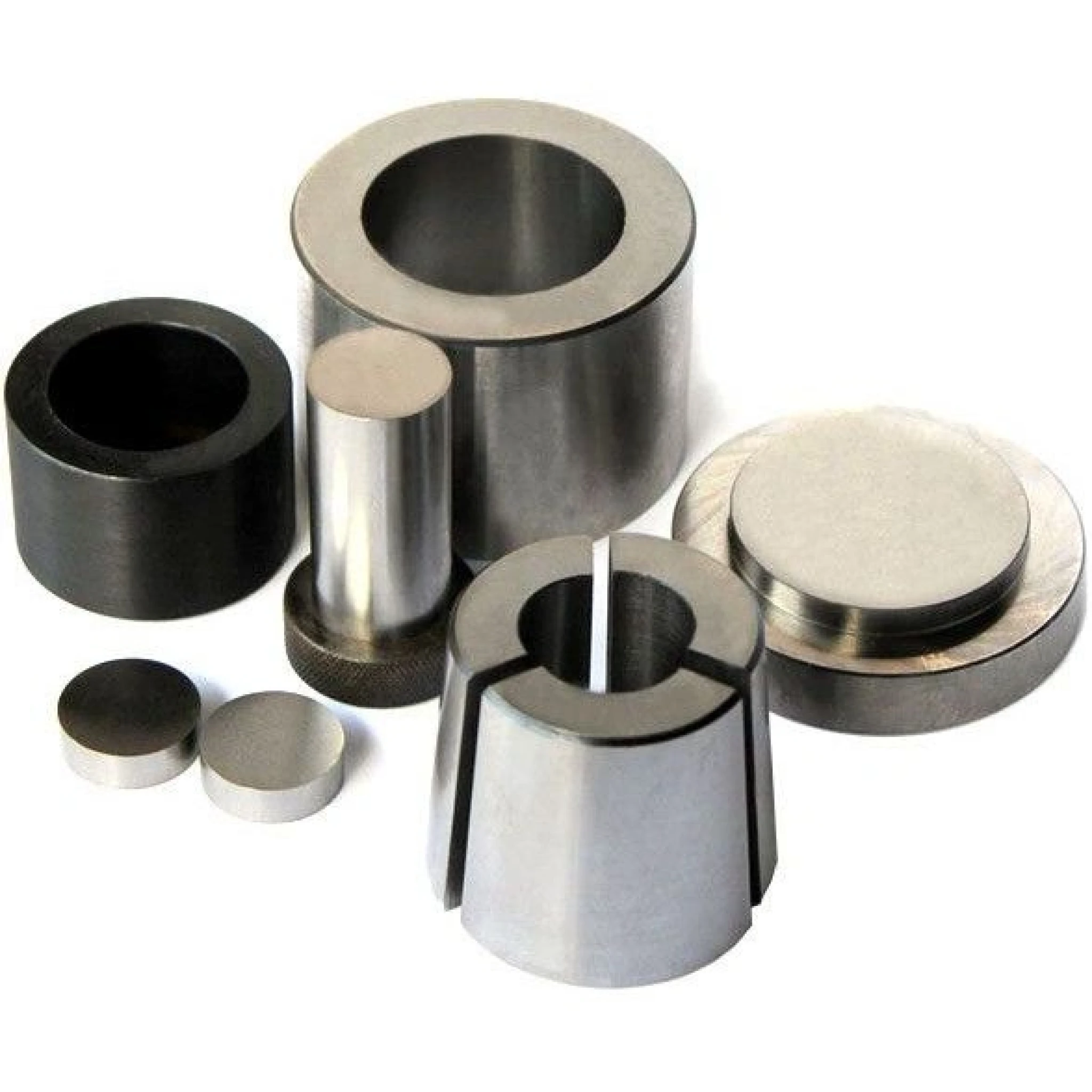

Die set includes
- Two 25mm diameter cylinder-shaped core dies made of highly polished hardened steel
- One outer sleeve with the trapezoidal inner wall
- Three trapezoidal inner sleeves
- One support plate
- One push rod
- One pellet ejector
- One inner sleeve assembly ring (black)
Important
- Always wear protective goggles during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never fill the die more than 2/3 of its sleeve height with your sample and do not apply pressure beyond 30 tons. Across International is not responsible for any damage caused by misuse.
| Maximum Pressure | 30 metric tons |
| Rockwell Hardness | Rc 62 |
| Diameter (ID) | 25 mm |
| Height | 100 mm (assembled without sample) |
| Sleeve Height | 53 mm |
| Sleeve Diameter (OD) | 70 mm |
| Trapezoidal Sleeve OD (top) | 25 mm |
| Trapezoidal Sleeve OD (bottom) | 31 mm |
| Weight | 6.5 lb |
| Tolerance | 0.01-0.02 mm (10-20 micron) |
Material: Core die & push rodSleeve, ejector & support |
|
Max sample fill height | Not to exceed 2/3 of the sleeve height |
