50mm Diameter ID Vacuum Dry Pressing Die Set
Reference: SDS50.V
Manufacturer: Across International
A set of 50mm diameter (ID) hardened steel dry vacuum pressing die set for pellet presses, ready for you to make 50mm diameter cylinder-shape pellets in a vacuum condition.
In stock
Payment Providers

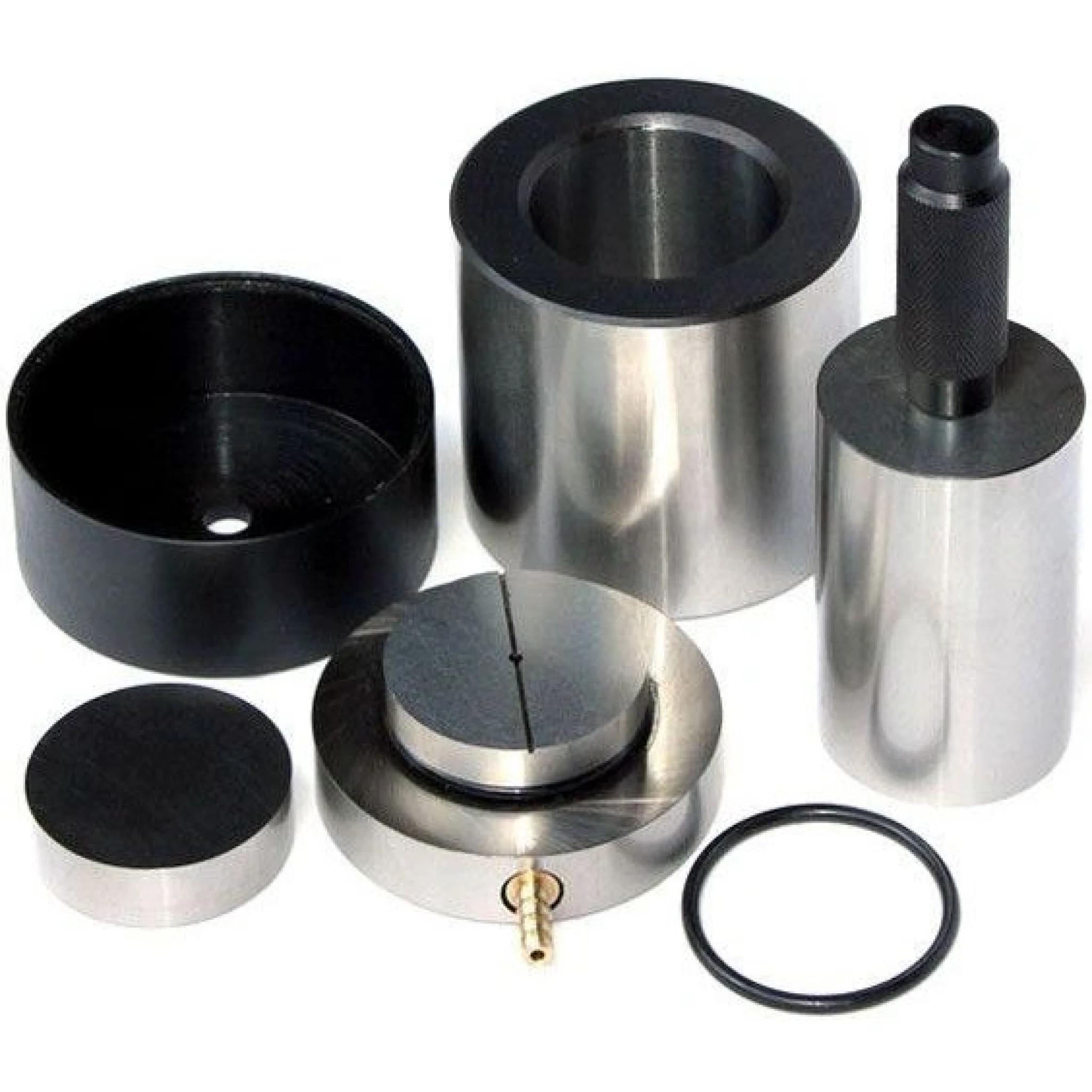

Die set includes
- One 50mm diameter core die
- One sleeve
- One support base with 1/4" hose barb vacuum connection
- One push rod with detachable handle
- Rubber sealing gasket
- One pellet ejector
- One aluminum carrying case
Important
- Always wear protection goggles during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 100 tons. Across International is not responsible for any damage caused by misuse.
| Maximum Pressure | 100 tons |
| Rockwell Hardness | Rc 62 |
| Diameter (ID) | 50 mm |
| Sleeve Height | 76 mm |
| Sleeve Diameter (OD) | 83 mm |
| Height | 123 mm (assembled without sample) |
| Tolerance | 0.01-0.02 mm (10-20 micron) |
| Material | Cr12 hardened carbon mold steel |
| Max sample fill height | Not to exceed 1/3 of the sleeve height |
