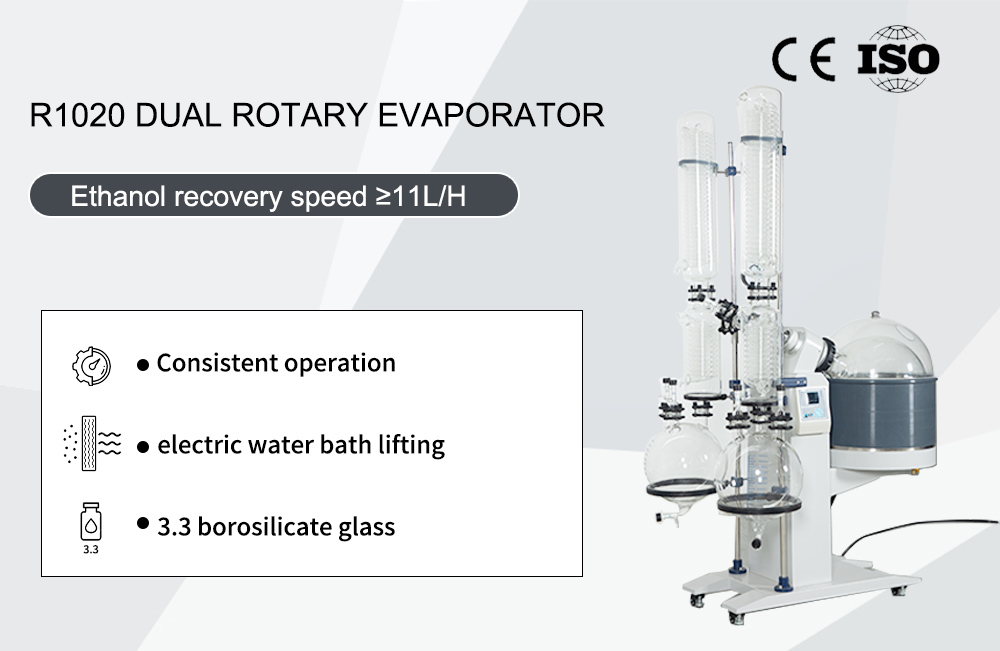

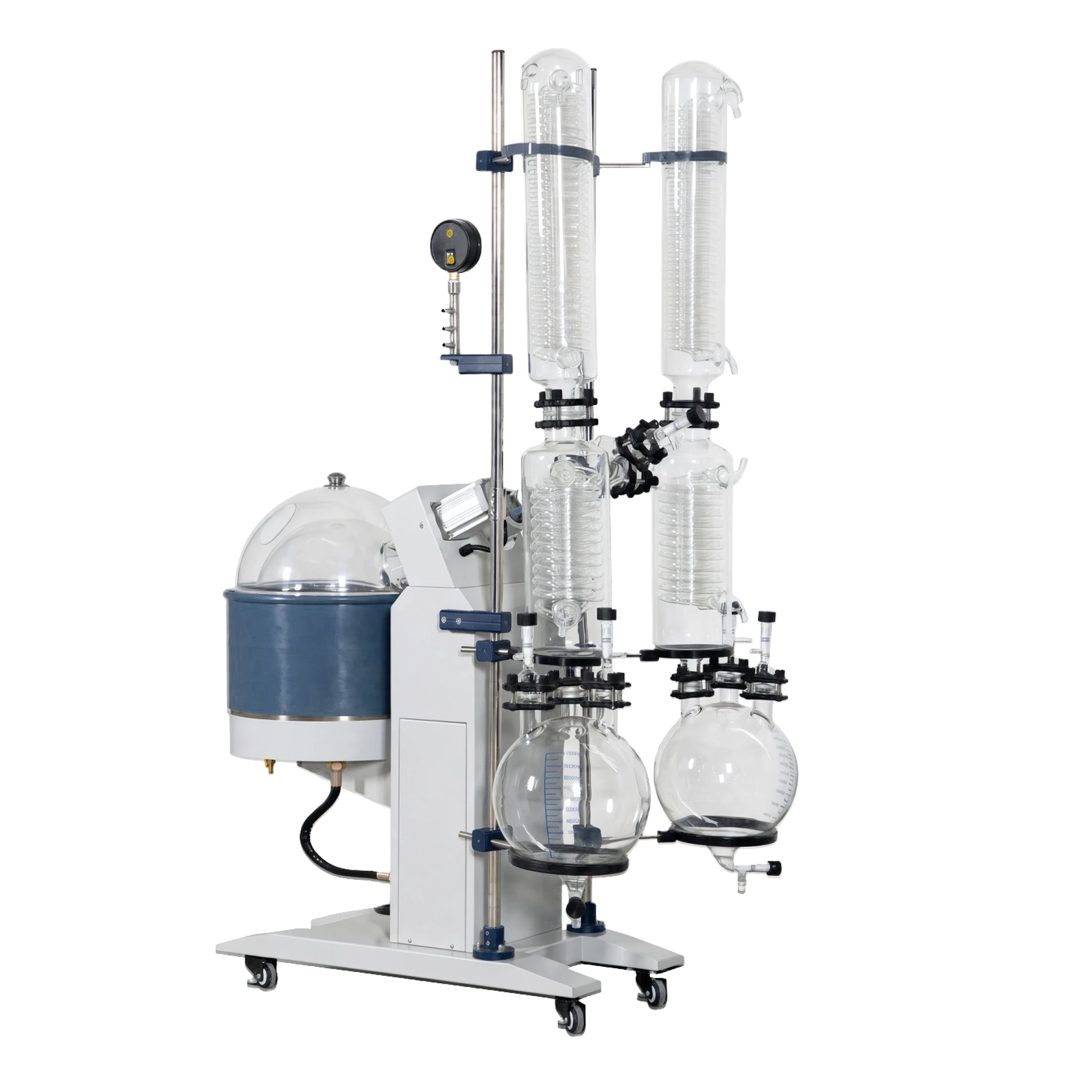

Science King 20L Dual Condenser Rotary Evaporator (R1020 Dual)
Reference: SK-R1020-Dual
Manufacturer: Science King
- 20L boiling flask, two collection flasks
- Dual main and secondary condensers
- 6 kW heated bath with electric lift
- PID digital temperature control
Payment Providers

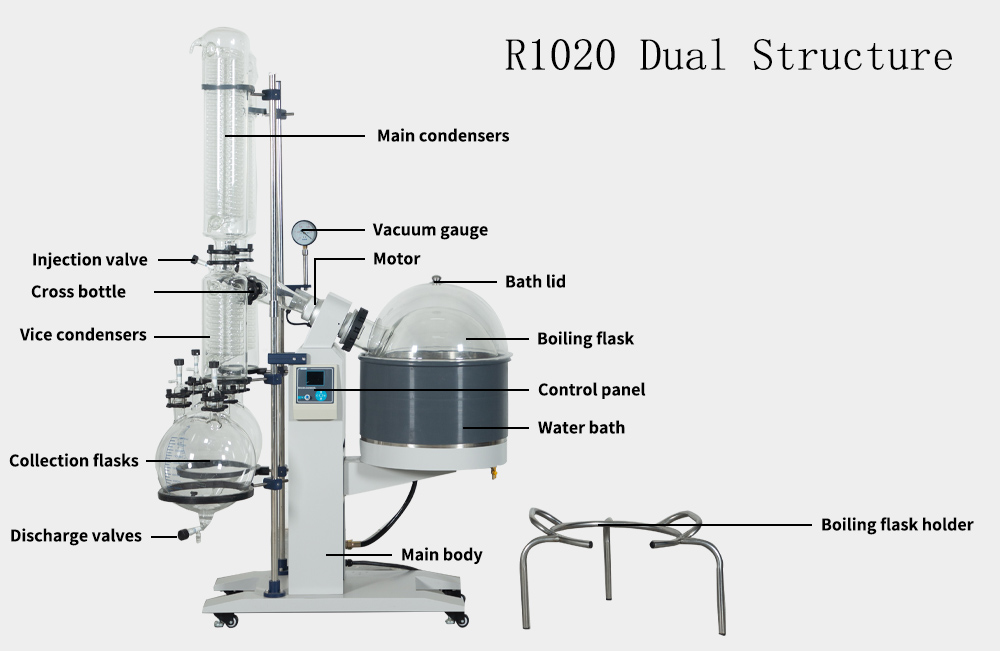

A 20L rotary evaporator with dual condensers: a main and a secondary condenser give about 1.5× the condensing area and more collection capacity, so it recovers solvent faster than a single-condenser unit of the same size.

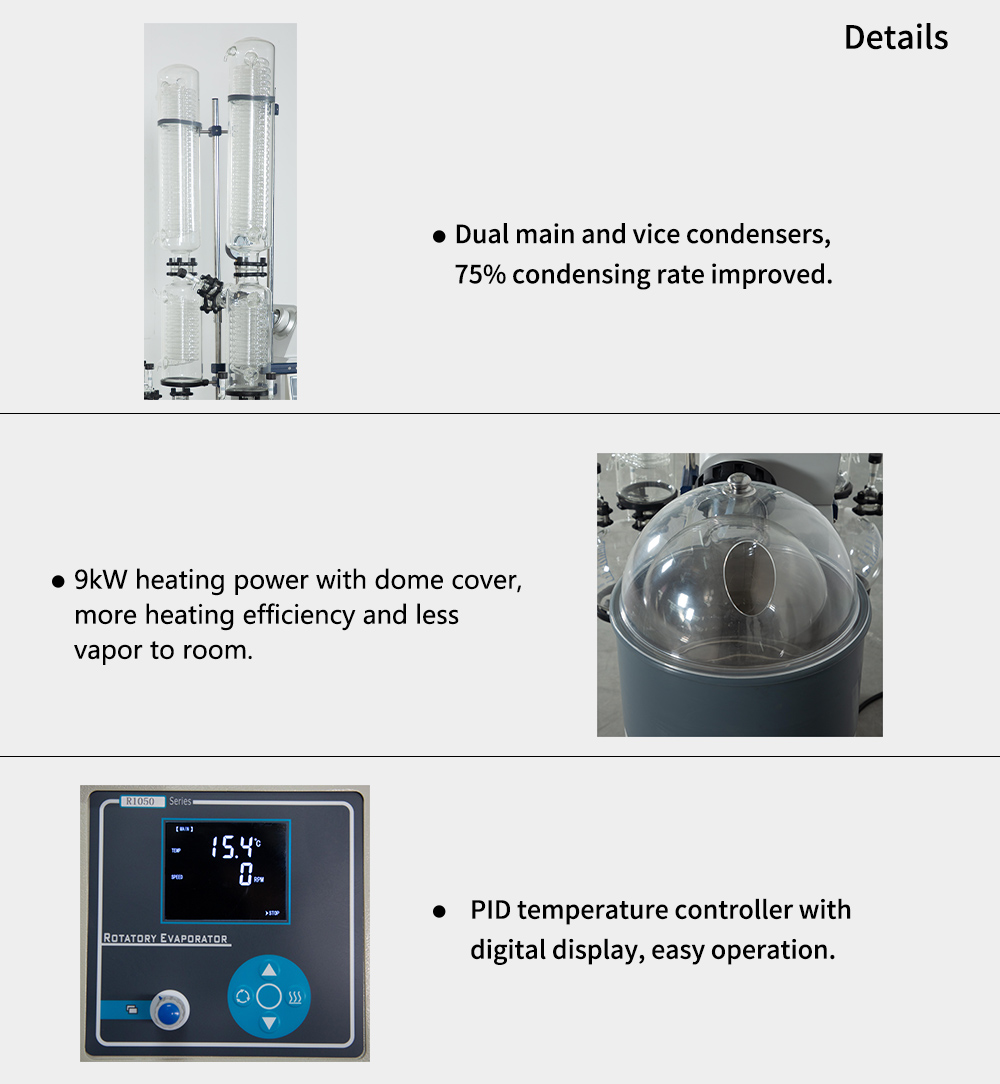

- Dual main and secondary condensers: about 1.5× the condensing area and more collection capacity
- More heating power with a dome cover, faster evaporation and less vapour to the room
- PID temperature controller with digital display
- Electric water bath lifting, 3.3 borosilicate glass
- Manual vacuum valve: no loss of vacuum while discharging
| Model | R1020H (R1020 Dual) |
| Boiling flask | 20 L |
| Collection flasks | 2 × 10 L |
| Heating power | 6 kW |
| Condensing area, main condenser | 1.6 m² |
| Condensing area, secondary condenser | 0.78 m² |
| Evaporation speed, water | 8 L/h |
| Evaporation speed, ethanol | 16 L/h |
| Rotation speed | 20 to 130 rpm |
| Rotation speed control | DC stepless |
| Motor power | 250 W |
| Temperature control | Digital control, RT to 99 °C |
| Max. vacuum | 399.9 Pa |
| Bath dimensions | φ450 × 260 mm |
| Bath material | SUS304 |
| Bath lift | Electrical |
| Lift stroke | 0 to 190 mm |
| Overall size | 1250 × 600 × 1870 mm |
| Voltage | 220 / 380 / 460 V three phase |
| Frequency | 50/60 Hz |
| Ambient temperature | 5 to 35 °C |
