5L Rotary Evaporator - Science King
Reference:
Manufacturer: Science King

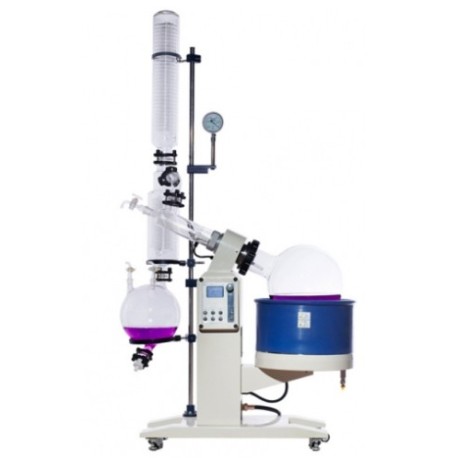

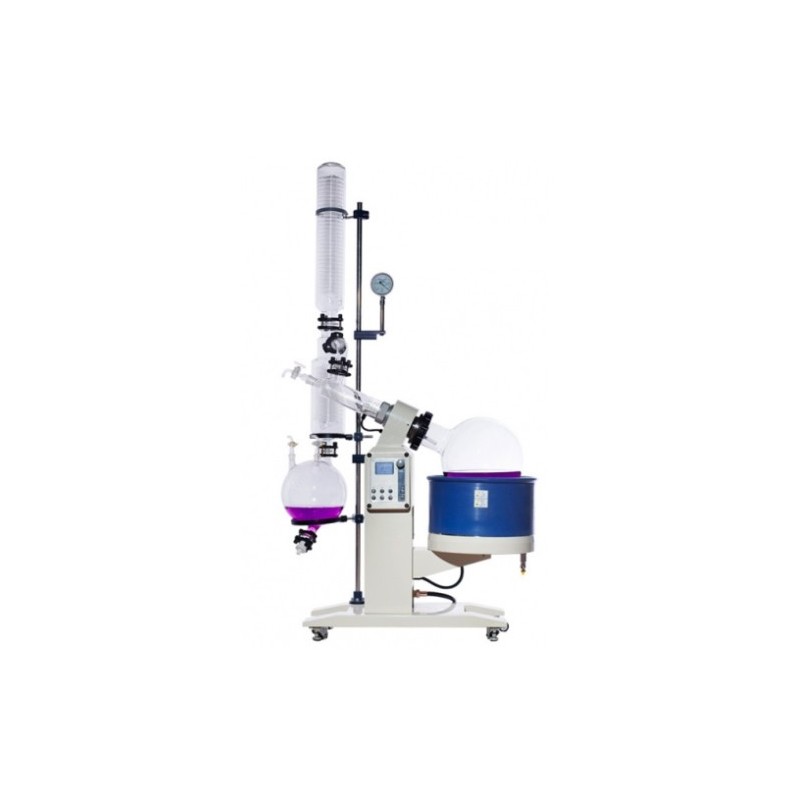

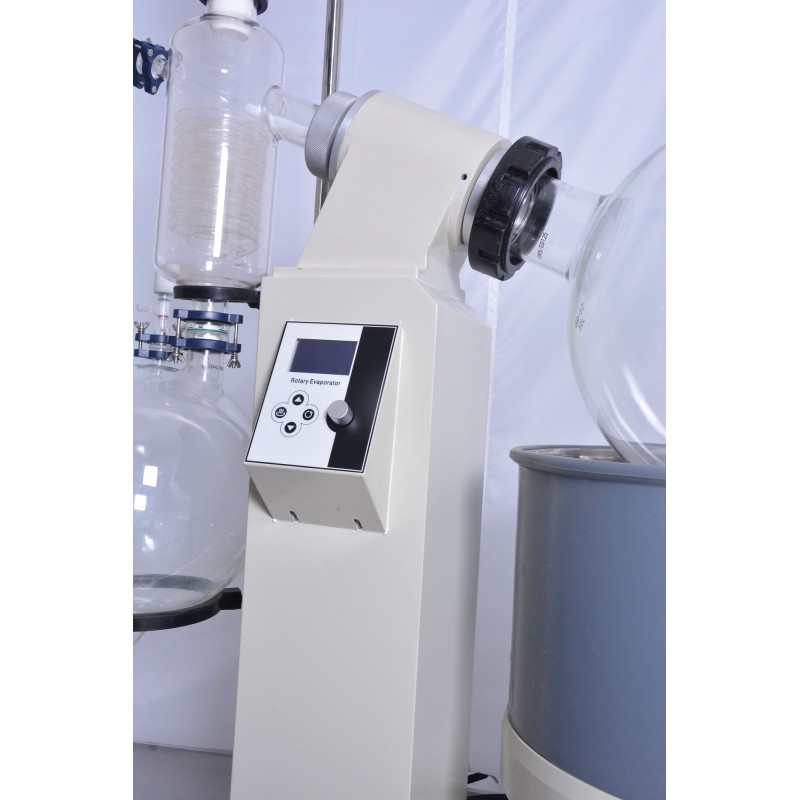

The Science King 5L is a 5 Liter Rotary Evaporator system that uses the different boiling points of materials to separate the solvent material from a mixture.
In stock
|
CPS Pro-Set VPS12DU 12 CFM 2-Stage Ignition Proof Vacuum Pump | +CAD $1,098.87 |
|
Ai SST -20°C to 99°C 7L Compact Recirculating Chiller | +CAD $4,522.70 |
|

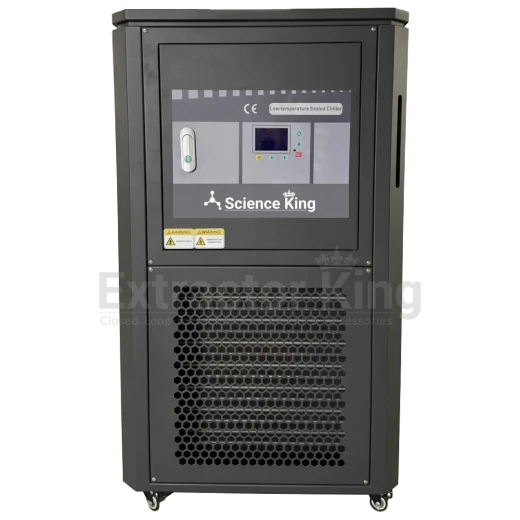

-30 10L Capacity 20L/M Recirculating Plate Chiller - Science King | +CAD $10,562.00 |
|
Ethylene Glycol Inhibited Industrial Grade -50c | +CAD $272.81 |
Customize your product

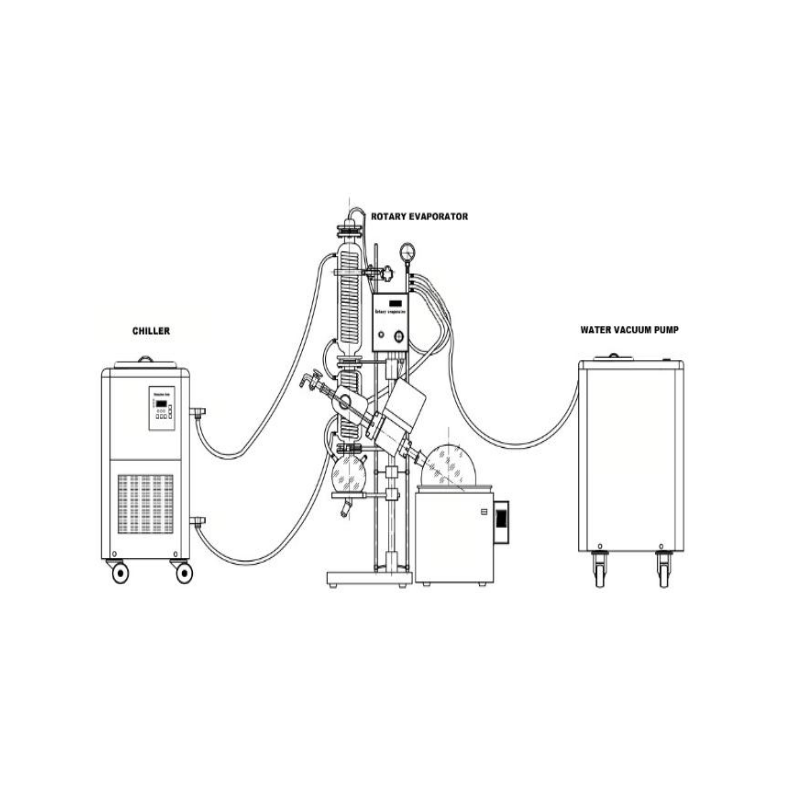

We recommend matching each Rotary Evaporator with a matching vacuum pump and chiller from options above. A proper vacuum pump can keep the system at better vacuum degree and lower the boiling point of the liquid. A matching chiller can cool the condenser better and improve the efficiency of collections. The Pro Series Rotary Evaporators are widely used in processing Concentration, Refining, Separation, Crystallization, etc. and are mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades.
Pro-5L Specifications:
Features:

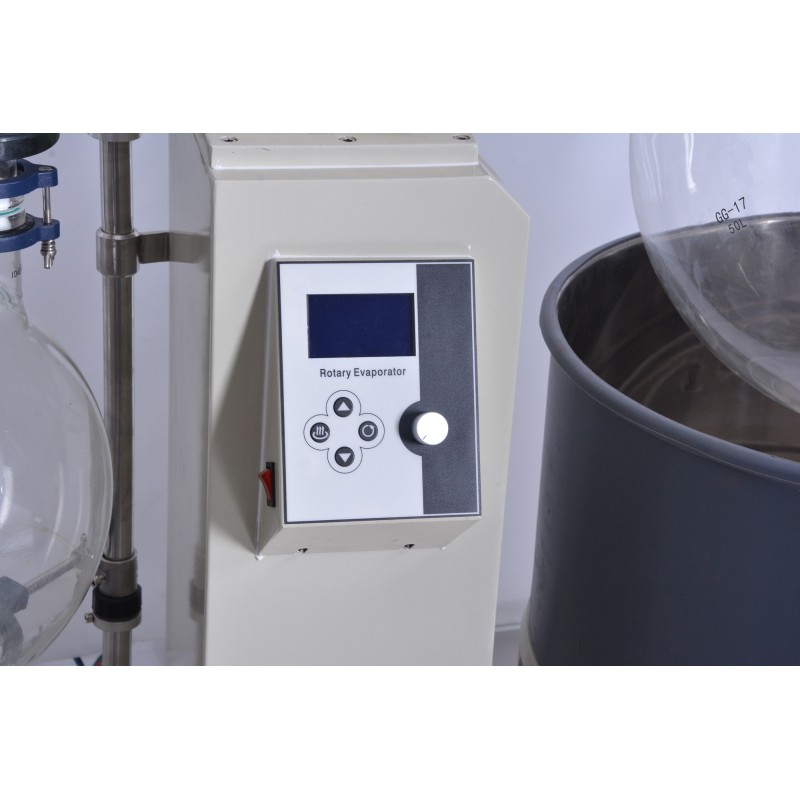

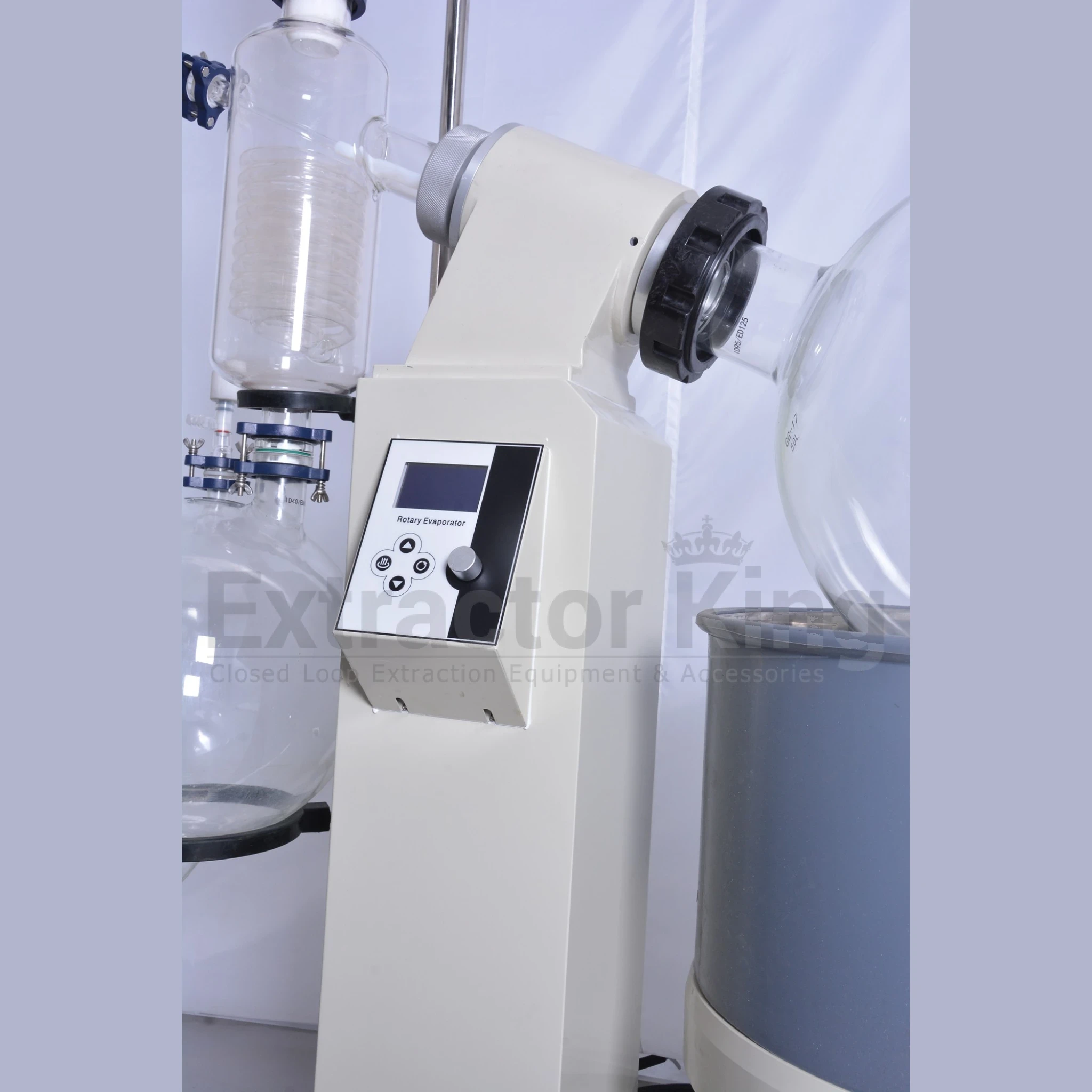

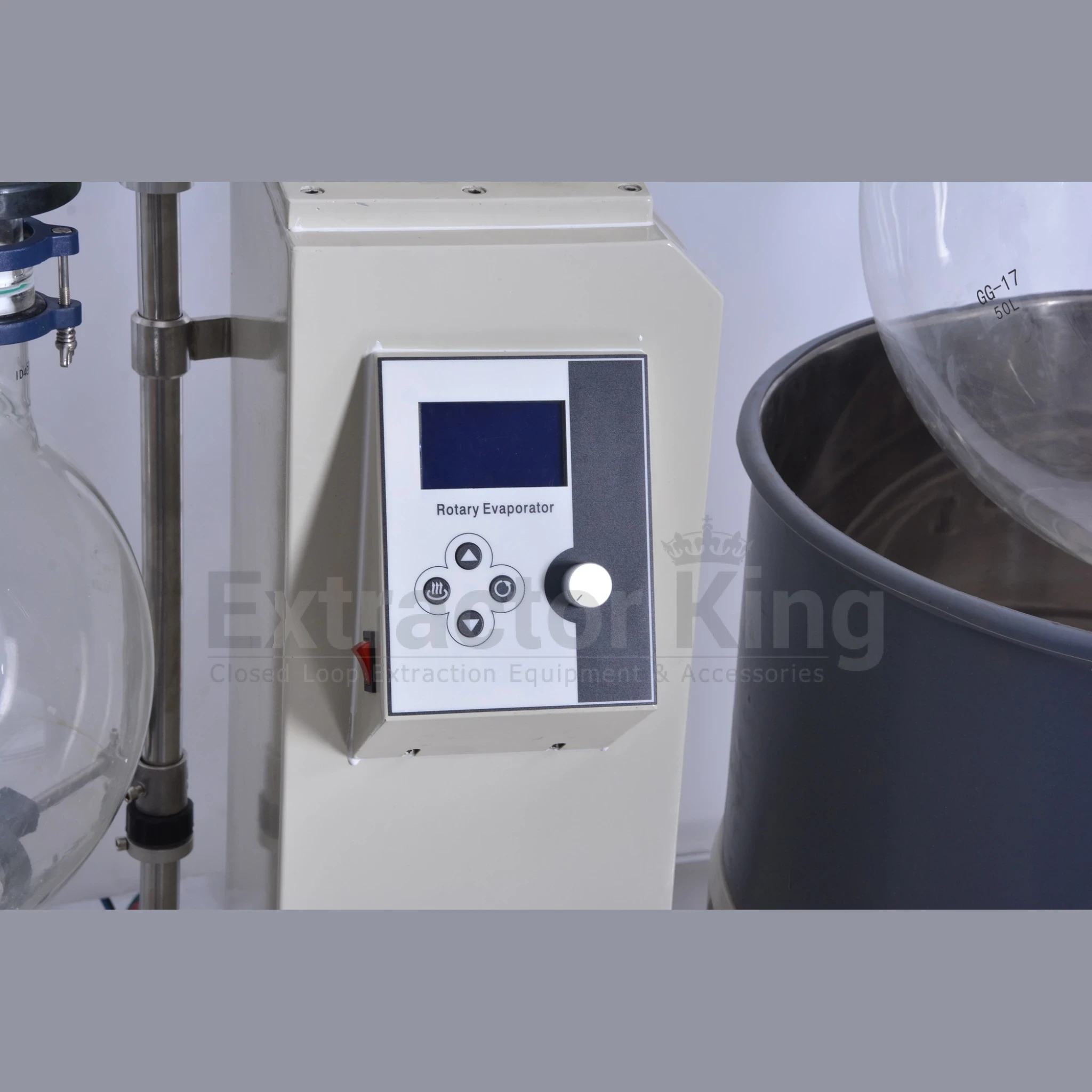

- Digital PID temperature and rotation speed controls

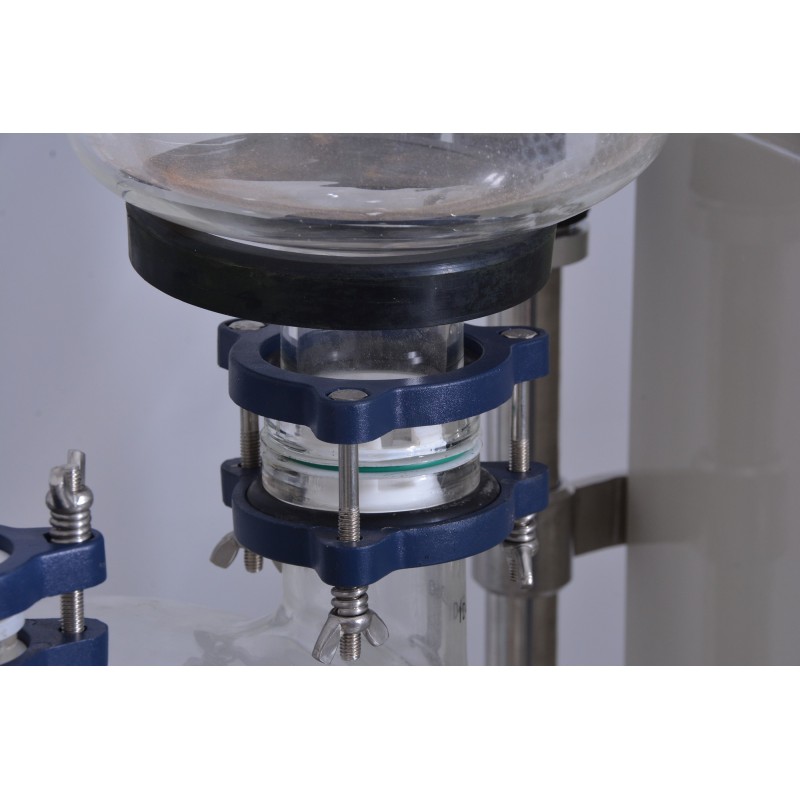

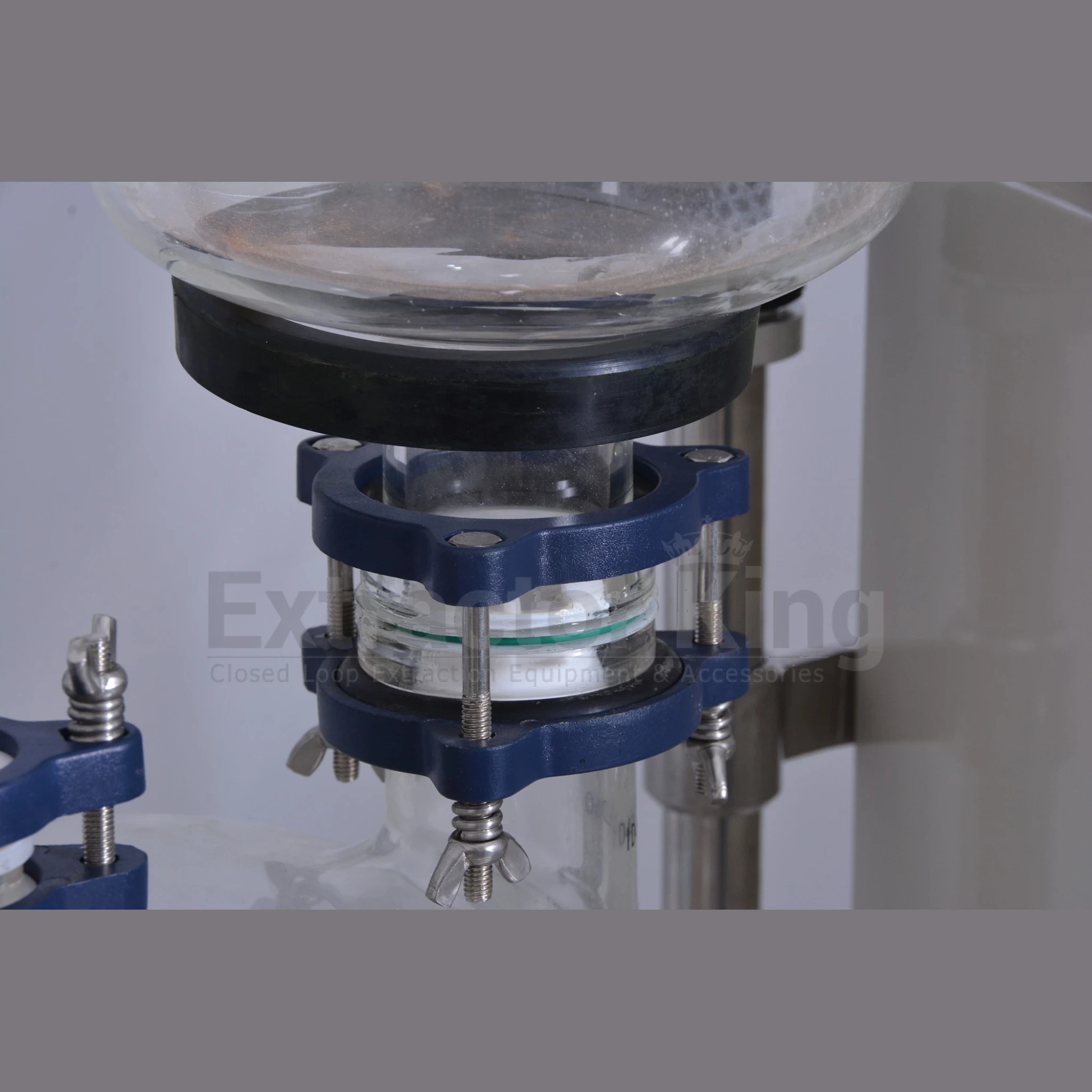

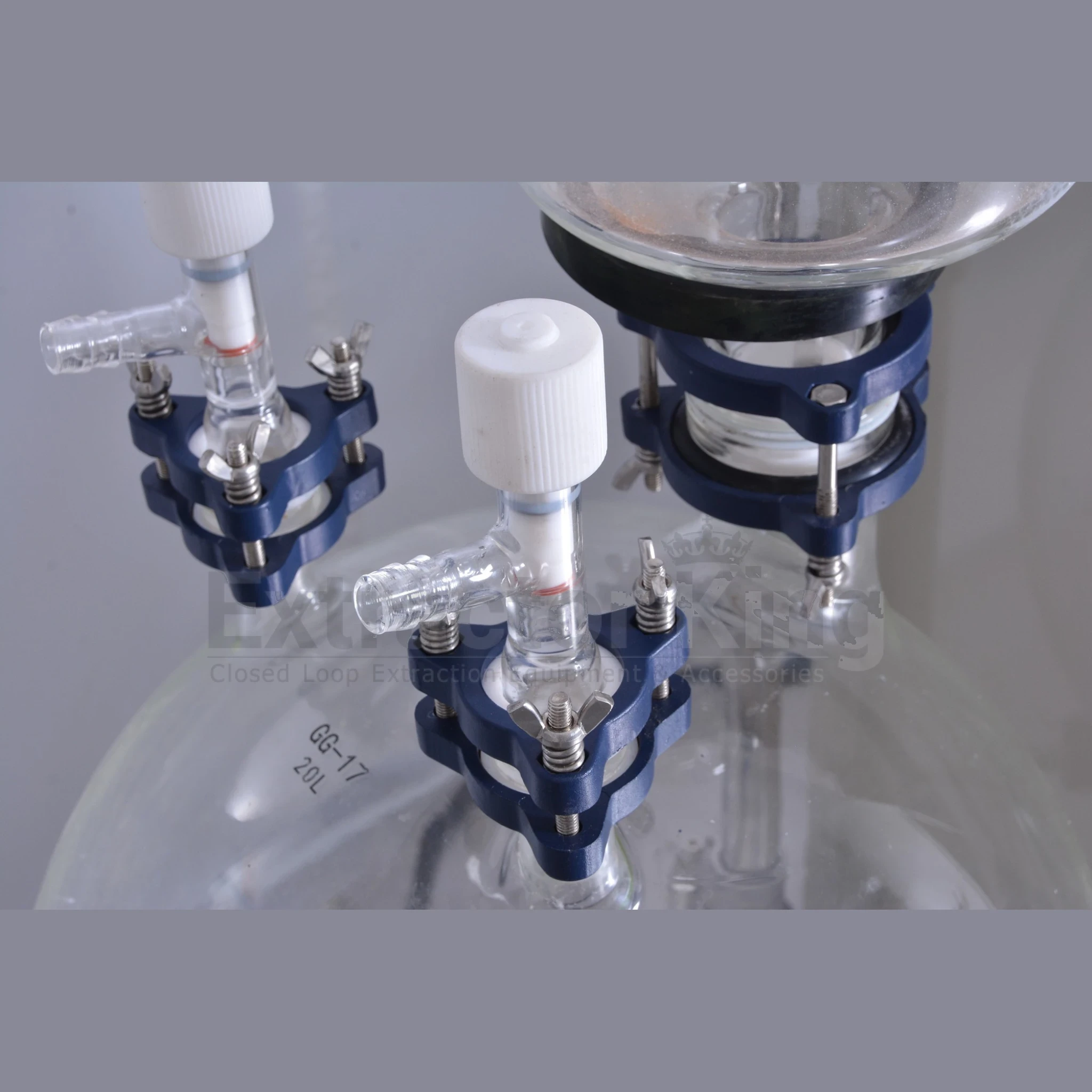

- All PTFE valves for improved lifespan and chemical resistance

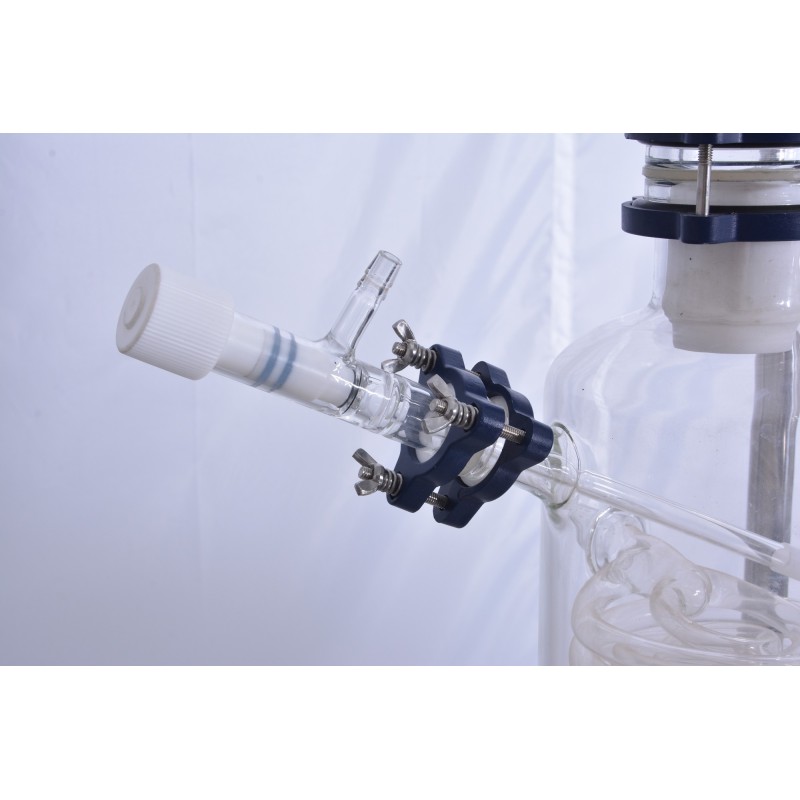

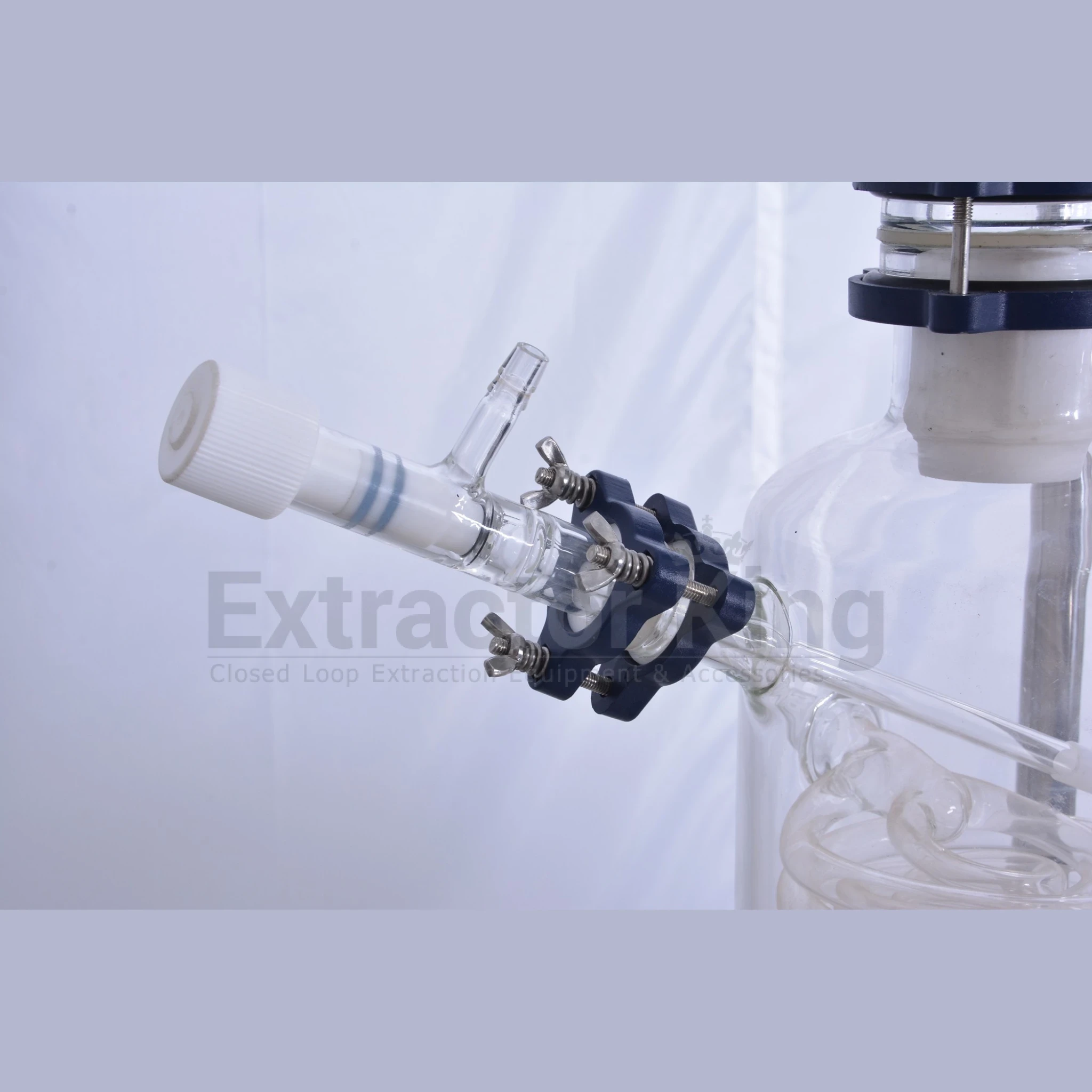

- Direct injection capability for continuous feeding of solution
- Smaller footprint for improved workspace allocation
- Receiving flask drain port for easy draining

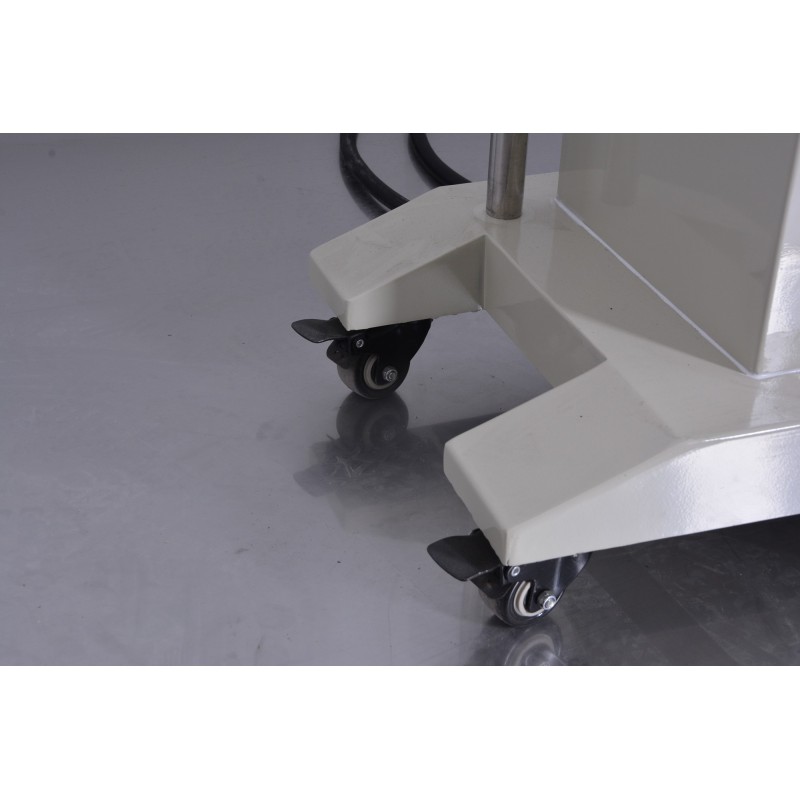

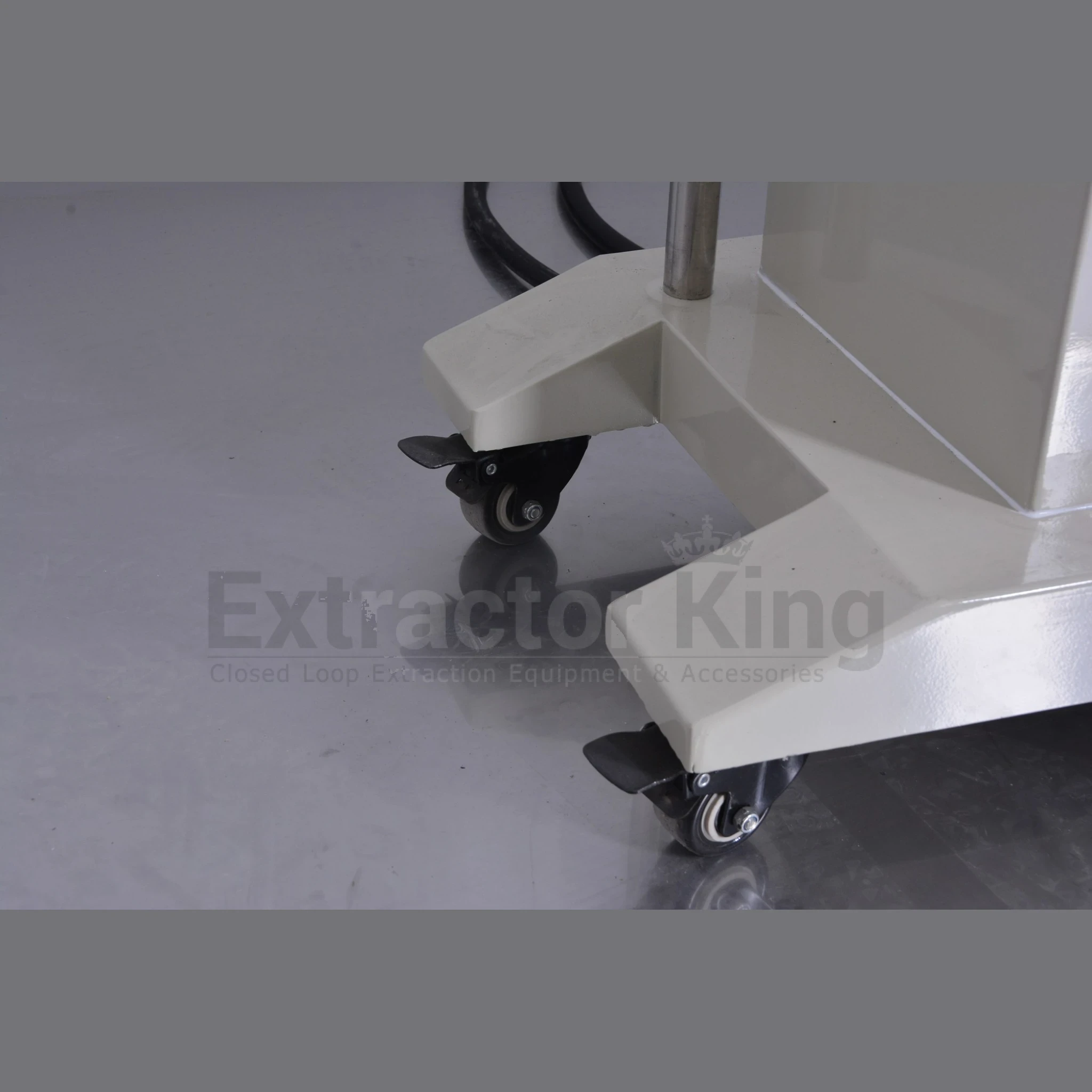

- Mobility with locking casters
- Electric lifting bath
- CE Certified
- 1 year warranty on all mechanical parts. Does not include glassware.
| Model | Science King 5L Rotary Evaporator |
| Optimum Ambient Temperature | 5~25C / 41~105.8F |
| Glass Material | GG-17 High Borosilicate |
| Power | 220V single phase (3 phase available on request) |
| Plug | NEMA 5-20 |
| Speed Regulatior | Digital Step-less Regulation |
| Rotation Speed | 0-120 RPM |
| Set Temperature | 0-99C / 0-210F |
| Temperature Control | Digital Temperature Control |

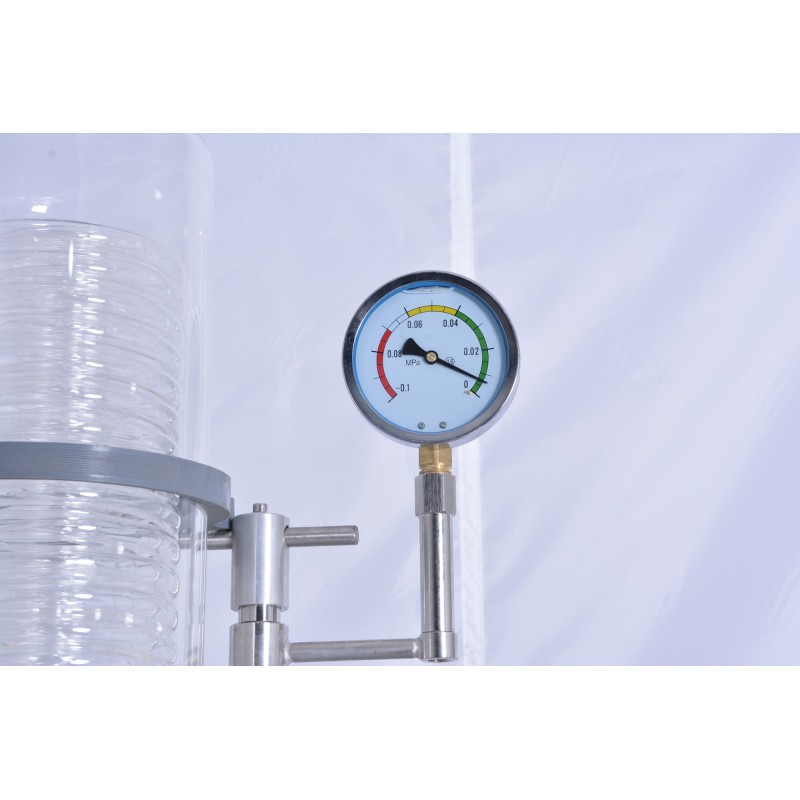

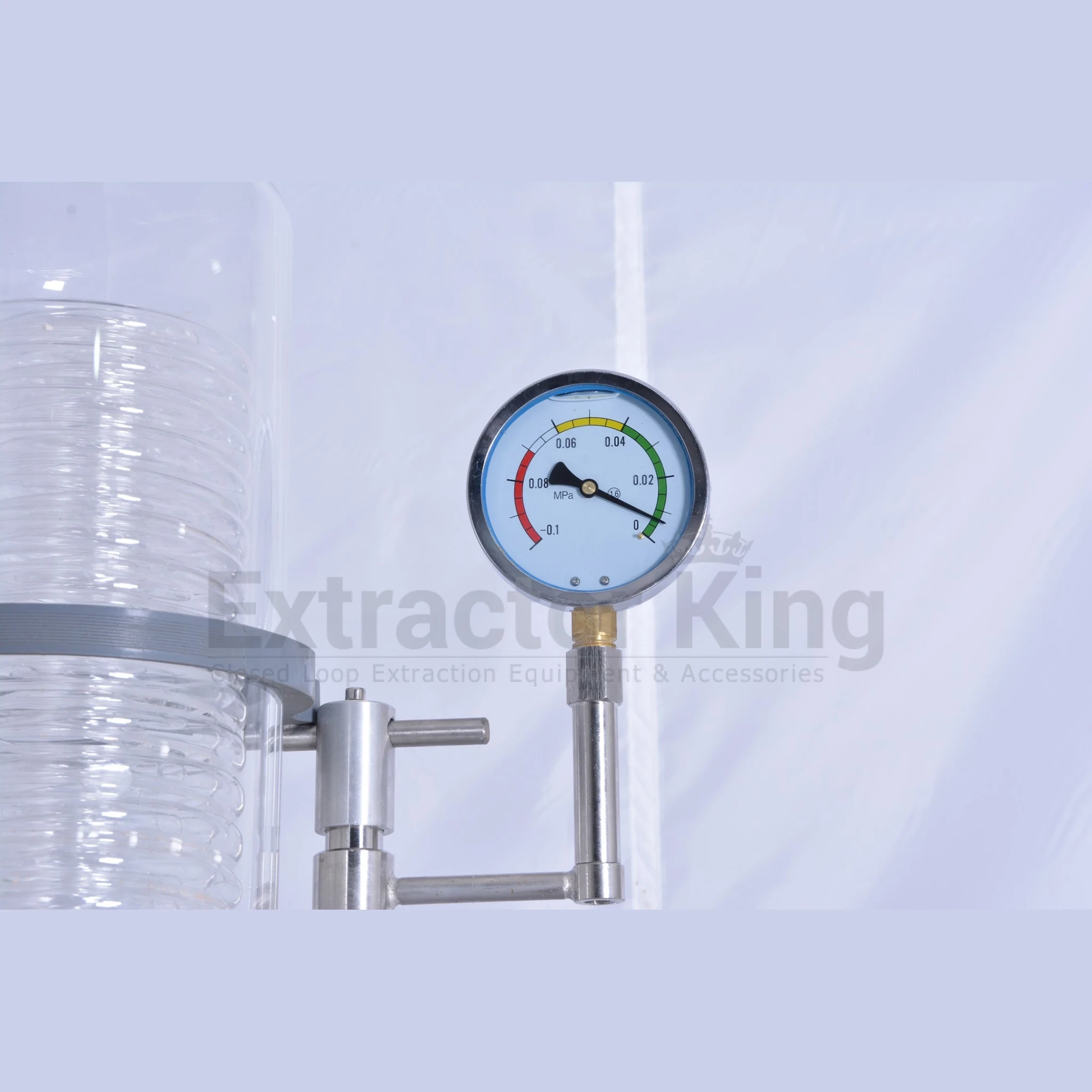

| Maximum Vacuum Pressure | -29.8 inHg |

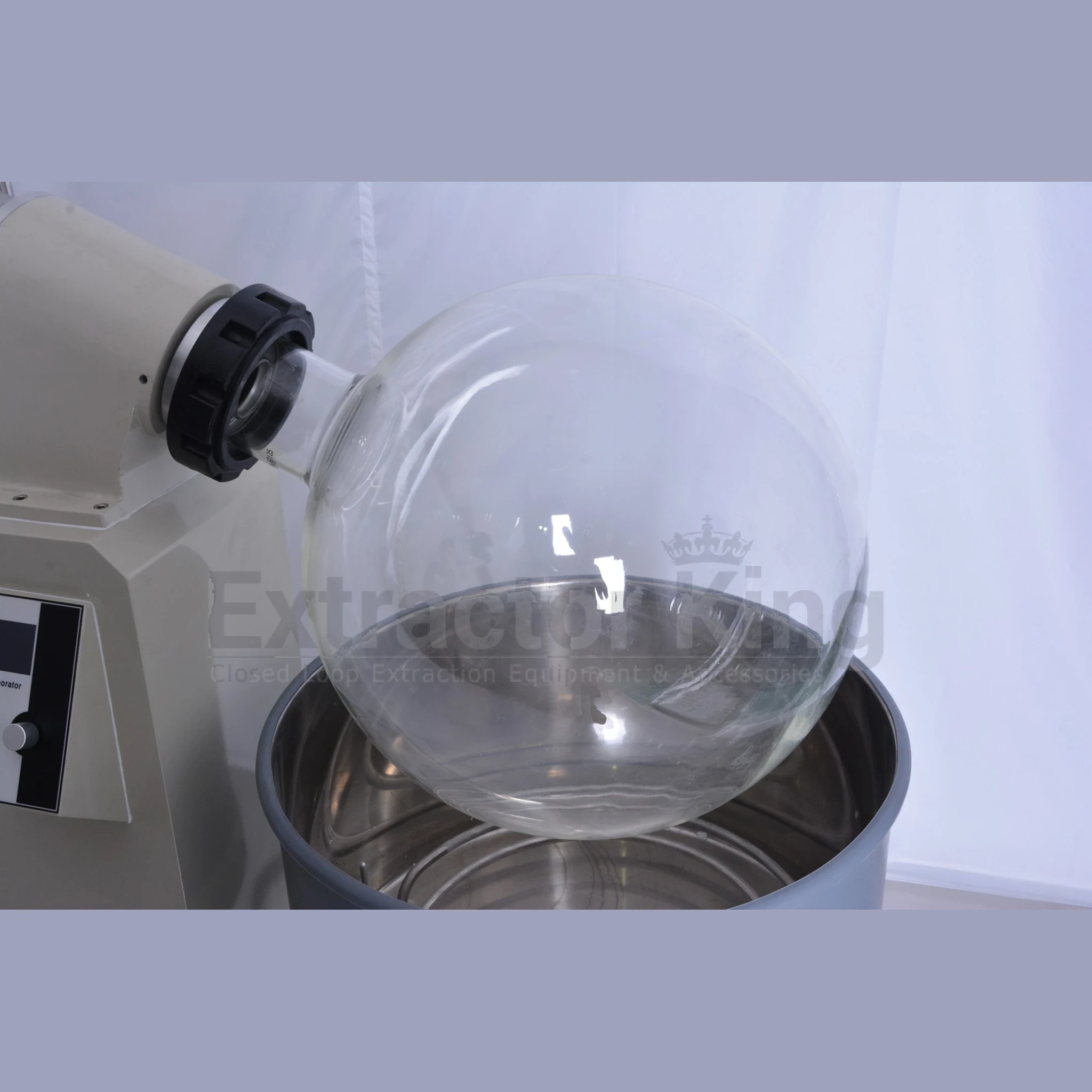

| Evaporating Flask Capacity | 5L (5000ml) |
| Receiving Flask Capacity | 3L (3000ml) |

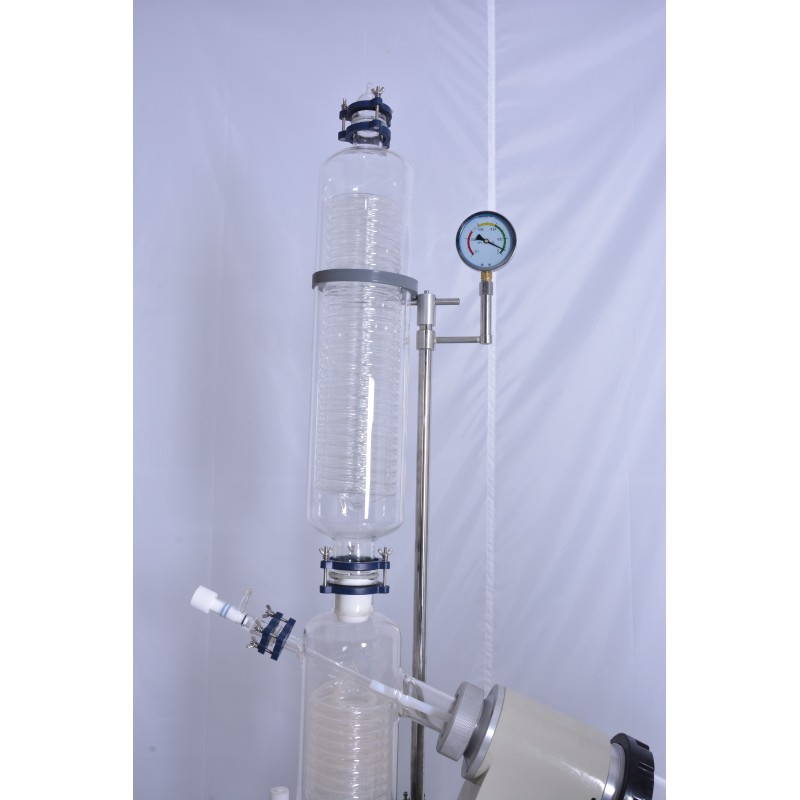

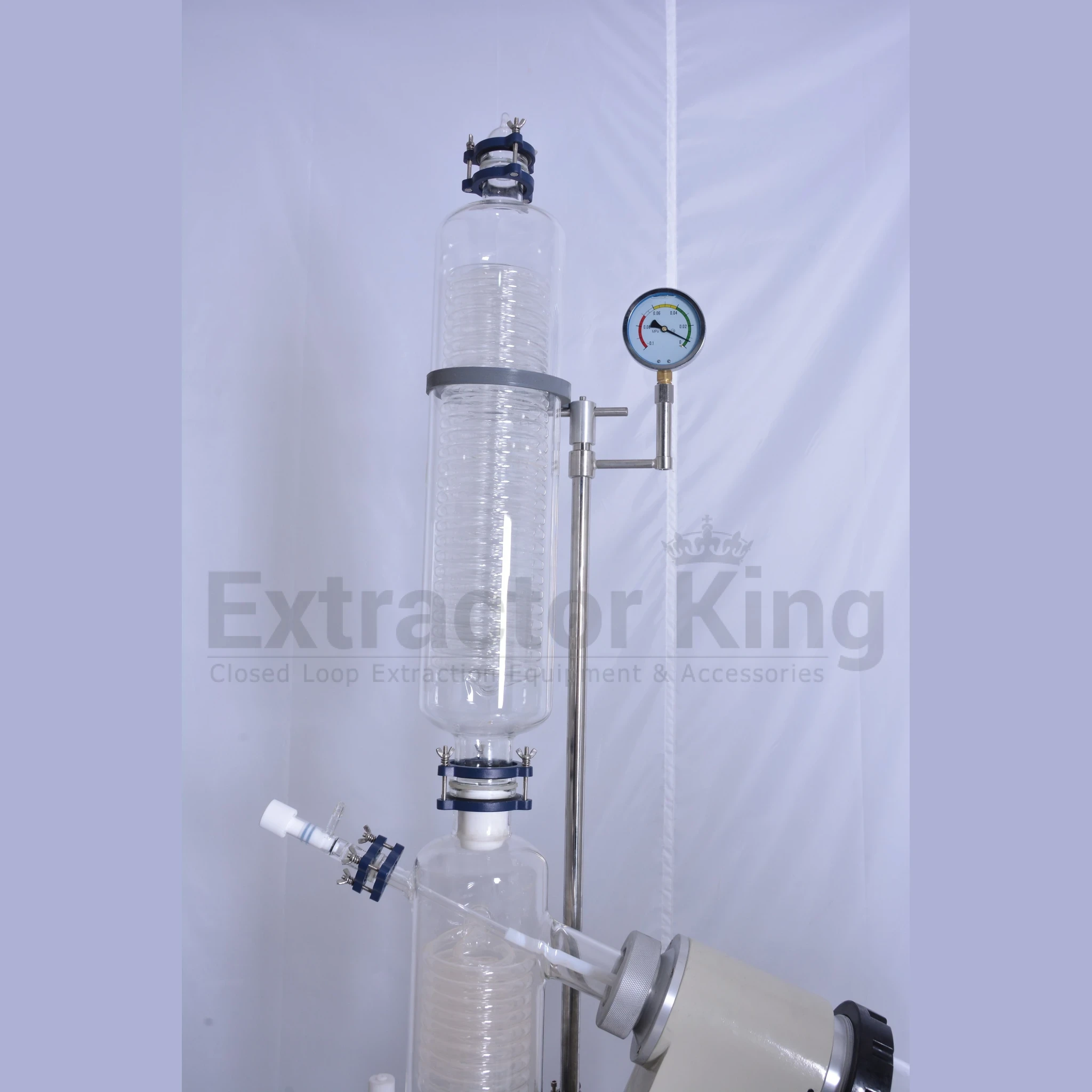

| Condenser Style | Vertical Double Helix |
| Evaporation Capacity | Alcohol >/= 4 L/H |
| Heater Max Current Draw | (Amps): 18.2 |
| Water Bath Material | 304 Stainless Steel |
| Water Bath Size | 11.5 x 7.5 in. |
| Lifting Function | Electric |
| Lifting Stroke | 120mm / 4.7 in. |
| Total Power Consumption (kW) | 2.2 kW |
| Dimensions | 36 x 18 x 54 in. |
| Weight | 90 lbs. |
| Vacuum Connection | 3/8” Barb |
| Condenser Connection | 3/8” Barb |
| Warranty | 1 Year excluding glass parts |
| Certifications | CE |
