USA Lab Spray Dryer 3L
Reference: USA-SD-3L
Manufacturer: USA Lab
The USA Lab Spray Dryer 3L is a versatile laboratory spray drying system designed to convert aqueous solutions, emulsions, and suspensions directly into uniform micro-powders. By atomizing liquid samples into fine droplets and rapidly drying them in a heated…
In stock
Payment Providers
More info

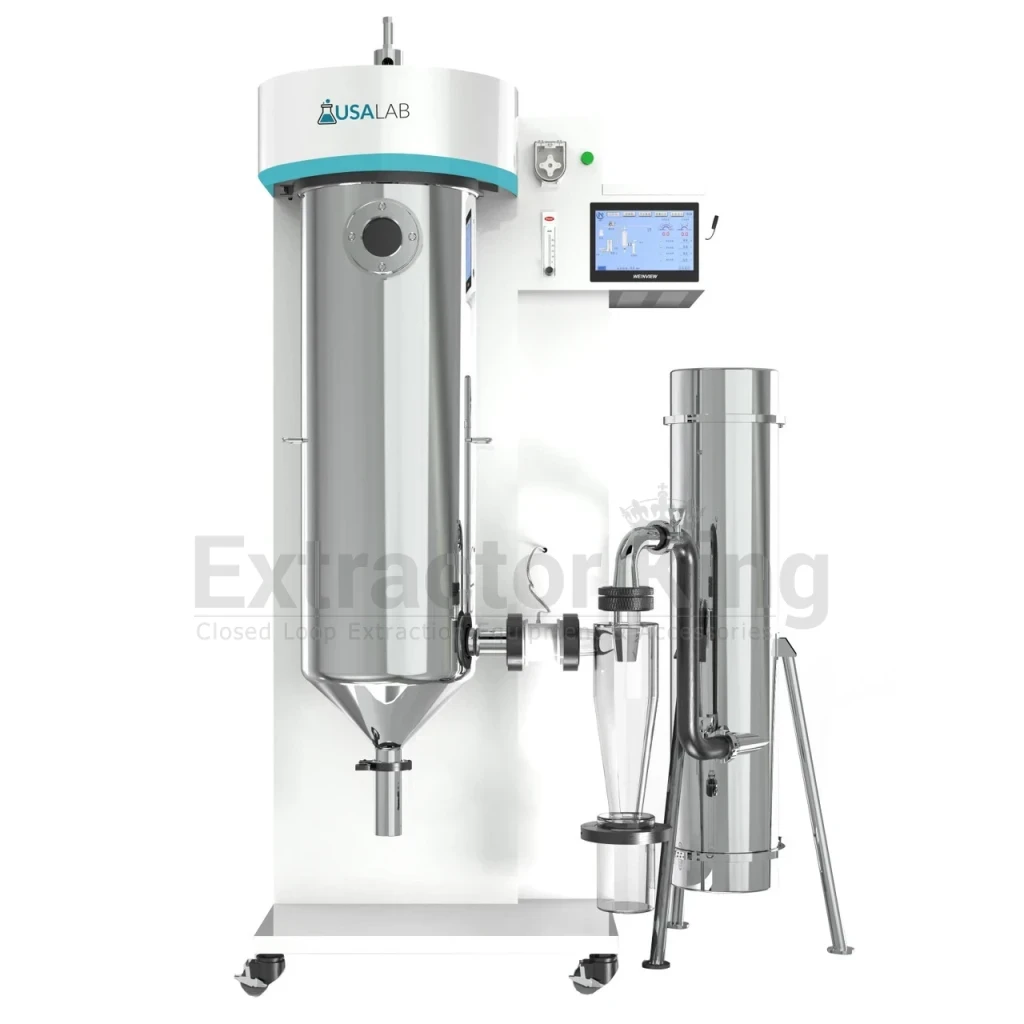

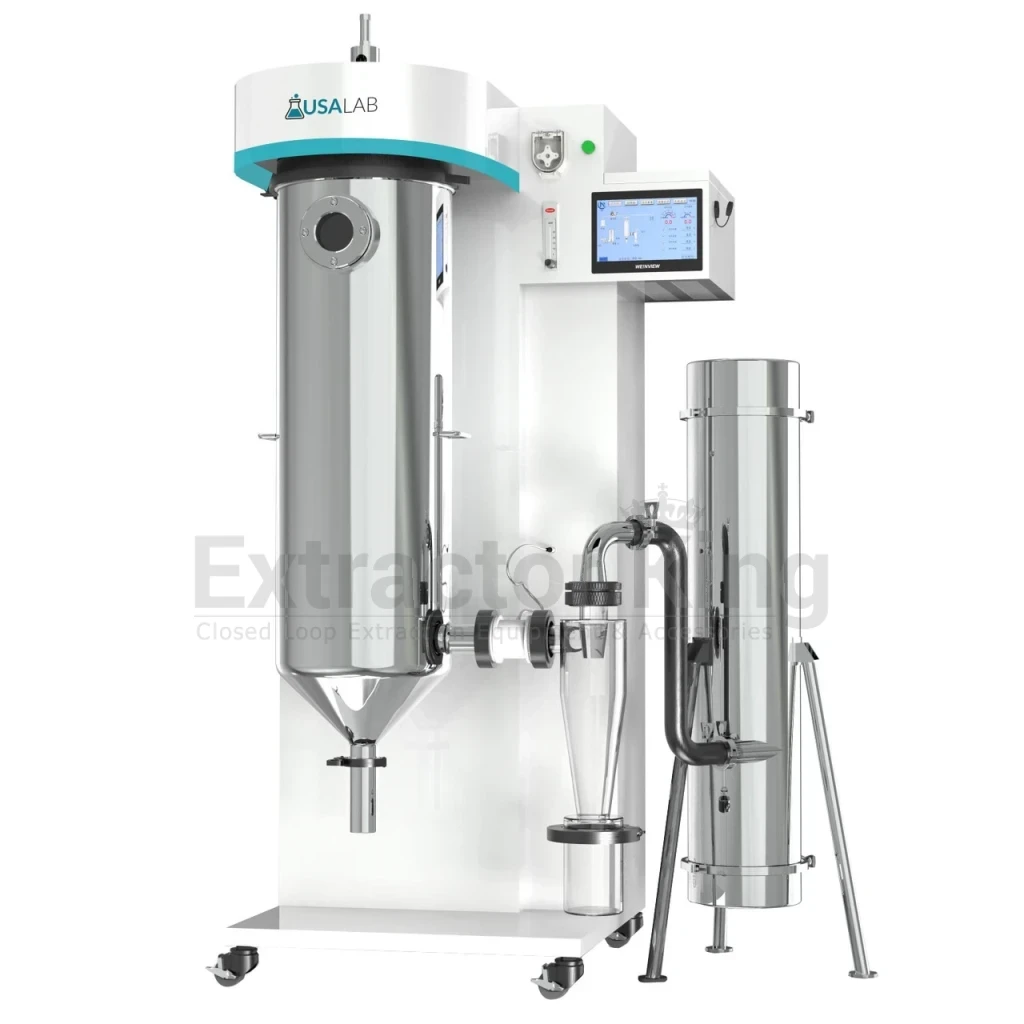

USA Lab Spray Dryer 3L
The USA Lab Spray Dryer 3L is a versatile laboratory spray drying system designed to convert aqueous solutions, emulsions, and suspensions directly into uniform micro-powders. By atomizing liquid samples into fine droplets and rapidly drying them in a heated air stream, the system streamlines sample preparation and powder production.
The USA Lab Spray Dryer 3L features a pneumatic atomization spray system, adjustable inlet temperatures from 30–250°C, outlet temperatures from 30–120°C, and an average drying time of approximately 1–1.5 seconds. Its 5.0 kW heating capacity and PID temperature control support consistent drying performance.
Built with 316L stainless steel contact components, 3.3 borosilicate glass, and PTFE seals, the USA Lab Spray Dryer 3L is suited for pharmaceutical, food and beverage, dairy, dye, pigment, chemical, and academic research applications. A Siemens S7-200smart PLC with a 7-inch touchscreen provides convenient control and monitoring.
Why this USA Lab 3L Spray Dryer?
- Higher throughput — provides an evaporation capacity of up to 3000 ml/h at 70% yield maximum for larger sample volumes and higher-yield applications.
- Strong heating capacity — the 5.0 kW heating system supports stable inlet and outlet temperature control during spray drying.
- Precision temperature control — PT-100 sensing and PID control provide temperature accuracy of ±1°C.
- Robust construction — 316L stainless steel contact components, borosilicate glass, and PTFE seals provide durable materials for laboratory processing.
- Smart PLC operation — Siemens S7-200smart PLC control with a 7-inch touchscreen simplifies operation and monitoring.
Technical Specifications
| Specification | Details |
|---|---|
| Model | USA-SD-3L |
| Product Name | USA Lab Spray Dryer 3L |
| Brand | USA Lab |
| Equipment Type | Laboratory Spray Dryer |
| Control System | Siemens S7-200smart PLC with 7-inch touchscreen |
| Evaporation Capacity | 3000 ml/h @ 70% Yield Maximum |
| Power Consumption | 5.5 kW, 15A with transformer; 9A direct; hardwired only |
| Voltage | 240V 3 phase with transformer; 380V 3 phase direct |
| Dry Air Flow | 70 m³/h (maximum 600 m³/h), 1000 Pa |
| Inlet Air Temperature | 30–250°C, ±1°C |
| Outlet Air Temperature | 30–120°C, ±1°C |
| Heating Capacity | 5.0 kW |
| Heating Control | PT-100 Sensor, PID, ±1°C |
| Spray System | Pneumatic Atomization |
| Air Compressor | 250W, maximum 4.2 m³/h, 29–116 psi; not included; 4.7 CFM minimum required |
| Average Drying Time | 1.0–1.5 seconds |
| Construction Materials | 3.3 Borosilicate Glass, 316L Stainless Steel, PTFE Seals |
| Dimensions | 800 × 800 × 1600 mm | 31.5 × 31.5 × 63 in. |
| Weight | 150 kg | 330 lbs |
FAQ
What is the evaporation capacity of the USA Lab Spray Dryer 3L?The USA Lab Spray Dryer 3L has an evaporation capacity of up to 3000 ml/h at 70% yield maximum, making it suitable for larger laboratory sample volumes and higher-yield spray drying applications.
The USA Lab Spray Dryer 3L provides an adjustable inlet air temperature range of 30–250°C and an outlet temperature range of 30–120°C, with ±1°C temperature accuracy.

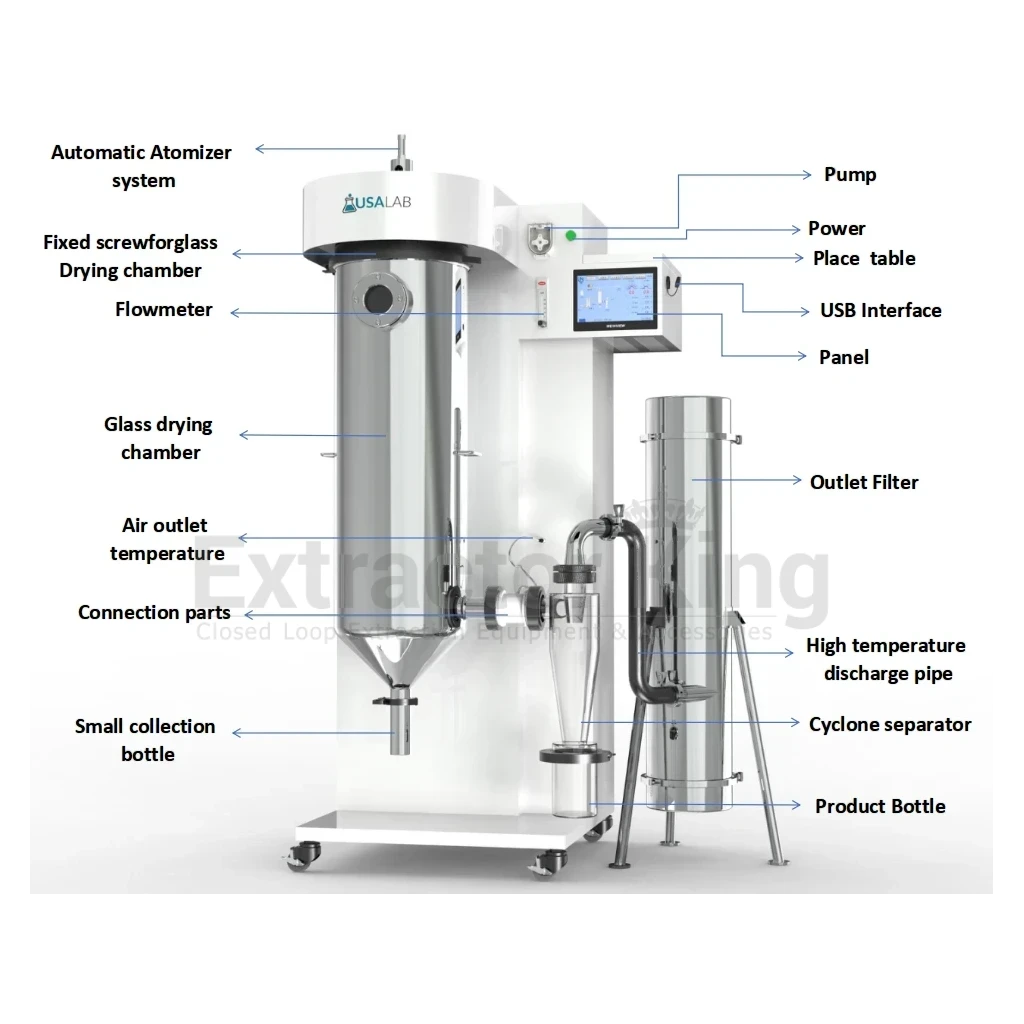

The USA Lab Spray Dryer 3L uses 3.3 borosilicate glass, 316L stainless steel for the nozzle, heater, and cyclone separator components, PTFE seals, silicone rubber product feed piping, and polyurethane exhaust piping.
No. This unit is designed for aqueous solutions and suspensions. Organic solvent applications require an inert-loop spray dryer designed for appropriate solvent-handling and safety requirements.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Current | [ 5.5KW ] 15A (w/ transformer) | 9A (direct) |
| Voltage | 240V 3 phase (w/ transformer) | 380V 3 phase (direct) |
| Evaporation capacity | 3000ml/h |
| Dry air flow | 70m3/h（MAX 600m3/h, 1000Pa |
| Fan power | 400 W |
| Inlet air temperature | 30-250℃ ±1℃ |
| Heating capacity | 5 KW |
| Heating control | PT-100 Sensor / PID / ±1℃ |
| Average drying time | 1.0 - 1.5s |
| Dimensions | 800×800×1600mm | 31.5 x 31.5 x 63" |
| Weight | 150KG | 330lbs |
| Warranty Term | 1 Year |
