USA Lab Spray Dryer 5L
Reference: USA-SD-5L
Manufacturer: USA Lab
The USA Lab Spray Dryer 5L is a high-capacity spray drying system engineered to convert aqueous solutions and suspensions directly into uniform micro-powders. With an evaporation capacity of 5000 ml/h and a 10.0 kW heating system , it is designed for…
In stock
Payment Providers
More info
USA Lab Spray Dryer 5L
The USA Lab Spray Dryer 5L is a high-capacity spray drying system engineered to convert aqueous solutions and suspensions directly into uniform micro-powders. With an evaporation capacity of 5000 ml/h and a 10.0 kW heating system, it is designed for larger-scale laboratory, pilot, and industrial processing applications.

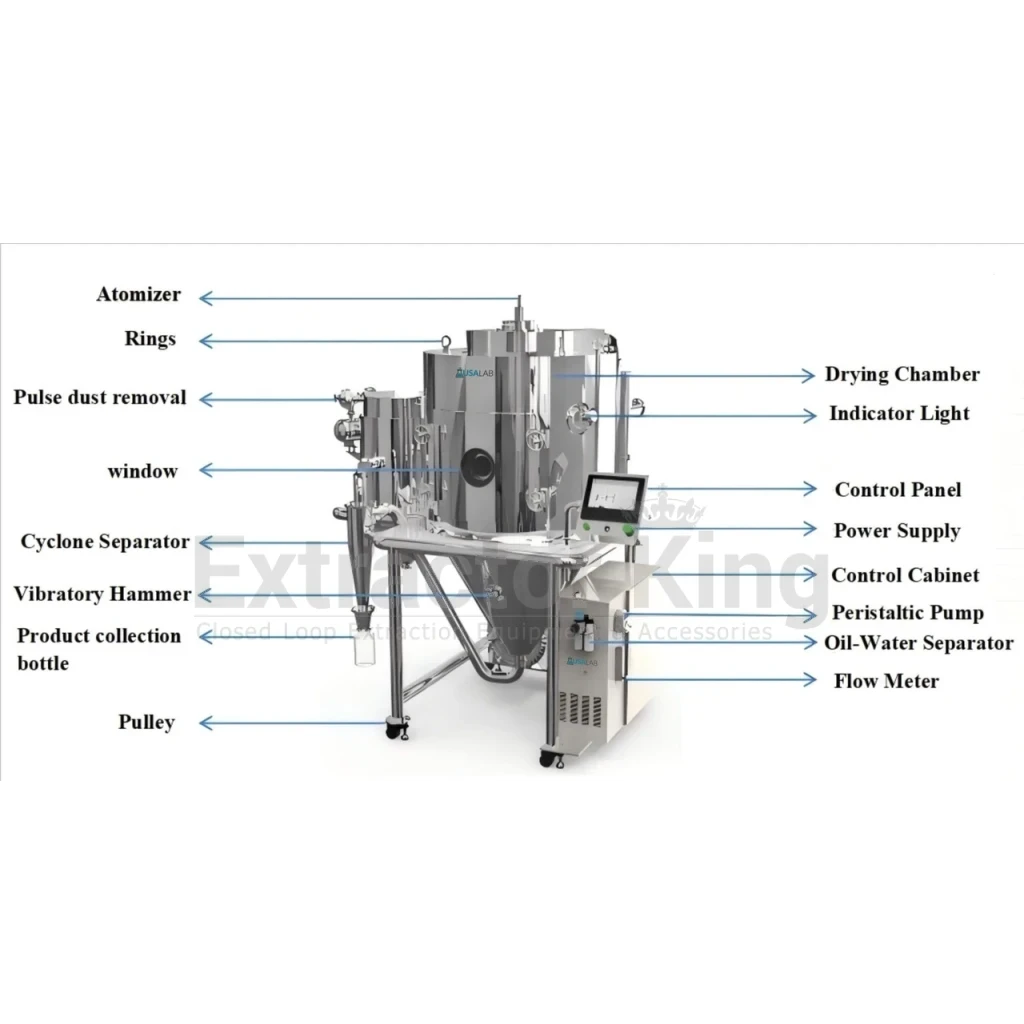

The spray drying process dissolves, emulsifies, or disperses the core substance in a carrier solution before atomizing it into fine droplets. Heated air rapidly dries the droplets, while a cyclone system separates and collects the resulting solid particles. The system combines a 0.7 mm pneumatic atomization nozzle with an electric centrifugal dual-fluid atomizer for controlled particle formation.
Built with 316L stainless steel contact components, 3.3 borosilicate glass, and PTFE seals, the 5L spray dryer provides durable materials for demanding applications. A Siemens S7-200smart PLC with a 7-inch touchscreen provides intuitive operation, parameter control, and automated nozzle clearing for efficient processing in pharmaceutical, food and beverage, dairy, pigment, chemical, biotechnology, and research applications.
Why this USA Lab Spray Dryer 5L?
- High-capacity performance — 5000 ml/h evaporation capacity provides substantially greater throughput for larger sample volumes.
- Powerful heating system — 10.0 kW heating capacity supports rapid and controlled drying across the specified temperature ranges.
- Industrial-grade airflow — 100 m³/h airflow and a 3 kW air compressor system support larger-scale spray drying requirements.
- Robust construction — 316L stainless steel, borosilicate glass, and PTFE seals provide durable construction for demanding processing environments.
- Smart automated control — Siemens PLC control, 7-inch touchscreen operation, and automatic nozzle clearing support repeatable workflows and efficient operation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | USA-SD-5L |
| Product Name | USA Lab Spray Dryer 5L |
| Brand | USA Lab |
| Equipment Type | Laboratory / Industrial Spray Dryer |
| Control System | Siemens S7-200smart PLC with 7-inch touchscreen |
| Evaporation Capacity | 5000 ml/h @ 70% Yield Maximum |
| Power Consumption | 13 kW; 35A with transformer; 22A direct; hardwired only |
| Voltage | 240V 3 phase with transformer; 380V 3 phase direct |
| Dry Air Flow | 100 m³/h |
| Fan Power | 220V @ 400W; variable flow |
| Inlet Air Temperature | 30–250°C ±1°C |
| Outlet Air Temperature | 30–120°C ±1°C |
| Heating Capacity | 10.0 kW |
| Heating Control | PT-100 Sensor; PID; ±1°C |
| Air Compressor | 3 kW; maximum 10 m³/h; 29–116 psi; 5.88 CFM minimum required |
| Spray System | Pneumatic Atomization 0.7 mm & Centrifugal Electric Dual Fluid |
| Average Drying Time | 1.0–1.5 seconds |
| Construction Materials | 3.3 Borosilicate Glass; 316L Stainless Steel; PTFE Seals; Silicone Rubber Feed Pipe; Polyurethane Exhaust Pipe |
| Dimensions / Weight | 73 × 47.2 × 82.6 in. | 1850 × 1200 × 2100 mm; 450 kg | 900 lbs |
FAQ
Can the USA Lab Spray Dryer 5L handle organic solvents?No. The USA Lab Spray Dryer 5L is designed for aqueous solutions and suspensions only. For organic solvents, an inert-loop spray dryer is required for safe, explosion-proof operation.
The 5L model is designed for industrial and larger-scale applications, providing a 5000 ml/h evaporation capacity and 10.0 kW heating capacity. This provides greater processing capacity than the Mini and 3L models for facilities handling larger sample volumes and higher throughput requirements.
The USA Lab Spray Dryer 5L is suitable for pharmaceutical, food and beverage, dairy, pigment, chemical, biotechnology, and larger-scale research or processing applications where uniform micro-powder production and higher throughput are required.
The average drying time is approximately 1.0–1.5 seconds. Actual processing performance can vary depending on the material, feed conditions, operating parameters, and application.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Current | [ 13KW ] 35A (w/ transformer) | 22A (direct) | Hardwired Only |
| Voltage | 240V 3 phase (w/ transformer) | 380V 3 phase (direct) |
| Evaporation capacity | 5000ml/h |
| Dry air flow | 100m3/h（MAX 600m3/h, 1000Pa |
| Fan power | 3 KW |
| Inlet air temperature | 30-250℃ ±1℃ |
| Heating capacity | 10 KW |
| Heating control | PT-100 Sensor/PID/±1℃ |
| Average drying time | 1.0-1.5s |
| Dimensions | 73" x 47.2 x 82.6" (in) | 1850×1200×2100 (mm) |
| Weight | 450KG | 900lbs |
| Warranty Term | 1 Year |
