1500C Convertible Tube Furnace Convertible for Horizontal or Vertical Tube Furnace with Lifting Motor 1 to 3 Heating Zones
Reference: VTC1500-1500
Manufacturer: Across International
1500C Convertible Tube Furnace Convertible for Horizontal or Vertical Tube Furnace with Lifting Motor 1 to 3 Heating Zones
Payment Providers
VTC1500-1500 Convertible Furnace for Horizontal or Vertical use with lifting motor. 1 to 3 Heating Zones.

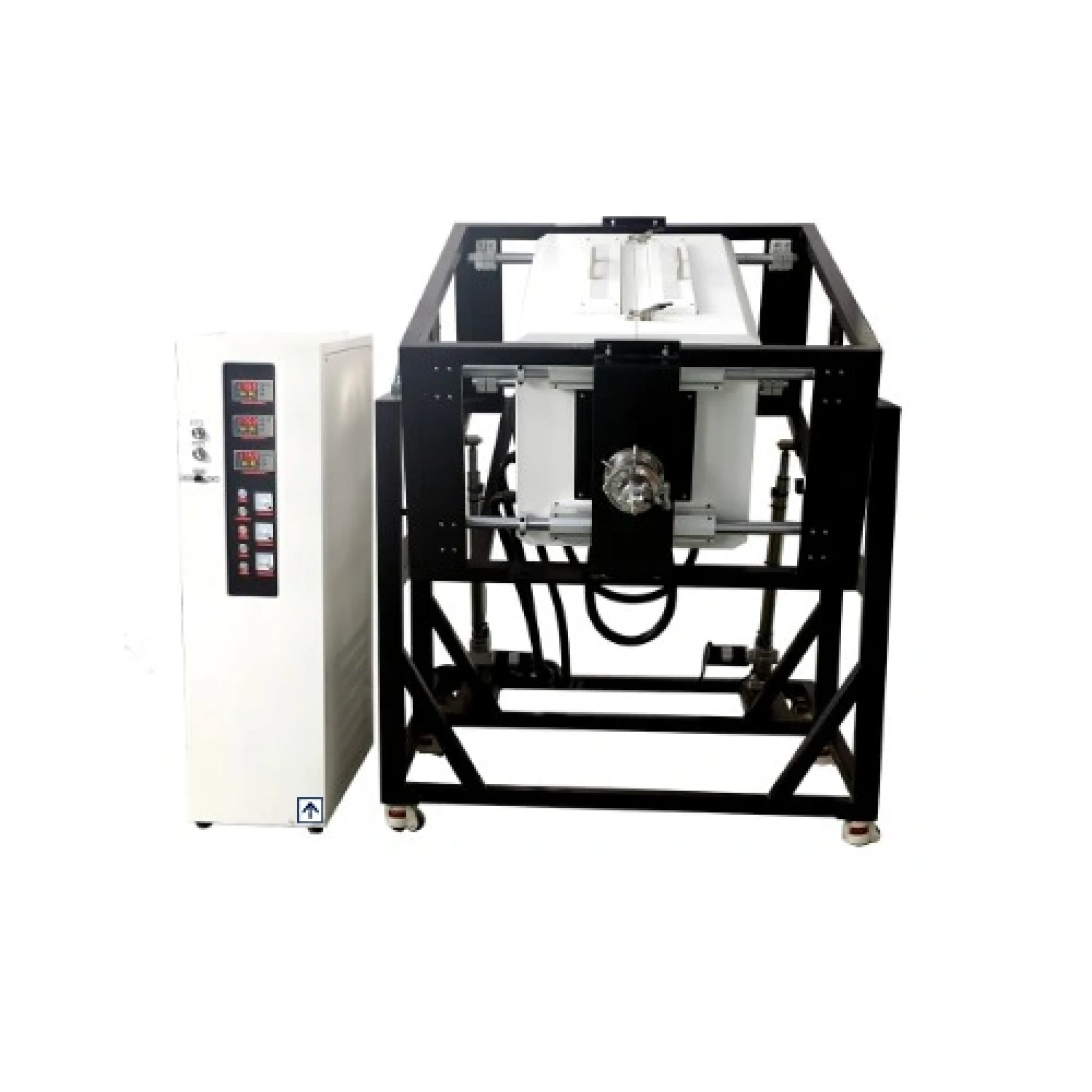

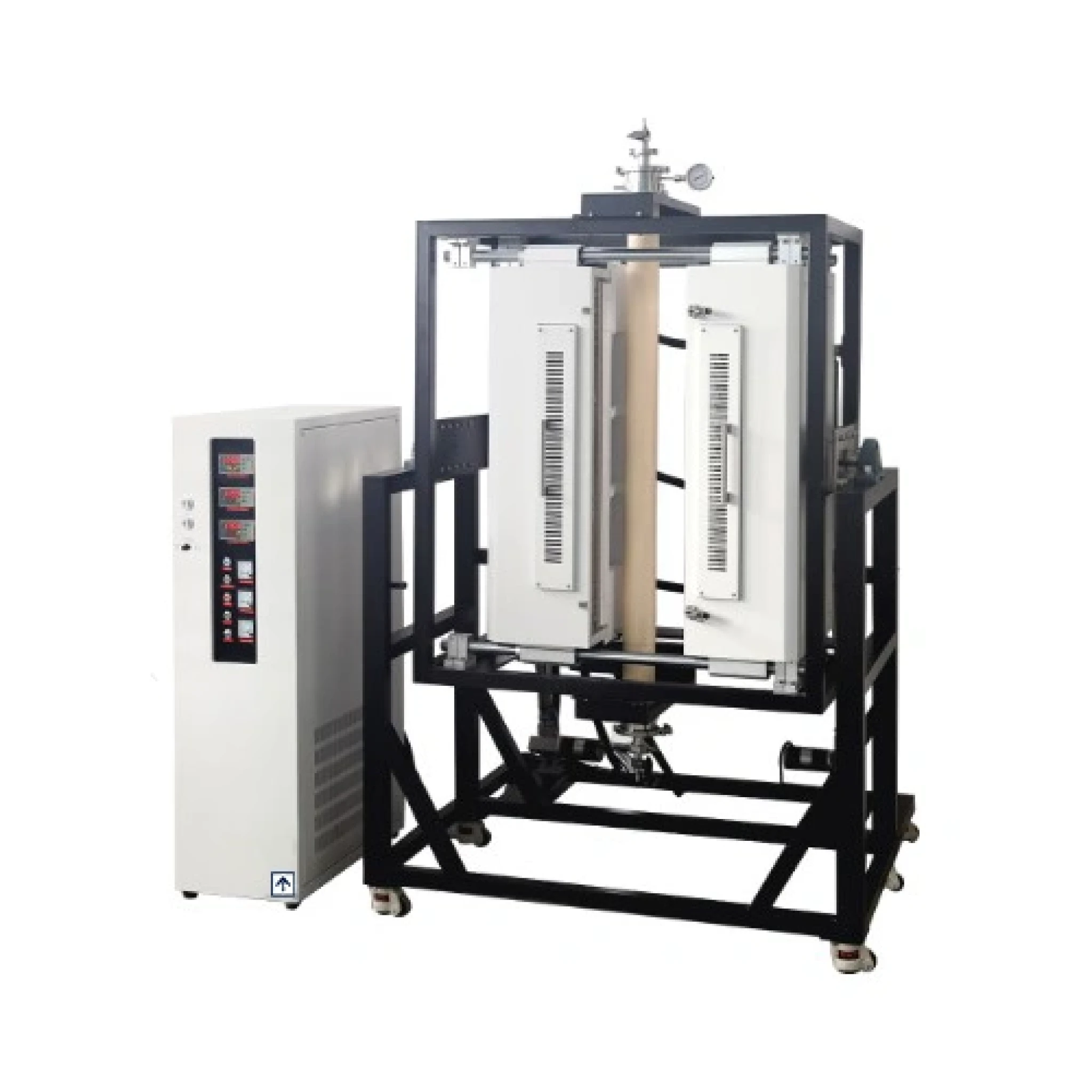

This tube furnace can be set up horizontally or vertically, and a lifting motor raises and lowers the furnace body. That makes one unit useful for both standard horizontal tube work and vertical processes where the sample is lowered into or raised out of the hot zone. It can be built with 1 to 3 heating zones; more zones give a longer, more even hot zone or a controlled temperature gradient along the tube.
Silicon carbide rod heating elements take it to 1500C. The controls sit in a separate electrical cabinet. Plan for a 460V three-phase, 9KW supply on a 4P25A breaker and floor space for a furnace that weighs 300KG.
| Power | Power 460V 3 phases, 9KW |
| Size | Furnace 1250mm*1050mm*2000mm Electric Cabinet 350*650*1220mm |
| Net Weight | Furnace 300KG, Electric Cabinet 50KG |
| Circuit Breaker | 4P25A |
| Heating Elements | Silicon carbide rod |
Standard Package
| 1500C Convertible Tube Furnace Convertible for Horizontal or Vertical Tube Furnace | 1 pc |
| Furnace manual | 1 pc |
