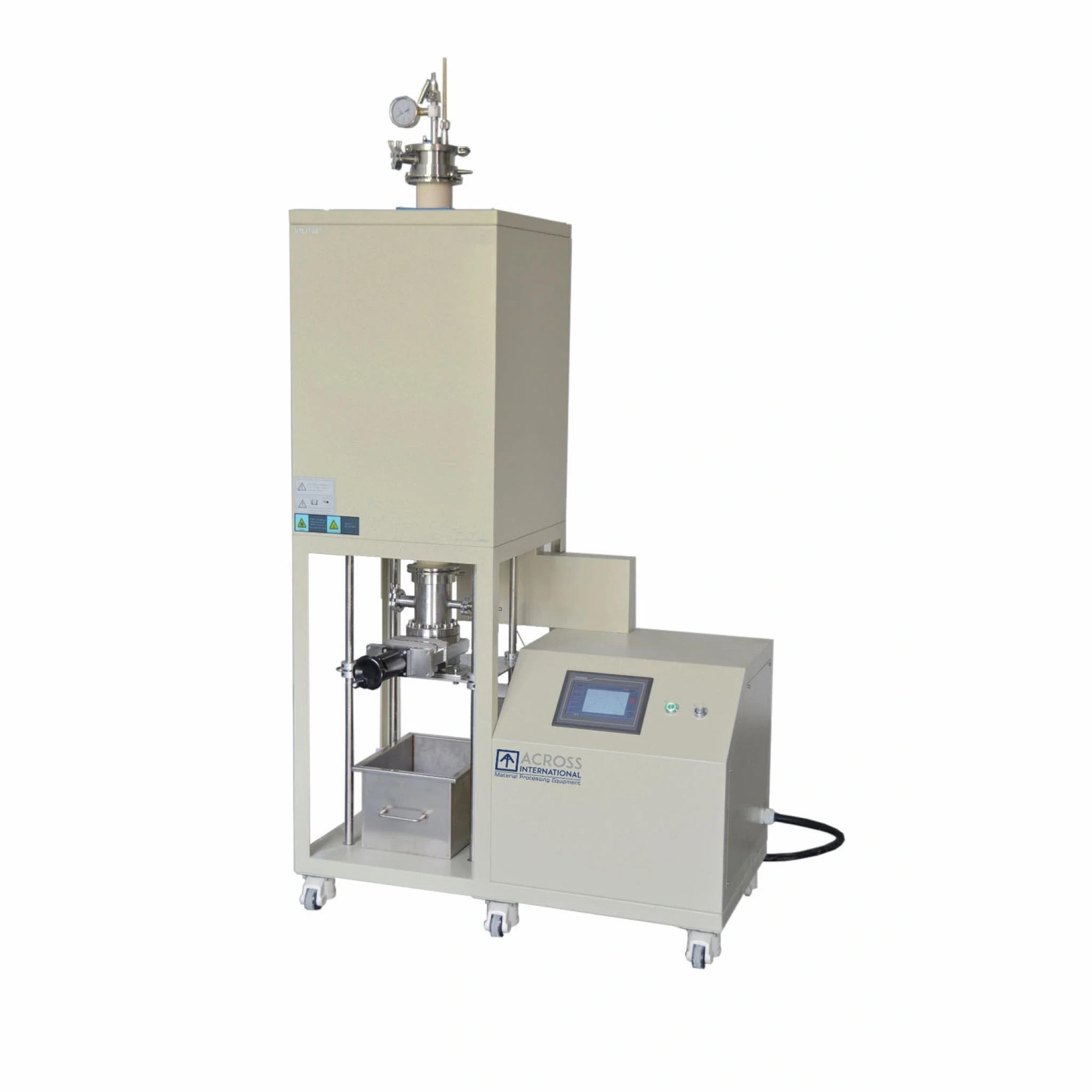

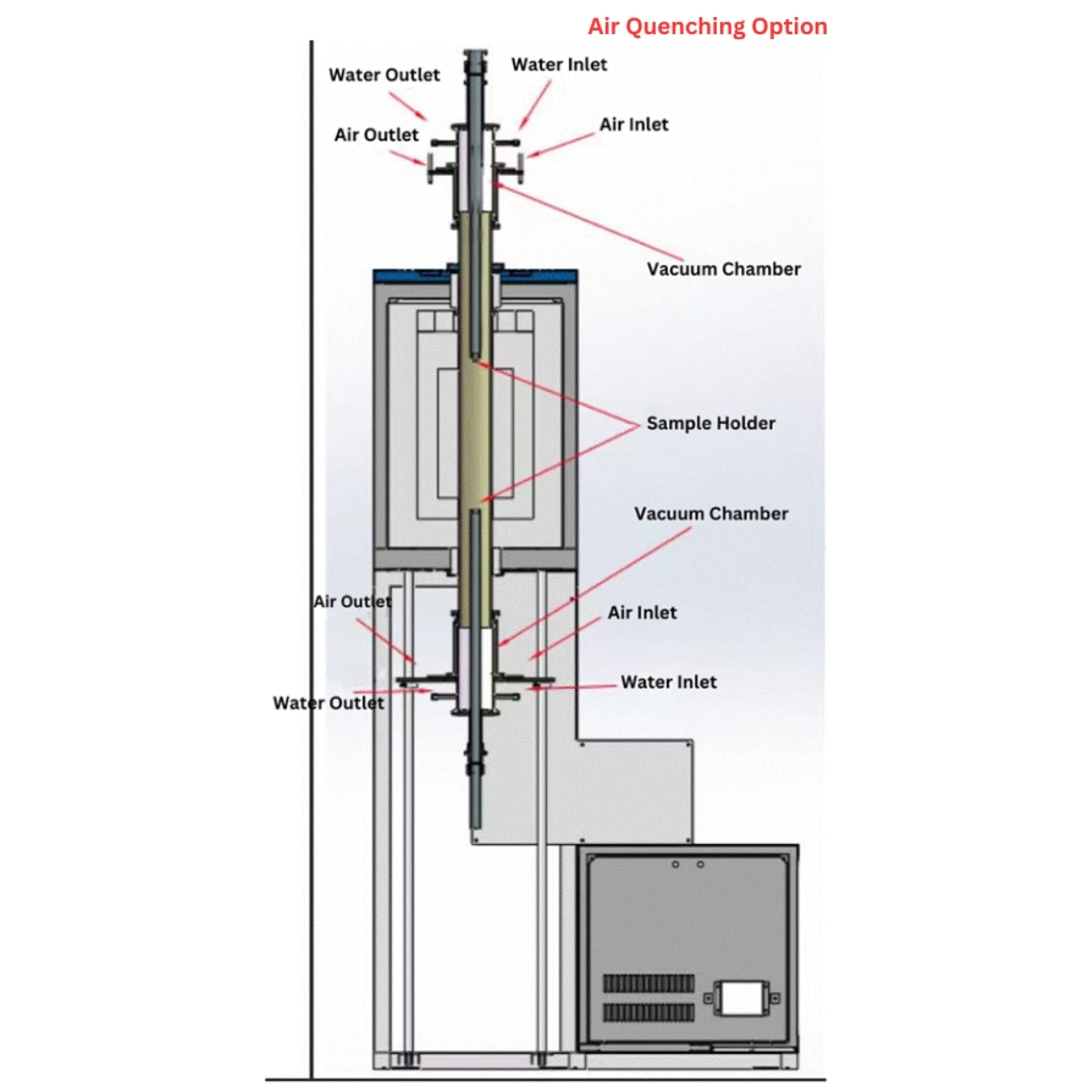

1700C 60-100mm OD Vertical Quenching Furnace

Technical Parameters

VTF1700-C60

Power

7.5KW

Furnace Tube Size

Dia60(OD)X1000mm

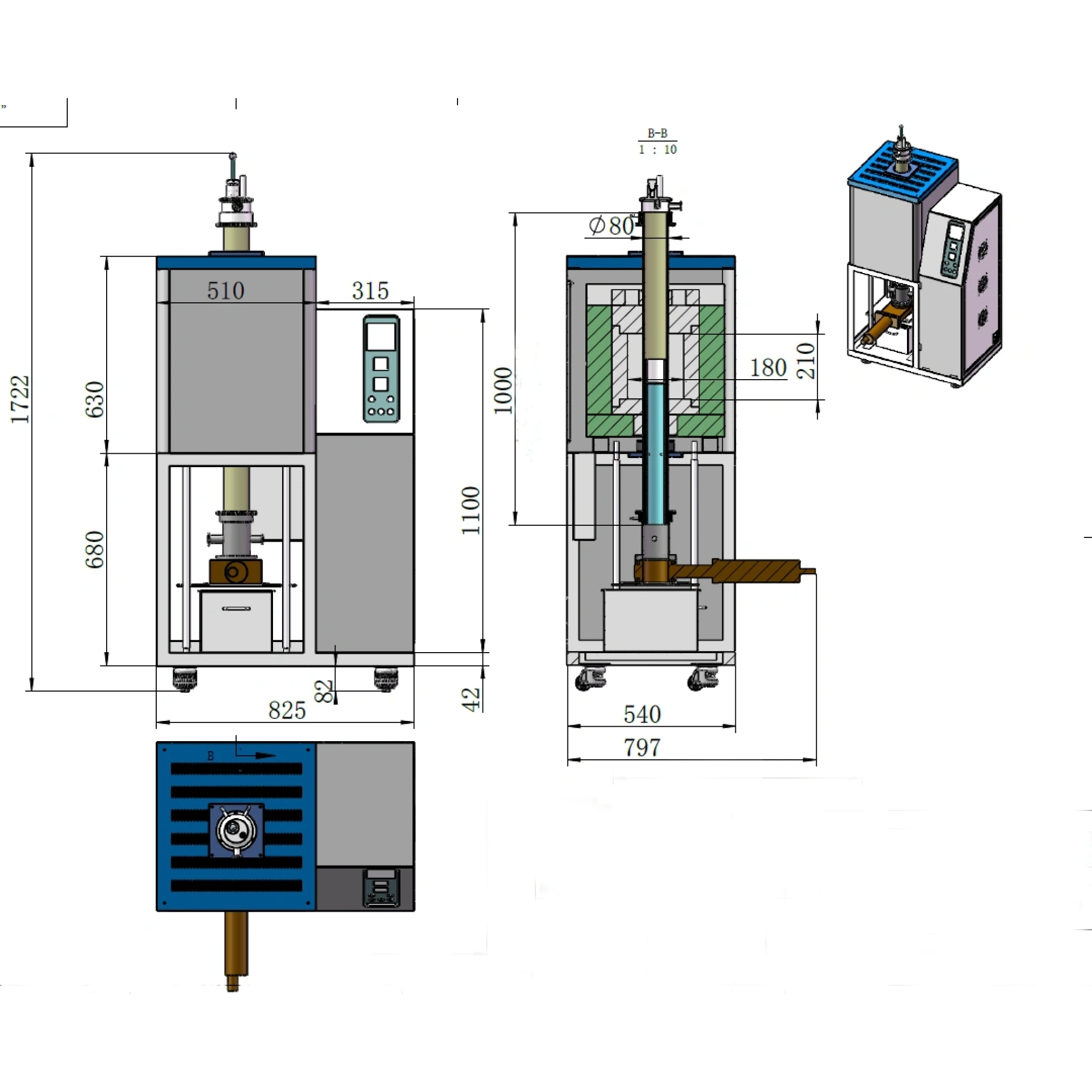

Dimensions (LxWxH)

1300X500X1700mm

Power Supply Voltage

Heating Element

1800 type silicon molybdenum rod

Furnace Tube

high purity Al2O3 ceramic (contains 99.5%)

Eurotherm

Broken Couple Protection and Display

Yes

Yes

Yes

+/- 1 ℃

1700 ℃

1650 ℃

≤20 ℃/ Min (can be modified according to requirements)

≤5℃/ Min

B type

200mm

70mm

≤45℃

1.A stainless steel sealing flange and a stainless steel needle valve are installed at the top of the furnace body.

2. A plug valve is installed at the bottom of the furnace body, a mechanical pressure gauge, and a KF25 vacuum interface for connecting the vacuum pump.

3. Vacuum degree: Using a mechanical pump, the vacuum degree can reach below 1Pa. For higher vacuum degrees, a domestic or imported high vacuum unit can be selected, with a vacuum degree up to 10-3Pa.

4. KF25 stainless steel bellows, KF25 quick release clamp.

5. Optional anti-corrosion digital vacuum gauge, measurement range from 3.8x10-5 to 1125Torr. No coefficient conversion required for different gas measurements.

6. A hanging device that can withstand up to 1000g is installed on the top flange as shown below. The sample is hung on the hook through the hanging wire. When the quenching rod is pressed, the sample and the hanging wire fall into the quenching box together. Before releasing the sample, 5PSI argon must be flushed in and the manual plug valve at the bottom of the furnace tube must be opened.

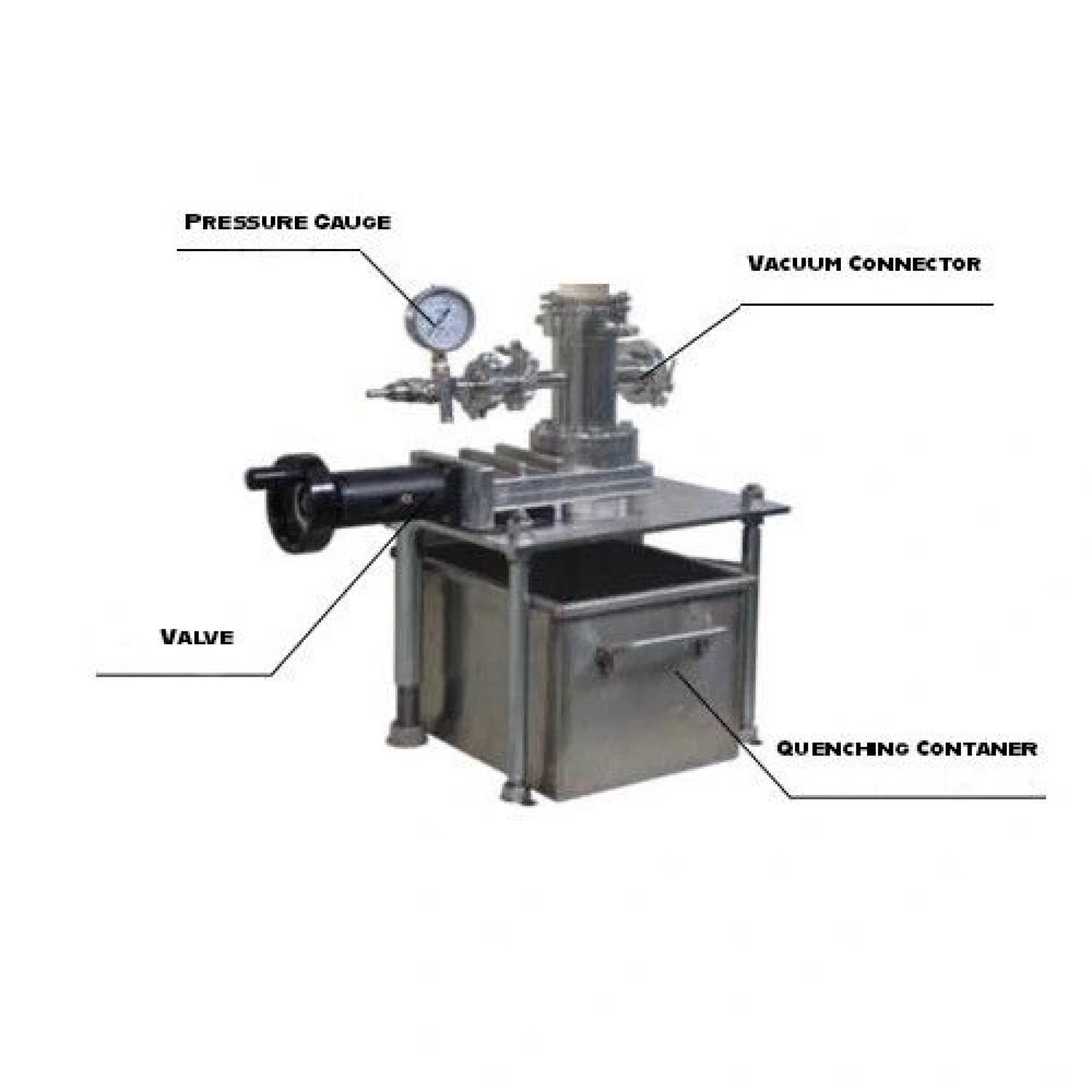

1. A stainless steel box for holding quenching liquid is fixed at the bottom of the furnace tube.
2. A large manual plug valve is installed between the bottom of the furnace tube and the liquid box.

1. The air pressure inside the furnace tube should not exceed 0.02MPa.

2.Due to the high internal pressure of the gas cylinder, a pressure reducing valve must be installed on the gas cylinder when introducing gas into the furnace tube. To ensure safety, it is recommended to use a pressure below 0.02MPa.

3. When using a corundum tube, if the furnace temperature is above 1500℃, the inside of the furnace tube should not be in a vacuum state, and the air pressure inside the furnace tube should be equivalent to atmospheric pressure.

4. The gas flow rate into the furnace tube should be less than 200SCCM to avoid the impact of cold gas flow on the hot furnace tube.

5. For experiments heating samples, it is not recommended to close the exhaust valve and intake valve at the flange end of the furnace tube. If the gas valve needs to be closed to heat the sample, the pressure gauge reading should be constantly monitored. If the pressure gauge reading exceeds 0.02MPa, the exhaust valve must be immediately opened to prevent accidents (such as furnace tube rupture, flange flying off, etc.).

6. Do not use graphite crucibles in alumina tubes.

7. MoSi2 heating elements should not be used for long periods at low temperatures (400℃-700℃), as this may damage the heating elements.
