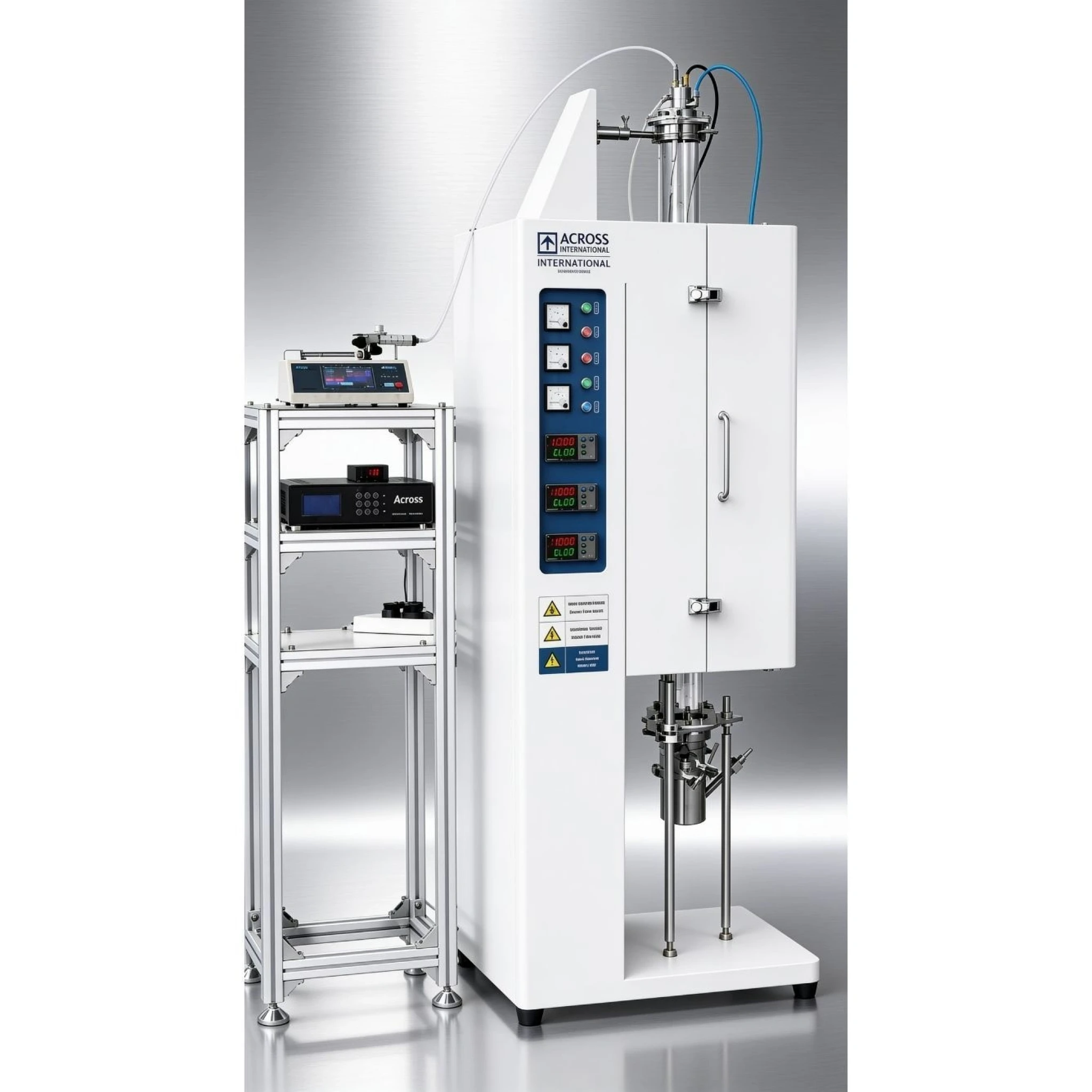

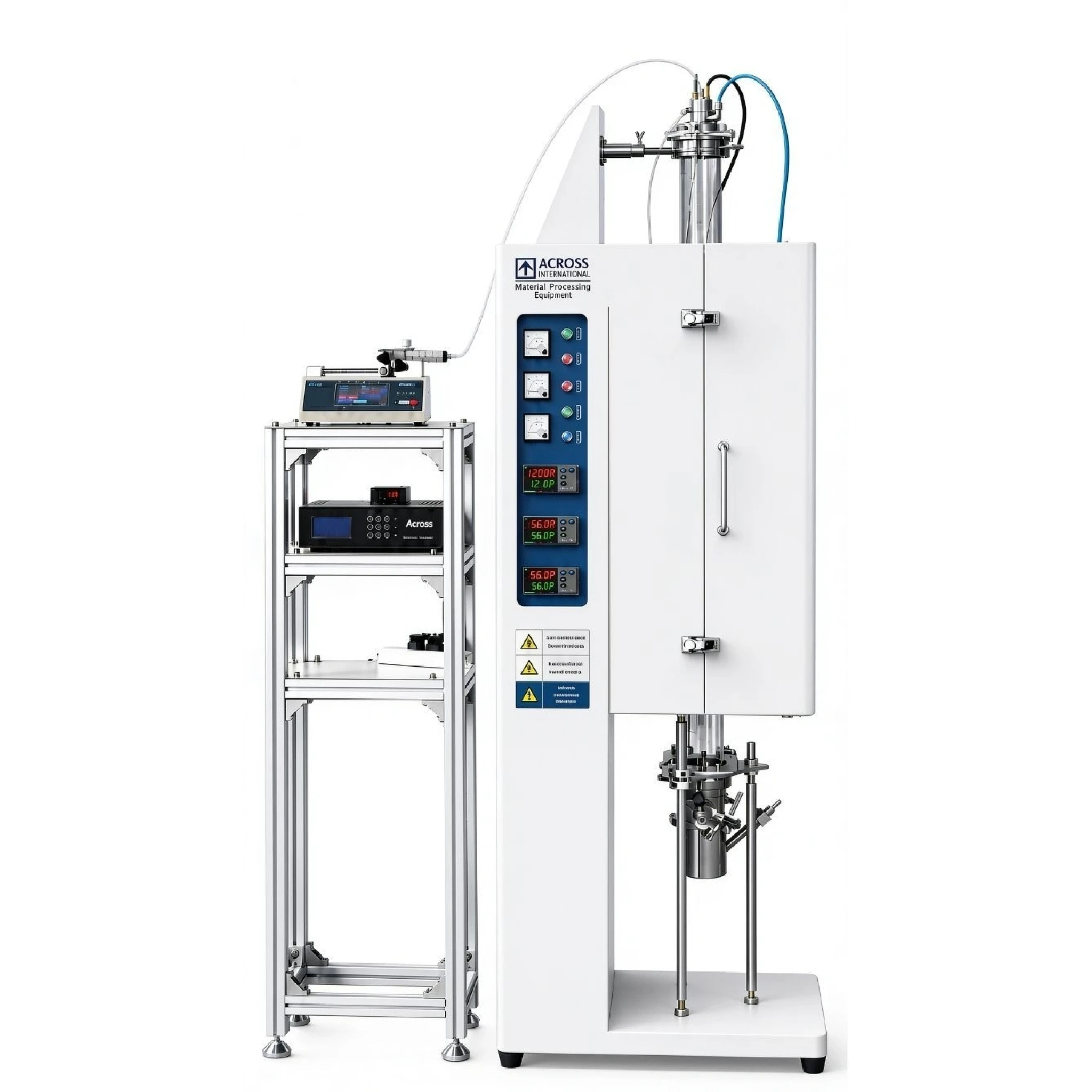

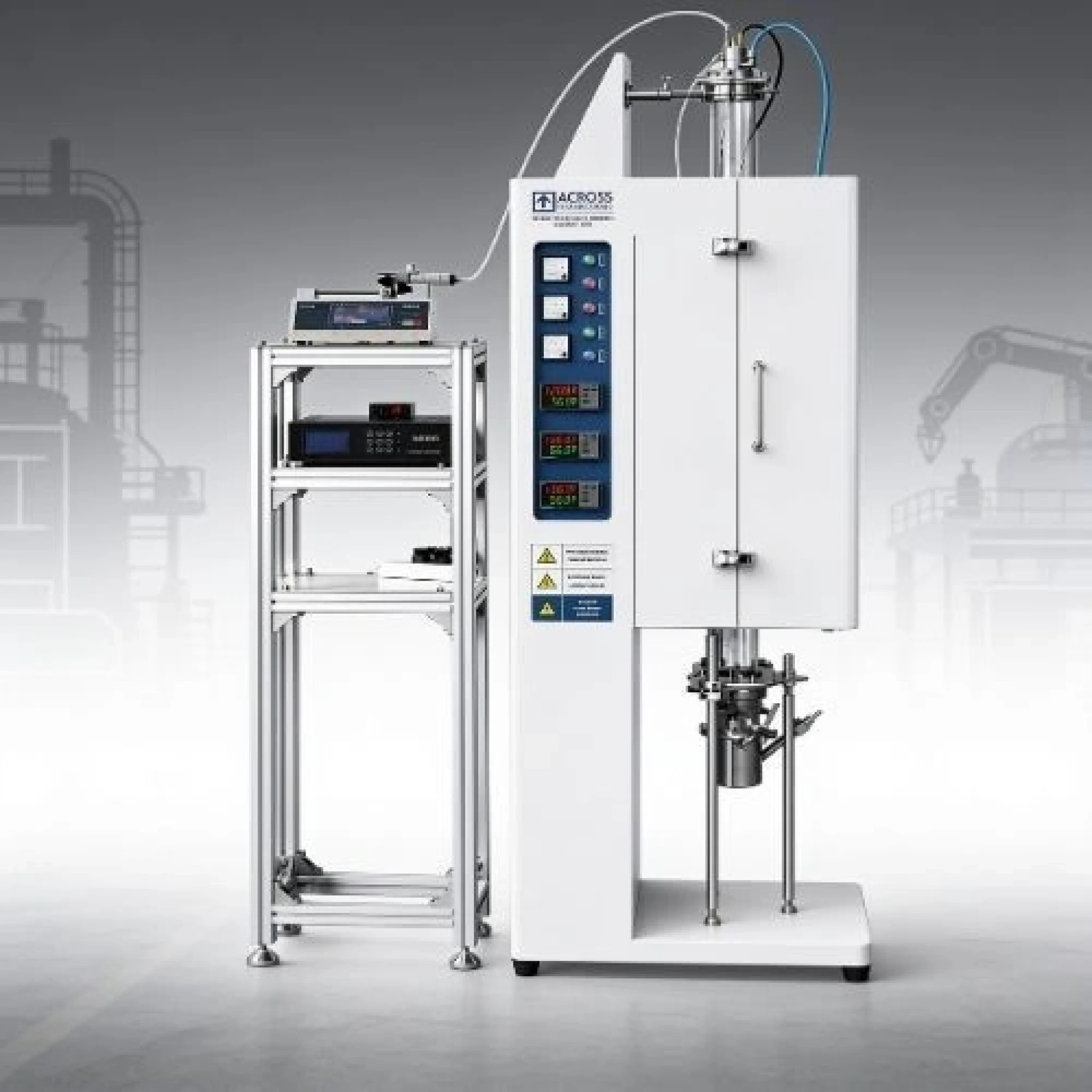

1200°C Ultrasonic Spray Pyrolysis Vertical Furnace with Continuous Collection 3 Zones
Reference: VTLF1200
Manufacturer: Across International
- Atomizer: 2.4 MHz ultrasonic atomizer that converts the liquid into fine droplets fed into the tube furnace. Connected to a stainless steel liquid-collection reservoir so un-atomized liquid cannot enter the tube.
- Liquid flow control: precision syringe pump (10 µL–60 mL syringe capacity; flow range 0.184 nL/min–83.318 mL/min; stroke accuracy <±0.35%; RS485 / Modbus).
- Heating section: tube furnace, 1200°C max.
- Continuous nano-collection unit: 60 mm dia. collection canister with gate valve for emptying without breaking the process.
In stock
Payment Providers
Please contact us for price
This vertical tube furnace uses low-energy ultrasonic vibration to atomize a liquid precursor into fine droplets. The liquid is delivered to the spray head by a syringe pump for continuous or intermittent atomization, then reacts in the high-temperature zone. Synthesized nanoparticles carried by the flowing gas and free-fall settling are efficiently collected in a stainless steel canister.
Typical applications: thin-film spray coating (solar cells, fuel cells, touch screens, soldering flux, glass film coating) and nanomaterial synthesis.
System Components
- Atomizer: 2.4 MHz ultrasonic atomizer that converts the liquid into fine droplets fed into the tube furnace. Connected to a stainless steel liquid-collection reservoir so un-atomized liquid cannot enter the tube.
- Liquid flow control: precision syringe pump (10 µL–60 mL syringe capacity; flow range 0.184 nL/min–83.318 mL/min; stroke accuracy <±0.35%; RS485 / Modbus).
- Heating section: tube furnace, 1200°C max.
- Continuous nano-collection unit: 60 mm dia. collection canister with gate valve for emptying without breaking the process.
Standard Accessories
Vertical tube furnace (1 unit)
Quartz tube 60 mm OD × 1300 mm (1)
Stainless steel upper & lower flanges (1 each)
Stainless steel furnace hook (1)
Syringe pump (1)
Ultrasonic spray head (1)
Type K thermocouple (1)
High-temp gloves (1 pair)
Manual (1)
Options
COM-to-USB interface + control/logging software · UL-certified electrical panel (imported UL-listed components) · vacuum systems (single/two-stage pumps, molecular pump, gauges) · gas-supply systems · hinged / water-cooled / KF25 flanges.
Warranty
One year, with lifetime technical support. Consumables (heating elements, quartz tube, crucibles) and damage from corrosive or acidic gases are excluded.
| Max temperature | 1200 °C (all 3 zones) |
| Rated (continuous) temperature | 1100 °C (all 3 zones) |
| Heating zones | 3-zone — 200 + 200 + 200 mm heated length (total 600 mm) |
| Heating rate | ≤30 °C/min (adjustable); ≤15 °C/min recommended |
| Temperature accuracy | ±1 °C |
| Power | 5.4 kW |
| Voltage / phase | 220 V, single phase |
| Work tube | 60 mm OD × 1300 mm L (quartz) |
| Overall dimensions (L×W×H) | 800 × 500 × 2000 mm |
| Heating element | High-quality resistance wire (optional Kanthal A1, Sweden) |
| Chamber material | Vacuum-formed high-purity polycrystalline alumina fiber, 4-side heating |
| Thermocouple | Type K |
| Controller | 30-segment programmable PID; over-temp & broken-thermocouple protection, power-loss recovery, auto-tuning, RS485 |
| SCR / thyristor | Semikron 106/16E (Germany) |
| Electricals | Chint |
| Exterior surface temperature | ≤45 °C |
