316L SST 250C UL 14 Shelf Max 5 Cu Ft 5 Sided Heating Explosion Proof Vacuum Oven ETL Certified
Reference:
Manufacturer: Across International
SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included. Oven comes standard with 7 shelves.
In stock

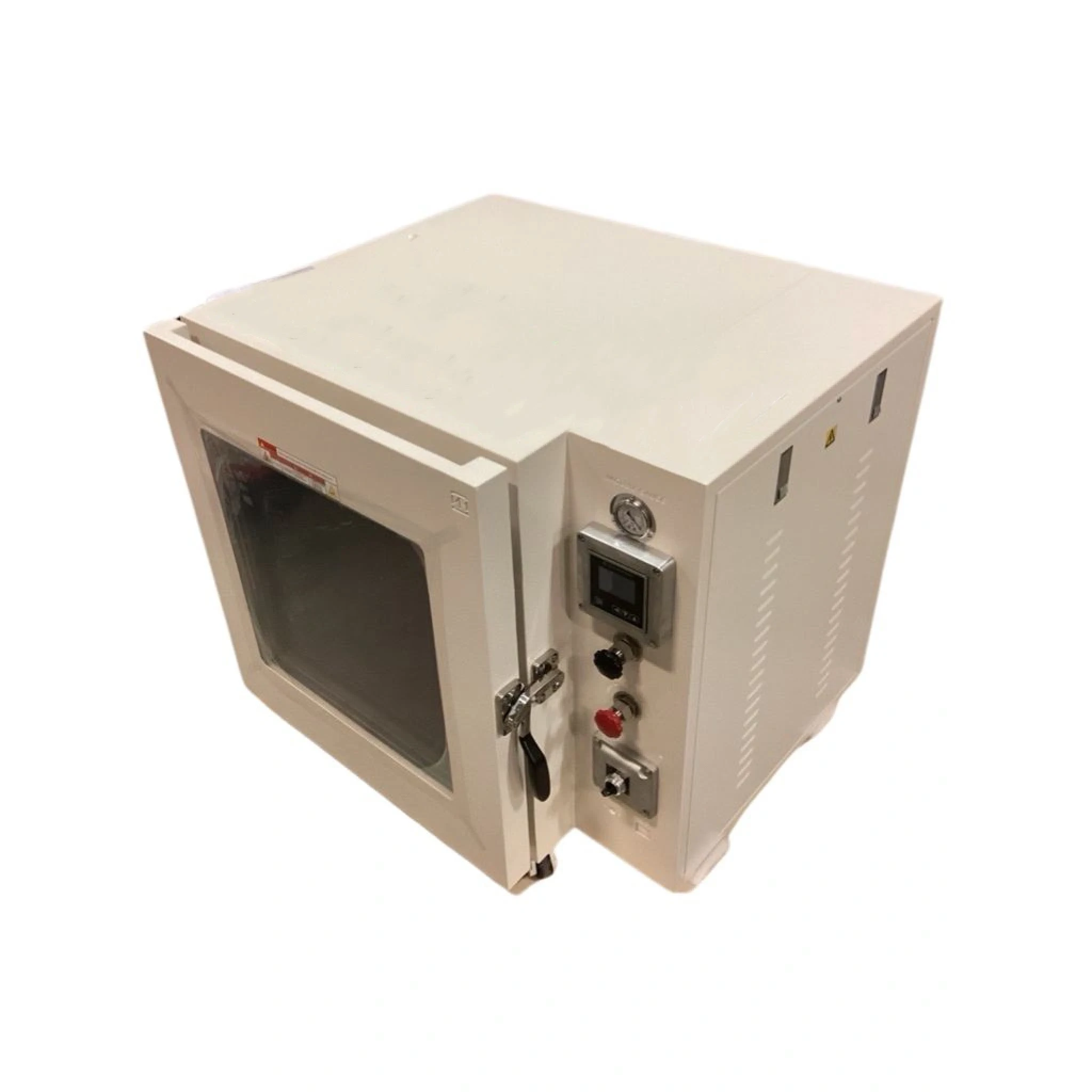

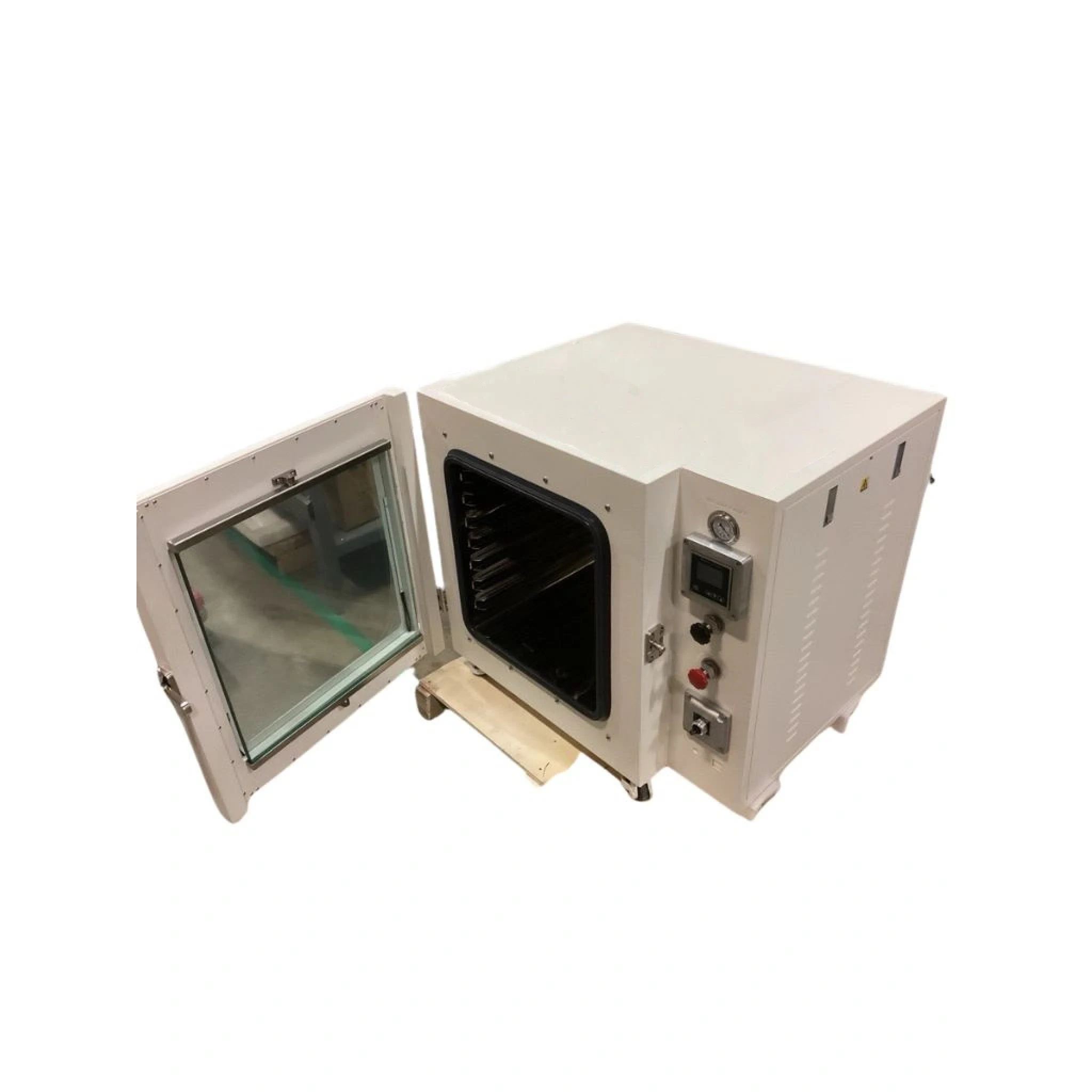

Introducing the Ai 14-shelf capacity 5 sided wall-heating 5.0 cu ft explosion proof vacuum ovens, come standard with secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
Features
- C1D1, Groups C, and D certified by Intertek, ETL listed
- New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
- All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
- 4th gen low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 3/4" tempered safety glass.
- 3" thermal insulation prevents heat loss and minimizes the enclosures outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- Built-in swivel casters with leveling feet.
- For improved temperature ramping, run the auto-tune procedure as outlined in the manual.
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes.
Manufactured in accordance with
- UL 61010-1
- CSA C22.2
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
| Electric | 110V or 220V +/-10% 50/60Hz 1-PH, 3,000 watts |
| Chamber | Size: L 19.75”x W 21.5”x H 20.5” Material: Stainless steel Capacity: 5.0 cubic feet |
| Heater | 5-sided heating (left 600W, right 600W, top 600W, bottom 600W, back 200W x 3) |
| Temperature control | Controller: low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 250° (or 480°F) Display units: Fahrenheit or Celsius Uniformity: +/- 7% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 45 minutes Warm-up time to 480°F: 2 hours 15 minutes |
| Vacuum | Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange Vent port: KF25 flange Vacuum pump: Sold separately |
| Weight | Unit: 410 Lbs, shipping: 630 Lbs |
| Dimensions (WxDxH) | Unit: 37 x 31.50 x 33.25" Shipping: 44 x 37 x 38" |
| Shelves | Shelf size: 19.25 x 21 x 0.5" (WxDxH) Material: aluminum Style: pan-shape Capacity: 14 shelves max. Comes standard with oven purchase: 7 shelves Total area with 14 shelves: 39.3 sq ft or 5660 sq inch Distance between the most adjacent shelves: 1.25" |
| Door gasket material | Silicone or Viton |
| Observation window | 1/2" tempered safety glass |
| Safety | Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial |
| In-door lights | White LED (pre-installed) |
| Compliance | C1D1, Groups C, and D certified by Intertek, ETL listed |
| Warranty | 2 years |
Standard Package
| Ai 5 cu ft 5 sided heating explosion proof vacuum oven | 1 pc |
| Aluminum pan shelf | 7 pcs |
| KF25 quick clamp and centering ring | 2 sets |
| Led Light Cable | 1 pc |
| Inlet filter with KF25 connection | 1 pc |
| 10-50P | 1 pc |
| 6-20P 230V plug (installed on 220V units) | 1 pc |
| Users manual | 1 pc |
