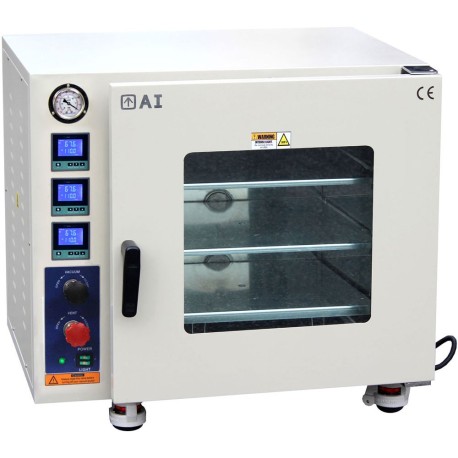

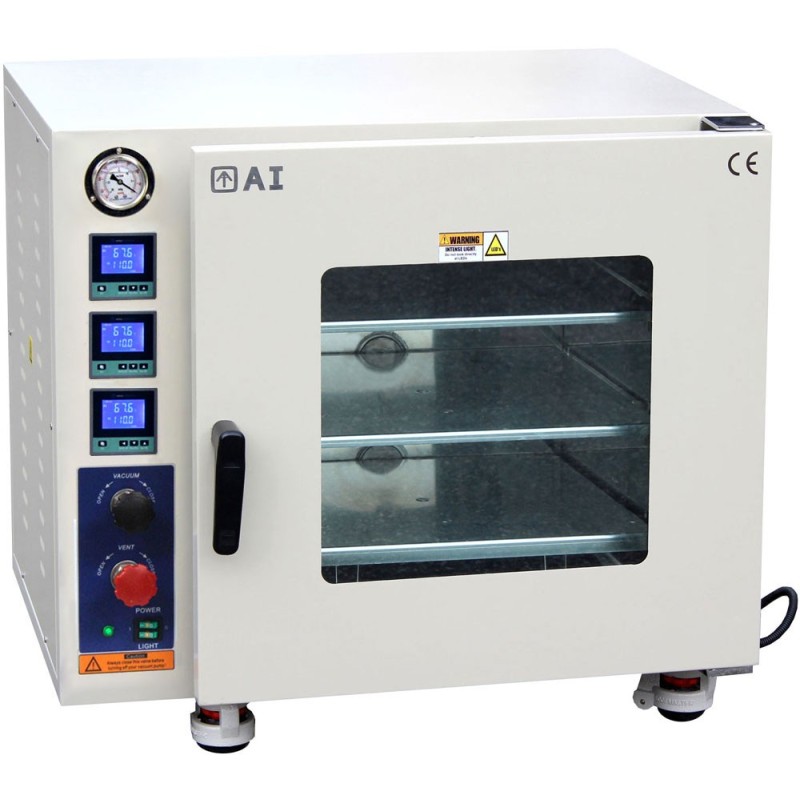

3.2 CF Vacuum Oven 250C UL Certified 316L SST Optional with 3 Heating Shelves

Reference:

Manufacturer:

The UL certified 3.2 cu ft vacuum oven. UL certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Standard equipment includes a secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valves, an oil-filled vacuum gauge and a two year warranty.

In stock

Operation manual

CAD $9,710.03

Earn CAD $97.10 King's Cash Back (1% on orders of CAD $100.00+, with an account) Details

Optional Must Have Accessories
  CPS VPS6DU 6 CFM 2-Stage Vacuum Pump, silver and black pump with carry handle and brass port  CPS Pro-Set VPS6DU 6 CFM 2-Stage Ignition Proof Vacuum Pump
+CAD $669.65
  Ai -40°C 1.5L Capacity Cold Trap  Ai -40°C 1.5L Capacity Cold Trap
+CAD $6,467.95
  Ai Stackable Aluminum Shelf, 3.2/7.5/16 CF, plain shelf with folded legs, rendered drawing  Stackable aluminum Shelf for AT Series 3.2/7.5/16 CF Vac Ovens
+CAD $160.48
  3/8" Reinforced Vacuum Chilling Tubing, close-up of coiled beige tubing with cut end  3/8" Reinforced Food Grade Vacuum Chilling Tubing -60C to +135C
+CAD $48.63
Payment Providers
Payment Providers
Add to wishlist

The UL certified 3.2 cu ft vacuum oven. UL certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Standard equipment includes a secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valves, an oil-filled vacuum gauge and a two year warranty. With internal shelf heating technology, each shelf has its own heater, in-shelf temperature sensor and temperature controller. Together with thermally conductive aluminum and low proportional gain controller technology, the result is excellent uniformity, accurate temperature, very fast heating, minimum heat loss and exterior temperature, and very low power consumption.

Every vacuum oven goes through a 2-time 24-hour vacuum leak test before shipping.

SST (stainless steel) tubing refers to internal tubing and compression fittings. External tubing is not included.

Features

  • UL certified.
  • New KF25 inlet filter keeps your oven clean at all times (included with oven purchase).
  • All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and requires minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves give you cleaner connection, more accurate control and long term durability.
  • Three aluminum heating shelves with individual in-shelf temperature sensor, temperature controller and heater.
  • Dual layer observation window with 5/8" tempered safety glass.
  • 4th gen low proportional gain temperature controllers keep your oven temperature accurate.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in swivel casters with leveling feet.
  • Built-in alarm alerts you when the oven has been shut down by safety circuitry due to out of range temperature.
  • For improved temperature ramping, run the auto-tune procedure as outlined in the manual.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, it can operate at temperatures which allow the degassing/purging process to occur rapidly, increasing productivity and allowing superior quality products with minimal processing time.
  • 2-year warranty.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

Important! Never leave your oven unattended while operating.
