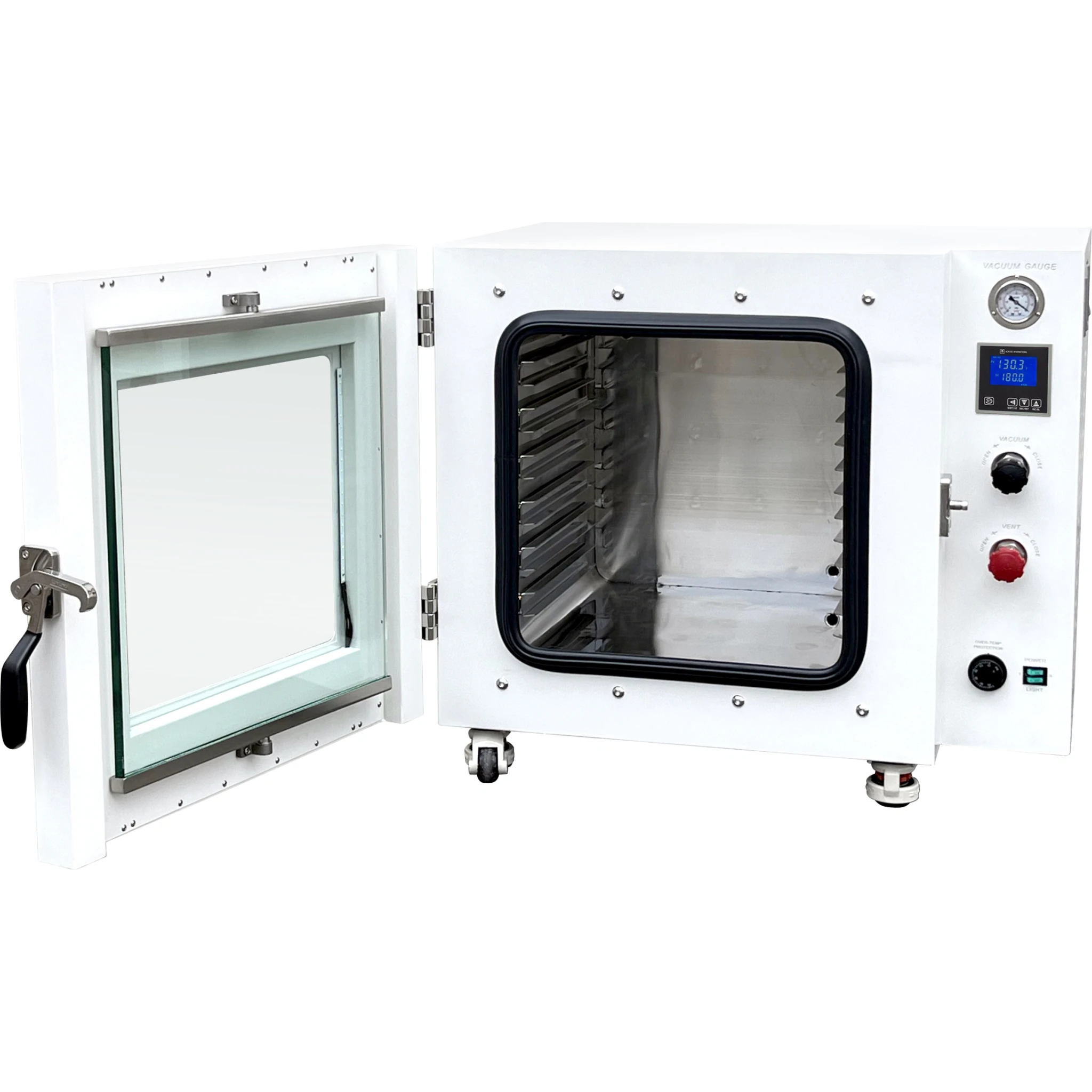

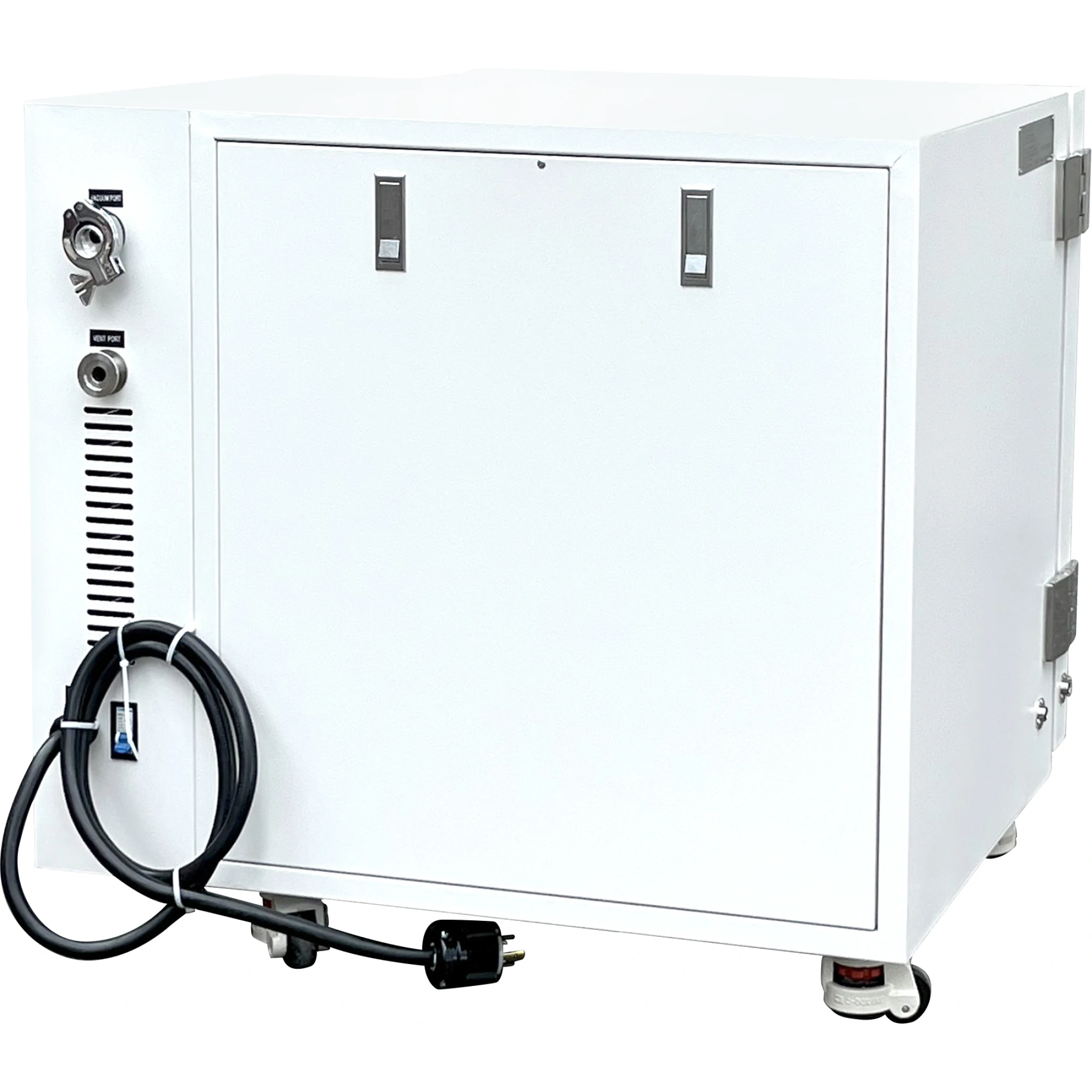

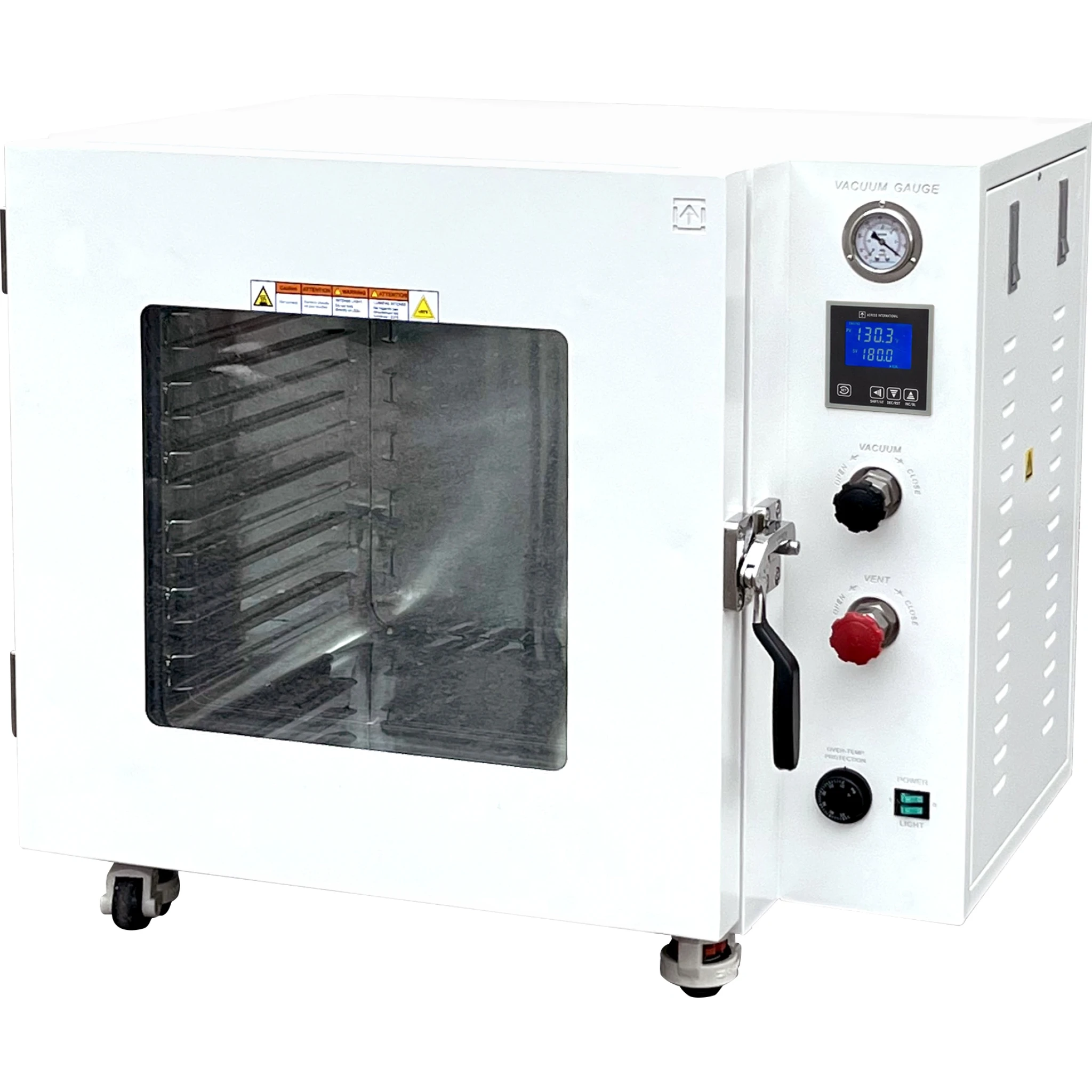

3.2 CF Vacuum Oven 250C ETL Certified with 316L Chamber SST 110V 50/60Hz
Reference:
Manufacturer: Across International
SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.
In stock
Features
- UL certified.
- UL certified.
- The new KF25 inlet filter keeps your oven clean at all times (included with oven purchase).
- All stainless steel internal tubing provides a higher ultimate vacuum, holds the vacuum 10 times longer, and requires minimum maintenance.
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
- Removable shelves for ease of operation and more flexibility.
- Dual layer observation window with 5/8" tempered safety glass.
- 4th gen low proportional gain temperature controllers keep your oven temperature accurate
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in swivel casters with leveling feet.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- For improved temperature ramping, run the auto-tune procedure as outlined in the manual.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minute

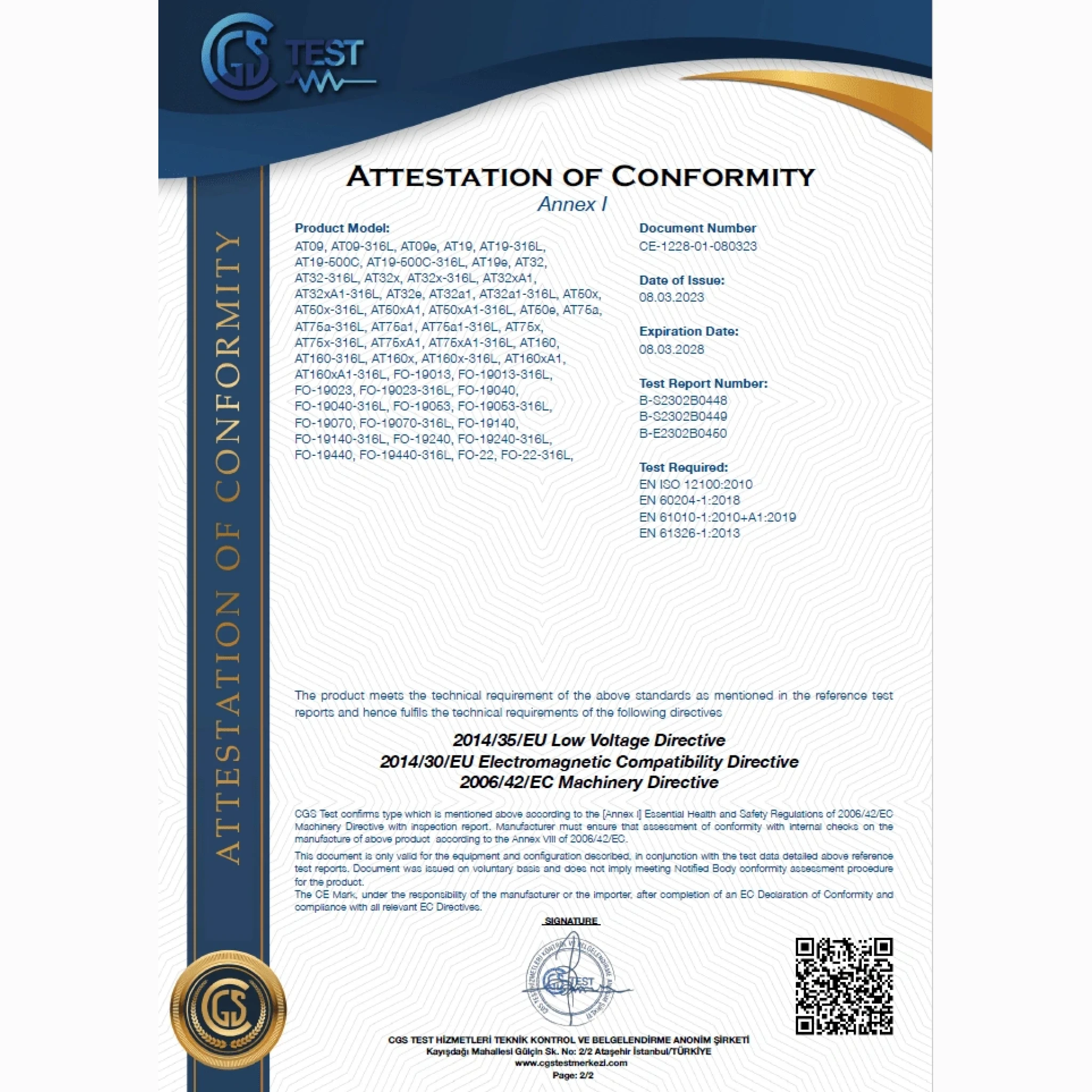

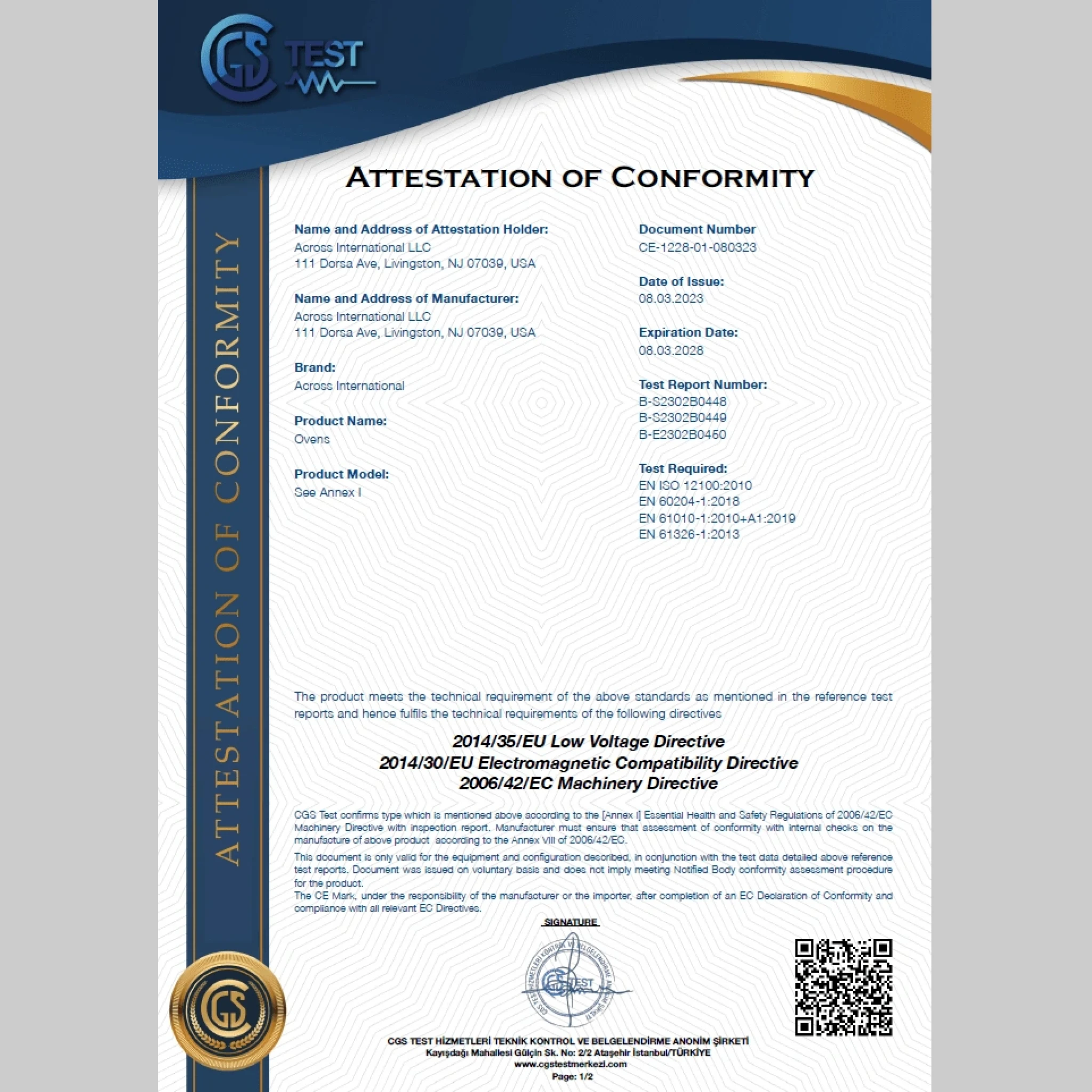

Manufactured in accordance with
- UL 61010-1
- CSA C22.2
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
| Electric | 110V +/-10% 50/60Hz 1-PH, 2,500 watts |
| Heater | 5-sided heating (left 600W, right 600W, top 600W, bottom 600W, back 200W x 3) |
| Chamber | Size: 18 x 18 x 18" Material: Stainless steel Capacity: 3.2 cubic feet |
| Temperature control | Controller: low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 250°C (or 480°F) Display units: Fahrenheit or Celsius Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 35 minutes Warm-up time to 480°F: 60 minutes |
| Vacuum | Ultimate vacuum level: better than 500 microns/millitorrs Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: KF25 flange x 1 Vacuum pump: Sold separately |
| Weight | Unit: 260 Lbs, shipping: 400 Lbs |
| Dimensions (WxDxH) | Unit: 34 x 25 x 30.5" Shipping: 40 x 33 x 37.5" |
| Shelves | Capacity: 12 shelves max. Comes standard with oven purchase: 6 shelves |
| Door gasket material | Silicone or Viton |
| Observation window | 1/2" tempered safety glass |
| Safety | Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial |
| In-door lights | White LED |
| Warranty | 2 years |
| Compliance | ETL, CE |
| Model | AT32x Vacuum drying oven (400C) $9,990.00 |
| Electrical requirements | 220V +/-10% 50/60Hz,Single phase 20A,4.4kilowatt |
| Chamber | Size: 450x450x450mm(Width xdeep xhigh) Material: Stainless steel |
| Heating | External heating element, 900w x4, 400w x2. It features the fastest heating speed, the most energy efficiency, and the most uniform heating. |
| Temperature control | Controller: Low proportional gain, microcomputer PID Control, with LCD Display range: ambient temperature to 400°C(or 212°F) Display unit: Fahrenheit or Celsius Duration of stay:1 to 9999 minutes |
| Vacuum | Mechanical vacuum gauge range: 0 to 30inch mercury Mechanical vacuum gauge type: oil-filled Vacuum port:KF25 flange x 1 Exhaust port: KF25 flange x 1 Vacuum pump: Sold separately |
| Size | Machine dimensions: 940*610*770mm (width x depth x height) Shipping dimensions: Not available |
| Door gasket material | Silicone or viton |
Standard Package
| Ai UL certified 3.2 cu ft vacuum oven | 1 pc |
| Aluminum pan shelves | 6 pcs |
| KF25 quick clamp and centering ring | 2 sets |
| Inlet filter with KF25 connection | 1 pc |
| Led Light Cable | 1 pc |
| Users manual | 1 pc |
