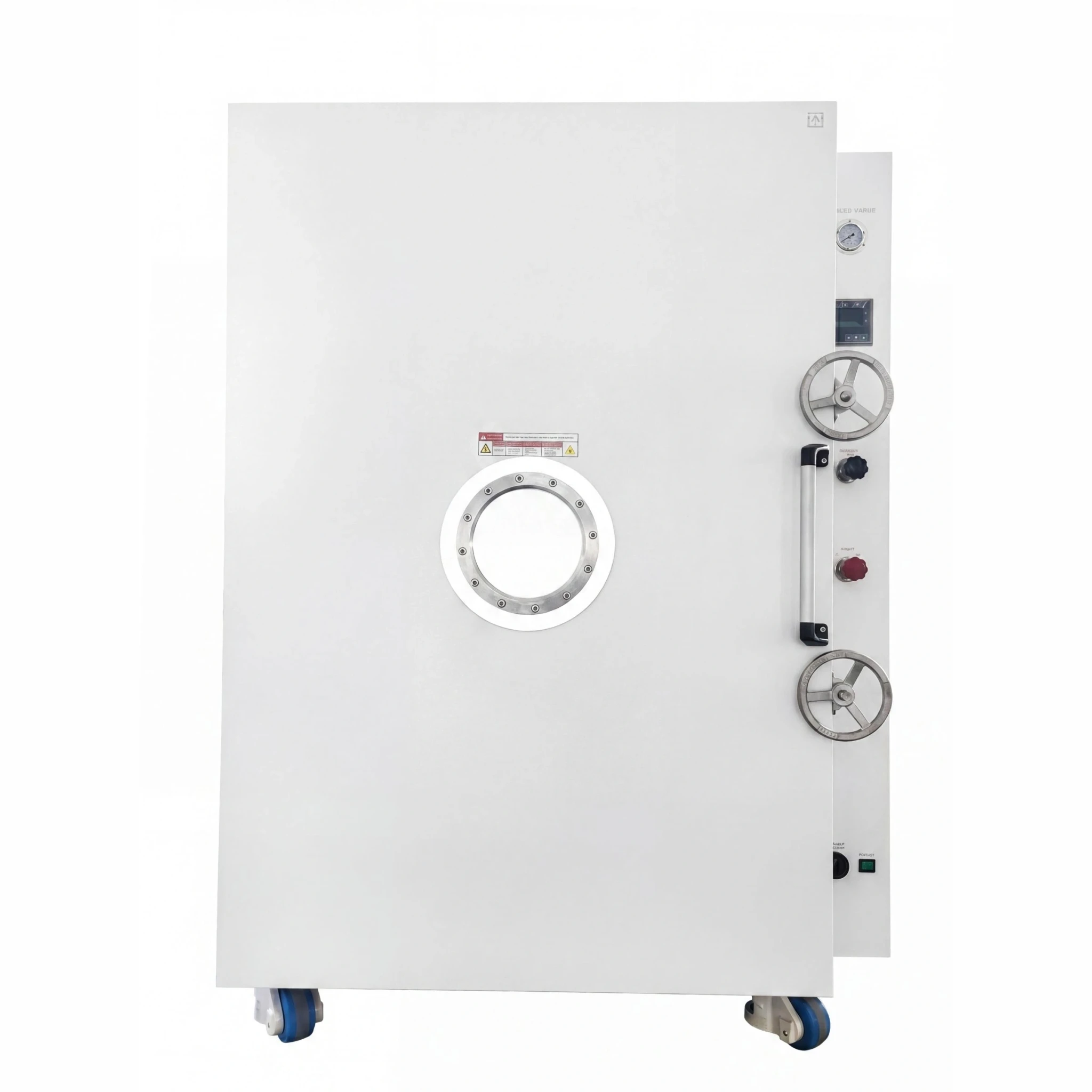

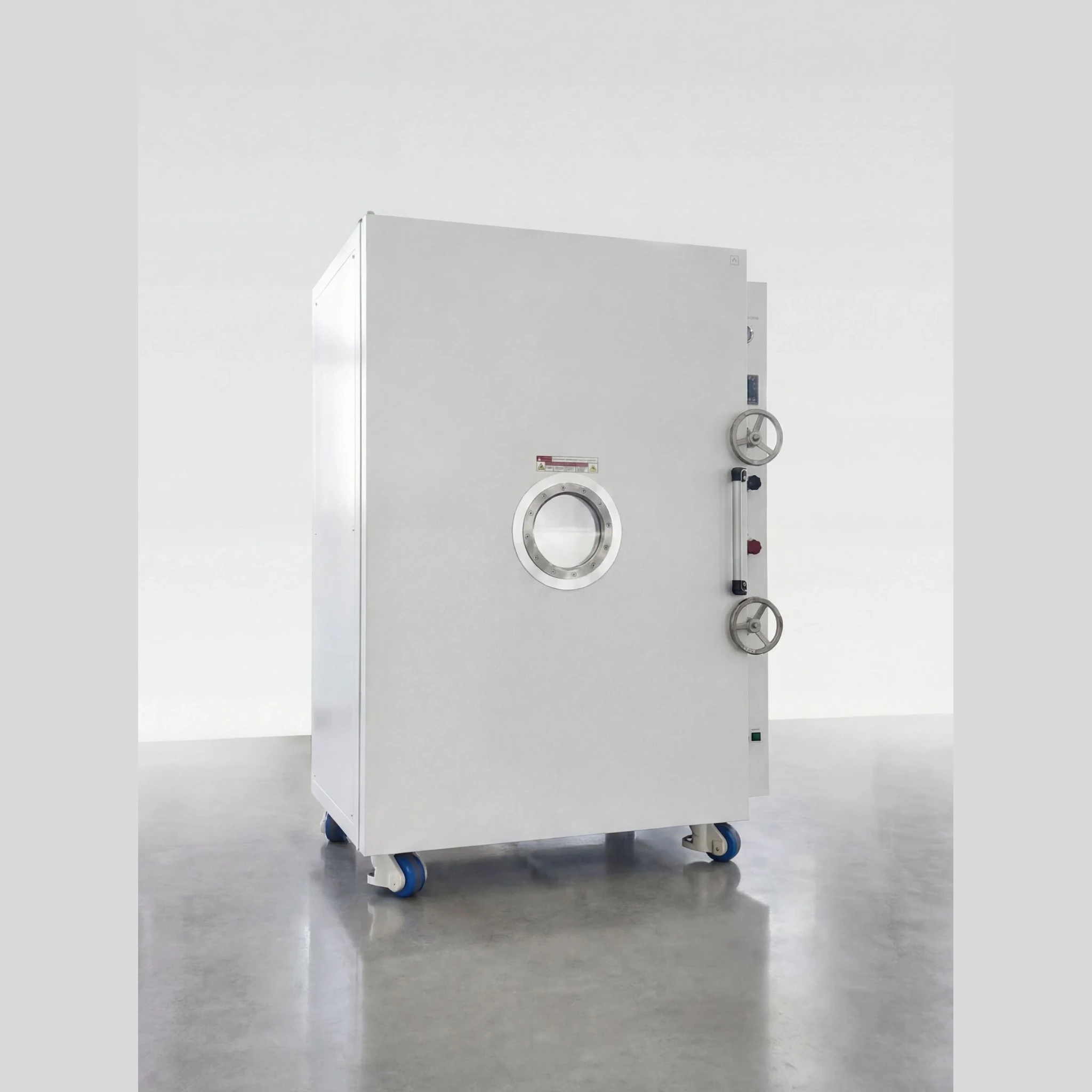

1000L Vacuum Drying Oven

The Across International 1000L Vacuum Drying Oven is a large-capacity industrial system engineered for demanding thermal drying, degassing, and curing applications. Designed with a 1,000-liter chamber, 50°C to 250°C operating range, and 17KW heating system powered by 480V 3-phase input, it delivers the performance needed for high-throughput processing in production and advanced laboratory environments. An integrated N₂ inlet supports inert atmosphere purging for oxygen-sensitive materials, while the large Ø200 mm viewport allows real-time process observation without interrupting vacuum conditions.

Features:

• Sustained High-Temp Stability: Maintains a precise 160C setpoint for 40+ continuous hours without deviation; suitable for multi-day drying, degassing, and curing cycles.
• N2 Inert Gas Purging: Integrated nitrogen inlet port allows full inert atmosphere purging to protect oxygen-sensitive materials throughout the thermal process.
• O200 mm Observation Viewport: Large-diameter borosilicate viewport allows real-time visual monitoring of the load under full vacuum without breaking process conditions.
• Heavy-Duty Door Assembly: Four precision hinges and dual handwheel locking mechanism help ensure vacuum-tight sealing on a 1000L chamber with repeatable closure.
• 480V Industrial Power: Three-phase 480V input with 17KW rated heating element is sized for rapid heat-up across the full 1 m3 working chamber volume.

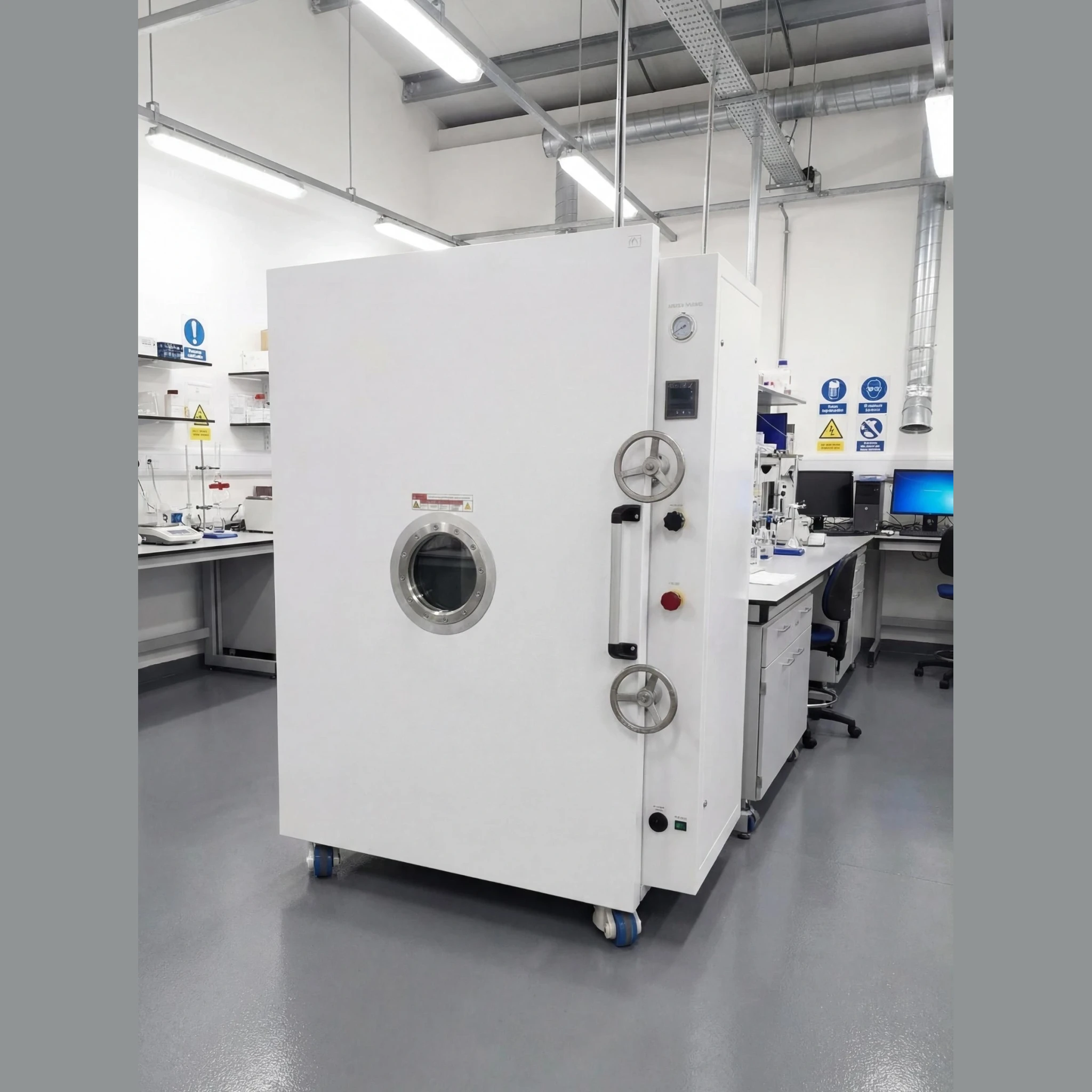

• Mobile and Lab-Ready: Industrial locking casters allow repositioning within the facility; compact footprint relative to 1000L capacity helps maximize floor-space efficiency.

Application Description:

Battery Material Drying	Vacuum drying and moisture removal for battery-related materials.
Powder and Ceramic Degassing	Degassing process for powders and ceramic materials under vacuum.
Aerospace Component Curing	Thermal curing applications for aerospace-related components.
Electronic Assembly Baking	Baking and thermal processing for electronics assemblies.

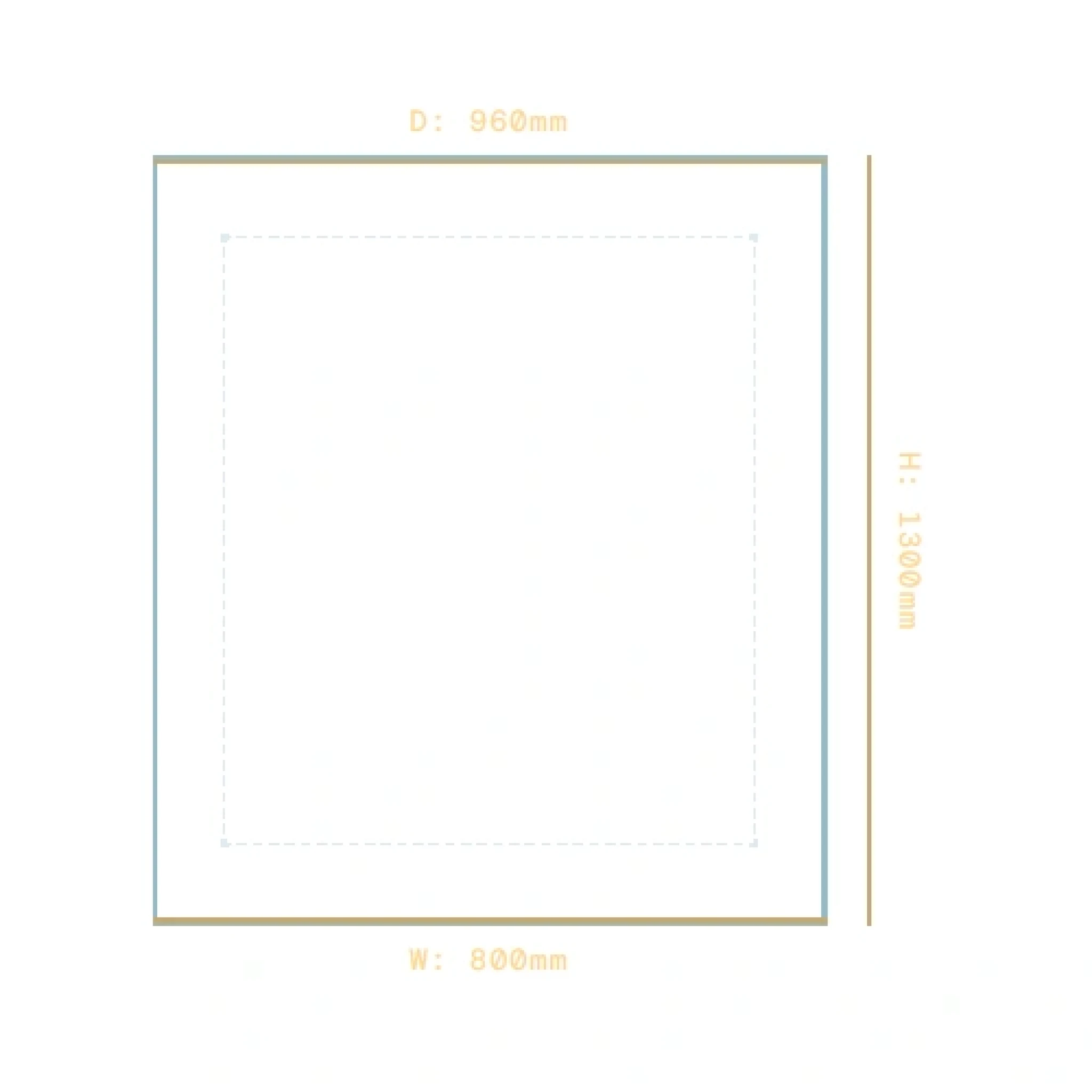

Chamber: 1000L | Inner: 800×960×1300mm
Range: 50–250°C | Sustained: 160°C for ≥40 hrs
Power: 480V 3-Phase | 17KW | No water cooling
N₂ inlet for inert purge | Viewport: Ø200mm
4 hinges · 2 handwheels | Locking casters

---

MODEL · AI-VOD-1000 · 480V · 17KW · REV 1.0
