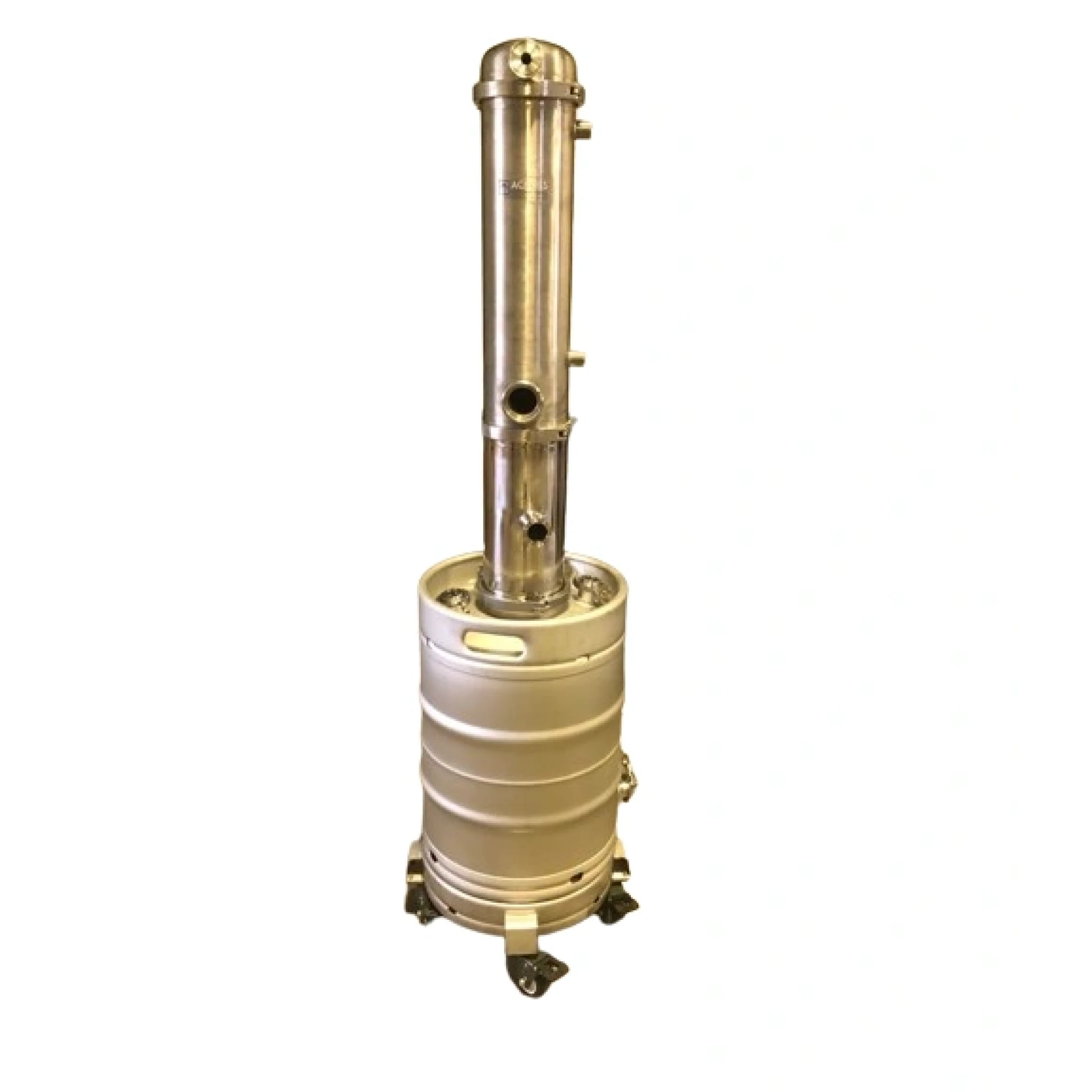

Modular Stainless Steel Cold Trap with 50L Receiving Vessel
Reference:
Manufacturer: Across International
Introducing the Across International external condenser. This modular condenser has 0.89 m2 of surface area to handle large vapor loads and keep solvents out of your vacuum pump, single 50L receiving tank, and a 1.5” tri clamp connection for easy configuration to just about all types of equipment. Common applications for this condenser include powder drying in the pharmaceutical industry, electrode slurry drying in the battery and energy sector, and any application involving removal of water, ethanol, and other commonly used laboratory solvents. A recirculating chiller (sold separately) is needed to cool the condenser.
In stock
Customize your product
Payment Providers
This stainless steel cold trap is built for larger solvent loads than a glass trap can handle. It sits between the process and the vacuum pump, condensing water, ethanol and other solvents so they collect in the tank instead of reaching the pump.
The condenser is a shell-and-tube design with 70 tubes, cooled by your chiller through the jacket connections. It is rated from -40 to 200C. Condensate drains into a 50L 304 stainless steel tank on a dolly, which rolls away for emptying.
All process, vacuum and drain ports are 1.5" tri clamp with Viton gaskets, making it simple to add to sanitary stainless setups. Ultimate vacuum is 1 Torr.
Collection tank | 50L x 1, 304 stainless steel, with dolly (15.5" diameter, 23.5" height, 30" with dolly) |
Main Condenser | Style: shell and tube heat exchanger Number of tubes: 70 Condensing area: 0.89 m2 |
Pressure | Ultimate vacuum level: 1 Torr |
Process Connection | 1.5" Tri clamp |
Fluid Jacket Connections | 1/2" NPT (Female) |
Drain Port | 1.5" Tri clamp |
Vacuum Connection | 1.5" Tri clamp |
Standard Gasket Material | Viton |
Condenser Temperature Range | -40 to 200C |
Unit Weight | 75 lbs |
Unit Dimensions WxDxH | 15.5" x 15.5" x 59" without dolly |
