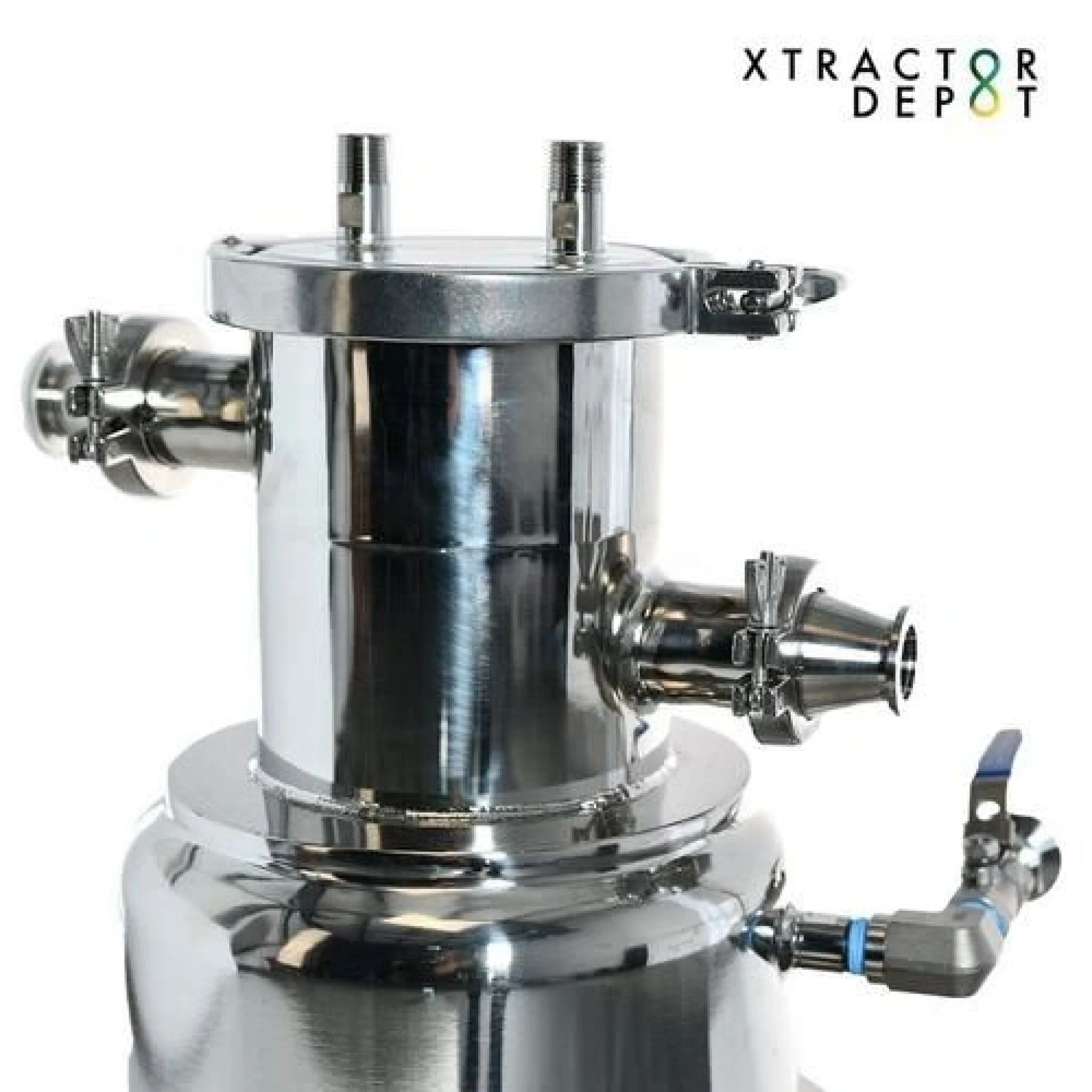

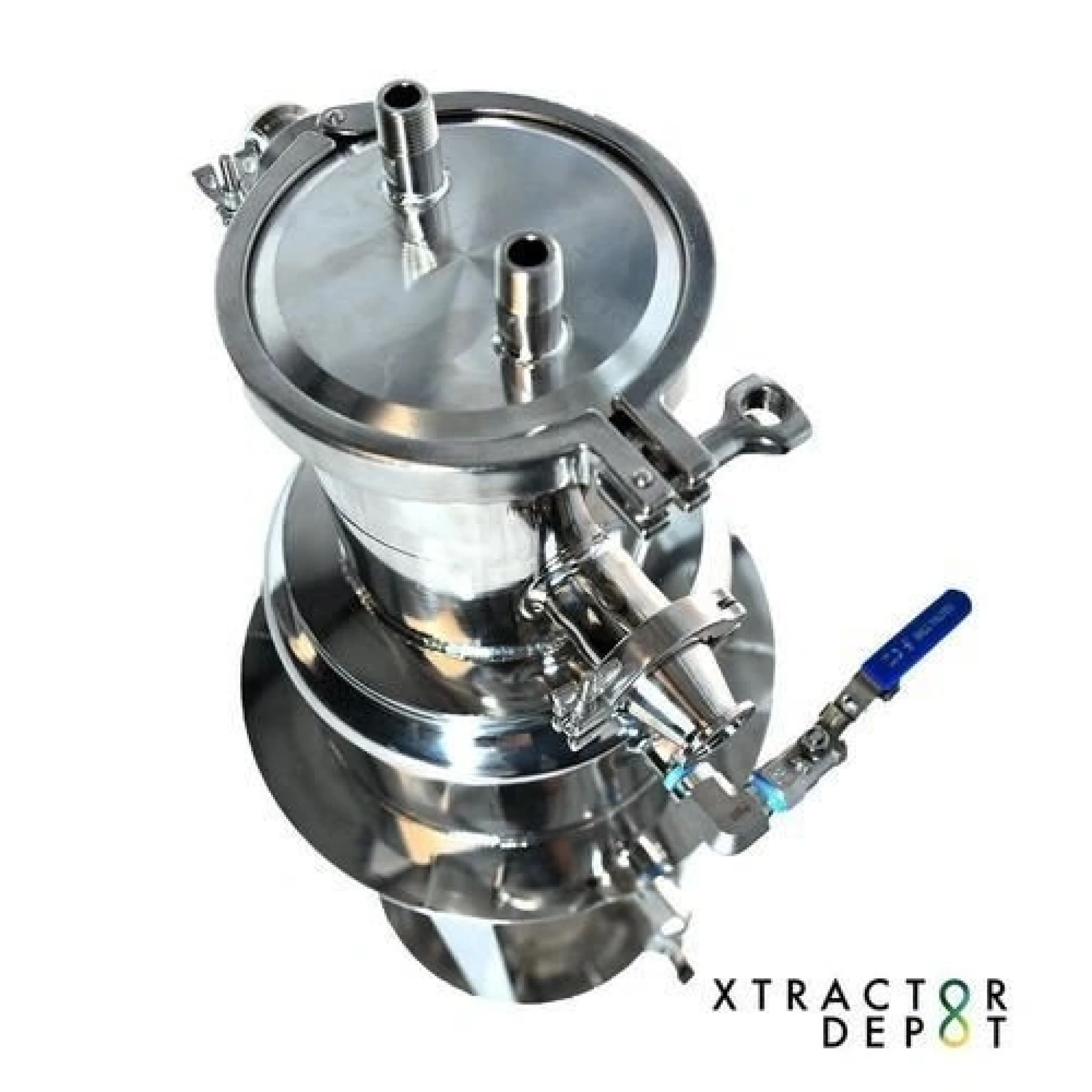

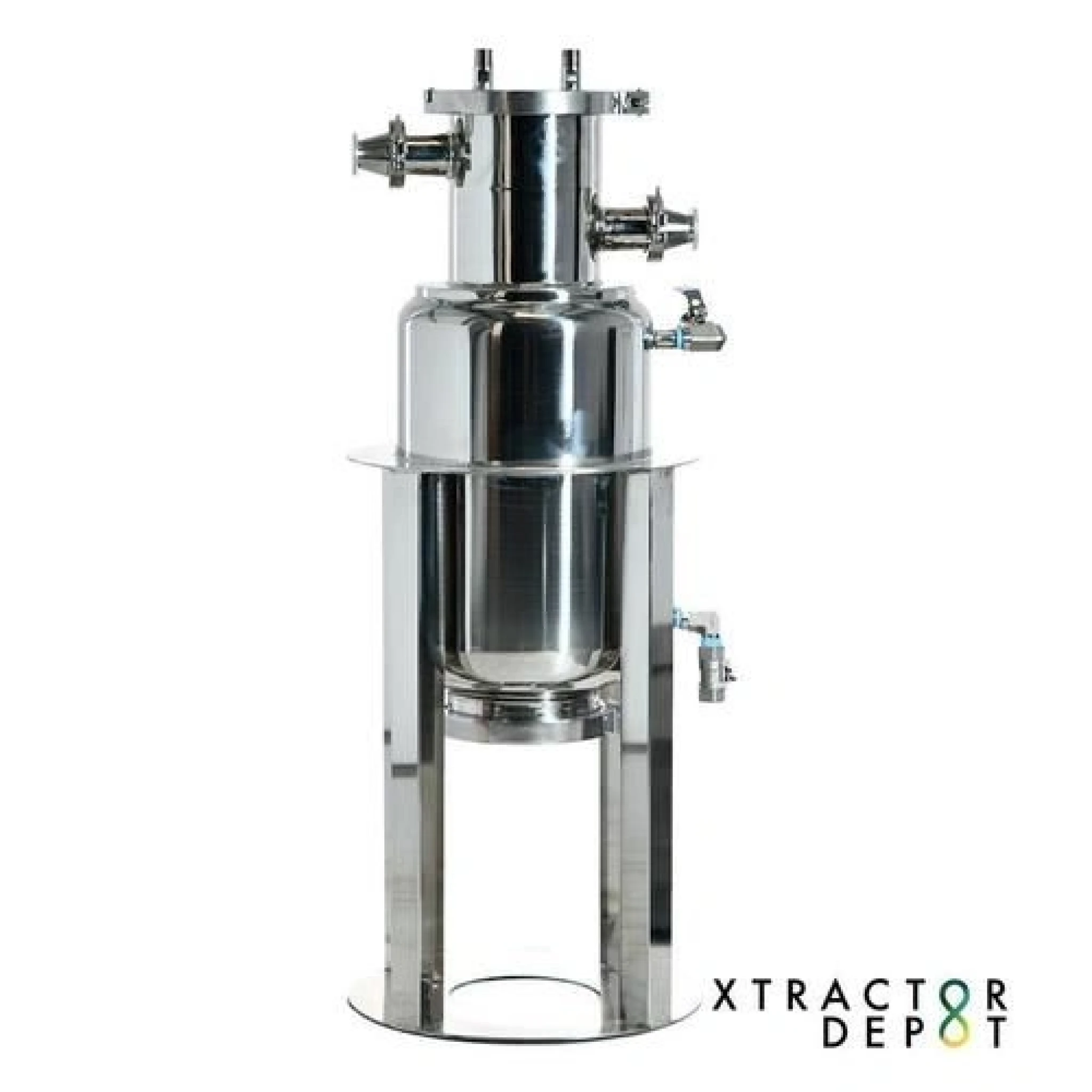

Xtractor Depot CryoTrap 10L Stainless Steel Cold Trap with KF40
Reference:
Manufacturer: Across International
Pump repairs and replacement are an expensive hassle. Take the guesswork out of pump protection with the XD Cryotrap. Features stainess steel construction and vacuum jacket, allowing for excellent thermal insulation. An industry-leading vapor path design allows for the rapid condensation of liquids and it comes set up for use with either dry ice or a chiller.
Crate Fee will be charged when shipping. Must be shipped via Freight.
Customize your product
Payment Providers
Fully Assembled
Adapted to the following:

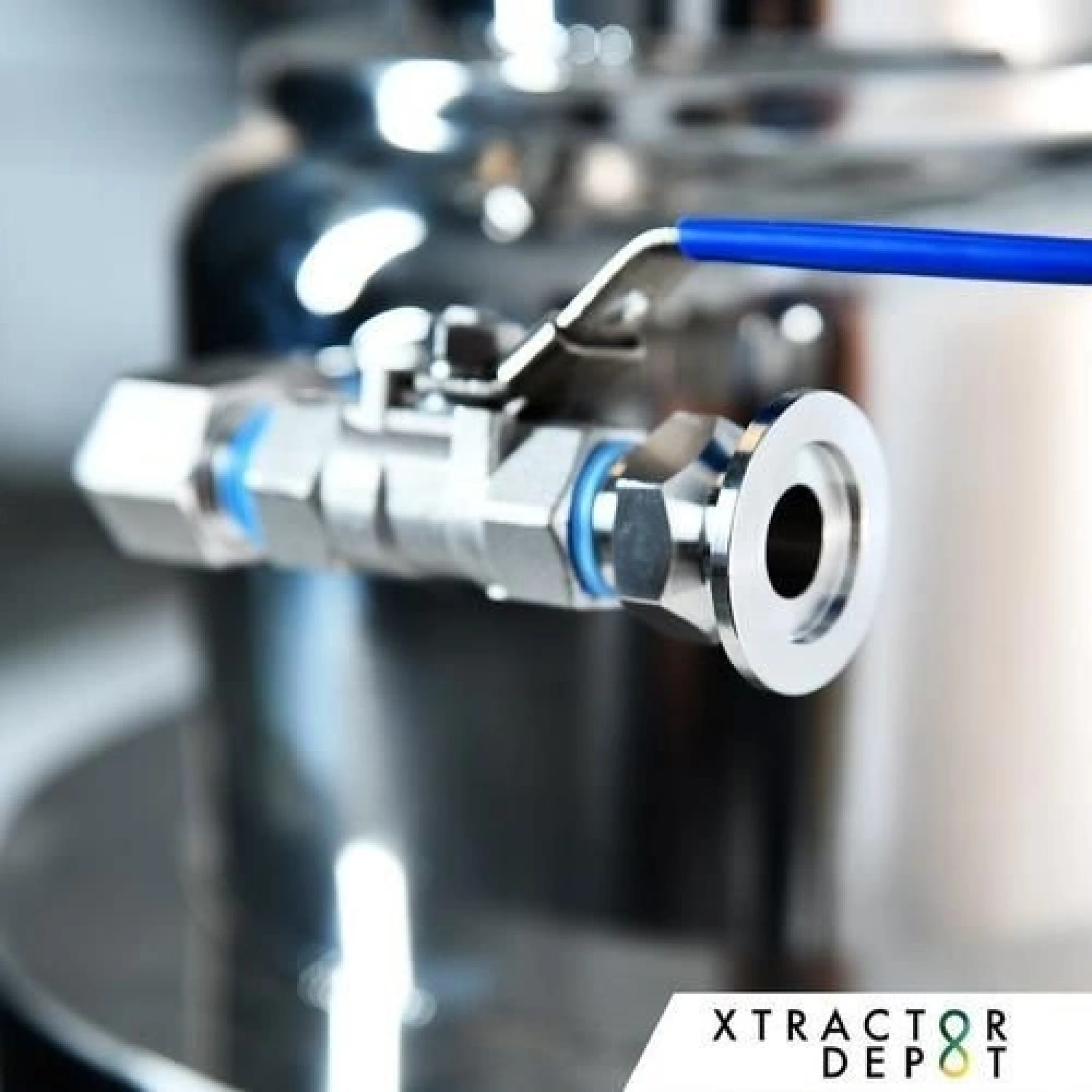

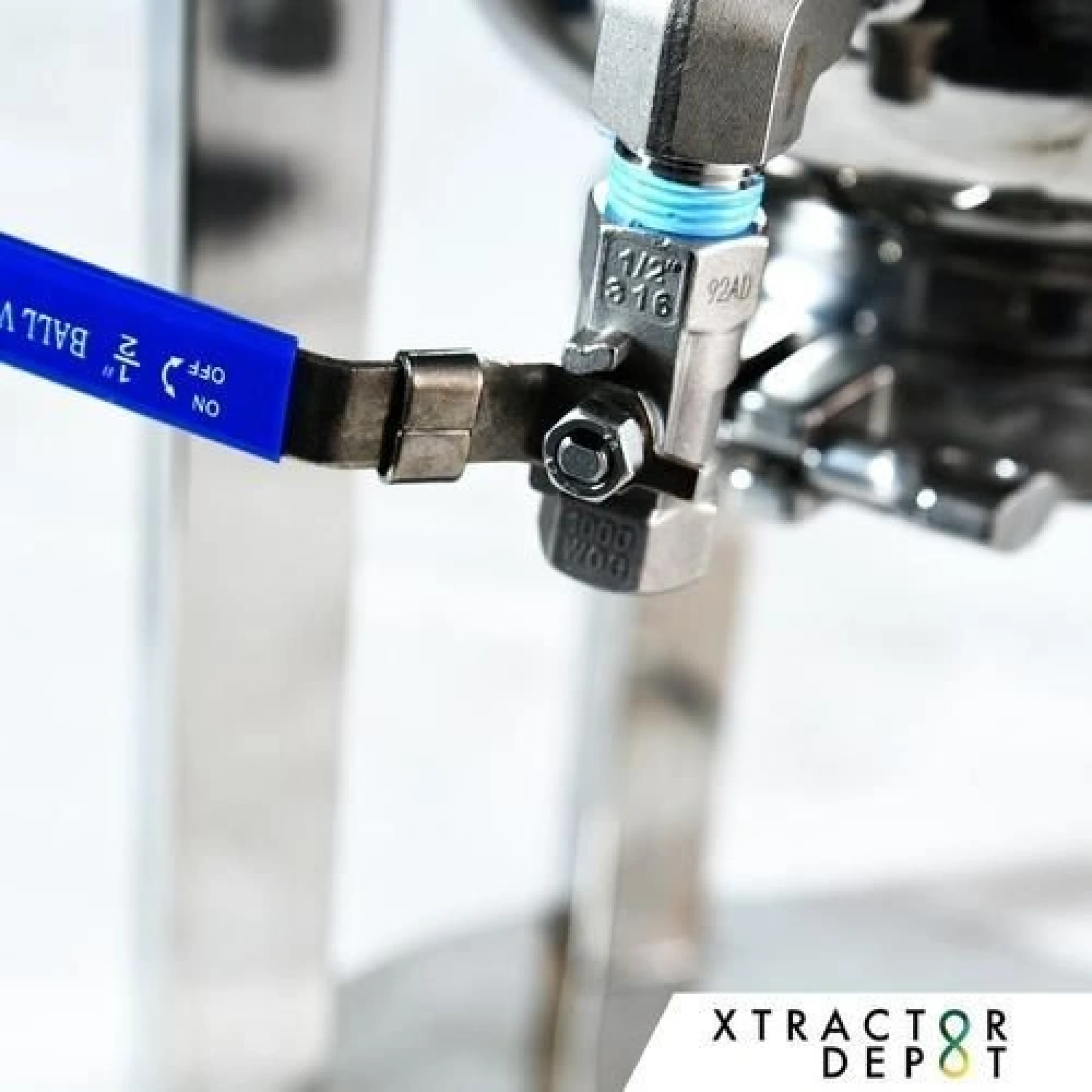

- 3/8" FNPT Ball Valves
- KF25

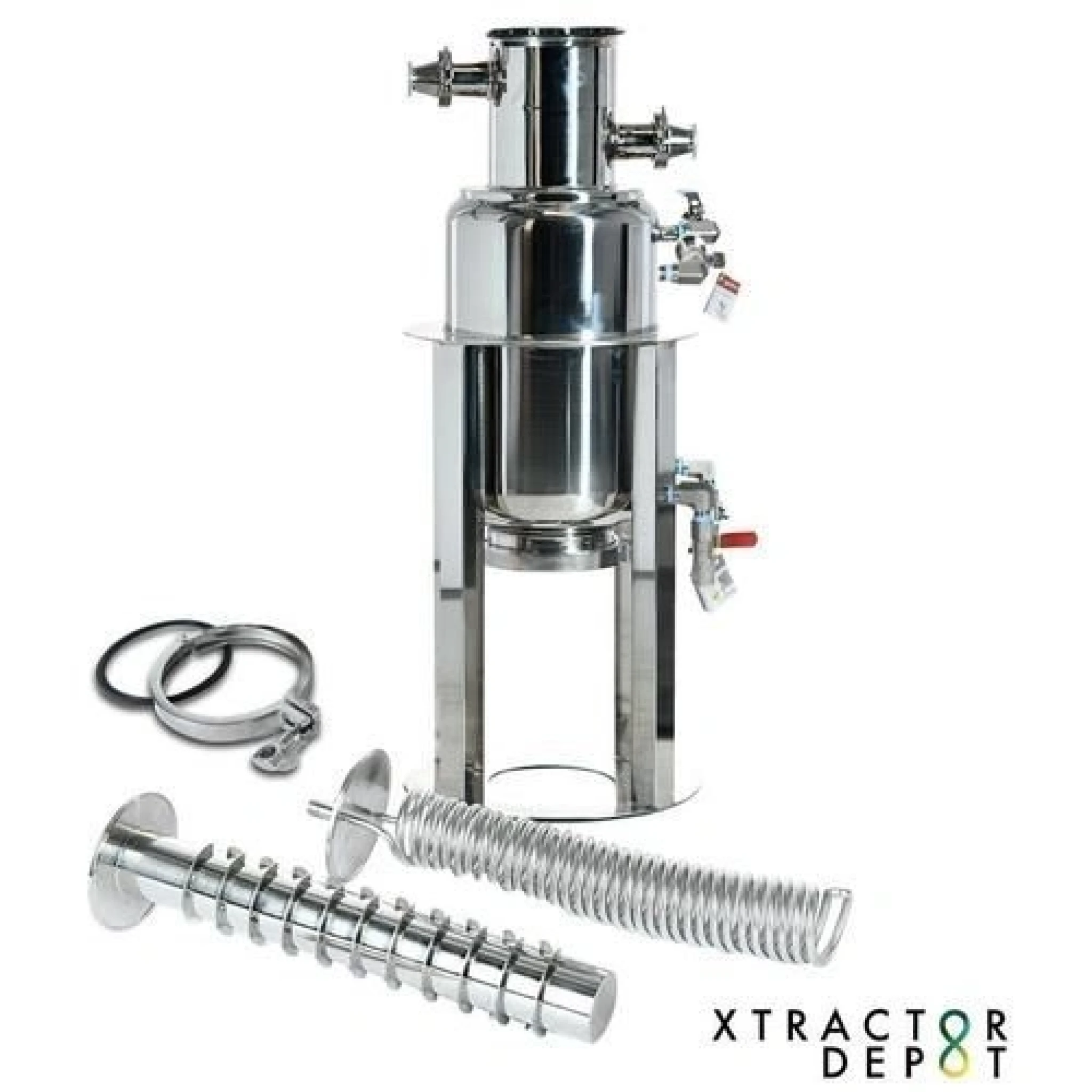

Extras Included:
- Dry Ice Insert
- Chilling Coil Insert
Also Recommended:
- (2) KF25 Bellows Hosing
Recommended to use Edwards Vacuum pump or VP21
| Model | CryoTrap |
| Internal volume | 10.3 L |
| Material | Stainless steel |

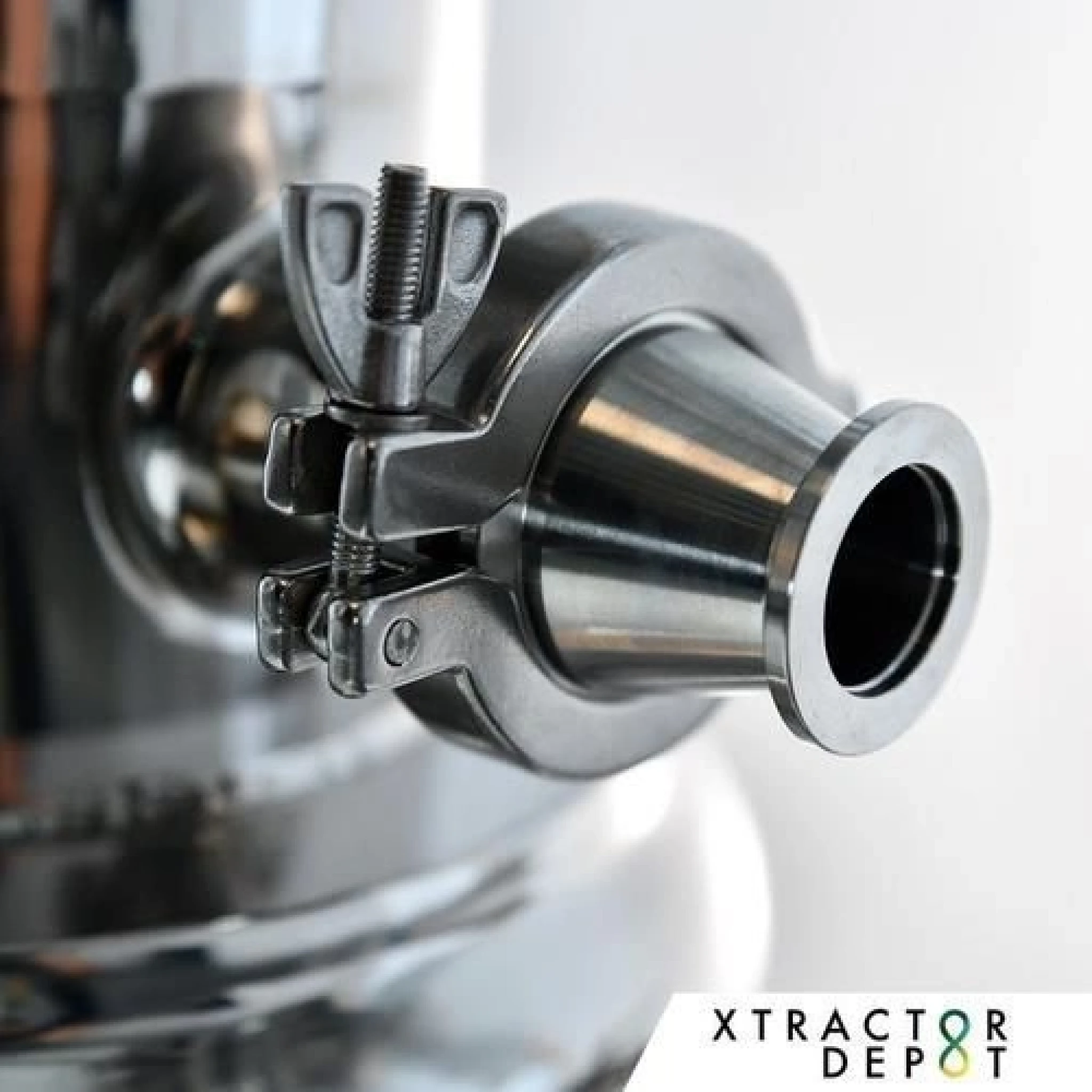

| Trap connections | KF40 (KF40 to KF25 adapters with KF40 clamps & o-rings included) |
| Sealing gasket material | Made of FKM, gasket does not touch the fluid, FKM is rated to -26°C |
| Compatible with | Liquid Nitrogen Dry ice with alcohol Chiller with Dynalene |
| Recommended chiller | -80°C |
| Weight and dimensions | Cold trap/coil: 95 lbs, 14 x 14 x 36" (WxLxH) Palletized: 155 lbs, 40 x 45 x 41" (WxLxH), freight class: 250 |
| Dry Ice Cold Finger dimensions | Inner Diameter 2.85" Length 23.15" Volume 147.68 cubic inches |
| Included with purchase | (1) Dry Ice Insert |
| Download | Product brochure |
