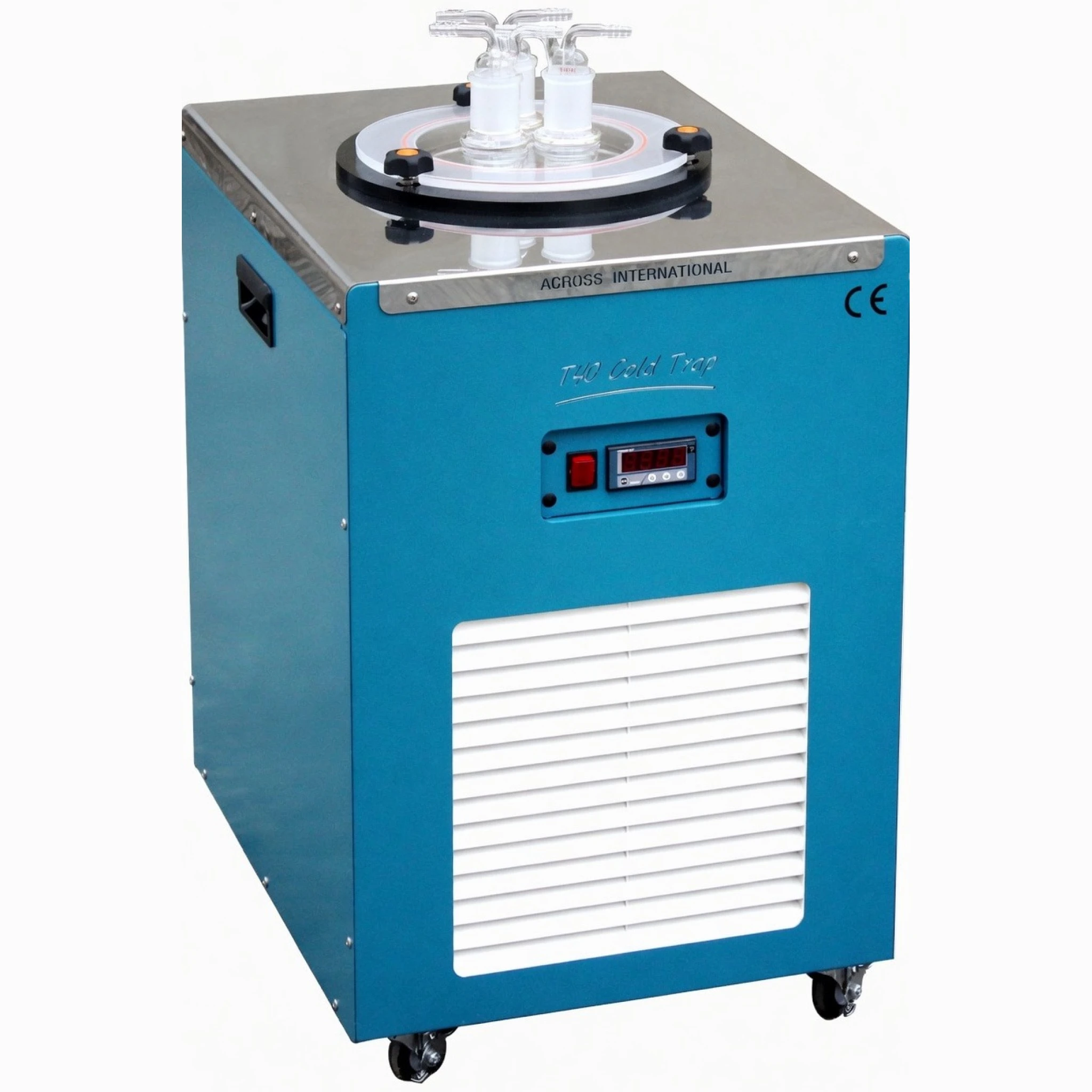

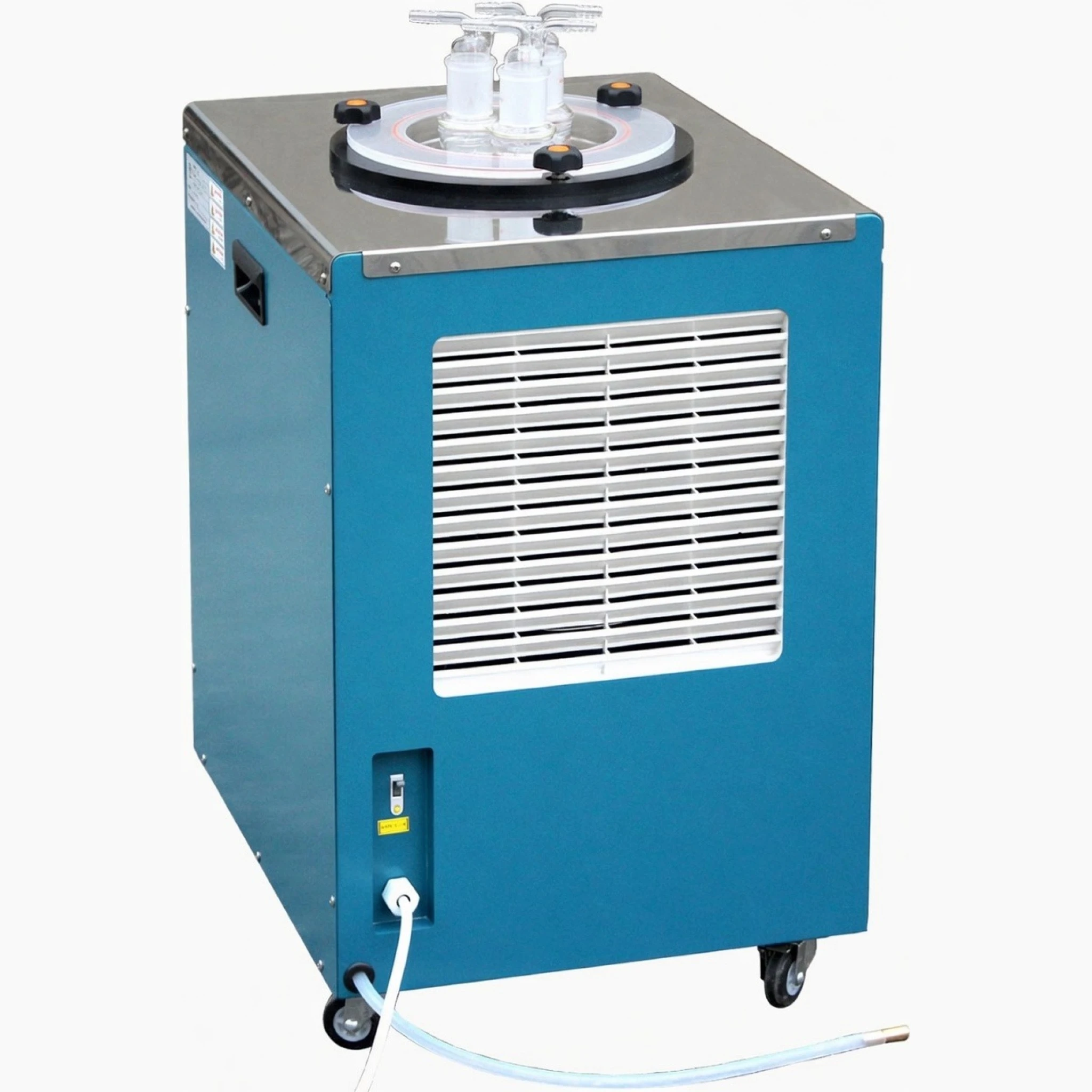

Ai -40°C 1.5L Capacity Cold Trap

The Ai 2nd Gen -40°C/°F T40 cold traps are now all ETL certified. They have a much smaller footprint while offering the same cooling power, 1.5X the reservoir and 1.6X the trap capacity. New upward hose barb ports give you safer and easier vacuum tubing connection and removal.

In vacuum applications, a cold trap is a device that condenses all vapors except the permanent gases into a liquid or solid. The most common objective is to prevent vapors being evacuated from an experiment from entering a vacuum pump, where they would condense and contaminate it. Particularly large cold traps are necessary when removing large amounts of liquid, as in freeze drying.

Pumps that use oil either as their working fluid (diffusion pumps) or as their lubricant (mechanical rotary pumps) are often the sources of contamination in vacuum systems. Placing a cold trap at the mouth of such a pump greatly lowers the risk that oil vapors will back stream into the cavity.

Care should be taken when using a cold trap not to condense liquid oxygen (a light blue liquid) into the cold trap. Liquid oxygen is potentially explosive, especially if the trap has been used to trap solvent. Liquid oxygen can be condensed into a cold trap if a pump has sucked air through the trap when the trap is very cold.

Ai UL/CSA certified T40-UL -40°C/°F cold trap features

• ETL tested to UL and CSA standards
• 1.5X more reservoir and 1.6X more trap capacity compared to its predecessor
• No dry ice or liquid nitrogen needed
• All steel housing for durability
• Small footprint, built-in swivel casters for mobility
• Plug and play, no assembly required
