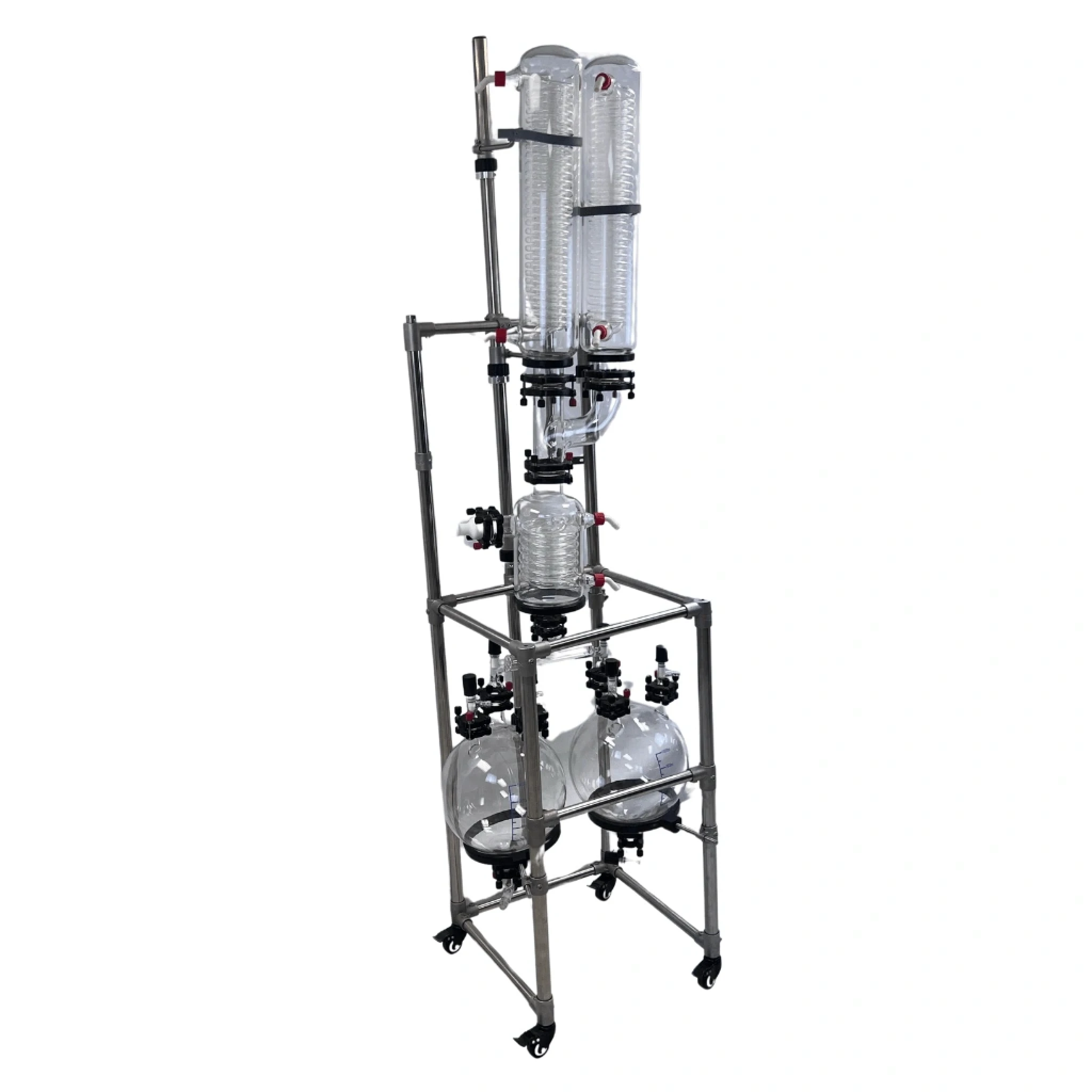

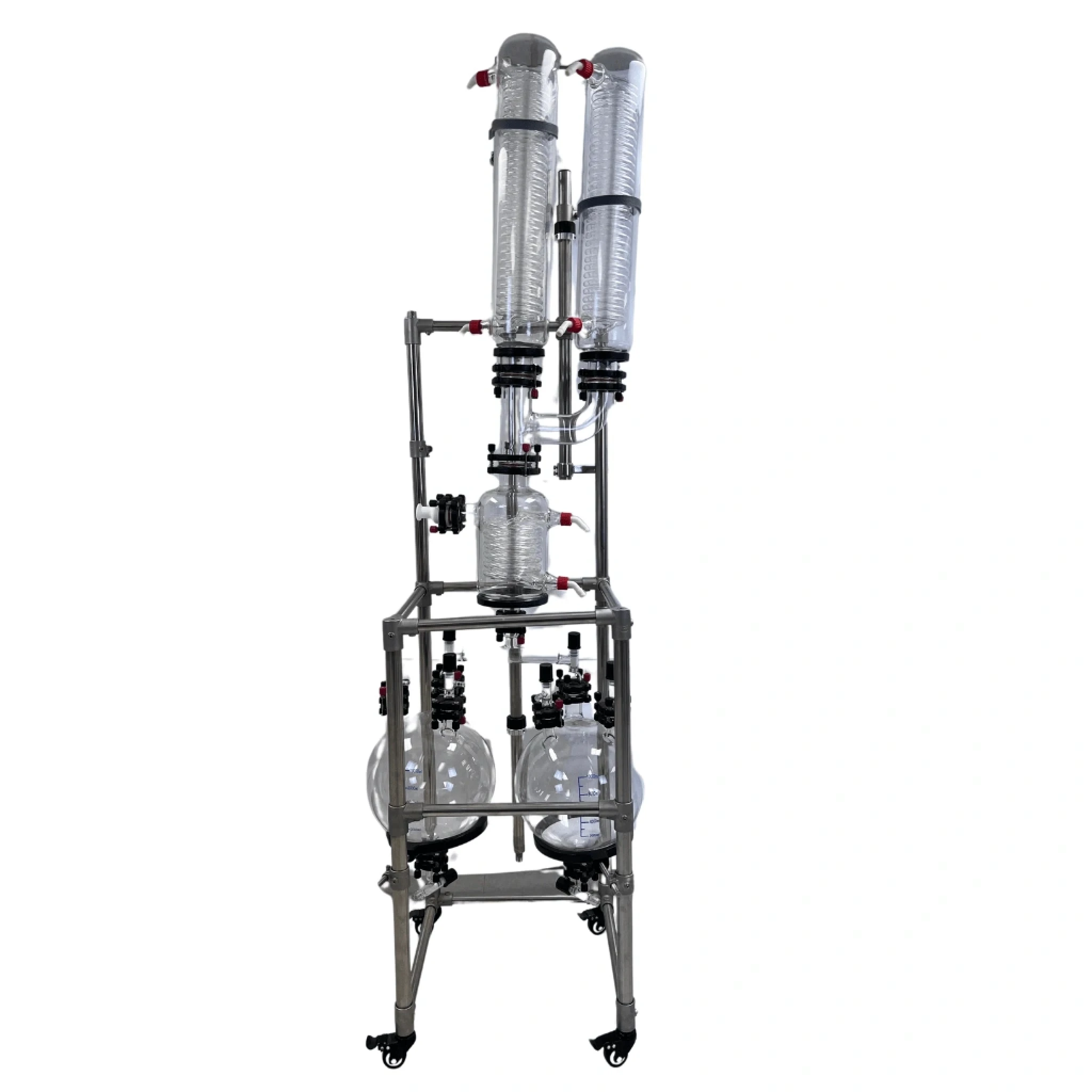

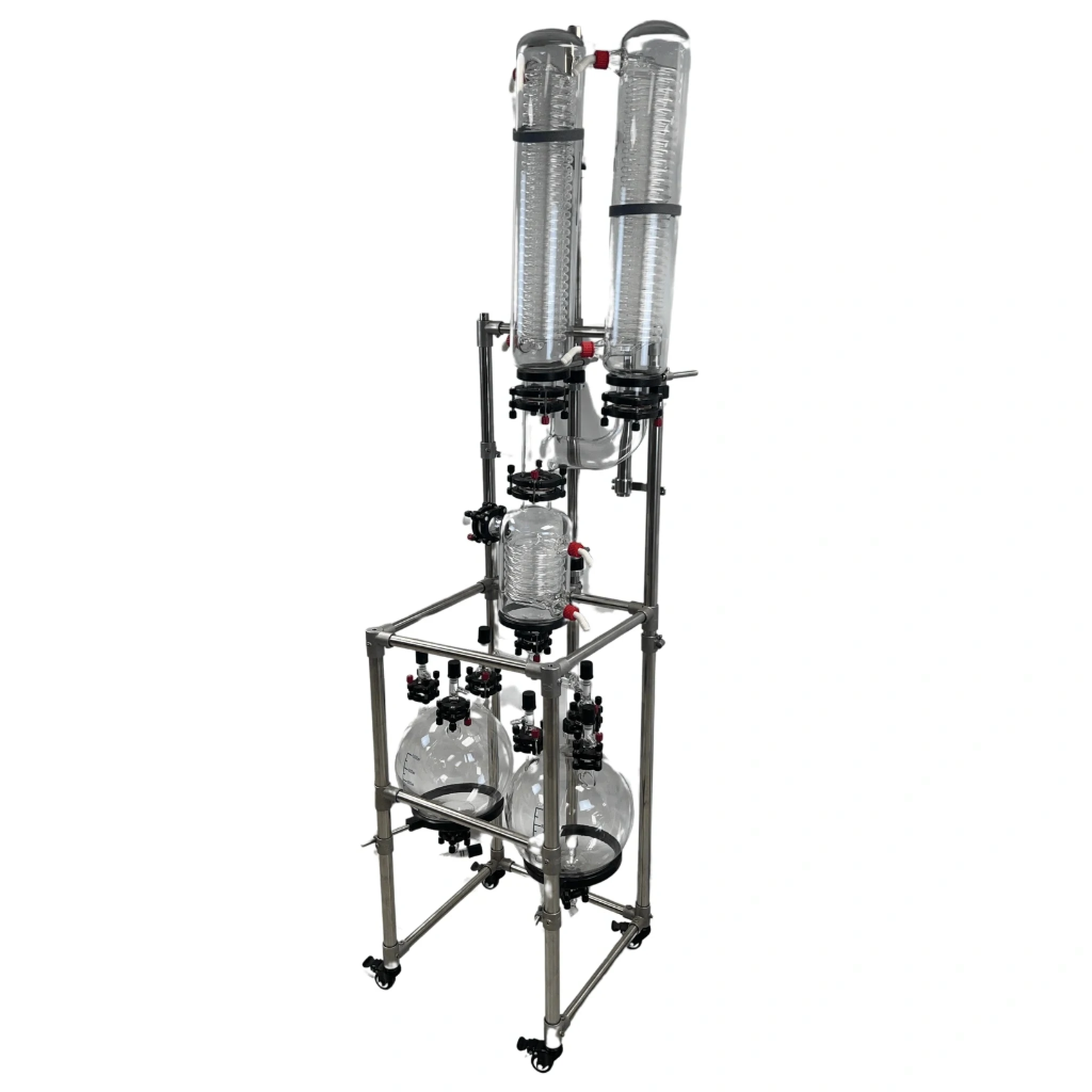

Modular Cold Trap with Glass Condensers & Dual Receiving Flasks
Reference: CT.ExternalCondenser.Dual
Manufacturer: Across International
Introducing the Across International external condenser. This modular condenser has over 15,000 cm2 of surface area to handle large vapor loads and keep solvents out of your vacuum pump, dual 10L receiving flasks for continuous operation with minimal downtime, and a KF25 connection for easy configuration to just about all types of equipment. Common applications for this condenser include powder drying in the pharmaceutical industry, electrode slurry drying in the battery and energy sector, and any application involving removal of water, ethanol, and other commonly used laboratory solvents. A recirculating chiller (sold separately) is needed to cool the condenser.
In stock
Optional Must Have Accessories
|
Dry Ice Blocks - Dry Ice Bricks | +CAD $895.00 |
Payment Providers

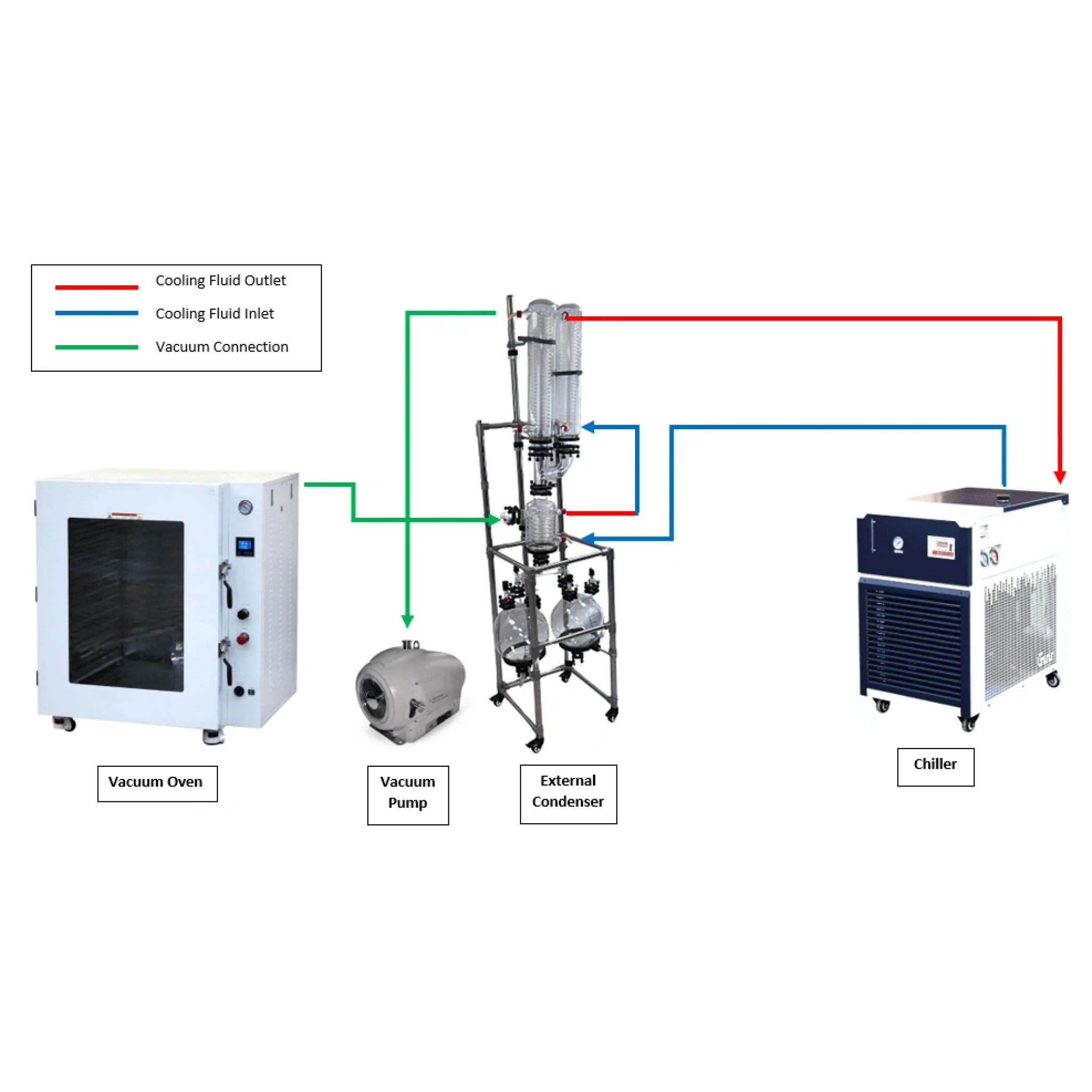

This modular cold trap is a large glass condenser that sits between your process and the vacuum pump. It turns solvent vapour back into liquid and collects it, which protects the pump and lets you recover water, ethanol and similar solvents during drying or evaporation.
A main and an auxiliary condenser give 15500 cm2 of cooling surface, fed from your chiller through 3/8" barbs. Two 10L receiving flasks let you drain one while the other keeps collecting, so long runs don't have to stop. Wetted parts are borosilicate glass and PTFE, which handle water, ethanol and other common lab solvents.
A KF25 process port connects it to vacuum ovens, dryers and other equipment. It reaches an ultimate vacuum of less than 3 torr.
Frame Material | Aluminium |
Wetted Parts Material Construction | 3.3 Borosilicate Glass and PTFE |
Glass Thickness | 5 mm |
Condenser Surface Area | 15500cm2 |
Hose Barb Size Chiller and Vacuum Connections | 3/8" |
Ultimate Vacuum | <3 torr |
Process Connection | KF25 |
Receiving Flask Volume | 10L |
Receiving Flask Barb Size | 1/2" |
Unit Dimensions (WxDxH) | 21"x 26"x 83" |
Standard Package
| Frame | 1 set |
| Vertical main and auxiliary condensers | 2 pc |
| Receiving flask glass vacuum port with PTFE open/close valve | 4 pc |
| Receiving Flask Drain Port w/PTFE Valve | 2 pc |
| Rubber-wrapped condenser support and bracket | 5 pc |
| Rubber-wrapped receiving flask support | 2 pc |
| Flask quick clamp & centering ring | 13 pc |
| Centering Rings | 13 set |
| GL18 connector with Gaskets | 8 pc |
| QC-40 to KF25 PTFE Adapter | 1 pc |
| Condenser Bridge | 1 pc |
| 10L Receiving Flask | 2 pc |
