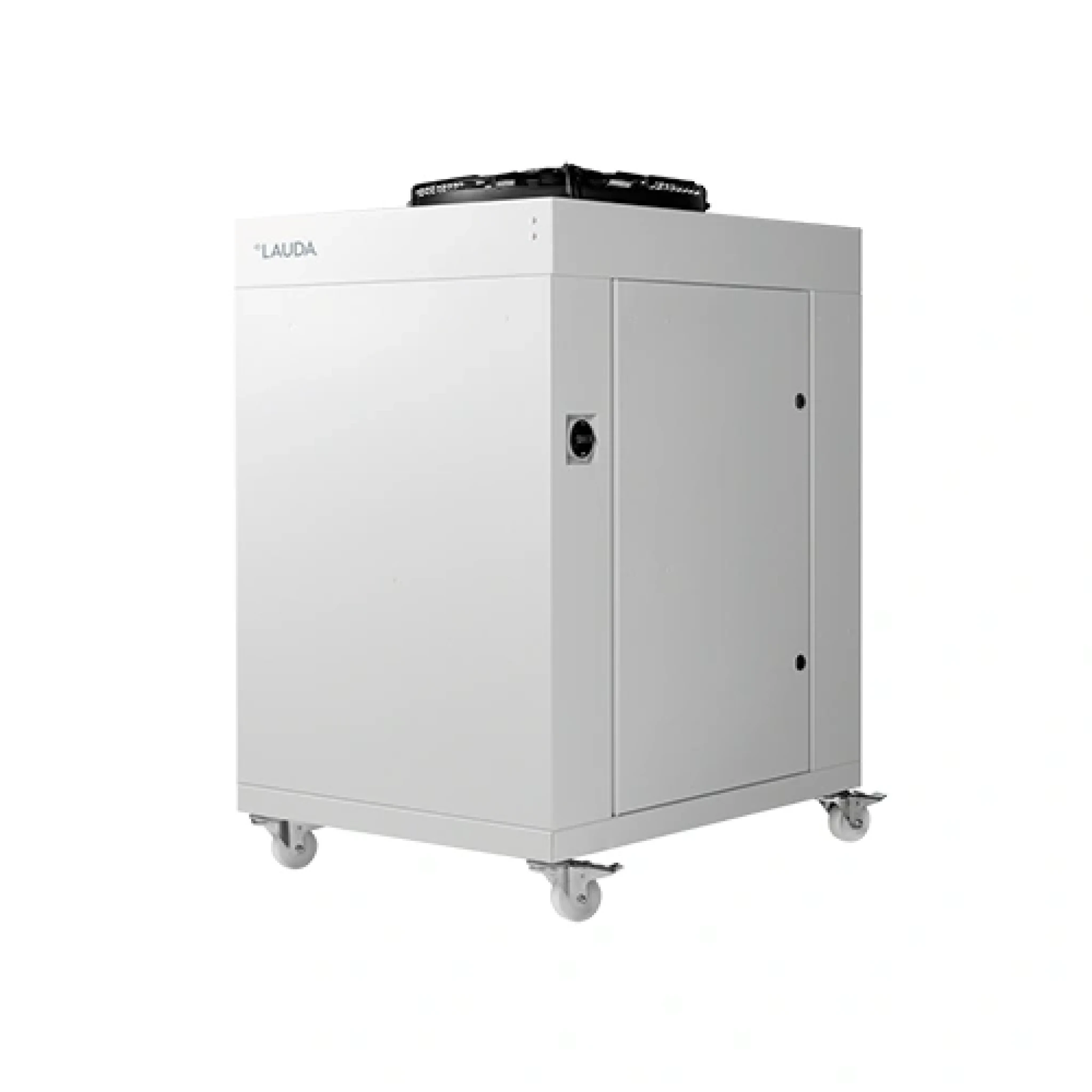

LAUDA Ultracool UC 24 Process Circulation Chiller
Reference:
Manufacturer: Lauda
- Increased temperature stability of ± 0.5 K
- Operational in ambient temperatures down to −15 °C
- Reduced tank volume results in reduction in installation and operating costs
- Reduced footprint compared to comparable previous models
Customize your product
Payment Providers
Description
- Increased temperature stability of ± 0.5 K
- Operational in ambient temperatures down to −15 °C
- Reduced tank volume results in reduction in installation and operating costs
- Reduced footprint compared to comparable previous models
- Extended working temperature range from −10 to 35 °C
- Bi-frequency power supply allows the same model types to be used worldwide
- Ethernet interface included as standard
- °C or °F selectable via menu
- Menu language selection: German, English, Spanish and French
- Premium quality centrifugal pumps with an internal bypass
- Water circuit consisting of flexible industrial hoses
- Numerous options and accessories for customer-specific adaptations, e.g. speed-controlled pumps, flow meters
- Suitable for outdoor installation (IP 54)
| Product | LAUDA Ultracool UC 24 |
| Working temperature max. °C | 35 |
| Working temperature min. °C | -10 |
| Temperature stability ±K | 0.5 |
| Ambient temperature min. °C | -15 |
| Ambient temperature max. °C | 50 |
| Cooling output at 25 °C kW | 34 |
| Cooling output at 20 °C kW | 30.9 |
| Cooling output at 10 °C kW | 24.3 |
| Cooling output at 0 °C kW | 17.3 |
| Pump pressure max. bar | 4.2 |
| Pump flow max. L/min | 130 |
| Pump connection thread mm | Rp 1 |
| Volume water tank L | 35 |
| Noise level dB (A) | 61.3 |
| Weight kg | 180 |
