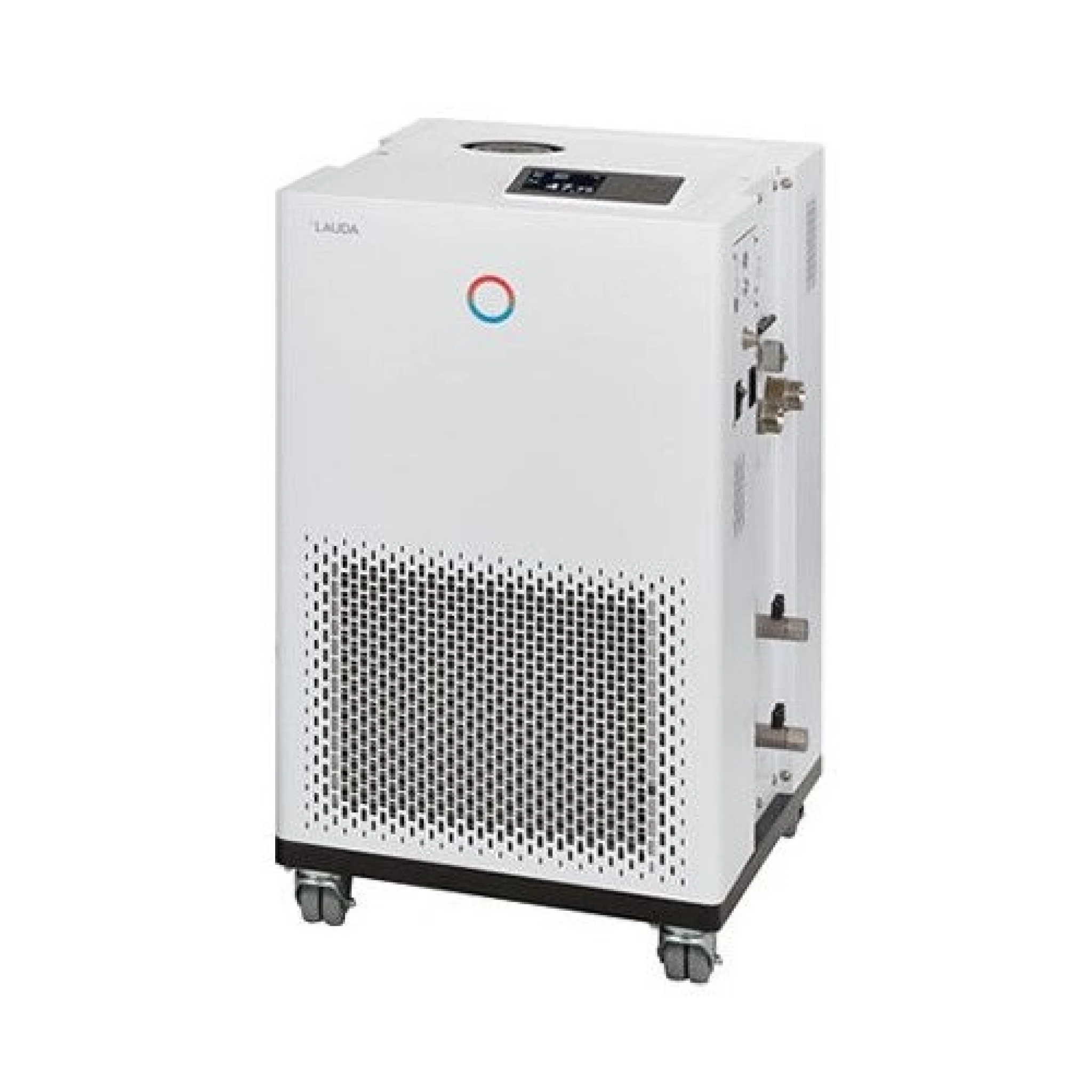

LAUDA Integral IN 130 T -30 to 120 C Process thermostat
Reference: LAUDA-IN130T
Manufacturer: Lauda
The new LAUDA Integral T enable rapid temperature changes due to adapted heating and cooling capacities with small internal volumes. Due to the open hydraulic system, the unit vents quickly and without functional restrictions. This makes it ideal for temperature control processes with frequent consumer or specimen changes. Classic areas of application are reaction controls or climate simulations. A reliable, powerful submersible pump and the internal bypass for pressure limitation are standard features of the Integral T.
In stock
Optional Must Have Accessories
|
3/8" Reinforced Food Grade Vacuum Chilling Tubing -60C to +135C | +CAD $48.63 |
Payment Providers
Features:
- Hydraulic system: compact bath
- Unregulated immersion pump
- Tower housing for more powerful devices
- Permanently mounted control unit with colored display
- Side mounted pump connections
- SmartCool cooling system
- Integrated interfaces for maximum control
- Intuitive product set up by automated tools
- Integrated webserver via Ethernet to computer or local LAN
- PT100 socket and alarm contact for process control
- USB ports for updating and datalogging
- Remote control panel Command Touch (accessory)
- Interface modules RS232, Profibus, Ethercat, etc. for digital communication (accessory)
- LAUDA IOT Cloud connectivity for online monitoring (accessory, in preparation)
| Product | LAUDA Integral IN 130 T |
| Working temperature max. °C | 120 |
| Working temperature min. °C | -30 |
| Temperature stability ±K | 0.05 |
| Ambient temperature min. °C | 5 |
| Ambient temperature max. °C | 40 |
| Heater power max. kW | 2.7 |
| Cooling output at 20 °C kW | 1.4 |
| Cooling output at 10 °C kW | 1.35 |
| Cooling output at 0 °C kW | 1.2 |
| Cooling output at -10 °C kW | 0.8 |
| Cooling output at -20 °C kW | 0.4 |
| Cooling output at -30 °C kW | 0.1 |
| Pump pressure max. bar | 3.5 |
| Pump flow max. L/min | 40 |
| Tube Size in | 4-Mar |
| Pump connection thread mm | G 3/4 |
| Filling Volume min. L | 3.6 |
| Filling Volume max. L | 8.7 |
| Interface(s) | Ethernet, USB |
| Dimensions (WxDxH) mm | 430x550x760 |
| Noise level dB (A) | 61 |
| Power Consumption kW | 3.7 |
