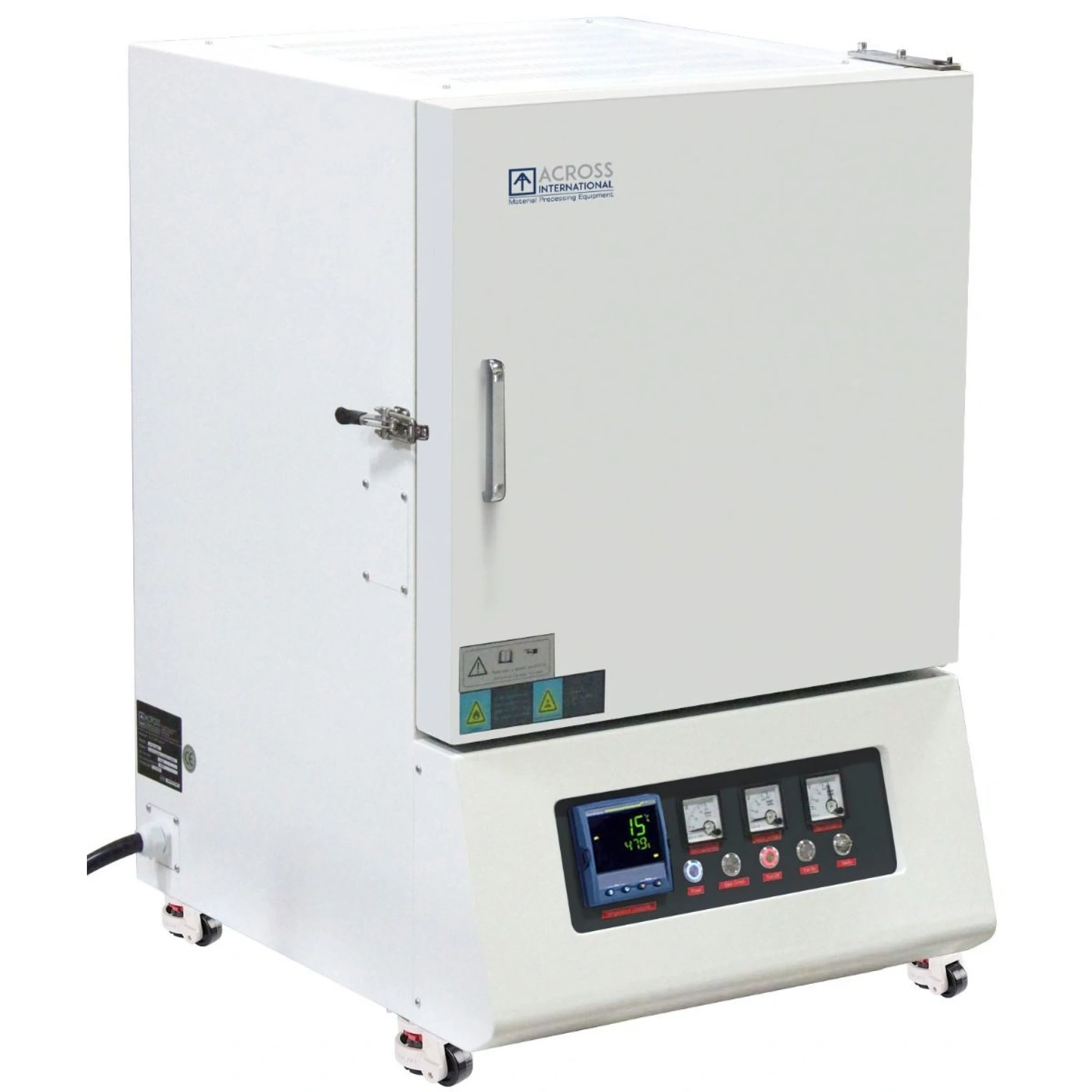

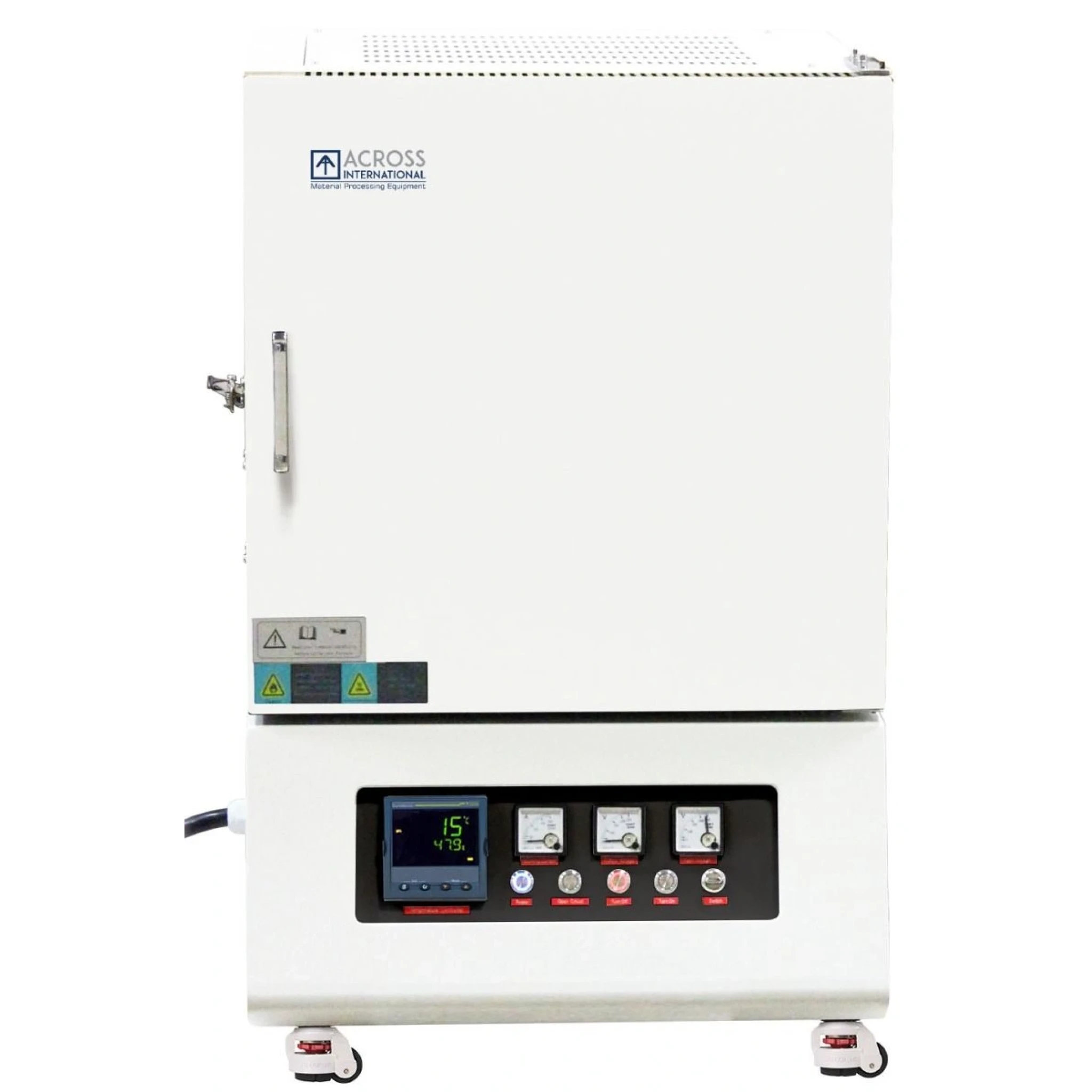

1700°C Multi-Segment Muffle Furnace w/ PC Interface
Reference:
Manufacturer: Across International
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type B thermocouple.
In stock
Customize your product
Payment Providers

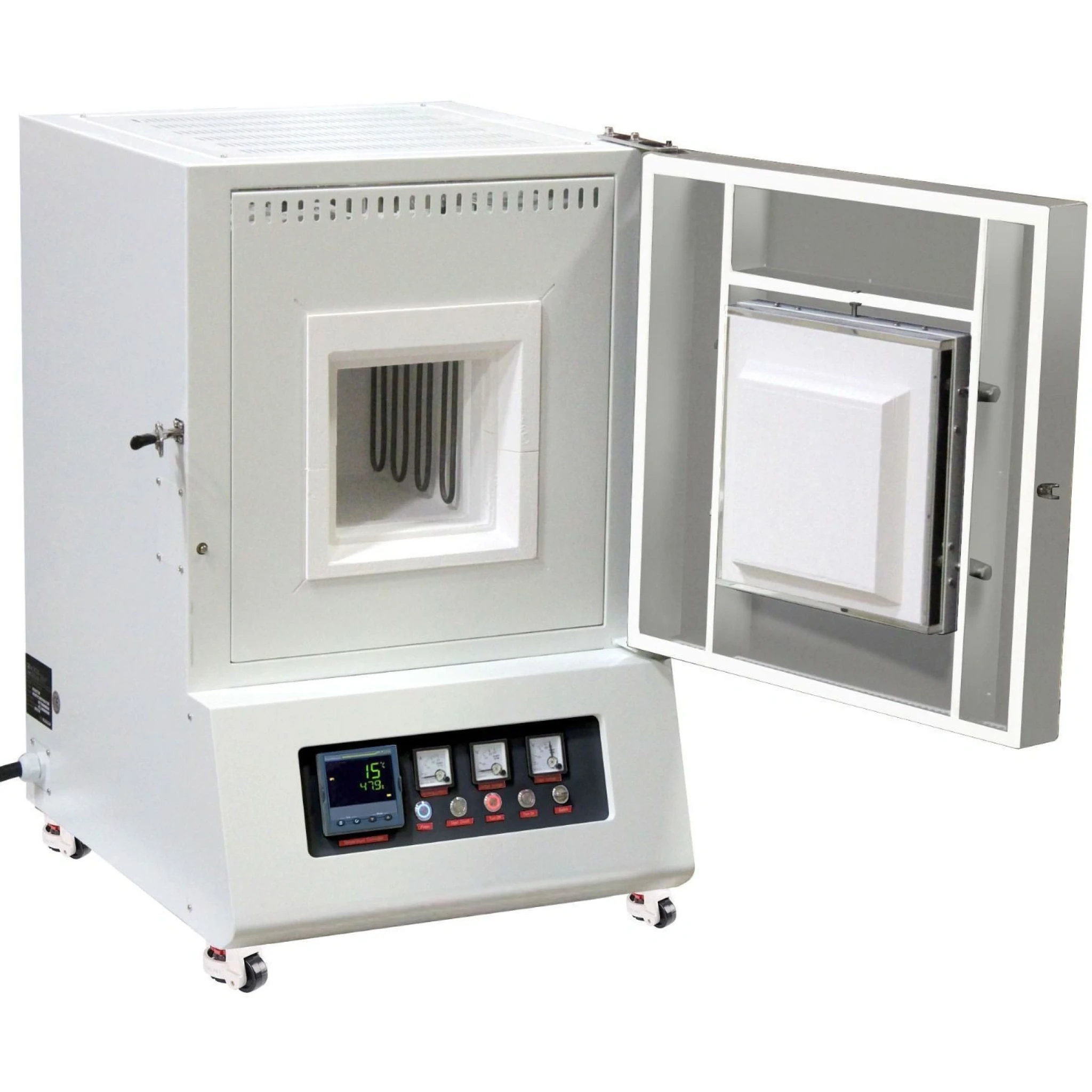

CF1700 series muffle furnaces feature a chamber with Mitsubishi (Japan) high quality grade 1800 alumina fiber insulation and molybdenum silicide (MoSi2) heating elements. A dual-wall steel housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Controller Option:

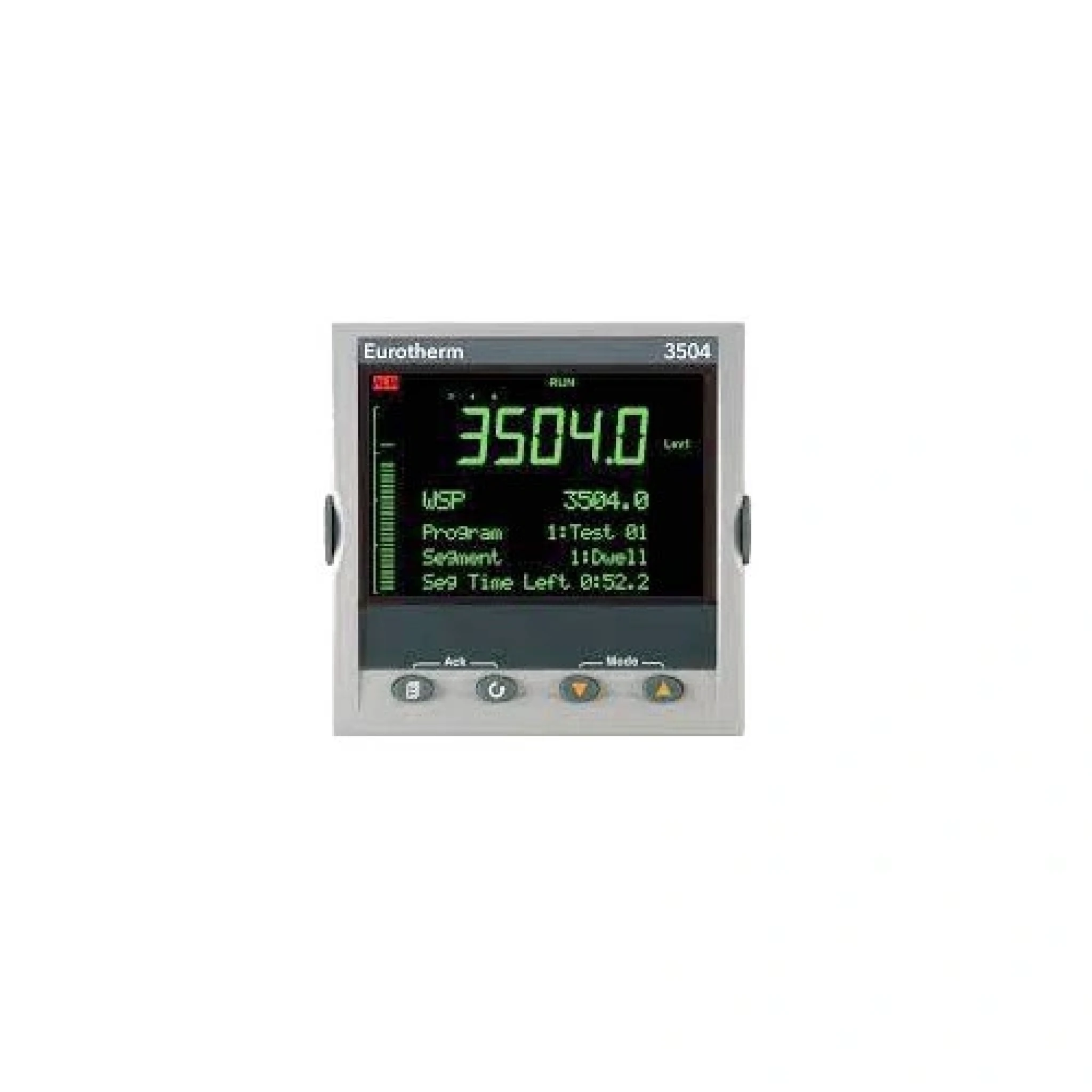

3204 can only do 8 segments programmer (ramp and dwelling)3504 can do 50 segments programmer (ramp and dwelling)
Features
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type B thermocouple.
- CE compliant
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
| Model | CF1700 |
| Electrical requirements | 208-240VAC, 50/60Hz, single phase |
| Min. working temperature | 300C (572F) recommend at least 800C for longer heating element life |
| Max. working temperature | 1700C (3092F) |
| Max./constant working temperatures | 1600C (2912F) |
| Refractory lining | Mitsubishi (Japan) high quality grade 1800 fiber alumina |
| Heating element | Molybdenum Silicide (MoSi2) |
| Thermocouple type | Type-B |
| Temperature controller | Eurotherm 3204 Controller (UK)Or Shimaden fp93 (Japan) with 4 patterns and 40 segments (ie. 4 x 10 segments or 2 x 20 segments) |
| Max heating rate | < 15C (59F) / min |
| Temperature accuracy | +/- 1C |
| Compliance | ETL tested to UL and CSA standards (optional), CE (Standard) |
| Warranty | 1 year |
| Chamber size (DxWxH) | 6x6x6" |
| Usable chamber space (DxWxH) | 4x5x5.5" |
| Chamber capacity (cu ft) | 0.13 |
| Installed heating element (pc) | 4 |
| Maximum output | 3 kW |
| Furnace dimensions (LxWxH) | 22x21x34" |
| Shipping dimensions (DxWxH) | 30x29x42" |
| Unit/shipping weight (Lb) | 230/300 |
Standard Package
| CF1700 muffle furnace | 1 pc |
| Thermocouple - Type B | 1 pc |
| U-shape Tool for Door Block | 1 pc |
| Stainless Steel Thongs | 1 pc |
| Alumina Thermal Cushion Block | 1 pc |
| Thermal gloves | 1 pair |
| Spare UL fuses 32A or 63A or 100A | 2 pcs |
| USB/RS485 computer interface kit | 1 set |
| Spare heating element (Picture on left for CF1400 and on right for CF1700) – ONLY FOR CF1400 & CF1700 | 2 pcs |
| Eurotherm USB Software | 1 pc |
| Alumina Thermal Plate | 1 pc |
| Crucibles | 5 pcs |
| Crucible Lids | 5 pcs |
| User's manual | 2 pc |
