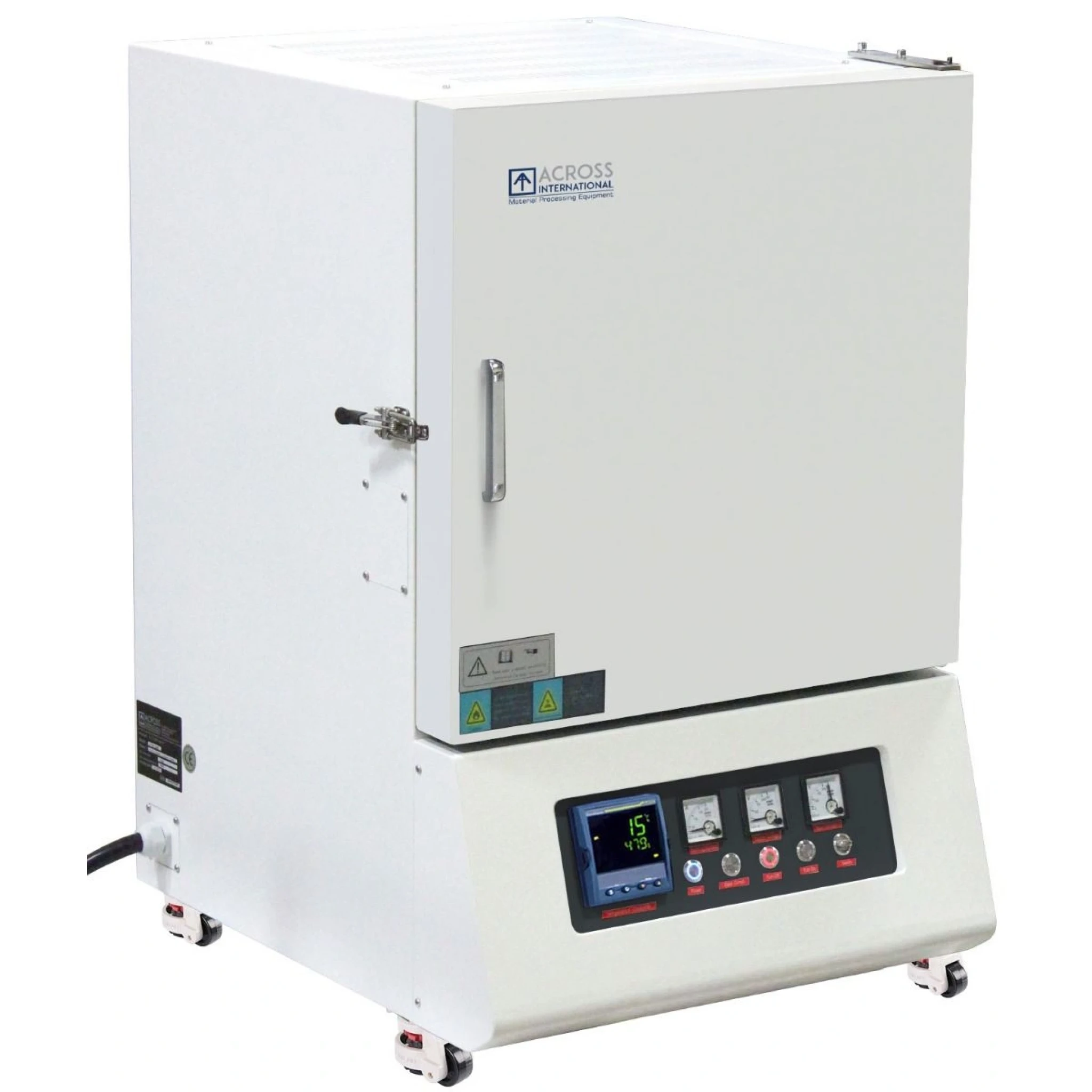

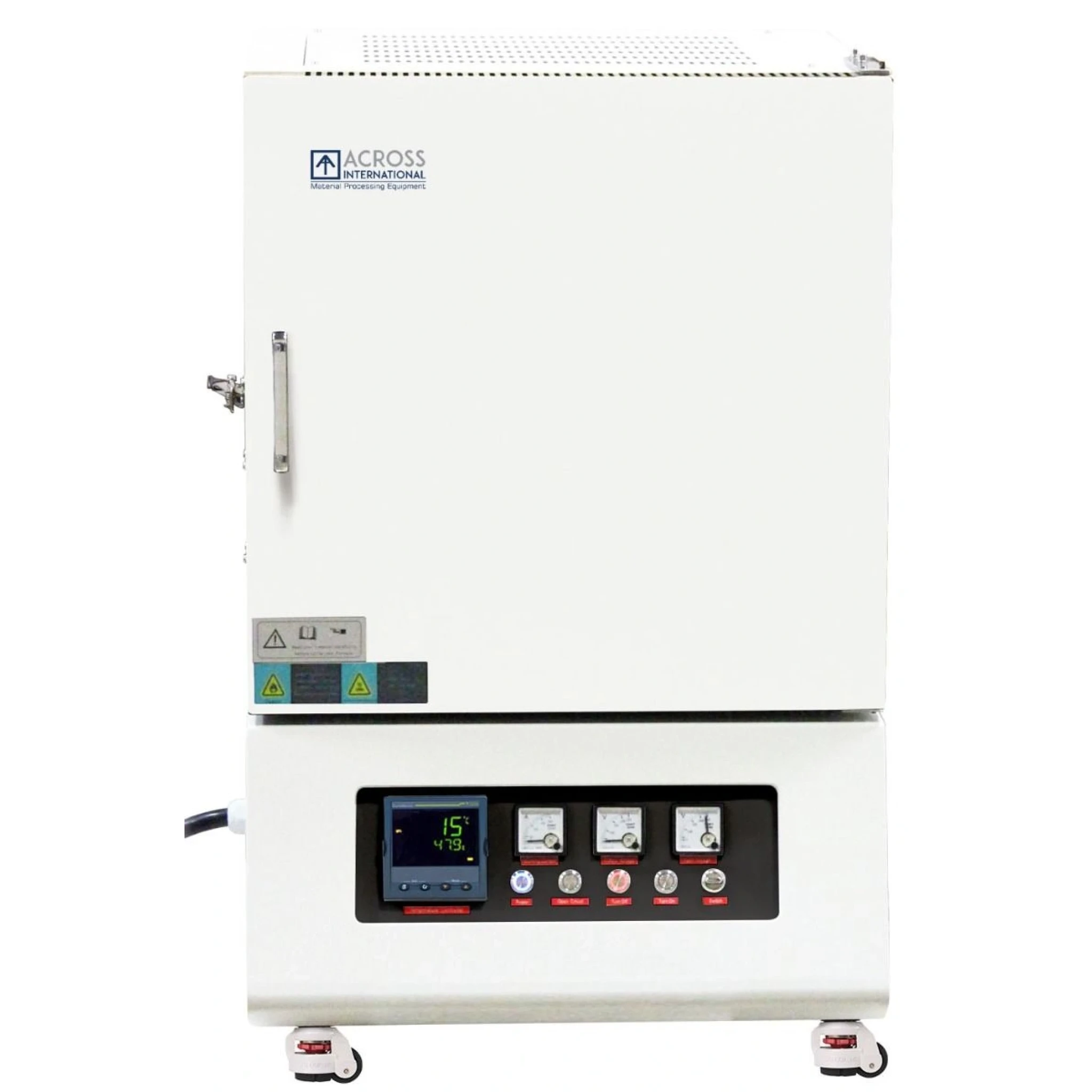

1750°C Muffle Furnace with Eurotherm Digital Multi-Segment Controller
Reference:
Manufacturer: Across International
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type B thermocouple.
In stock
Customize your product
Payment Providers

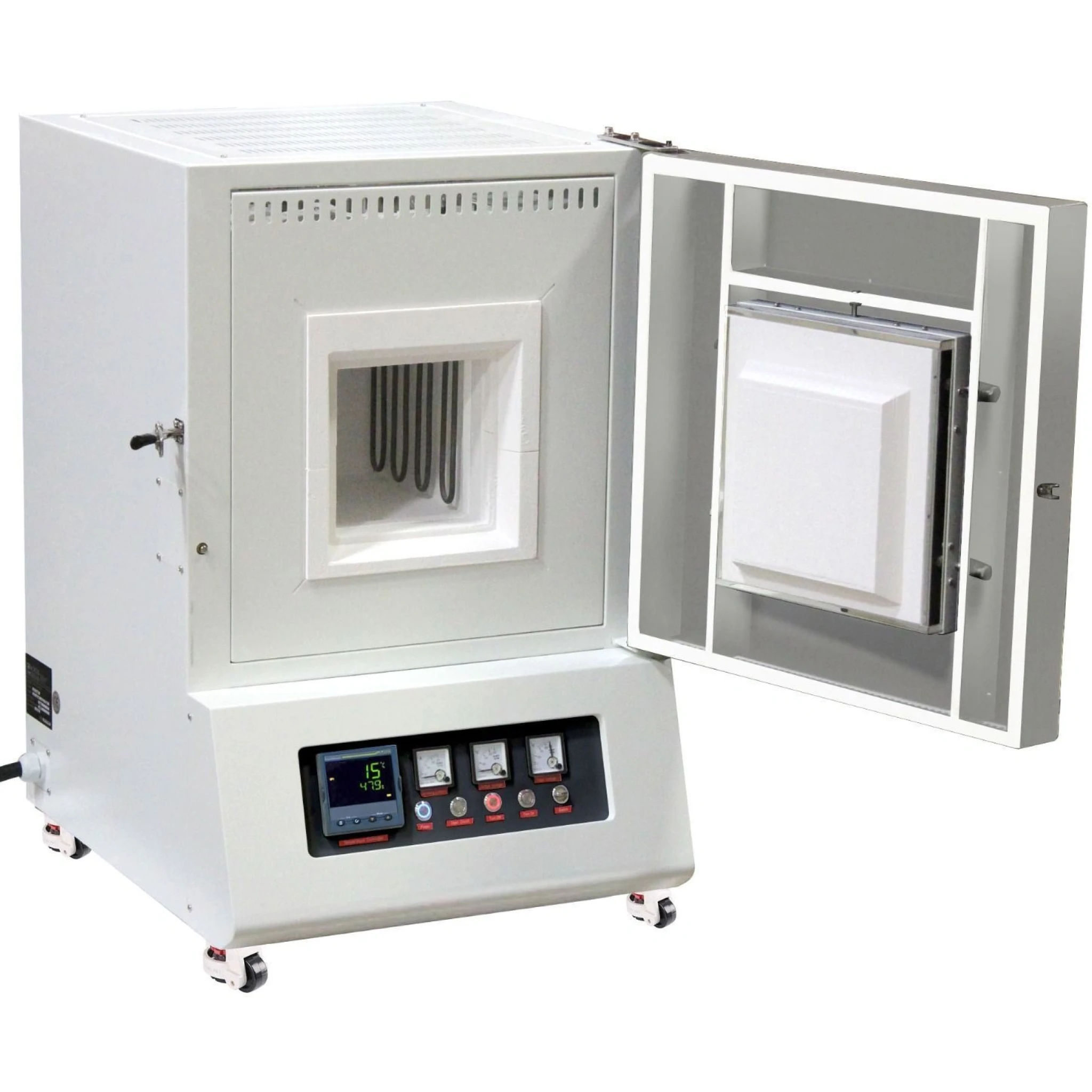

CF1750 series muffle furnaces feature a chamber with Mitsubishi (Japan) high quality grade 1900 alumina fiber insulation and molybdenum silicide (MoSi2) heating elements. A dual-wall steel housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Eurotherm (UK) digital controller with built-in communication port, allowing the user to connect to a PC for remote control and monitoring of the furnace.
Controller Option:

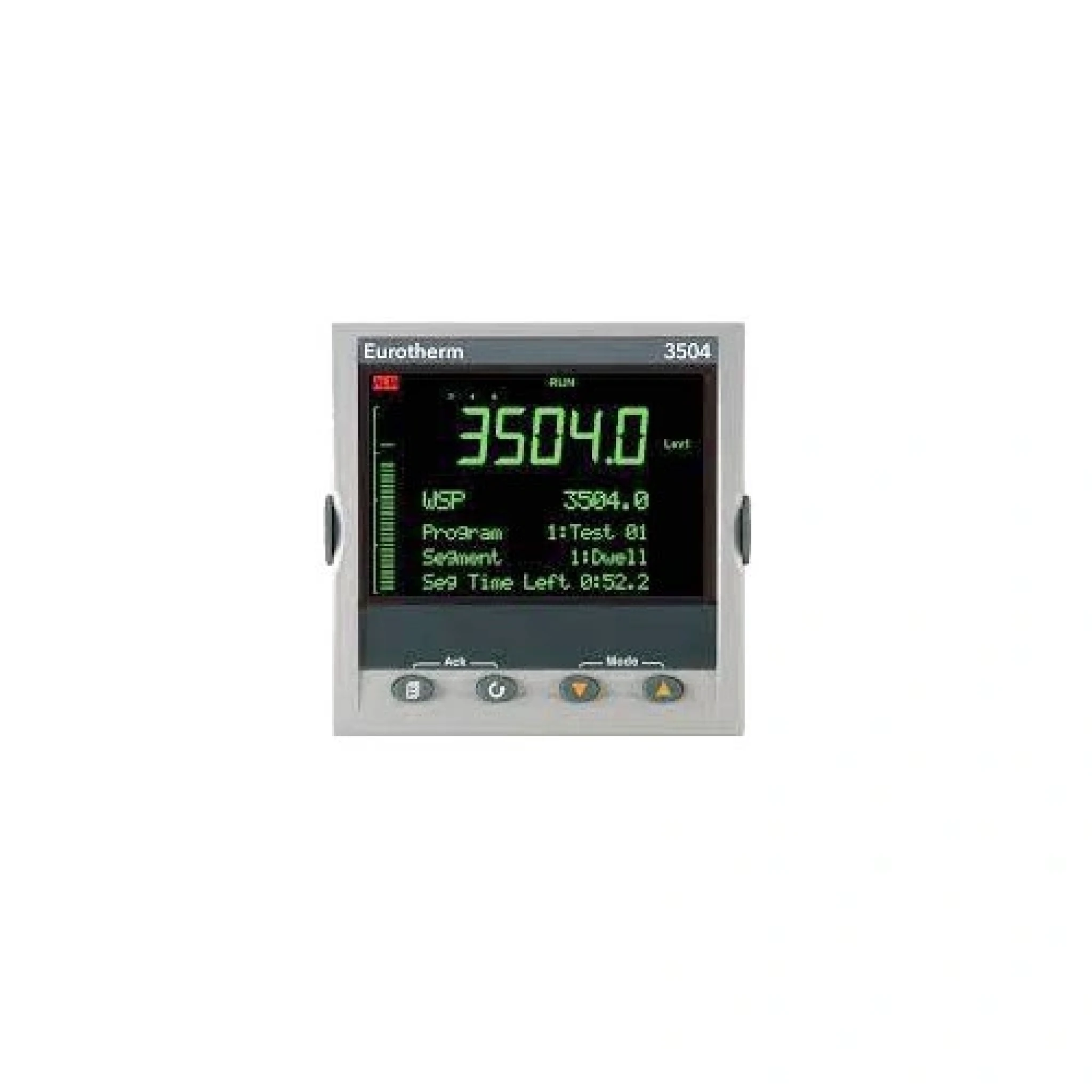

3204 can only do 8 segments programmer (ramp and dwelling)3504 can do 50 segments programmer (ramp and dwelling)
Features
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type B thermocouple.
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
| Model | CF1750 |
| Electrical requirements | 7x6x6": 208-240v AC, 50/60Hz, single phase 12x8x8": 208-240v AC, 50/60Hz, single phase 16x12x12": 208-240v AC, 50/60Hz, single phase 20x16x16": 480V AC, 50/60Hz, single phase |
| Chamber dimensions (DxWxH) | 7 x 6 x 6" (0.15 cubic foot) |
| Chamber usable space (DxWxH) | 5 x 5 x 5.5" |
| Min. working temperature | 300°C (572°F) |
| Max. working temperature | 1750°C |
| Max. constant temperature | 1650°C |
| Refractory lining | Mitsubishi (Japan) high quality grade 1850 fiber alumina |
| Heating element | Molybdenum Silicide (MoSi2), 6 installed |
| Thermocouple type | B or PtRh40-PtRh20 (optional) |
| Temperature controller | Eurotherm (UK) |
| Max heating rate | 1200°C and below: <30°C/min, 1200°C+: < 15°C/min |
| Temperature accuracy | +/- 1°C (+/- 1.8°F) |
| Unit dimensions | 24 x 22 x 34" |
| Shipping dimensions | 30 x 29 x 42" |
| Shipping weight | 300 Lb |
| Compliance | ETL tested to UL and CSA standards (optional), CE (Standard) |
| Warranty | 1 Year |
| CF1750 | 7x6x6 |
| Power | 3KW |
| electrical reqirement | 220v, single phase |
| max current | 15A |
| plug config | L6-30P |
| Heating element | MoSi |
| furnace cavity | 1850 grade polycrystalline alumina fiber |
| thermo couple type | B |
| nominal chamber | 7*6*6 |
| usable chamber | 5*5*5 |
| chamber capacity | 0.15 |
| unit dims | 55*60*90cm |
| shipping dims | 70*75*110cm |
| unit/ship weight | 110/151Kg |
Standard Package
| CF1750 muffle furnace | 1 pc |
| Thermocouple | 1 pc |
| U-shape Tool for Door Block | 1 pc |
| Stainless Steel Thongs | 1 pc |
| Alumina Thermal Cushion Block | 1 pc |
| Thermal gloves | 1 pair |
| Spare | 2 pcs |
| Interface kit | 1 set |
| Spare heating element (Picture on left for CF1400 and on right for CF1700) – ONLY FOR CF1400 & CF1700 | 2 pcs |
| Eurotherm USB Software | 1 pc |
| Alumina Thermal Plate | 1 pc |
| Crucibles | 5 pcs |
| Crucible Lids | 5 pcs |
| User's Manual | 1 set |
