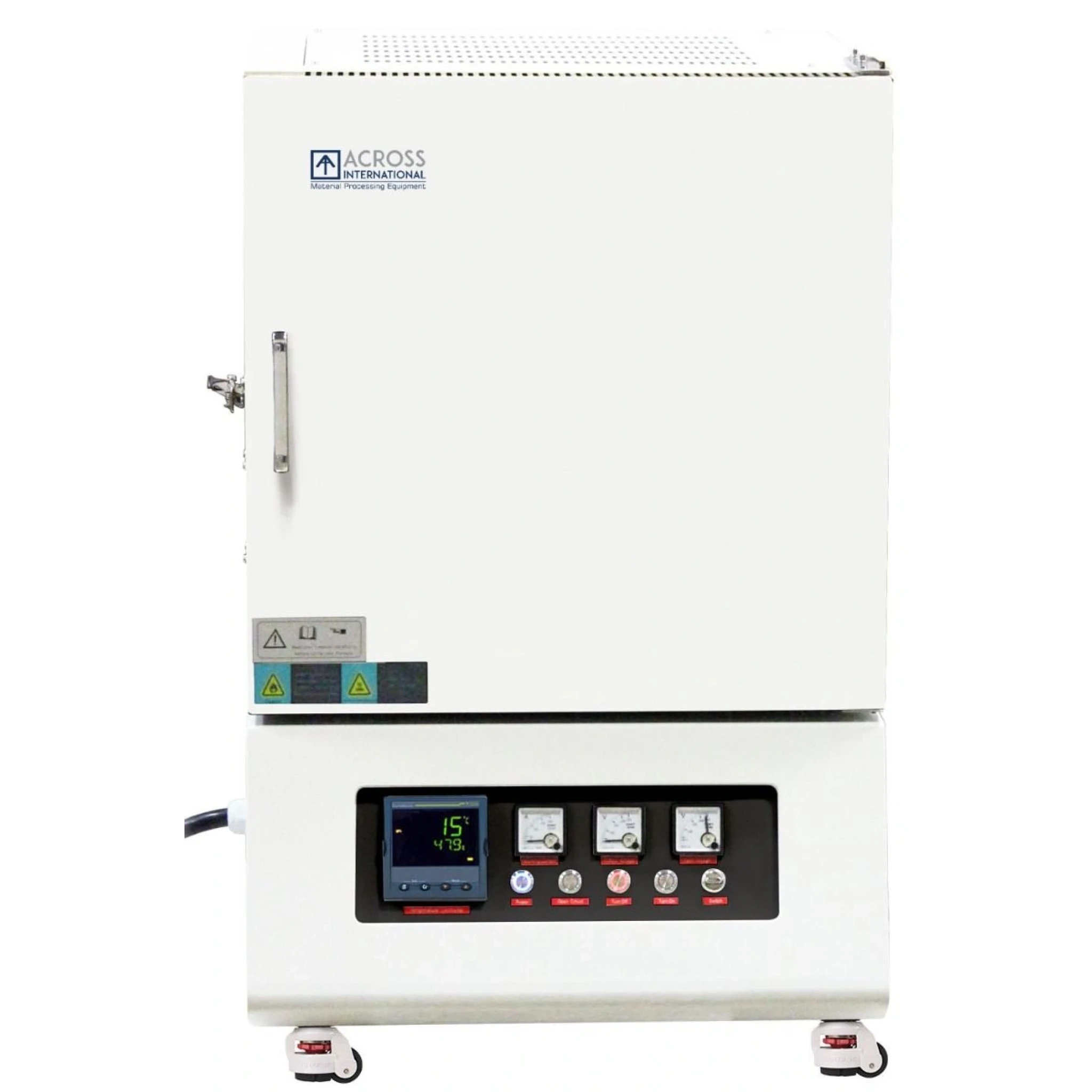

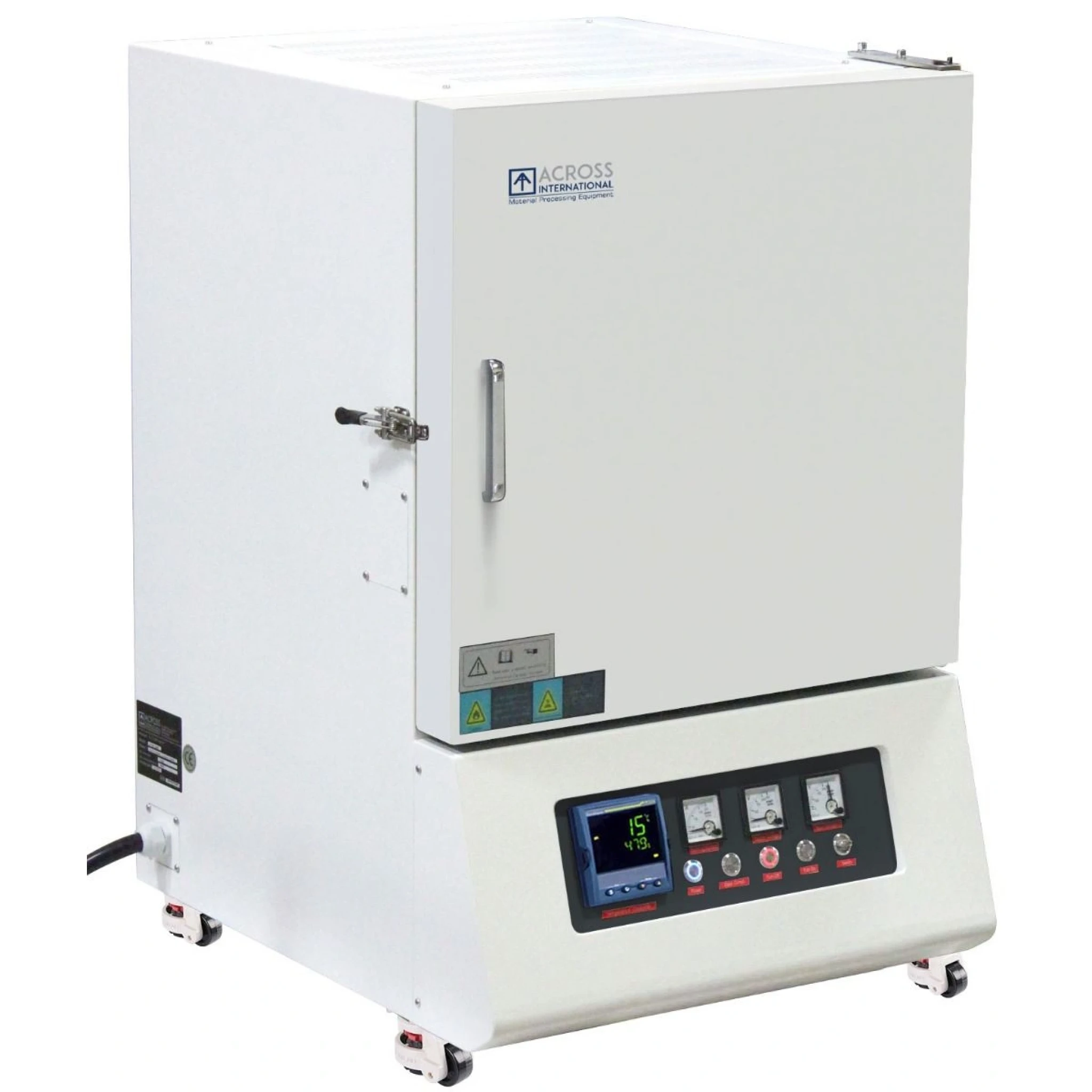

1200°C Benchtop Muffle Furnace w/ Kanthal Elements ETL/CE Certified

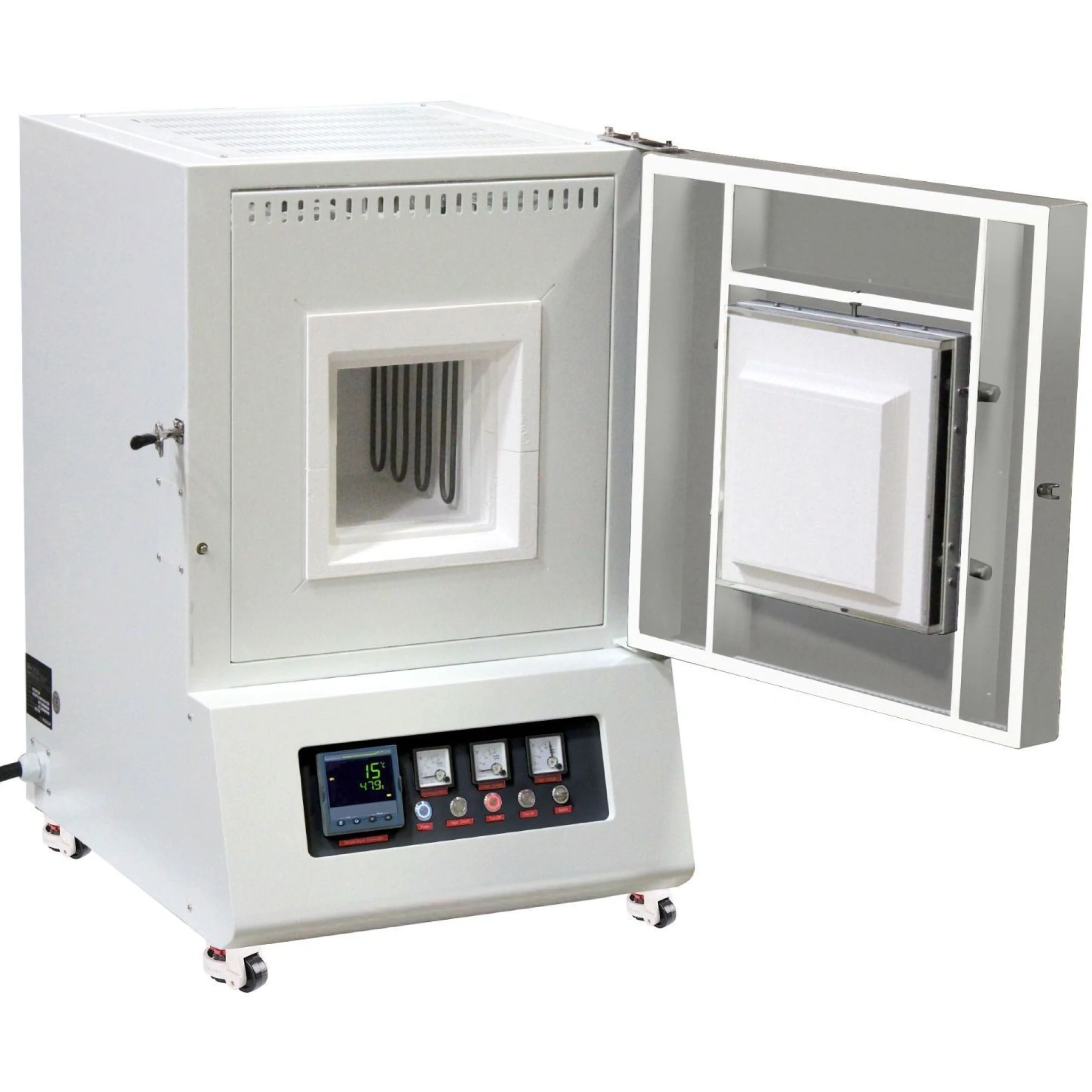

CF1200 series benchtop muffle furnaces feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high quality alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.

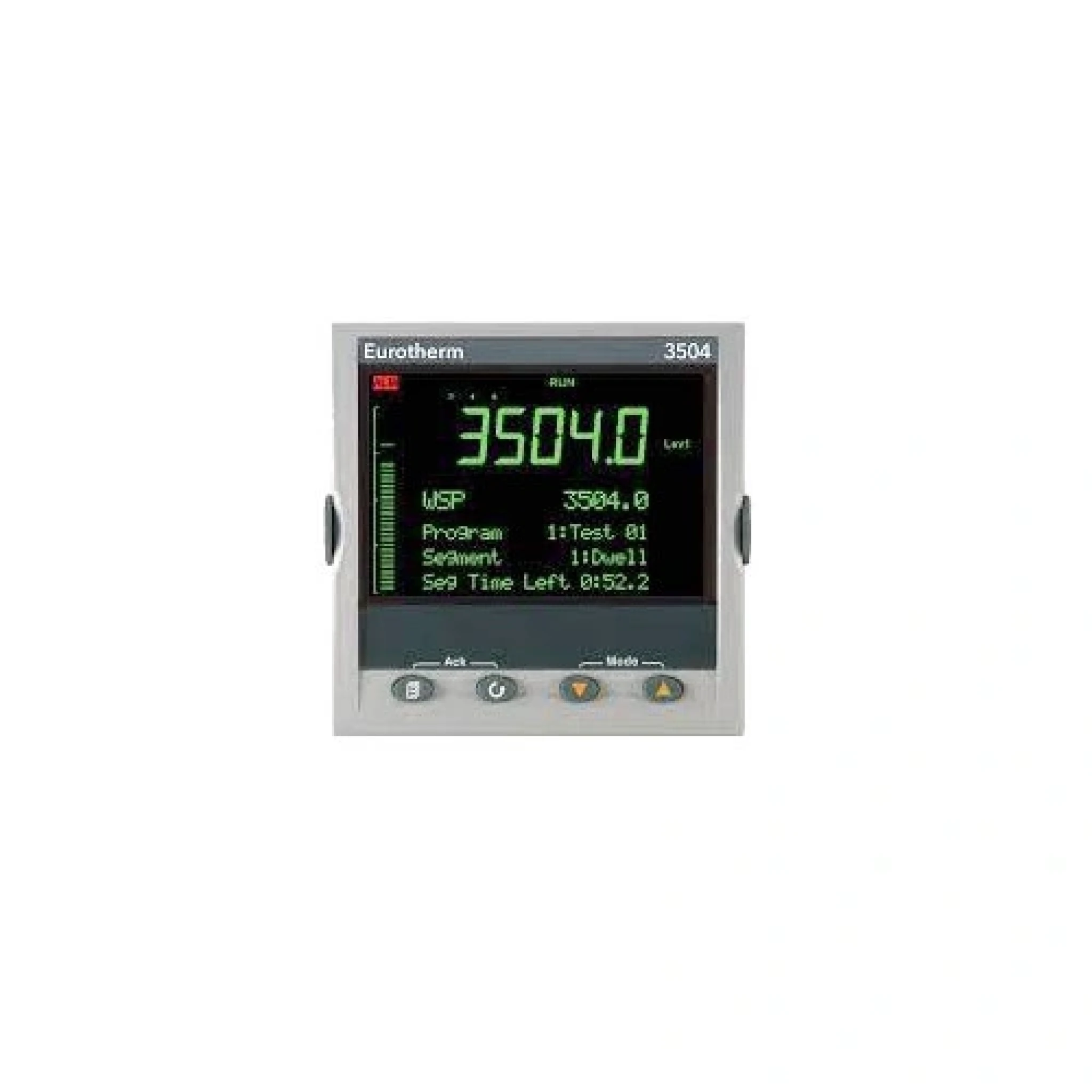

Furnace operation is controlled by Eurotherm (UK) or Shimaden (Japan) digital controller with built-in digital communication port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

Controller Option:

• 3204 can only do 8 segments programmer (ramp and dwelling)
• 3504 can do 50 segments programmer (ramp and dwelling)

Features

• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface.
• Long life type K thermocouple.
• ETL and CE certified, standard

Safety

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Benchtop Muffle Furnace

Standard Package
