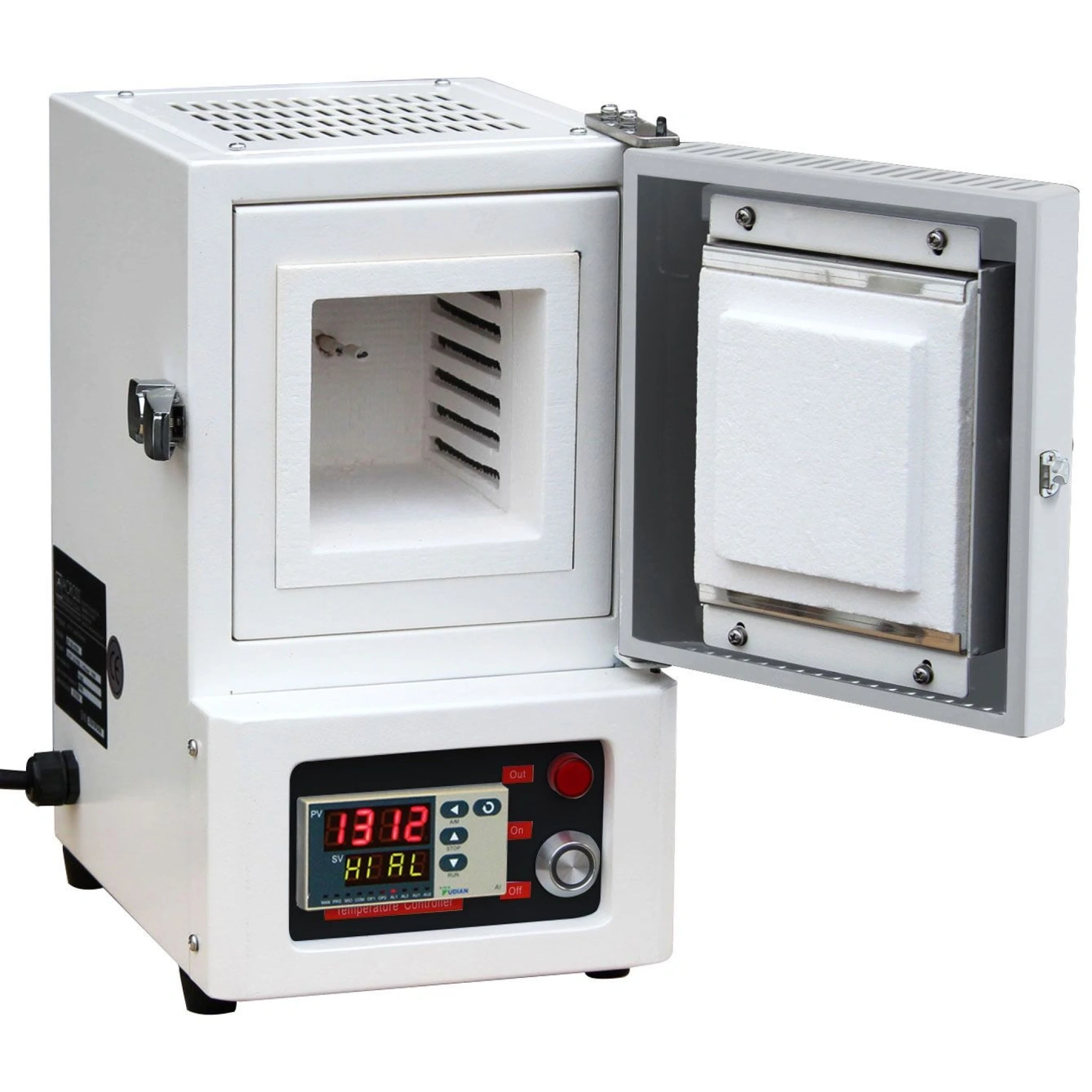

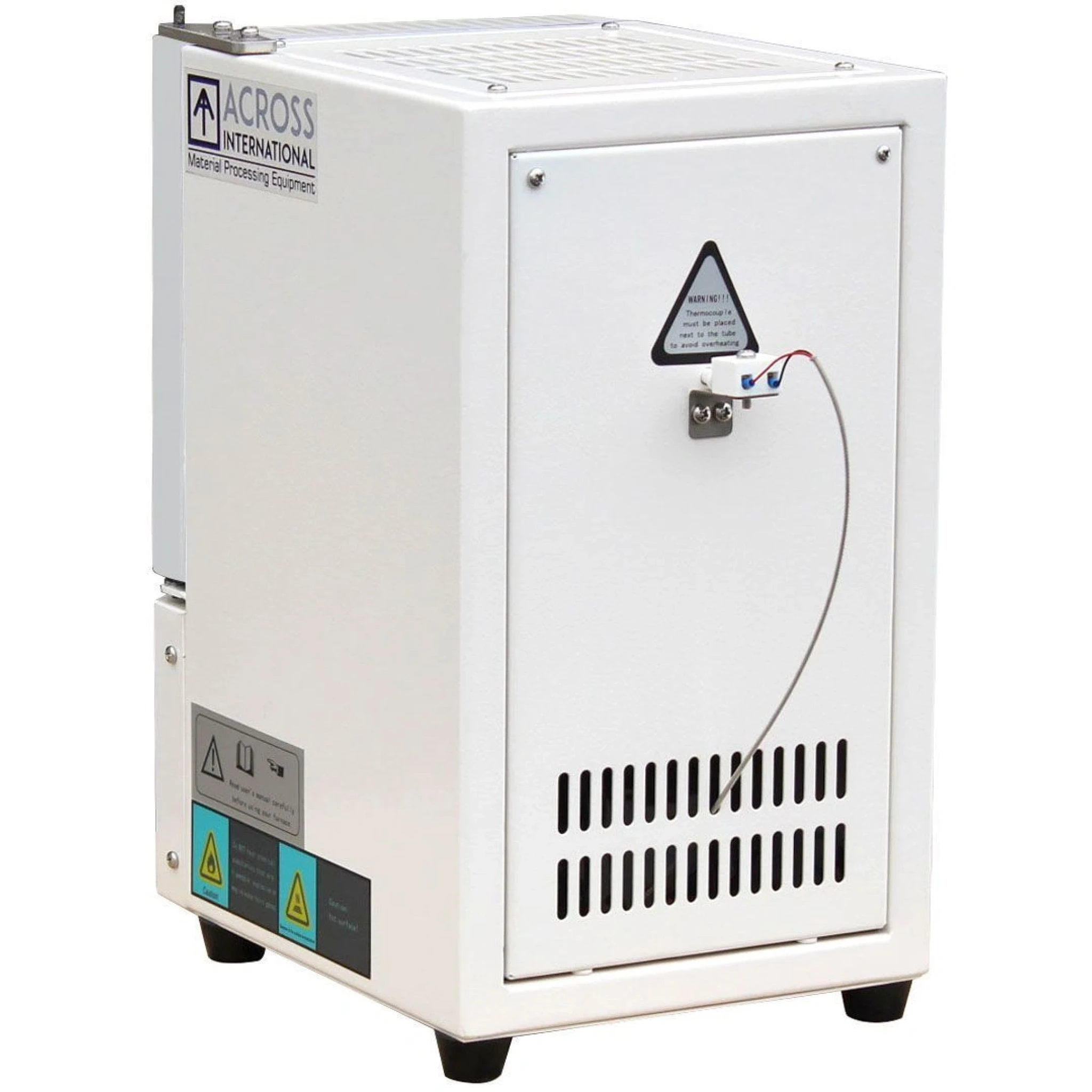

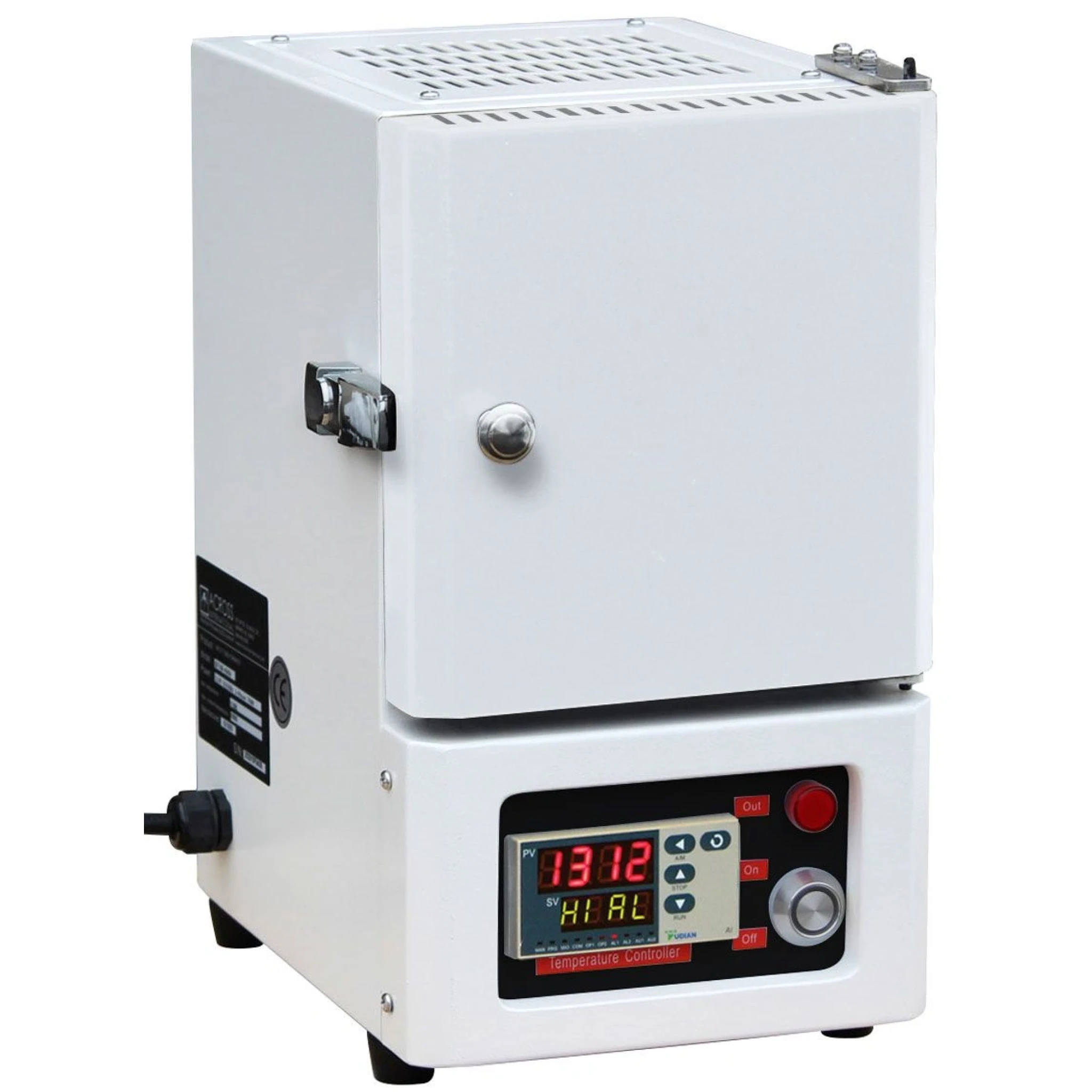

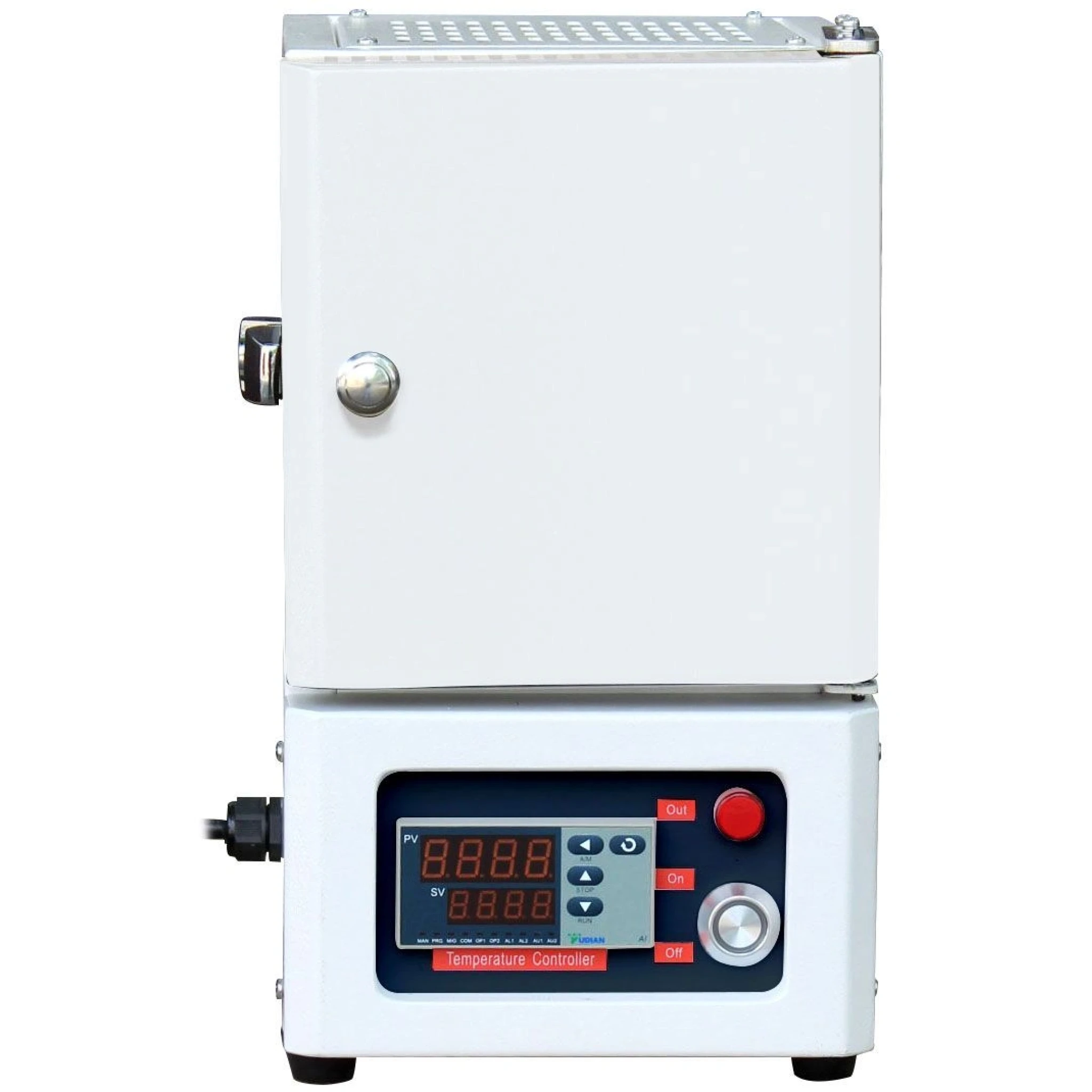

Compact Tabletop Muffle Furnace 1050°C (1922F) 4x4x4" W/ 30-Seg PID Controller For dental, dentistry cast, ceramic works, jewe
Reference:
Manufacturer: Across International
- Laboratory economic muffle furnace with flap door. Max temperature 1050℃. Recommended ideal running temperature is 850℃~900℃
- Great for small sample heating in research
- Chamber built with high quality Mitsubishi (Japan) alumina ceramic
- Compact, lightweight and ideal for benchtop use & installation in a glove box.
Compact muffle furnaces Max Temp 1050℃ CF1100 4x4c4" with 30 Segments programmable
- Laboratory economic muffle furnace with flap door. Max temperature 1050℃. Recommended ideal running temperature is 850℃~900℃
- Great for small sample heating in research
- Chamber built with high quality Mitsubishi (Japan) alumina ceramic
- Compact, lightweight and ideal for benchtop use & installation in a glove box.
- Water, soil, ceramic, metal, alloy, plastic and battery electrolyte analysis, heat treatment and innovation. Heating from 3 sides and single housing.
- Excellent outgassing thanks to the exhaust air outlet on the head of chamber, i.e plastic polymer
- Universal use for metal and ceramic heat treatment including annealing, sintering, melting, combustion, ashing and densification.
- CE certified & supported by our award-winning team 9am-9pm EST
Please note: Wire heating element DOES NOT have warranties. We test all our furnaces before shipment. If you believe there are imperfections, please contact us.
| Model | CF1100.4.4.4 |
| Electrical requirements | AC 110V 60hz 700 watts |
| Chamber dimensions (DxWxH) | 4 x 4 x 4" |
| Chamber usable space (DxWxH) | 3.75 x 4 x 3.25" (with cushion block) |
| Min. working temperature | Ambient |
| Max. working temperature | 1050°C |
| Max. constant working temperature | 950°C |
| Refractory lining | Mitsubishi (Japan) 1500 grade fiber alumina |
| Heating element | Resistance coil wire |
| Thermocouple type | K |
| Temperature controller | UDIAN 30-segment, single PID |
| Max heating rate | 30°C / min |
| Temperature accuracy | +/- 1°C (+/- 1.8°F) |
| Unit dimensions (DxWxH) | 10 x 8 x 15" |
| Shipping dimensions (DxWxH) | 15 x 14 x 21" |
| Unit weight | 25 Lb |
| Shipping weight | 40 Lb |
| Compliance | CE (Standard) |
| Warranty | 1 year |
Standard Package
| CF1100 muffle furnace | 1 pc |
| Thermocouple (CF1200 – Type K, CF1400- Type S, CF1700/CF1800 -Type B) | 1 pc |
| Thermal gloves | 1 pair |
| Crucible Tongs | 1 pc |
| Thermal Cushion Block (3.5x3.5x0.75’’) | 1 pc |
| Thermal gloves | 1 pair |
| User's manual | 2 pc |
