PolyScience AD -40°C to 200°C 15L Capacity Recirculating Chiller
Reference: AD15R-40-A11B
Manufacturer: PolyScience
Detail specs on PolyScience's website
In stock
Optional Must Have Accessories
|
3/8" Reinforced Food Grade Vacuum Chilling Tubing -60C to +135C | +CAD $48.63 |
Payment Providers
Standard Package
| PolyScience AD -40°C to 200°C 15L Capacity Recirculating Chiller | 1 pc |
| Power Cord | 1 pc |
| Packing Kit (Plastic Bag Containing Manual, Warnings, and Quickstart Guide) | 1 pc |
| Fitting Kit (See Below for Contents) | 1 pc |
| ¼” MNPT x 3/8” Barb | 2 pc |
| ¼” MNPT x ¼” Barb | 2 pc |
| ¼” MNPT x 3/16” Barb (110V & 220V) | 1 pc |
| ¼” MNPT to M16 (220V only) | 1 pc |
| Hose Clamps | 4 pc |
Overview

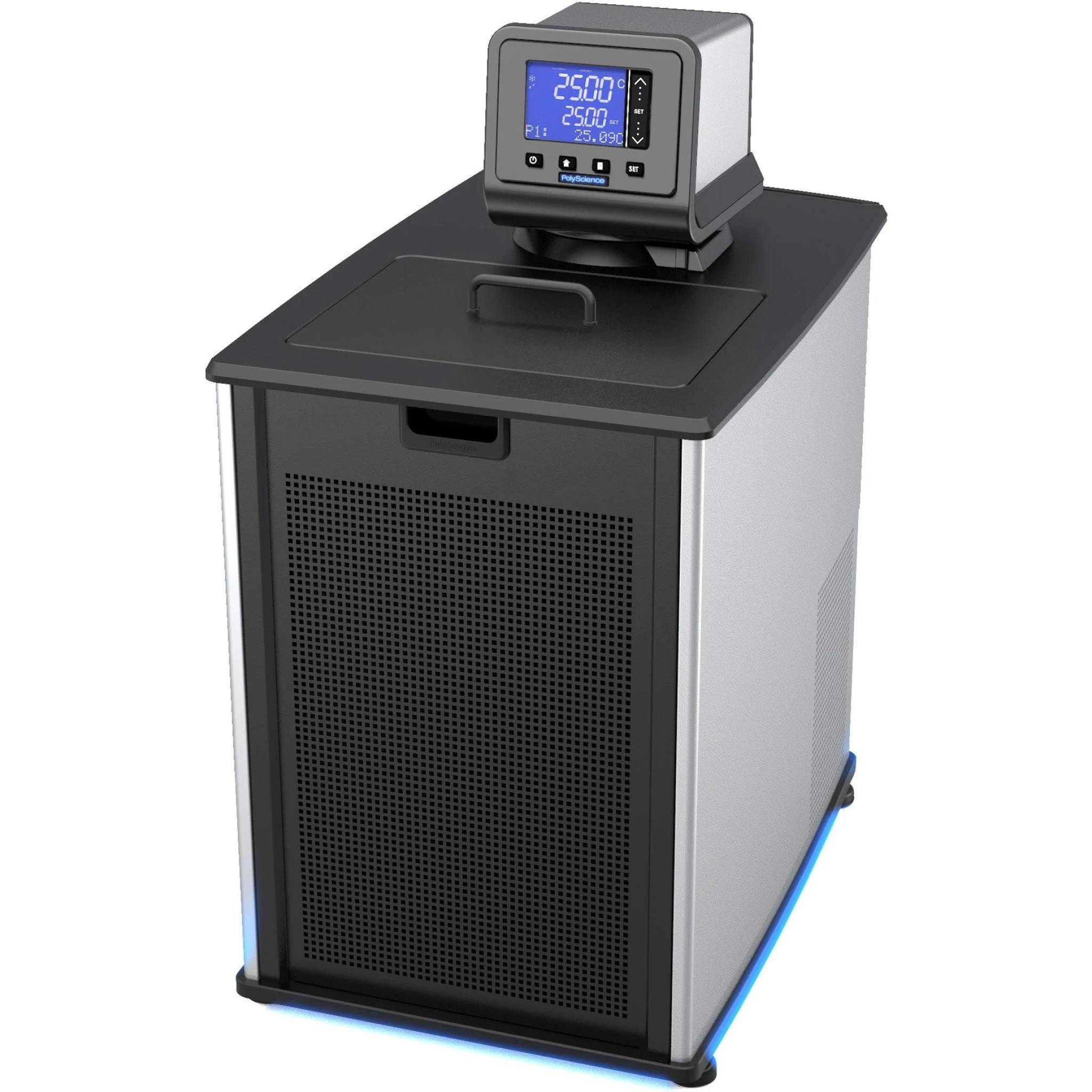

The PolyScience AD15R-40 is a refrigerated and heated circulating bath with a 15 L stainless steel reservoir and a working range from -40°C to 200°C. It holds temperature to ±0.01°C, so it can serve as a bath on its own or circulate fluid to an external jacket, condenser or other equipment.

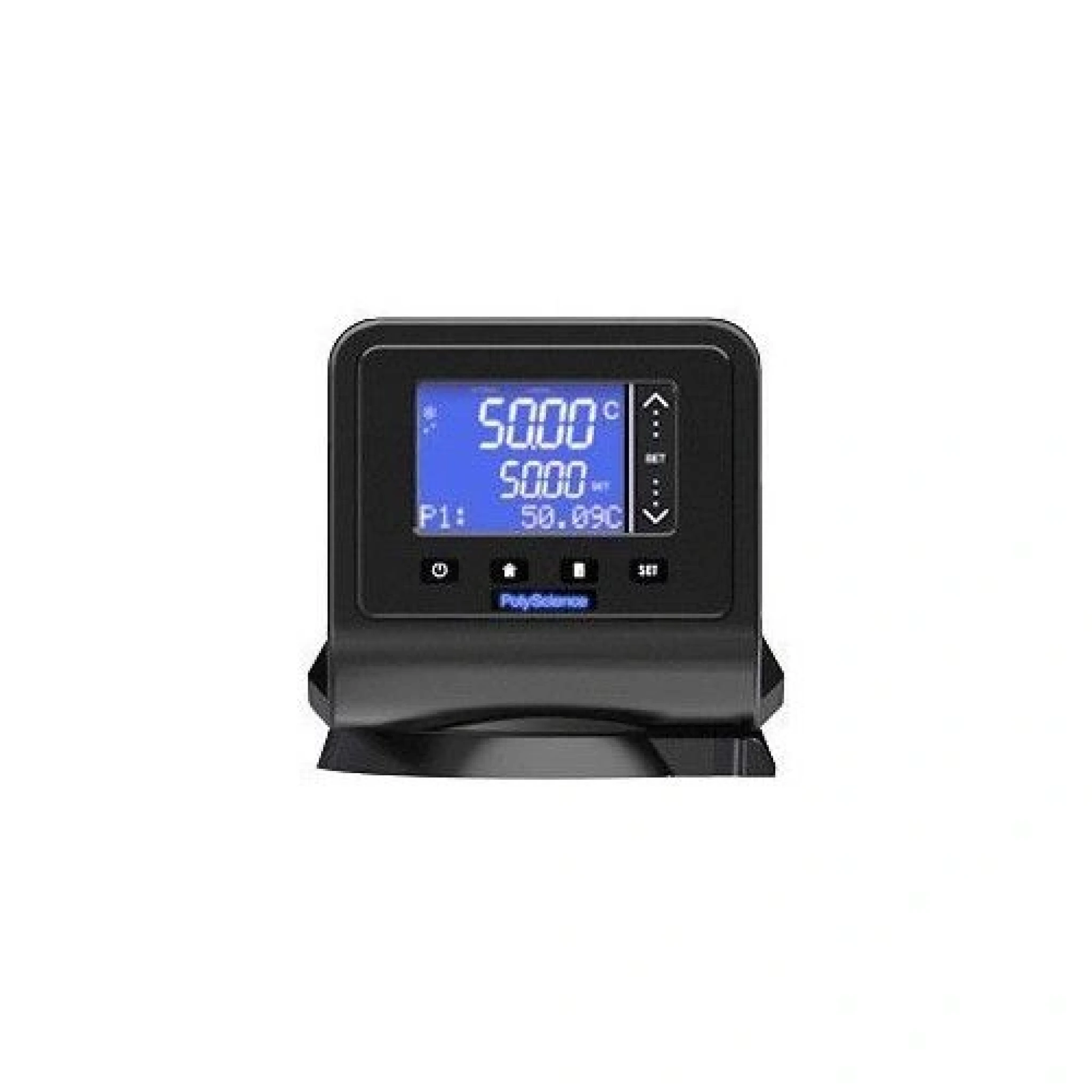

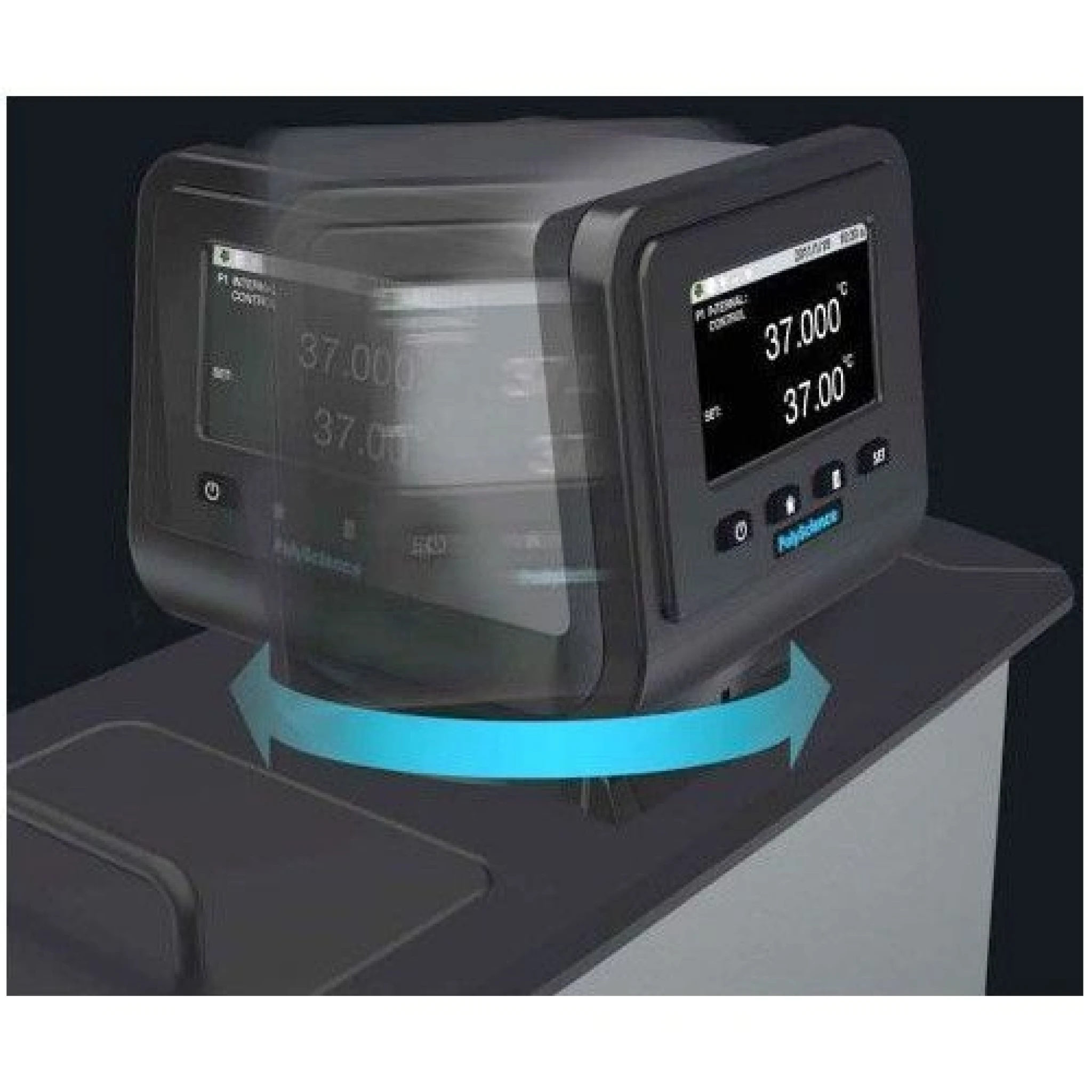

The Advanced Digital controller has a 3.75 inch touch-pad display in four languages and swivels 180° so you can read it from where you stand. A variable-speed pressure/suction pump moves fluid out and back, and the unit has USB, Ethernet, RS-232/RS-485 and an external temperature probe connection for logging or remote control.
Key features
- Working range -40°C to 200°C, stability ±0.01°C
- 15 L stainless steel reservoir with cover
- Cooling 1000 W at 20°C, 650 W at 0°C, 265 W at -20°C
- 1100 W heater
- Variable-speed pressure/suction pump: up to 20.1 L/min pressure flow, 14.7 L/min suction flow
- Over-temperature and low-liquid-level protection
Delivery and pickup
- Freight: shipping is quoted after you order (heavy item).
- Free pickup in Langley, BC.
- Liftgate delivery can be added at checkout for $77.53 if you have no loading dock.
- We deliver orders of $1000 or more in the Lower Mainland and Fraser Valley ourselves.
Questions
Can it run an external reactor or condenser?
Yes. The pressure/suction pump circulates fluid out to external equipment and draws it back to the reservoir.
What power does it need?
This model (AD15R-40-A11B) is 120V 60Hz, single phase, 13 A.
| Temperature range | -40°C to 200°C |
| Stability | ±0.01°C |
| Reservoir | 15 L, stainless steel |
| Cooling capacity | 1000 W @ 20°C; 650 W @ 0°C; 265 W @ -20°C |
| Heater | 1100 W |
| Pump | Variable-speed pressure/suction; 20.1 L/min pressure, 14.7 L/min suction, 0.30 bar max |
| Working access | 21.2 x 27.6 x 14 cm |
| Overall size | 56.9 x 36.8 x 68.3 cm |
| Electrical | 120V, 60Hz, 13 A, single phase |
| Refrigerant | R452A |
| Catalogue no. | AD15R-40-A11B |
