-50 20L Capacity 40L/M Recirculating Plate Chiller - Science King

Coolant temperature:    －50℃-RT
Reservoir:     20L
Flow:             40L/min
Lift:               6m
Refrigerant:   R404
Refrigerating Capacity:  600-2500W
Rated Power:                 1900W
Power supply:                220V/60Hz

Environment temperature:   5~35℃
Dimensions(mm):         650*570*950
Weight(kg):                    98kg

Overview

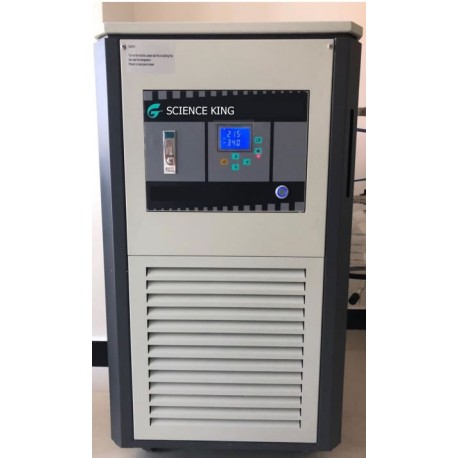

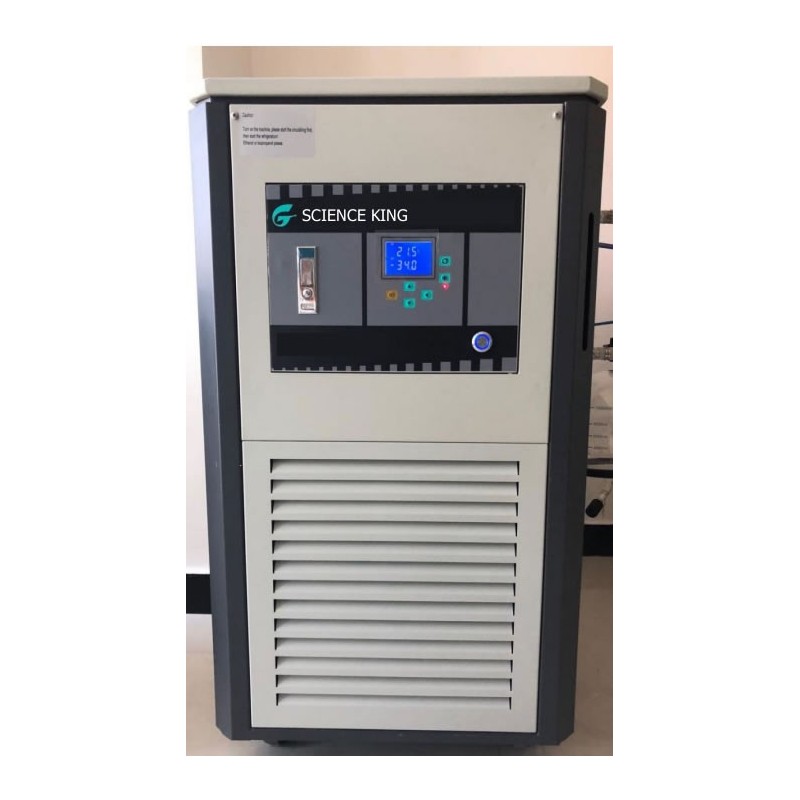

This Science King recirculating chiller holds 20 L of coolant and pumps it out at up to 40 L/min to your equipment, such as a reactor jacket, condenser or cold trap, then takes it back to be cooled again. Its working range is -50 °C up to room temperature.

This is the plate model; a coil model is also listed. Science King is our own brand, built in our own factory.

Key features

• Working range -50 °C to room temperature
• 20 L coolant reservoir
• Circulation up to 40 L/min
• Pump lift 6 m
• Refrigerating capacity 600-2500 W
• Rated power 1900 W
• 220 V, 60 Hz, max input 12 A

Delivery and pickup

• Freight: shipping is quoted after you order (heavy item).
• Free pickup in Langley, BC.
• Liftgate delivery can be added at checkout for $77.53 if you have no loading dock.
• We deliver orders of $1000 or more in the Lower Mainland and Fraser Valley ourselves.

Questions

How cold does it go?
Down to -50 °C. The working range is -50 °C to room temperature.

What power does it need?
220 V, 60 Hz, with a maximum input of 12 A. It does not run on a standard 120 V outlet.

Where can it be installed?
Indoors, in a room kept between 5 and 35 °C. It ships by freight, quoted after you order, or you can pick it up free in Langley, BC.
