DLSB-300/80 -80°C Recirculating Chiller (100L Reservoir, 21kW) - Science King
Reference:
Manufacturer: Science King
- -80 °C to room temperature, ±1 °C
- 100 L reservoir, plate heat exchanger
- Twin hermetic Danfoss compressors, R404A / R23
- 220 / 380 / 460 V 3-phase
In stock
Optional Must Have Accessories
|
3/8" Reinforced Food Grade Vacuum Chilling Tubing -60C to +135C | +CAD $48.63 |
Customize your product
Payment Providers
A large -80 °C recirculating chiller for industrial extraction and processing. PID control with a touch screen display, a plate heat exchanger instead of a bath coil for higher cooling efficiency, and imported compressors suited to North American voltages.

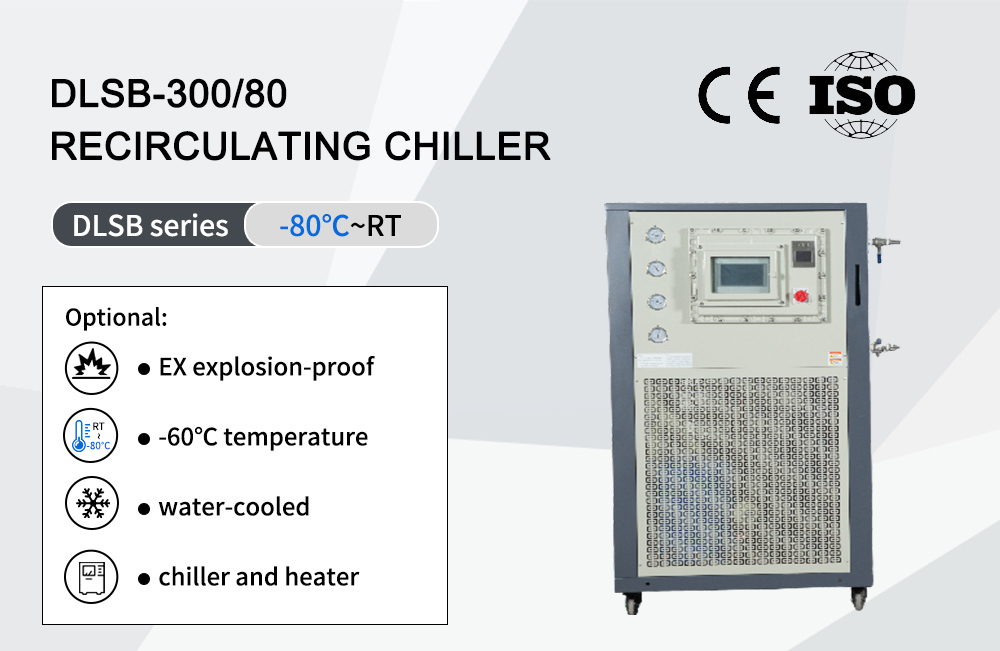

Options: explosion-proof (EX), -60 °C version, water-cooled condenser, combined chiller and heater.

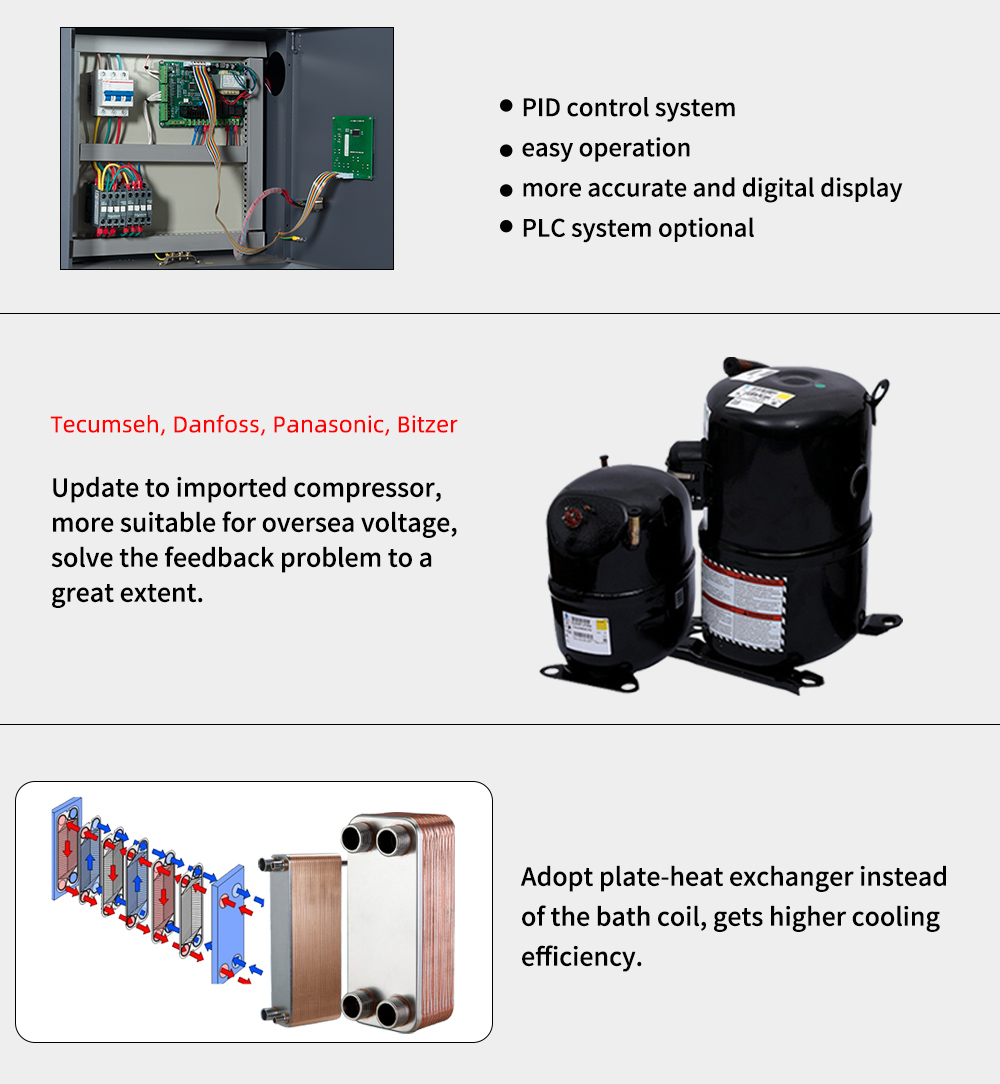

- PID control system with an accurate digital display; PLC system optional
- Imported compressors (Tecumseh, Danfoss, Panasonic or Bitzer), suited to overseas voltage
- Plate heat exchanger for higher cooling efficiency
| Model | DLSB-300/80 |
| Temperature range | -80 °C to RT, ±1 °C |
| Ambient temperature | ≤ 30 °C |
| Ambient humidity | 60% |
| Voltage | 220V single phase (3 phase available on request) |
| Frequency | 50/60 Hz |
| Power | 21 kW |
| Cooling capacity at 25 °C | 48,683 W |
| Cooling capacity at 0 °C | 32,479 W |
| Cooling capacity at -40 °C | 14,353 W |
| Cooling capacity at -80 °C | 4,500 W |
| Temperature sensor | PT100 |
| Protection | Overload, overvoltage, overheating, leakage protection |
| Compressor | Hermetic, Danfoss, 2 × 19.5 kW (13 HP) |
| Refrigerant | R404A / R23 |
| Condenser | Air cooled or water cooled, 2 outer rotor fans |
| Evaporator | Plate heat exchanger |
| Tank volume | 100 L |
| Adapter size | DN25 or customized |
| Circulating pump | Canned motor pump, 750 W, 3.4 A, rated head 15 m, rated flow 150 L/min |
| Included | 2 stainless steel ball valves with adaptors, 2 insulated stainless steel hoses, manual, PTFE tape |
| Chiller size | 1400 × 970 × 1780 mm |
| Packing size | 1480 × 1040 × 1940 mm |
| Weight | 660 kg |
| Power supply | 220V single phase (3 phase available on request) |
