-80 50L Capacity 50L/M Plate Chiller - Science King

Coolant temperature:    －80℃-RT
Reservoir:     50L
Flow:             50L/min
Lift:               6m
Refrigerant:   R404
Refrigerating Capacity:  1000-4900W
Rated Power:                 4200W
Power supply:                220V Three Phase
Max. Imput:                    20 amps
Environment temperature:   5~35℃
Dimensions(mm):         740*780*1160
Weight(kg):                    410kg

Overview

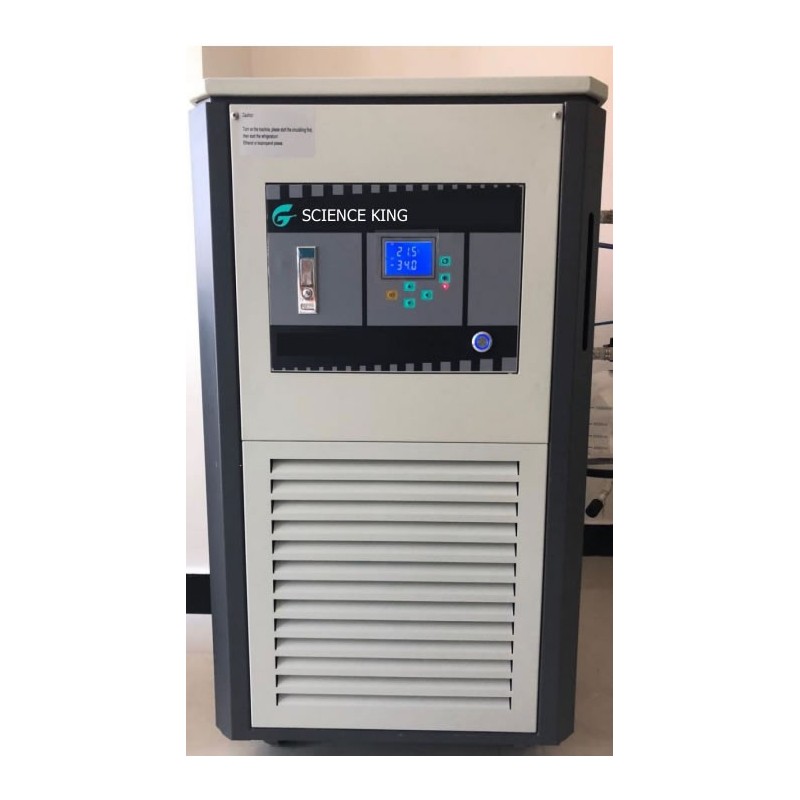

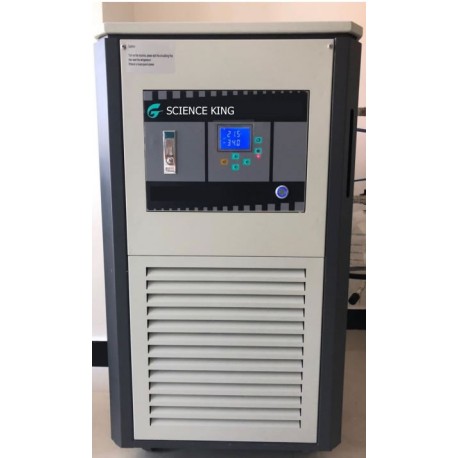

This Science King recirculating chiller holds 50 L of coolant and pumps it out at up to 50 L/min to your equipment, such as a reactor jacket, condenser or cold trap, then takes it back to be cooled again. Its working range is -80 °C up to room temperature.

This is the plate model; a coil model is also listed. Science King is our own brand, built in our own factory.

Key features

• Working range -80 °C to room temperature
• 50 L coolant reservoir
• Circulation up to 50 L/min
• Pump lift 6 m
• Refrigerating capacity 1000-4900 W
• Rated power 4200 W
• 220 V three-phase, max input 20 A

Delivery and pickup

• Freight: shipping is quoted after you order (heavy item).
• Free pickup in Langley, BC.
• Liftgate delivery can be added at checkout for $77.53 if you have no loading dock.
• We deliver orders of $1000 or more in the Lower Mainland and Fraser Valley ourselves.

Questions

How cold does it go?
Down to -80 °C. The working range is -80 °C to room temperature.

What power does it need?
220 V three-phase, with a maximum input of 20 A. Check that your site has three-phase power before you order.

Where can it be installed?
Indoors, in a room kept between 5 and 35 °C. It ships by freight, quoted after you order, or you can pick it up free in Langley, BC.
