  5. 12" Stainless Steel Wiped Film Distillation System (Turnkey) - Science King
New

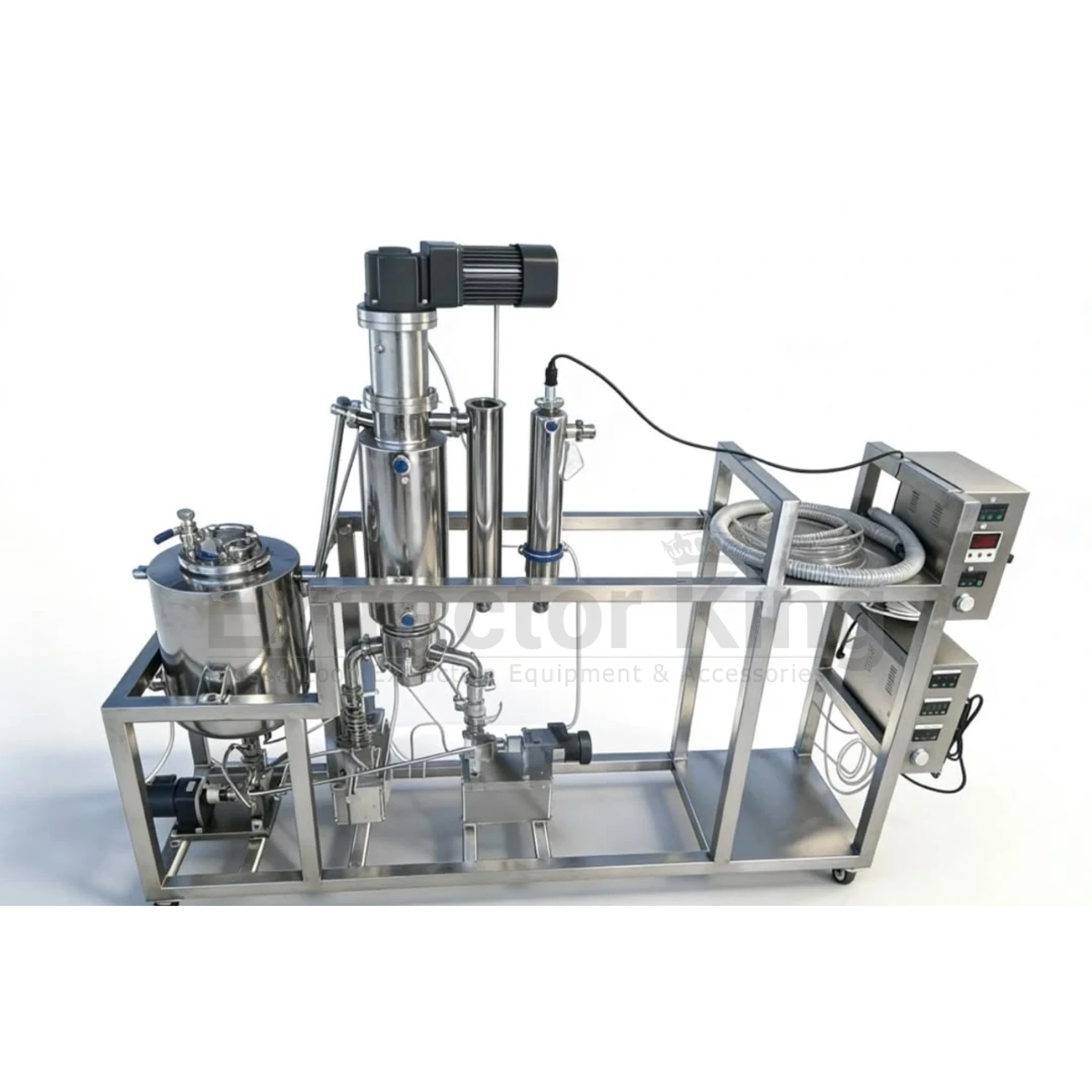

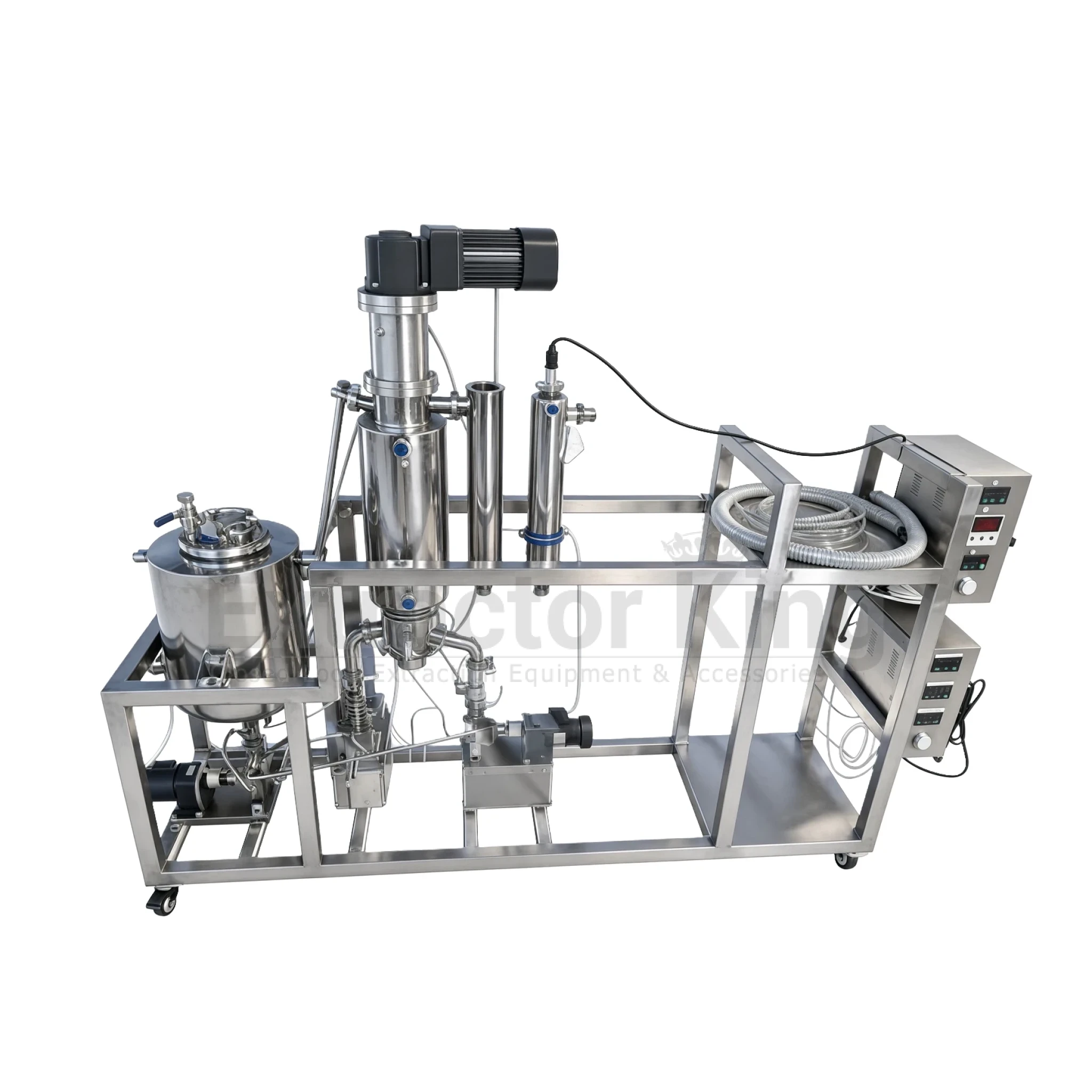

Science King 12 inch stainless steel wiped film distillation system

12" Stainless Steel Wiped Film Distillation System (Turnkey) - Science King

Reference: WFE-12

Manufacturer:

Production-scale 12" stainless steel wiped film distillation system - the same proven equipment as our 6" systems with a much larger evaporator for several times the output.

CAD $375,000.00

Optional Must Have Accessories

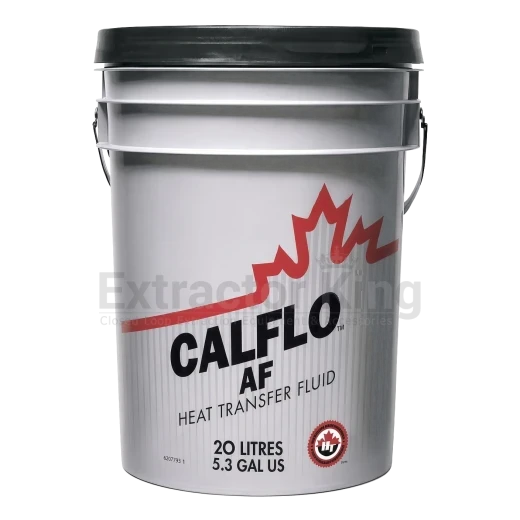

  Calflo AF Heat Transfer Fluid, 316°C, grey pail with black lid and metal handle  Calflo Heat Transfer Fluid 316°C (600°F) - 5 Gallon Pail (18.9 L)
+CAD $375.00

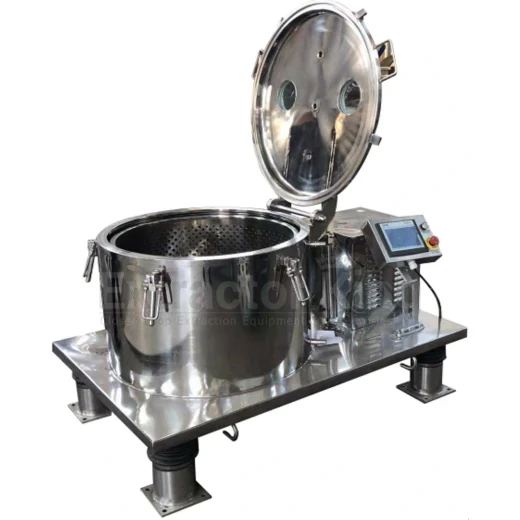

  SZ jacketed extraction centrifuge - lid open  SZ Series Jacketed Extraction Centrifuge (13LBS to 130LBS) - Science King
+CAD $69,900.00
Payment Providers
Payment Providers
Add to wishlist

A production-scale 12" stainless steel wiped film distillation system for turning crude into clear, high-potency distillate continuously. It arrives as a complete turnkey set: evaporator, heated gear-pump feed, three circulators, a two-stage vacuum pump with a diffusion pump, separate controls and all jacketed, insulated tubing - ready to connect and run.

Who it is for: producers making hundreds to thousands of litres of finished distillate a month who have outgrown 5L and 6" systems.

  • 12" (305 mm) stainless steel wiped film evaporator - short residence time, minimal heat damage
  • JSCC variable-frequency drive motor for the wiper rotor
  • Jacketed, insulated 5 cc gear pump for continuous feed, with its own control
  • Separate circulators for the evaporator body, the jacketed auxiliary lines and the condenser (heating and cooling)
  • TRP-90 two-stage rotary vane pump plus a high-efficiency diffusion pump for deep vacuum
  • Integrated control of rotor speed and vacuum pressure
