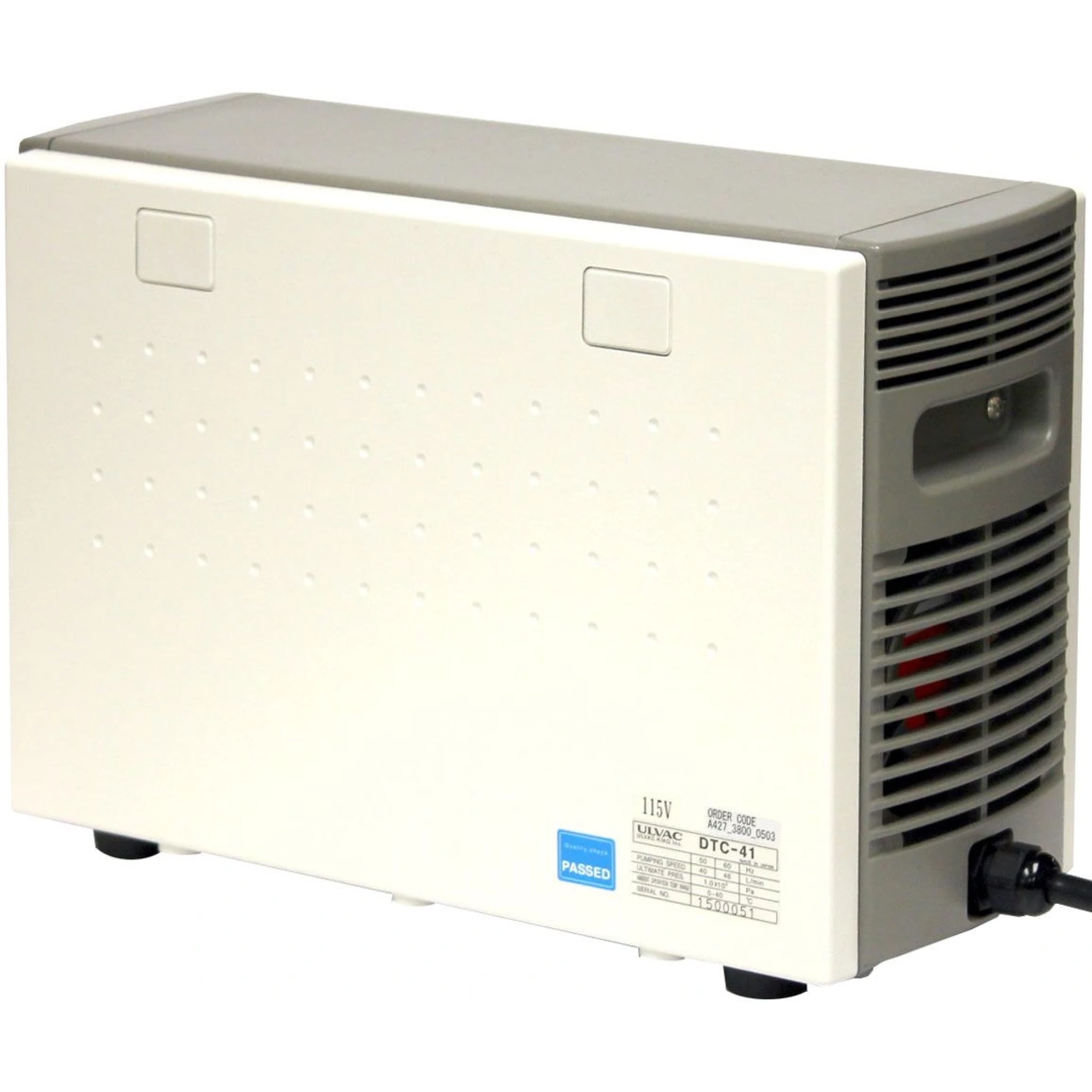

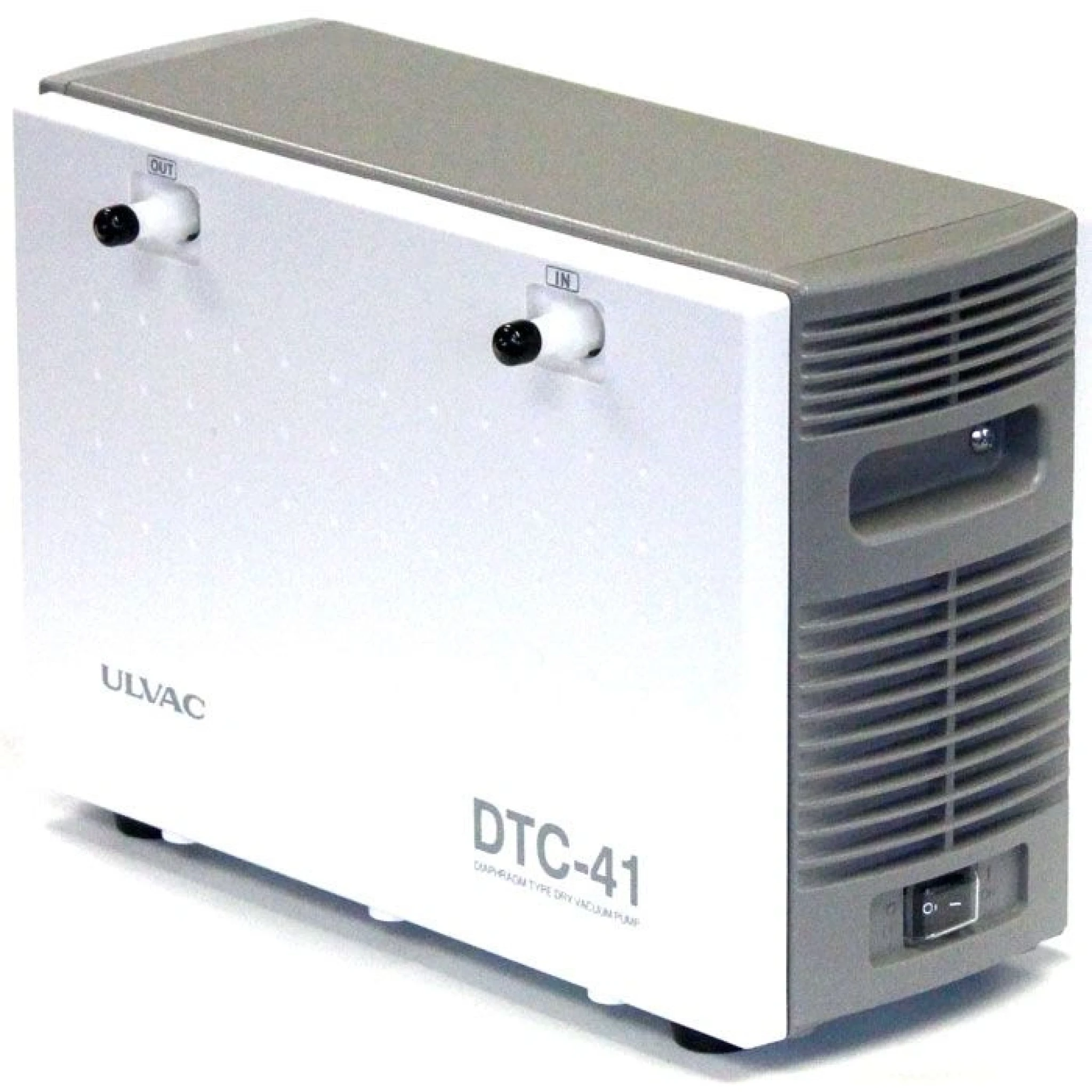

ULVAC DTC-41 110V 1.6 cfm 2-Stage Chemical-Duty Diaphragm Pump TUV
Reference:
Manufacturer: ULVAC
Manufactured and imported directly from Japan, ULVAC DTC series diaphragm pumps feature integral forced-air cooling. They have two-stage PTFE diaphragms that are ideal for pumping corrosive gases and organic solvents. These pumps are oil-free, portable, and chemical-resistant, which means less maintenance and no more frequent and costly oil change, or cross contamination.
In stock
Customize your product
Payment Providers
Features:

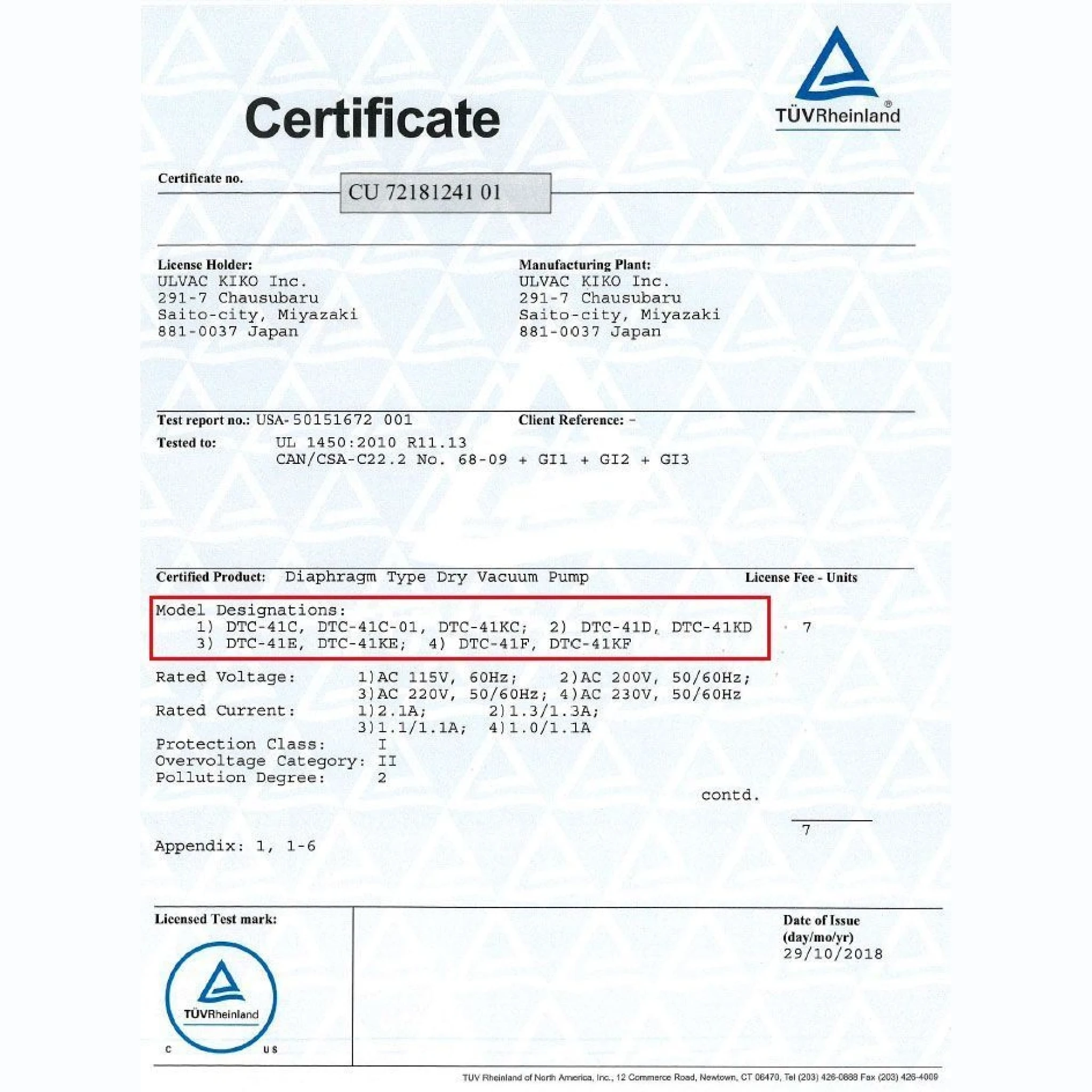

- TUV certified to UL and CSA standards
- Only PTFE components are exposed to vacuum, ideal for pumping corrosive gases and organic solvents
- Integral forced-air cooling
- Very compact and portable
- Designed to back most hybrid turbo pumps
Applications:
- Rotary evaporator
- Evaporating system
- Vacuum concentrator
- Vacuum filtration
- Vacuum drying systems
- Medical/pharmaceutical equipments
- Centrifuge
- Laser-gas circulation
Free three feet 3/8" white premium food grade silicone vacuum tubing included.

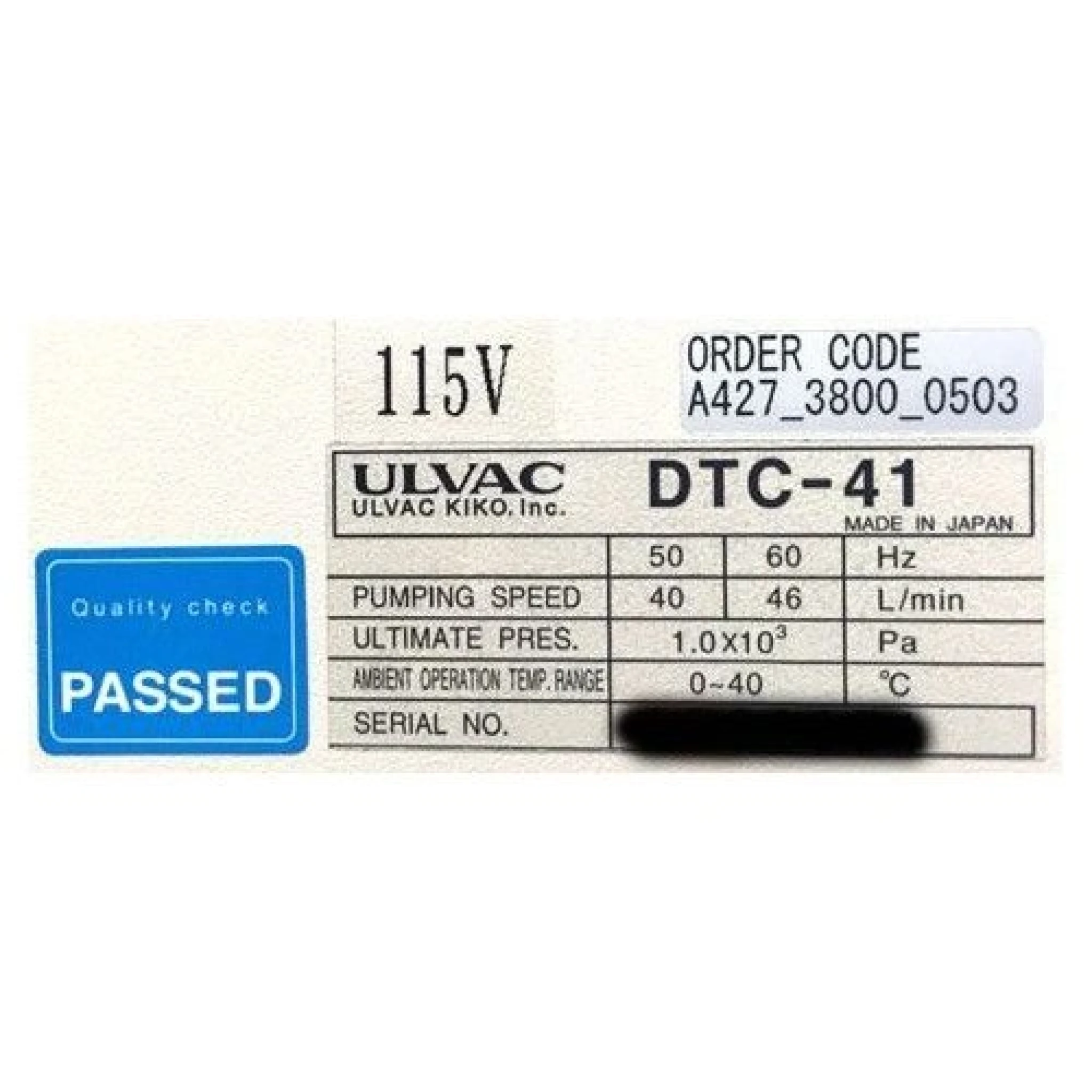

| Model | ULVAC DTC-41 |
| Part number | 1042840 |
| Electrical requirements | 110V 60Hz or 230V 50/60Hz, single phase 0.13HP, 100 watts |
| Full load current | 1.1 amps |
| Pumping rate | 1.62 cfm (6 minutes to pump down a 0.9 cu ft oven) |
| Gasket material | All-PTFE |
| Ultimate vacuum level | 7.5 torr / 10 mbar |
| Inlet/Outlet | 3/8" hose barb |
| Adjustable vac./gas ballast | No |
| Pump dimensions (LxWxH) | 13 x 5.5 x 8.5 inches |
| Shipping dimensions (LxWxH) | 15 x 9 x 10 inches |
| Pump weight | 23 Lb |
| Shipping weight | 26 Lb |
| Noise | 53 dB(A) |
| Working environment | 32°F to 104°F (0°C to 40°C) |
| Compliance | TUV certified to UL and CSA standards |
Standard Package
| ULVAC DTC-41 1.6 cfm full chemical-resistant oil-free diaphragm pump | 1 pc |
| White premium food grade silicone vacuum hose (3 ft) | 1 pc |
| Power Cord with plug (may be hardwired to unit or with a detachable plug) | 1 pc |

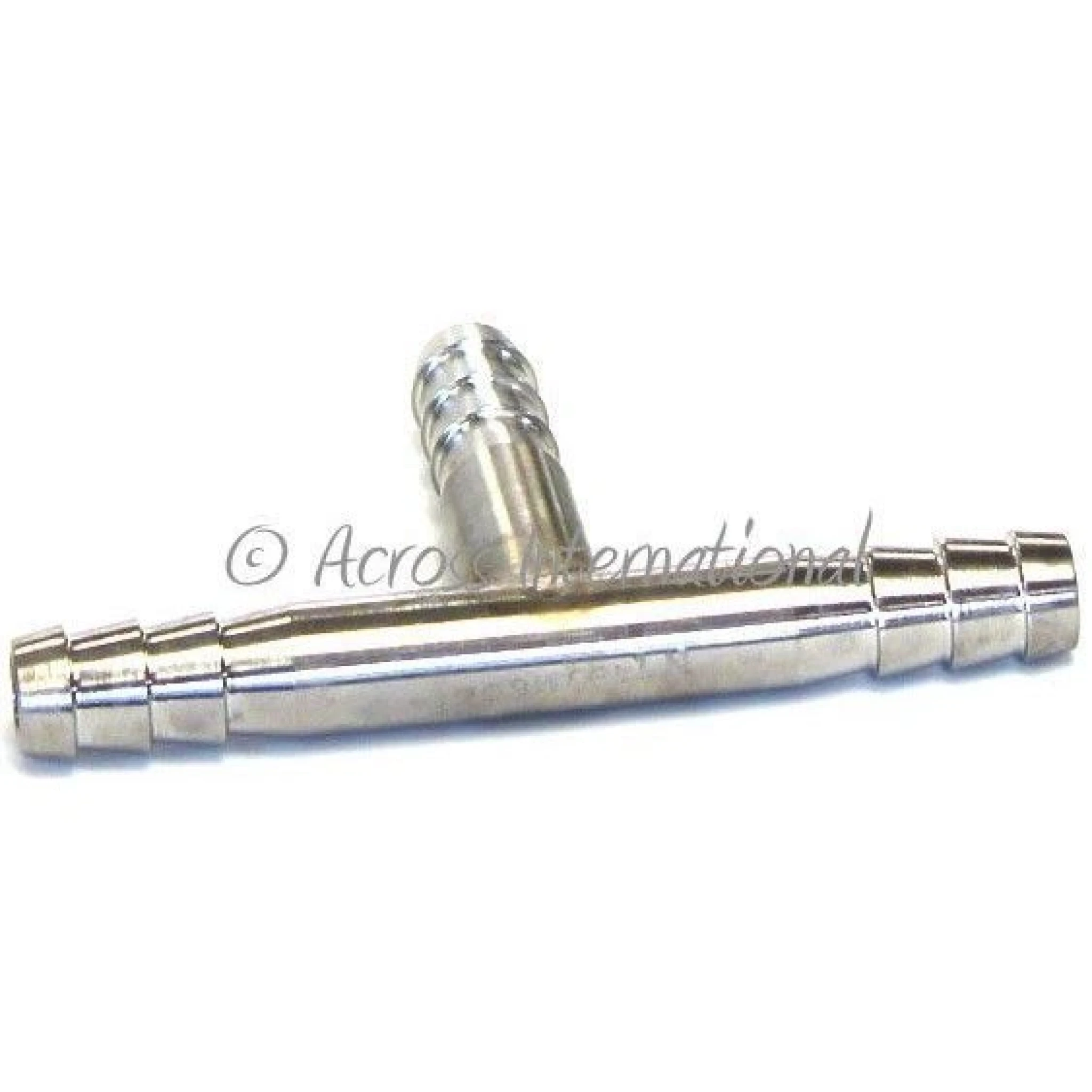

| Threaded Hose Barb (ID: 6mm OD: 9mm) with O-Ring (CS: 2.5 mm ID: 10 mm) (May be Installed on the unit) | 4 pc |
| User's manual | 1 pc |
