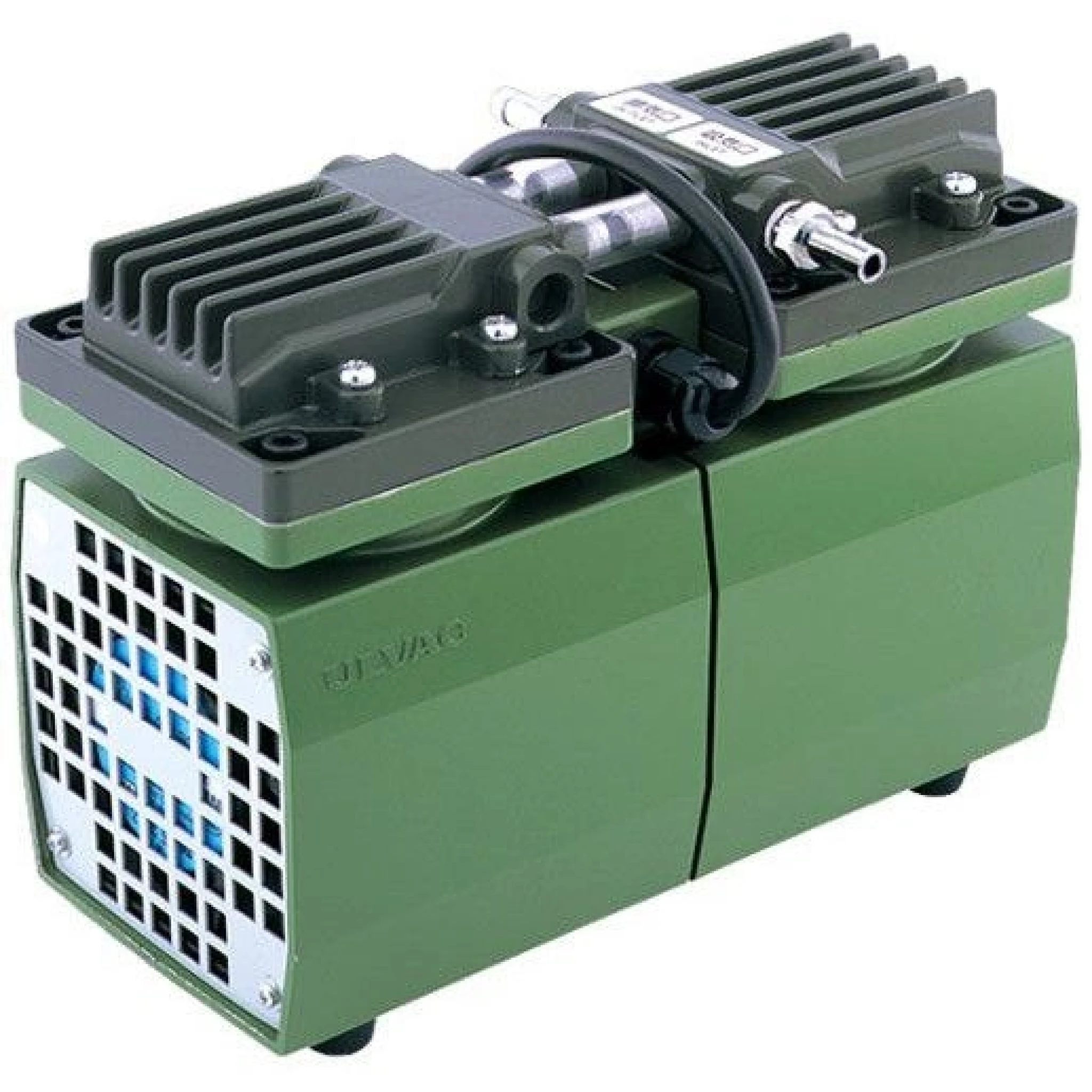

ULVAC DA-40S 1.6 cfm Oil-Free Diaphragm Pump
Reference:
Manufacturer: ULVAC
ULVAC DA series diaphragm pumps create vacuum by reciprocate movement of rubber diaphragms. Various pumping speed and two/single stages are selectable depends on your required pressure and pumping volume. These pumps are oil-free, which means less maintenance and no more frequent and costly oil change, or cross contamination.
These pumps come with a one year warranty and technical support from ULVAC.
In stock
Customize your product
Payment Providers
Applications
- Alcohol evaporation
- Vacuum chucks, wafer and tip handling devices
- Vacuum tweezers
- Printing equipment
- Automatic packing machines
- Optical appliances
- Semiconductor industry
Free three feet 3/8" white premium food grade silicone vacuum tubing included.
The DA-40S is a compact oil-free diaphragm pump for light vacuum work on the bench. It moves 1.62 cfm at 60Hz and pulls down to 149 torr, which suits vacuum filtration, aspiration, vacuum tweezers and other pick-and-place tools.
At 16 Lb and 13 x 5 x 7", it is easy to move between workstations, and it draws only 60 watts (0.8 amps). The 3/8" hose barbs match the included 3 ft silicone hose, so it is ready to connect out of the box. With no oil inside, there are no oil changes and no oil mist to vent.
| Model | ULVAC DA-40S |
| Electrical requirements | 110V 50/60Hz or 220V 50/60Hz single phase, 60 watts |
| Full load current | 0.8 amps |
| Pumping rate | 1.62 cfm (60Hz), 1.41 cfm (50Hz) |
| Ultimate vacuum level | 149 torr |
| Inlet/Outlet | 3/8" hose barb |
| Adjustable vac./gas ballast | No |
| Unit dimensions (LxWxH) | 13 x 5 x 7" |
| Unit weight | 16 Lb |
| Working environment | 44.6°F to 104°F (7°C to 40°C) |
| Certification | CE, TUV |
Standard Package
| ULVAC DA-40S oil-free diaphragm pump | 1 pc |
| White premium food grade silicone vacuum hose (3 ft) | 1 pc |
| Power Cord with plug (may be hardwired to unit or with a detachable plug) | 1 pc |
| User's manual | 1 pc |
