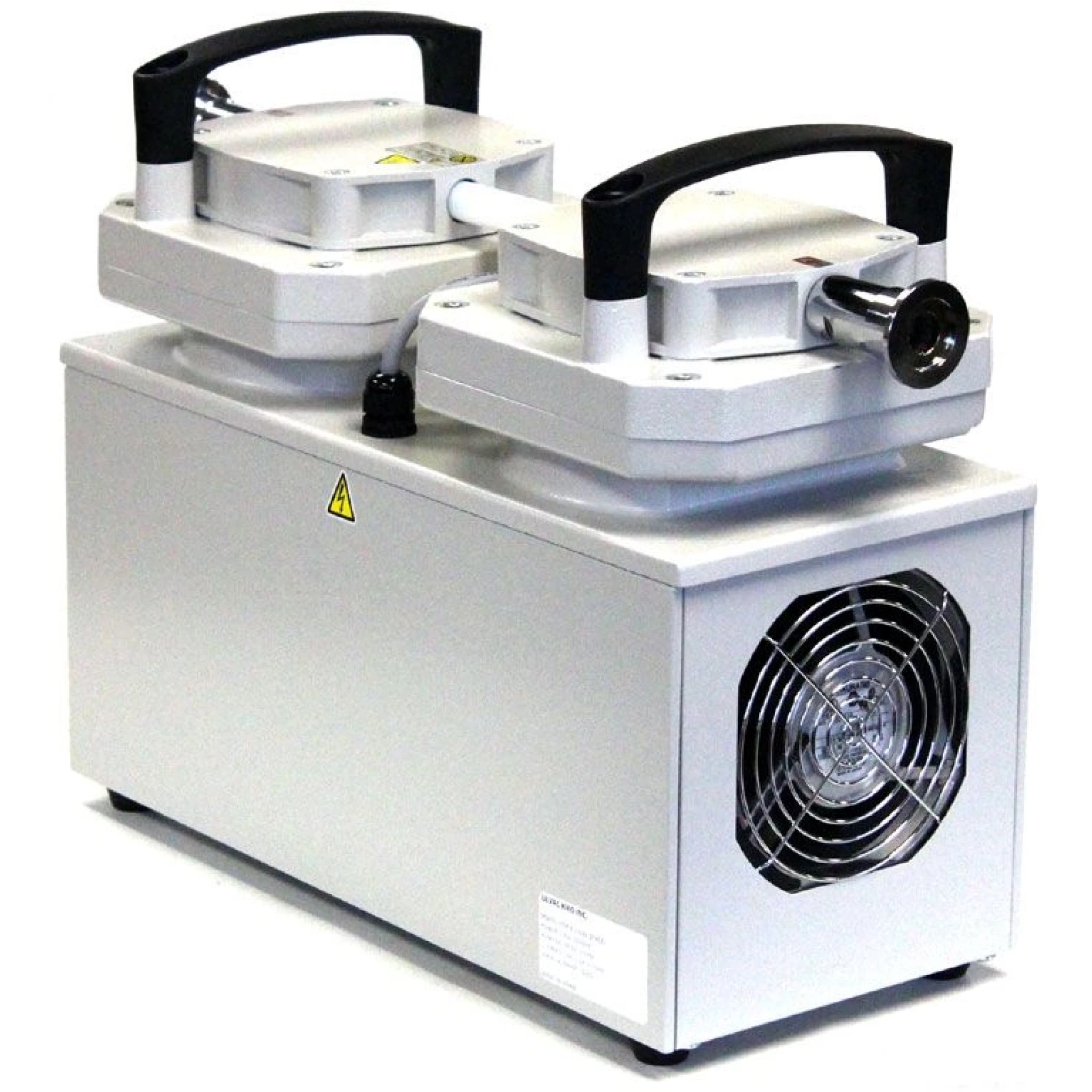

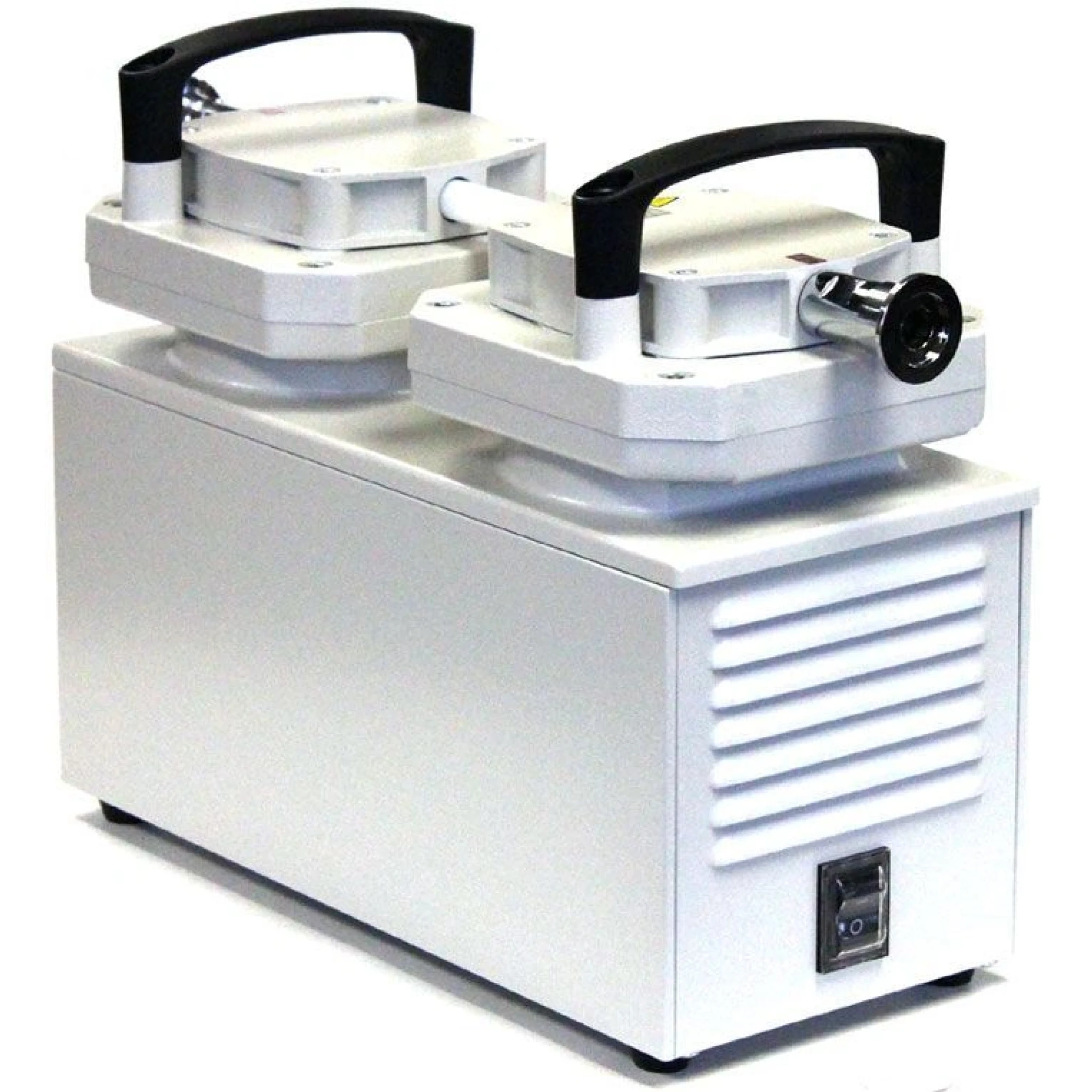

ULVAC UDP-6 6 cfm Full Chemical-Resistant 2-Head Diaphragm Pump
Reference:
Manufacturer: ULVAC
The ULVAC UDP-6 is a compact, high capacity full chemical-resistant 2-head pump that creates deep vacuum by reciprocate movement of rubber diaphragms. These pumps are oil-free, which means less maintenance and no more frequent and costly oil change, or cross contamination.
In stock
Customize your product
Payment Providers
Applications
- Moisture & solvent evaporation
- Vacuum chucks, wafer and tip handling devices
- Vacuum tweezers
- Printing equipment
- Automatic packing machines
- Optical appliances
- Semiconductor industry
The UDP-6 is a two-head diaphragm pump with fully chemical-resistant construction, made for solvent work. With a 6 cfm pumping rate and an ultimate vacuum of 6 torr, it reaches far deeper vacuum than a basic diaphragm pump, enough for solvent evaporation, vacuum drying and rotary evaporation of many common solvents, all without oil.
The KF25 inlet and outlet connect straight to standard vacuum fittings, and a KF25 clamp and centering ring are included. It runs on 110V or 220V single phase power and quiets down to 62 dBA once it reaches ultimate pressure. With no oil inside, there are no oil changes and no oil contamination of your vacuum line.
| Model | ULVAC UDP-6 (DA-170DA/B) |
| Electrical requirements | 110V 50/60Hz or 220V 50/60Hz single phase 400 watts, 5.6 amp rated current |
| Pumping rate | 6 cfm |
| Ultimate vacuum level | 6 torr |
| Inlet/Outlet | KF25 flange |
| Adjustable vac./gas ballast | No |
| Unit/shipping dimensions (LxWxH) | 16 x 7 x 13" / 18 x 11 x 14.5" |
| Noise level | 68 dBA at Atmosphere pressure 62 dBA at ultimate pressure |
| Unit/shipping weight | 58 Lb / 63 Lb |
| Working environment | 32°F to 104°F (0°C to 40°C) |

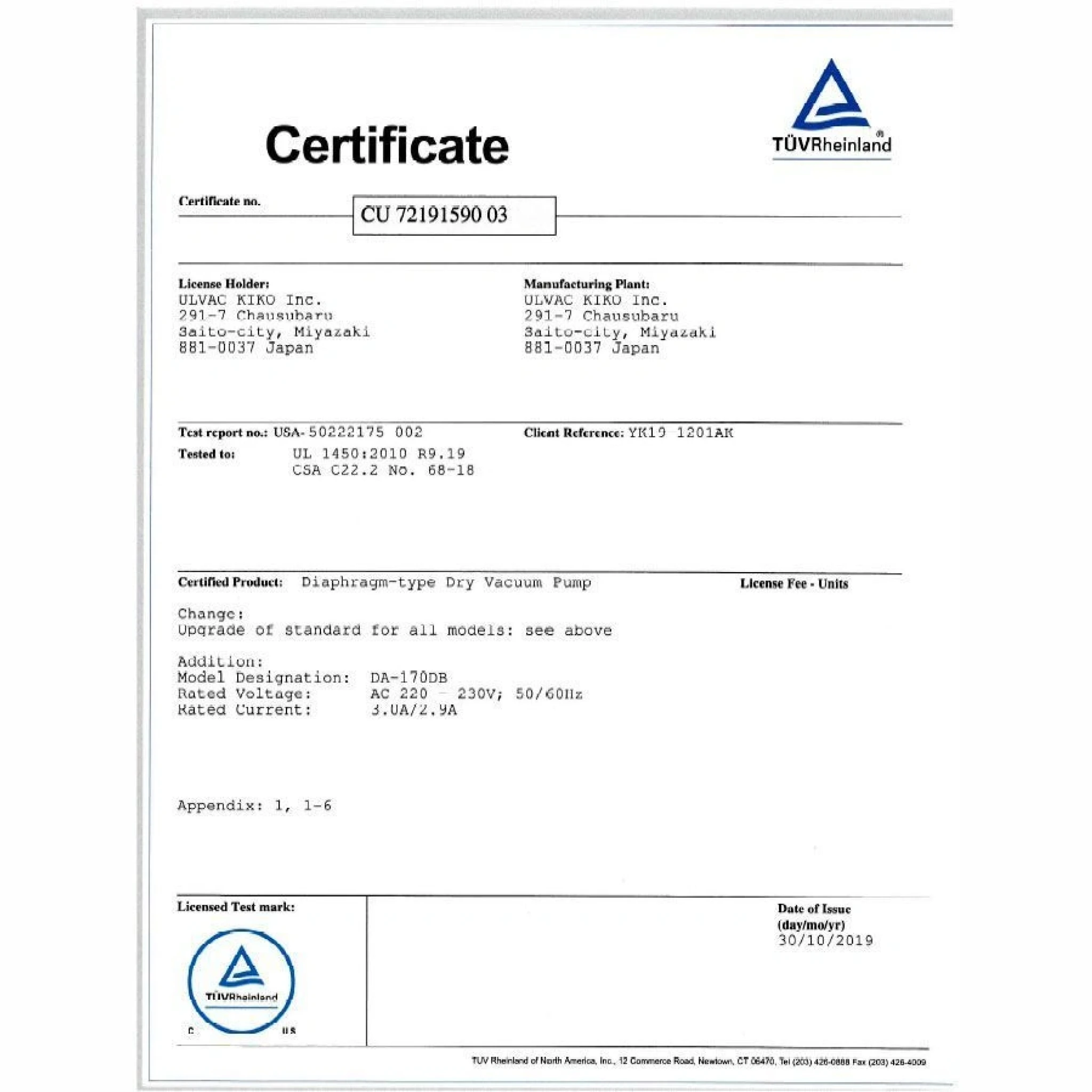

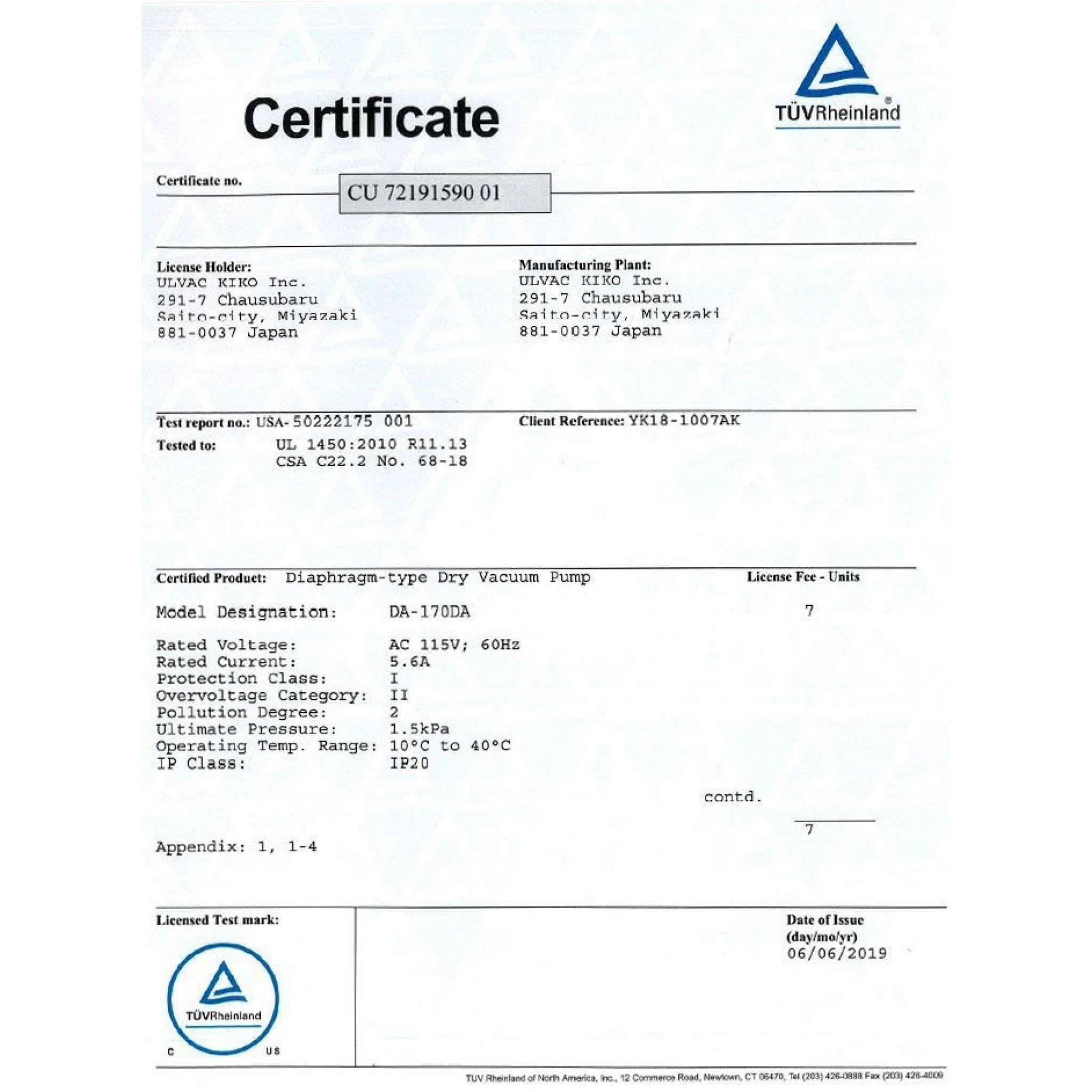

| Compliance | TUV certified to UL and CSA standards |
Standard Package
| ULVAC UDP-6 6 cfm oil-free diaphragm pump | 1 pc |
| KF25 wing nut flange quick clamp | 1 pc |
| KF25 flange centering ring | 1 pc |
| Power Cord with plug (may be hardwired to unit or with a detachable plug) | 1 pc |
| User's manual | 1 pc |
