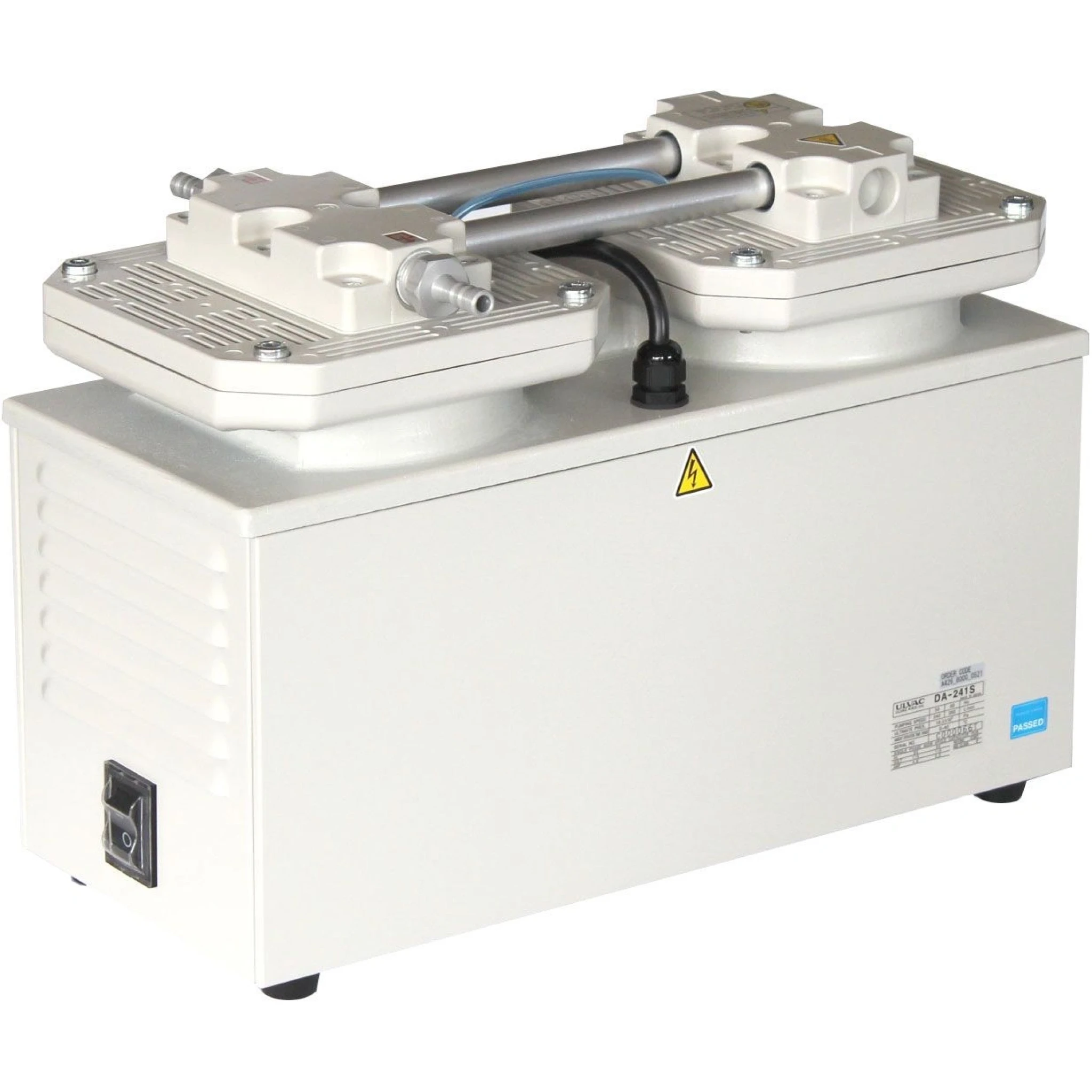

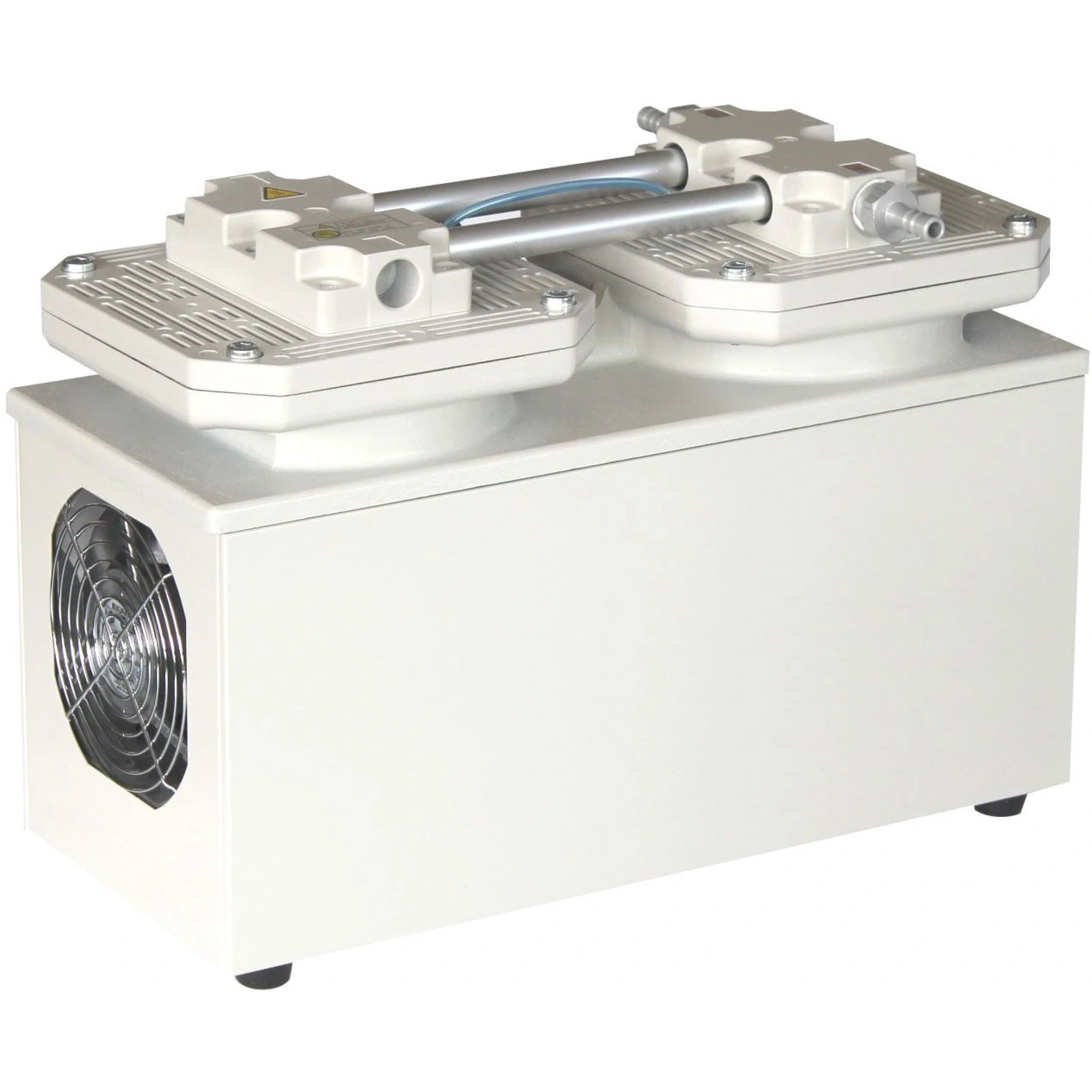

ULVAC DA-241 9.2 cfm Oil-Free Diaphragm Pump
Reference:
Manufacturer: ULVAC
ULVAC DA series diaphragm pumps create vacuum by reciprocate movement of rubber diaphragms. Various pumping speed and two/single stages are selectable depends on your required pressure and pumping volume. These pumps are oil-free, which means less maintenance and no more frequent and costly oil change, or cross contamination.
These pumps come with a one year warranty and technical support from ULVAC.
In stock
Customize your product
Payment Providers
Applications
- Alcohol evaporation
- Vacuum chucks, wafer and tip handling devices
- Vacuum tweezers
- Printing equipment
- Automatic packing machines
- Optical appliances
- Semiconductor industry
Free three feet white premium food grade silicone vacuum tubing included.
The DA-241 is a large oil-free diaphragm pump built to move a lot of air rather than reach deep vacuum. With a 9.2 cfm pumping rate and an ultimate vacuum of 120 torr, it suits vacuum filtration, vacuum holding and transfer, and other jobs where flow matters more than low pressure. For rotary evaporation or vacuum ovens, choose a pump with a deeper ultimate vacuum.
With no oil inside, there is nothing to change and no oil mist to contaminate the work area. It runs on either 110V or 220V single phase power at 400 watts, connects through 5/8" hose barbs, and works in rooms from 0°C to 40°C.
| Model | ULVAC DA-241 |
| Electrical requirements | 110V 50/60Hz or 220V 50/60Hz single phase, 400 watts |
| Full load current | 6.0 amps |
| Pumping rate | 9.2 cfm |
| Ultimate vacuum level | 120 torr |
| Inlet/Outlet | 5/8" hose barb |
| Adjustable vac./gas ballast | No |
| Unit/shipping dimensions (LxWxH) | 8 x 16 x 11" / 18 x 11 x 14.5" |
| Unit/shipping weight | 58 Lb / 63 Lb |
| Working environment | 32°F to 104°F (0°C to 40°C) |
| Noise level | 70 dBA at near Atmospheric pressure 65 dBA at ultimate pressure |
| Certification | CE, TUV |
Standard Package
| ULVAC DA-241 9.2 cfm oil-free diaphragm pump | 1 pc |
| White premium food grade silicone vacuum hose (3 ft) | 1 pc |
| Power Cord with plug (may be hardwired to unit or with a detachable plug) | 1 pc |

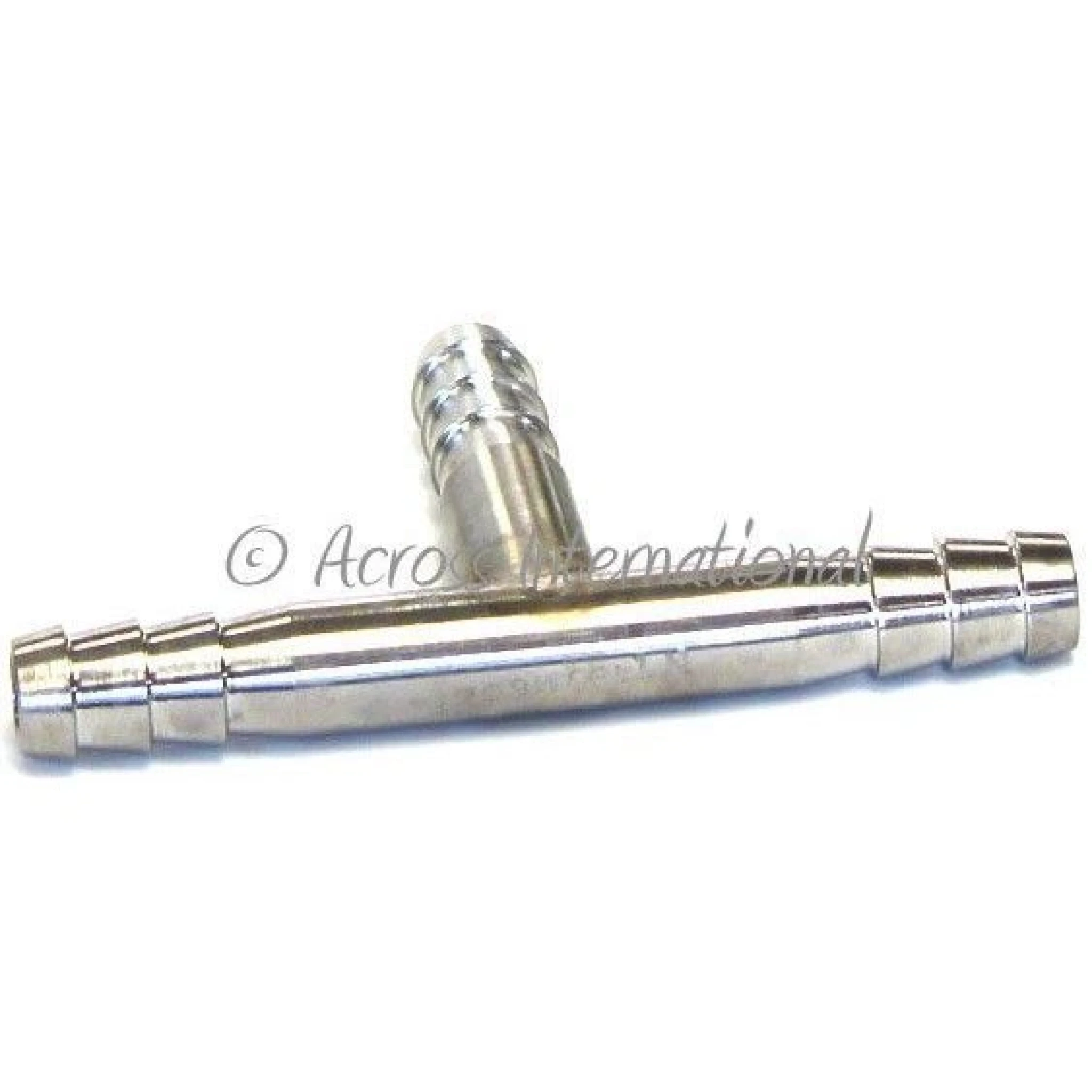

| Threaded Hose Barbs (May be installed on the unit) | 2 pc |
| User's manual | 1 pc |
