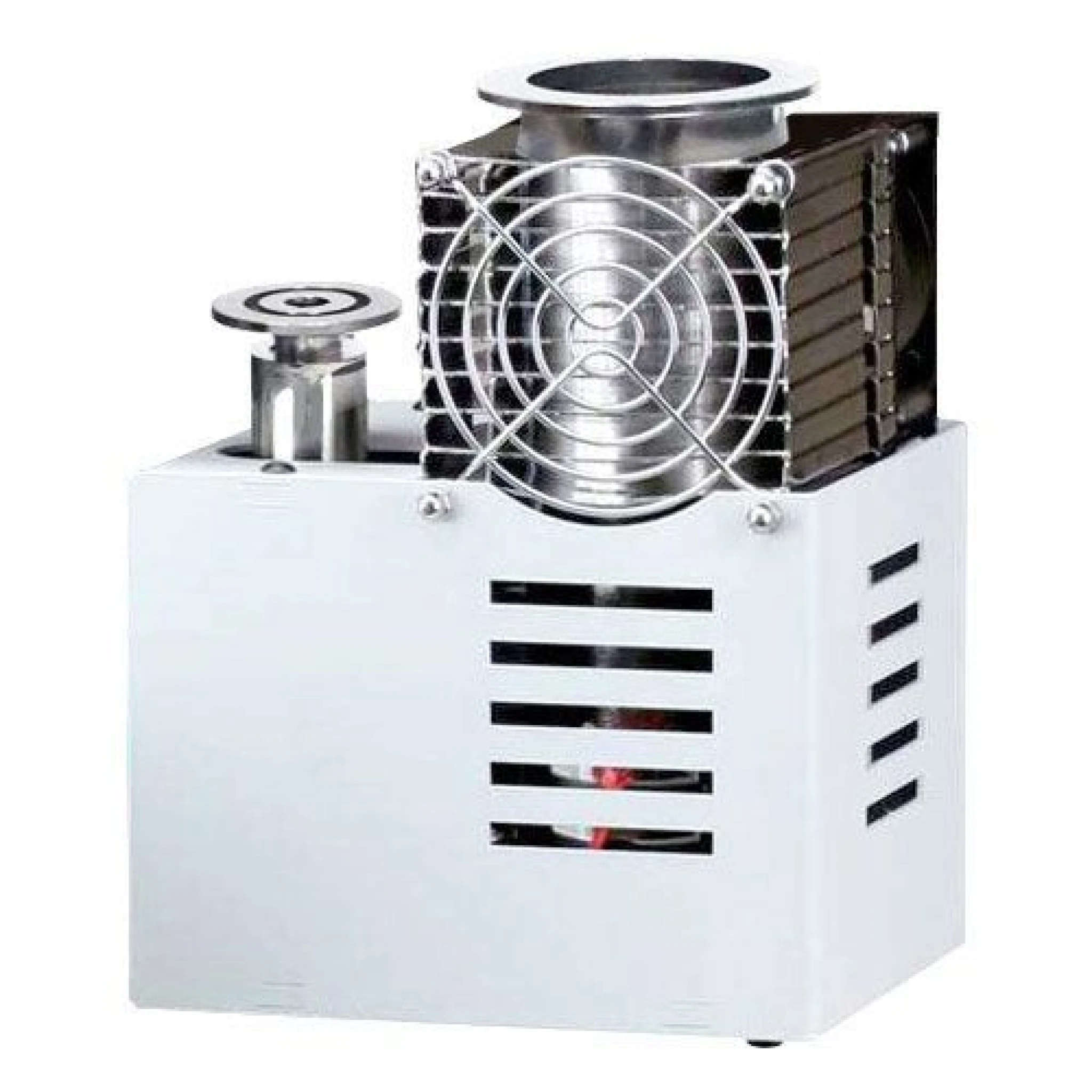

Welch ProBoost Air-Cooled Diffusion Pump
Reference:
Manufacturer: Welch Pumps

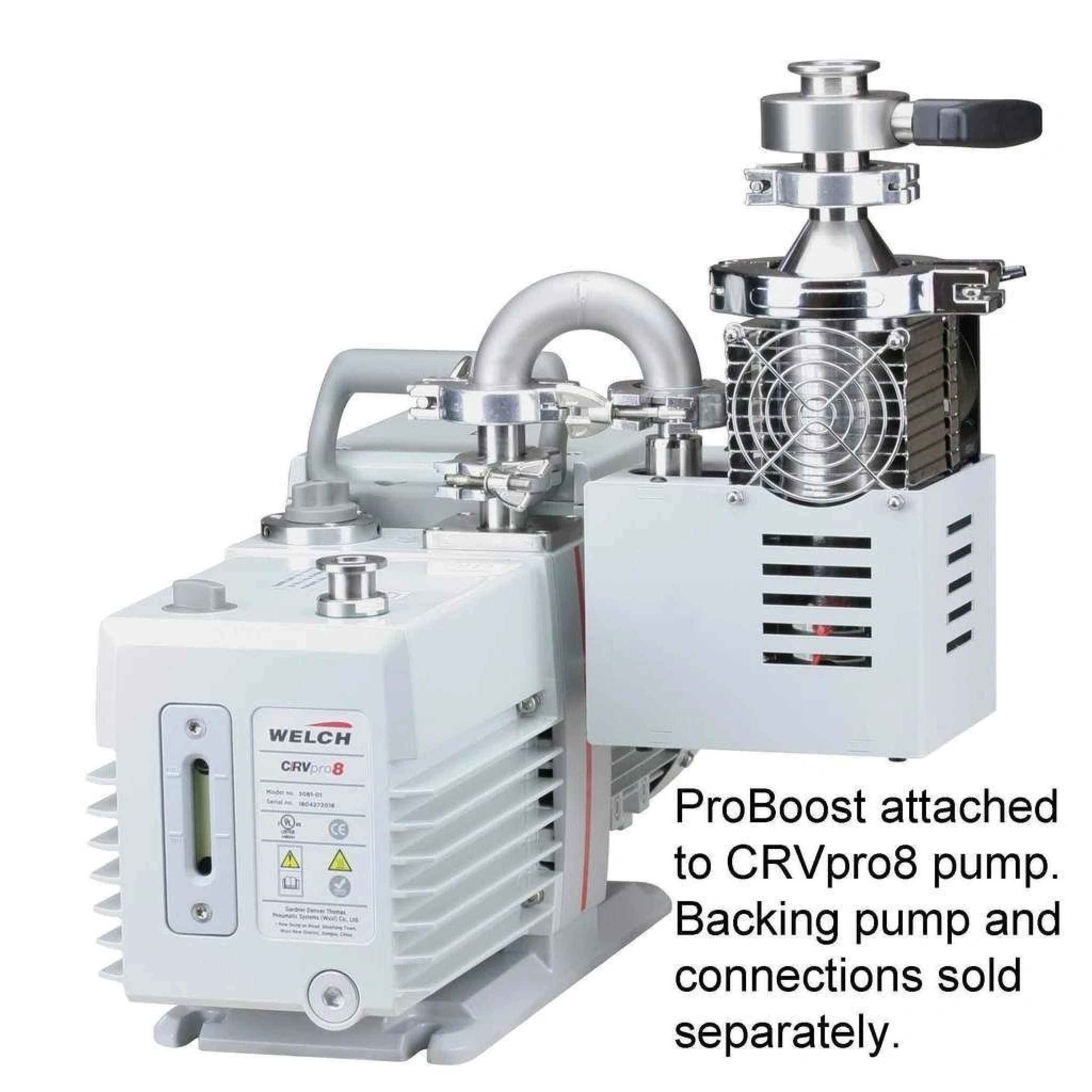

Use Welch ProBoost in conjunction with a backing pump like the CRVpro to get deeper vacuum and higher flow.
In stock
Customize your product
Payment Providers
- High Vacuum to 10 torr
- Use with high vacuum and Schlenk lines
- Employs air cooled diffusion pump
- Easy Attachment to backing pump
Welch ProBoost is an air cooled gas jet pump (commonly called a diffusion pump). The gas jet is formed by directing boiling silicone vapors through a hollow cone. There are no internal moving parts. The pumping action commences when the vacuum pressure in the still (i.e. wiped film) goes below 0.2 torr (200 millitorr). On an empty, leak free still, ProBoost backed by a rotary vane pump lowers the vacuum pressure to 0.00002 torr (20x lower in pressure than a 2-stage rotary vane vacuum pump can do alone).
ProBoost backed by a rotary vane vacuum pump will lower vacuum pressure to below 0.0001 torr in high vacuum and Schlenk lines. This high vacuum is invaluable to improve the results from reactions using air-sensitive compounds such as organometallics, metal amides, and hydrides.
ProBoost has a built-in control board for fan and heater. When you turn on ProBoost, the fan and heater both turn on. When you turn off ProBoost, the heater turns off immediately and the fan runs for another 20 minutes to cool the pump
| Electrical requirements | 110V or 230V, 50 or 60Hz single phase |
| Ultimate vacuum pressure | 0.00002 torr |
| Minimum back pump FAD at 60Hz | 2.8 CFM |
| Maximum discharge pressure | 0.2 torr |
| Ambient environment temp | 10°C to 30°C |
| Heat-up time | 7 minutes |
| Cool down time | 20 minutes |
| Silicone oil capacity | Approximately 30 ml |
| Inlet connection | NW50 |
| Discharge connection | NW25 |
| Unit dimensions | 7.5 x 5.5 x 5.4" (LxWxH) |
| Unit weight | 5.6 Lbs |
Standard Package
| Welch ProBoost Air-Cooled Diffusion Pump | 1 pc |
| KF-50 Clamp and Centering Ring (Mounted On Unit) | 2 pc |
| KF-25 Clamp and Centering Ring (Mounted On Unit) | 2 pc |
| Power Cord | 1 pc |
| Welch ProBoost Silicone Oil (100ml) | 1 pc |
| User's manual | 1 pc |
