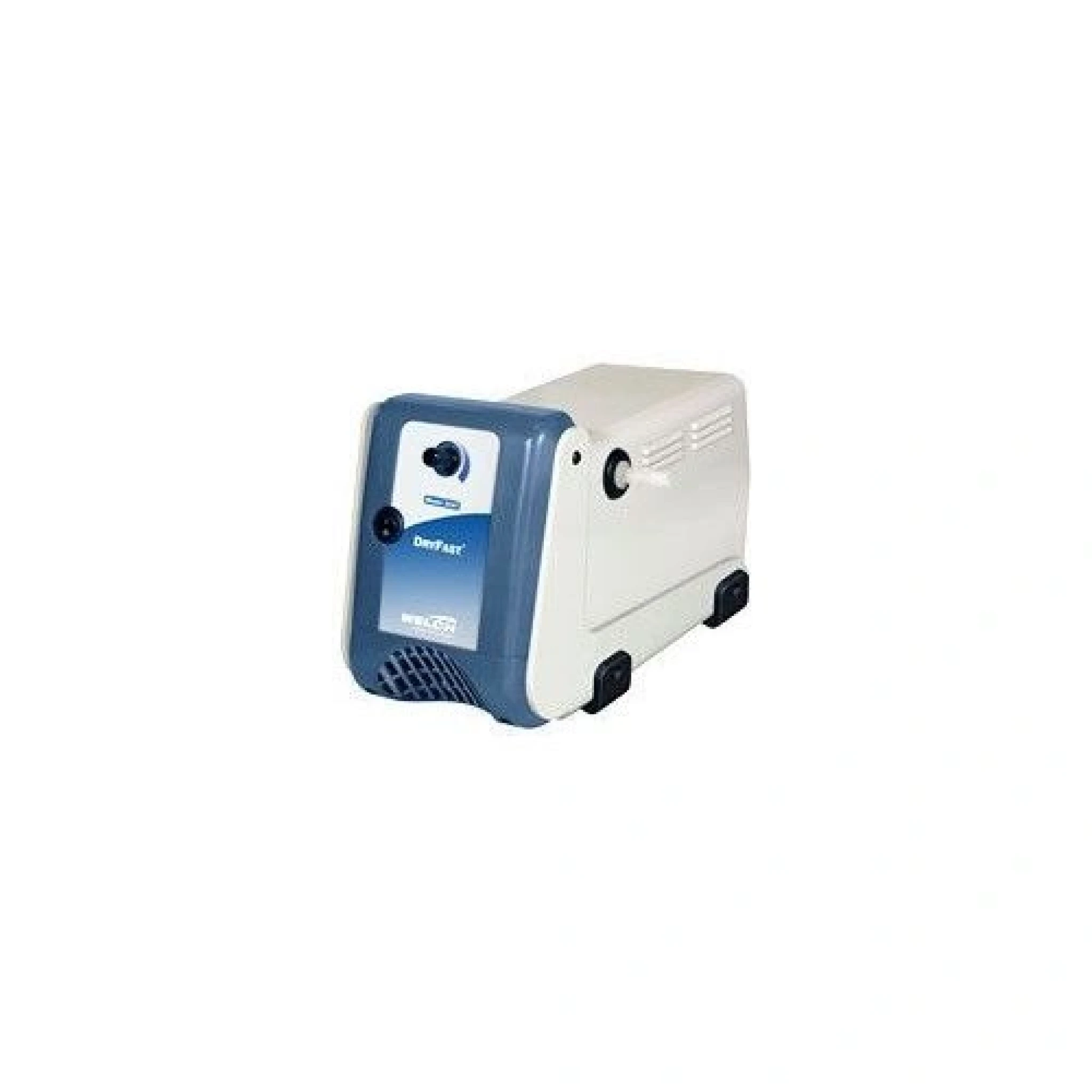

Welch 2034 0.9 cfm DryFast 2-Head Diaphragm Chemical Duty Pump
Reference:
Manufacturer: Welch Pumps
Welch 2034 DryFast 0.9 cfm PTFE Diaphragm Vacuum Pumps are great for rotary evaporators, these pumps enable precise vacuum control for organic evaporations with exclusive Advanced Vapor Management (AVM). Oil-Free, portable, chemical resistant, 2 head diaphragm design simplifies maintenance. Economical DryFast vacuum pumps are perfect for tough lab applications.
Free three feet 3/8" white premium food grade silicone vacuum tubing included.
In stock
Customize your product
Payment Providers
The Welch 2034 is a two-head DryFast diaphragm pump for everyday rotary evaporation. Pulling down to 9 Torr, it is well matched to medium-boiling solvents such as water and toluene, and to small vacuum ovens.
The pump is built for chemical vapours. Its heads are solid PTFE, the diaphragms are PTFE, the valves are Kalrez and all other wetted surfaces are fluorinated plastic, so solvent, acid and base vapours do not attack it. PTFE diaphragms also avoid shedding particles back into the process.
The control knob on the front lets you set vacuum precisely, which helps prevent bumping and foaming during evaporation. With no oil to change and no cold trap needed to protect it, upkeep is limited to the occasional diaphragm and valve kit.
| Electrical requirements | 110 or 220 Volts 60Hz single phase, 0.2 HP, 150 Watts |
| Application | Rotary Evaporation/Distillation (medium volatility solvents <110C B.P., volume ~ 1 liter), Vacuum ovens - small, pumping harsh vapors & gases |
| Pumping rate | 0.9 cfm |
| Ult. vacuum pressure | 9 torr |
| Maximum vacuum | 29.6 in. Hg |
| Vacuum connection | 3/8" hose barb |
| Adjustable vac./gas ballast | Yes |
| Pump dimensions (LxWxH) | 13.8 x 6.8 x 8.8" |
| Shipping dimensions (LxWxH) | 21 x 14 x 15" |
| Pump weight | 21.25 Lb |
| Shipping weight | 25 Lb |
| Certification | UL, CSA |
| Warranty | One year |
| Downloads | Users manual, product brochure |
Standard Package
| Welch 2034 chemical-resistant oil-free diaphragm pump | 1 pc |
| White premium food-grade silicone vacuum hose | 3 ft |
| Power Cord with Plug | 1 pc |
| User's manual | 1 pc |
