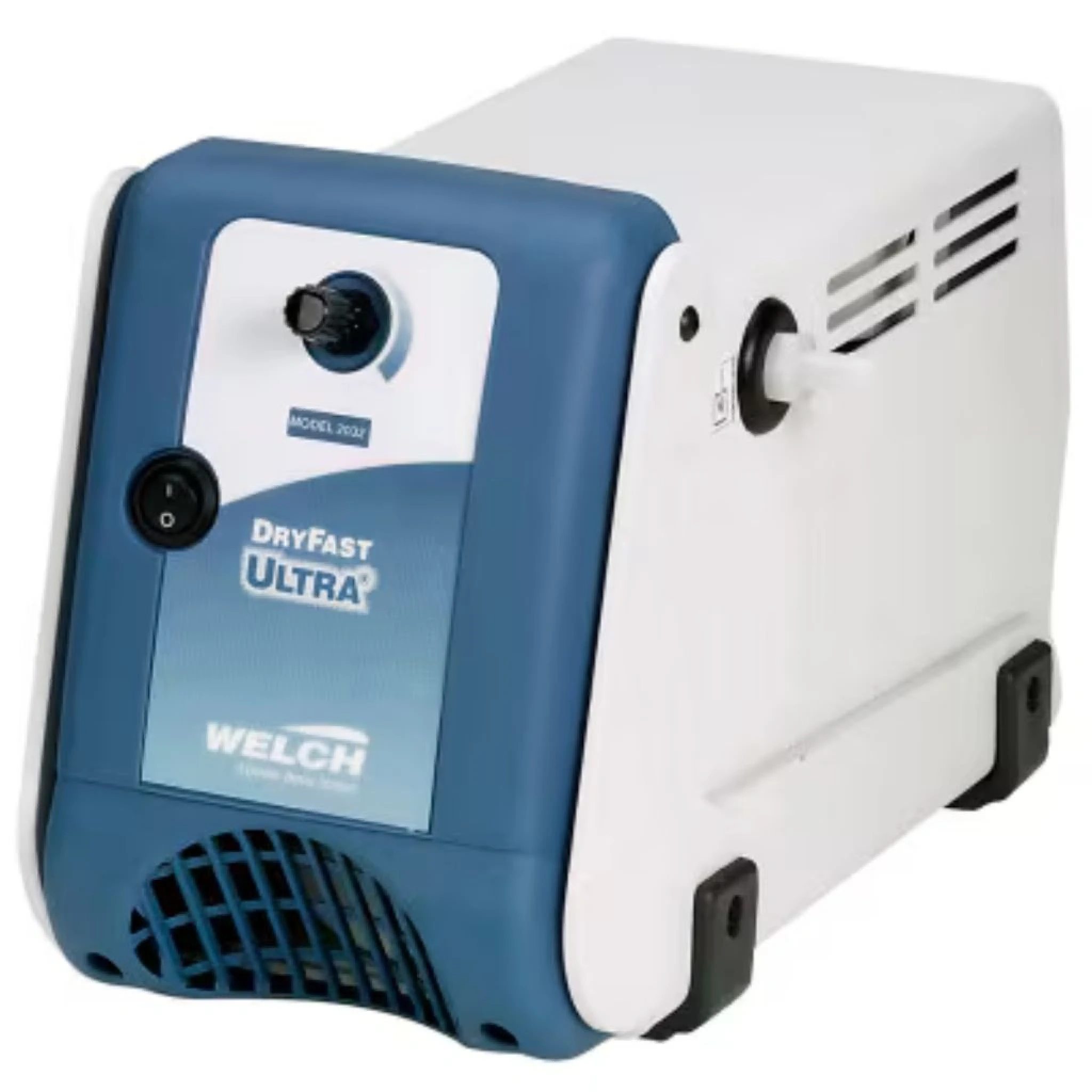

Welch 2032B DryFast 25 L/min 0.9 CFM 2 Torr Oil-Free Diaphragm Pump 110V 60Hz
Reference: 2032B
Manufacturer: Welch Pumps
Clean operation (oil free), low cost of ownership, highest reliability – these are just a few benefits that customers can appreciate when they use a diaphragm pump for laboratory or industrial applications. With a broad range of diaphragm pumps – ultimate vacuum from 75 to 1 mbar and peak flow rates up to 138 l/min – Welch offers specific pump families and models for a variety of uses. The rugged low maintenance pumps have PTFE heads, perfluoroelastomer valves, and fluorinated plastic wetted surfaces, making DryFast a durable choice for solvent, acidic, and basic vapors.
Model 2032 Ultra is a two-stage PTFE diaphragm pumps excellent for all common evaporations, drawing vacuum down to 2 Torr (2.7 mbar) for solvents with atmospheric boiling points up to 160 C. 110V 60Hz
In stock
Payment Providers
Features
Chemical Duty Diaphragm Pump
- Chemical resistant against solvents, acidic and basic vapors
- Constructed with corrosion resistant PTFE and perfluoro plastic materials
- Oil-free for low maintenance operation
- Comes standard with fine tune adjustable knob
- Wired for 110V 60HZ
- Free air displacement @60Hz: 0.9 cfm (25 L/min)
- Ultimate pressure: 2 Torr (2.7 mbar)
The 2032 sits at the top of the DryFast Ultra range for depth of vacuum: at 2 Torr it can handle high-boiling solvents such as DMF, which shallower diaphragm pumps cannot pull off. Welch rates it to strip 2-4 ml/min of DMF at 35 C when used with a dry ice condenser, so heat-sensitive extracts stay cool.
Every wetted part is chemical-resistant: solid PTFE heads, PTFE diaphragms, Kalrez valves and fluorinated plastics. Advanced Vapor Management (AVM) gives you precise control during distillation of organic solvents, and the adjustment knob sits front and centre.
Because it runs dry, no cold trap is needed to protect pump oil, and maintenance is limited to occasional diaphragm and valve service. It is certified for rotary evaporation, concentrators, vacuum ovens, filtration and degassing.
| Electrical requirements | 110V 60Hz |
| Tubing Needed, I.D. in. (mm) | 1/4 (7) |
| Ultimate Pressure | 2 |
| Free Air Displacement | 0.9(25) |
| Exhaust Connection | M14 (1/8) |
| Motor Power, HP (watts) at 60 Hz | 1/5 (150) |
| Application | Rotary Evaporation/Distillation (low volatility solvents <160C B.P., volume ~ 1 liter), Vacuum ovens - small, pumping harsh vapors & gases |
| Pump dimensions (LxWxH) | 350x170x220 (mm) |
| Pump weight | 21.25 Lb |
| Shipping weight | 25 Lb |
| Warranty | One year |
Standard Package
| Welch 2032B chemical-resistant oil-free diaphragm pump | 1 pc |
| White premium food-grade silicone vacuum hose | 3 ft |
| Power Cord with Plug | 1 pc |
| User's manual | 1 pc |
