Welch DryFast 2014 Chemical Resistant 1.2 CFM 40 Torr Oil Free Diaphragm Pump 110v 60Hz
Reference: 2014B-01
Manufacturer: Welch Pumps
Clean operation (oil free), low cost of ownership, highest reliability – these are just a few benefits that customers can appreciate when they use a diaphragm pump for laboratory or industrial applications. With a broad range of diaphragm pumps – ultimate vacuum from 75 to 1 mbar and peak flow rates up to 138 l/min – Welch offers specific pump families and models for a variety of uses.
Diaphragm pumps work completely without oil which has several advantages for the user:
In stock
Payment Providers
- Less maintenance compared to other technologies saves time and money
- Dry vacuum allows cleaner workplace and environment
- Uncontaminated pumping of gases results in cleaner samples and no risk of oil back-streaming
Overview

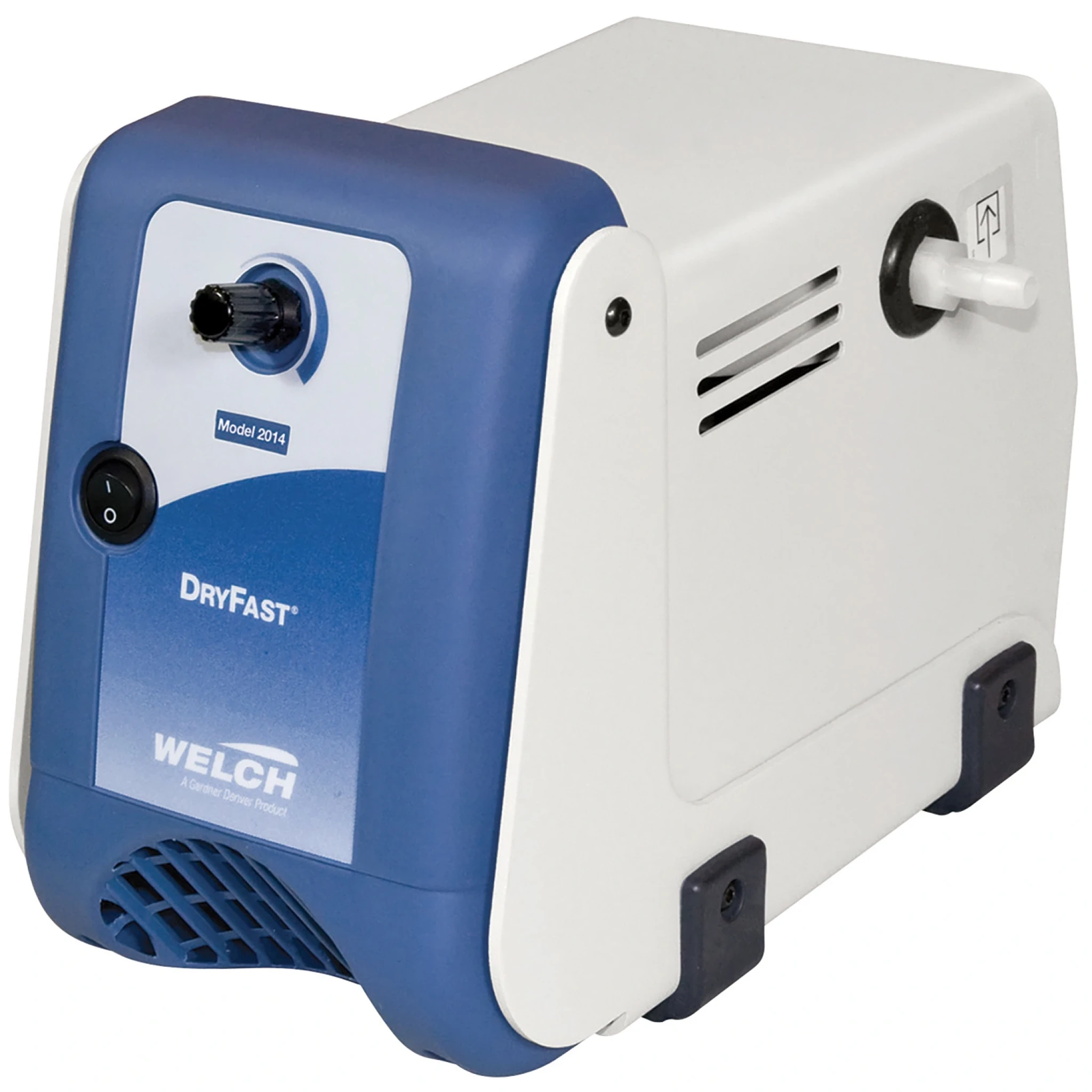

The Welch DryFast 2014 is a single-stage, oil-free PTFE diaphragm pump for chemical duty. It moves 1.2 cfm (35 L/min) of free air at 60 Hz and reaches an ultimate pressure of 40 Torr (53 mbar).
The heads are PTFE, the valves are perfluoroelastomer and the wetted surfaces are fluorinated plastic, so it stands up to solvent, acidic and basic vapours. Welch rates it for evaporating solvents with atmospheric boiling points up to 80 °C. A fine-tune knob on the pump lets you adjust the vacuum.
Key features
- Oil-free, single-stage PTFE diaphragm pump
- 1.2 cfm (35 L/min) free air displacement at 60 Hz
- Ultimate pressure 40 Torr (53 mbar)
- PTFE heads, perfluoroelastomer valves, fluorinated plastic wetted surfaces
- Resists solvent, acidic and basic vapours
- Fine-tune adjustable knob
- Wired for 110 V, 60 Hz
Delivery and pickup
- Ships across Canada and to the USA by Purolator, UPS or FedEx - live rates at checkout.
- Free pickup in Langley, BC.
- We deliver orders of $1000 or more in the Lower Mainland and Fraser Valley ourselves.
Questions
Can I use it on a rotary evaporator?
Welch rates it for evaporating solvents with atmospheric boiling points up to 80 °C. For lower-pressure work you need a pump with a deeper ultimate vacuum.
Does it need oil changes?
No. It is a dry diaphragm pump with no oil.
What power does it need?
Welch model 2014B-01 is wired for 110 V, 60 Hz.
| Model | Welch DryFast 2014B-01 |
| Type | Oil-free, single-stage PTFE diaphragm pump |
| Free air displacement | 1.2 cfm (35 L/min) at 60 Hz |
| Ultimate pressure | 40 Torr (53 mbar) |
| Wetted materials | PTFE heads, perfluoroelastomer valves, fluorinated plastic |
| Vacuum adjustment | Fine-tune knob |
| Power | 110 V, 60 Hz |
