DigiVac StrataVac Regulation Kit for 2-Head Distillation w/ WiFi
Reference: StrataVac-2HeadKit
Manufacturer: DigiVac
The StrataVac is one of DigiVac's leading products for customers looking to both measure and maintain pressure. It is a more complex device that offers a number of different configurations, making it possible for every customer to get exactly what they need. The StrataVac 2018 is equipped with wifi to allow easy monitoring from anywhere in the world.
In stock
Payment Providers
Vacuum Regulation
One of the unique features of the StrataVac is that in addition to having the ability to communicate the pressure that your system is maintaining, the gauge can be ordered with a regulator card and valve which opens and closes as needed in order to control your system at a specific pressure, for example, 2 Torr. This configuration of the gauge which gives you the ability to control, is useful for those conducting experiments that require consistent pressure readings. It is also a common request for those who work in industries where processes require stable pressure to ensure that the final product was held to a particular vacuum level during a process, an example being the StrataVac maintaining a predetermined pressure in a chamber that is vacuum drying products.
Multi-Sensor
For those who are just looking for a higher end vacuum gauge to measure their vacuum systems at different set points, the StrataVac can be ordered with two thermocouple sensors. While every gauge controller requires one sensor to work, having two sensors allows you to monitor more than one system at a time. By simply switching between the sensors on the gauge, you can quickly view the pressure readouts for two different tests you are running. This configuration of the StrataVac can therefore save you the cost of having identical gauges next to each other, performing the same function. It also allows you to use one device to monitor two systems that require different pressure thresholds.

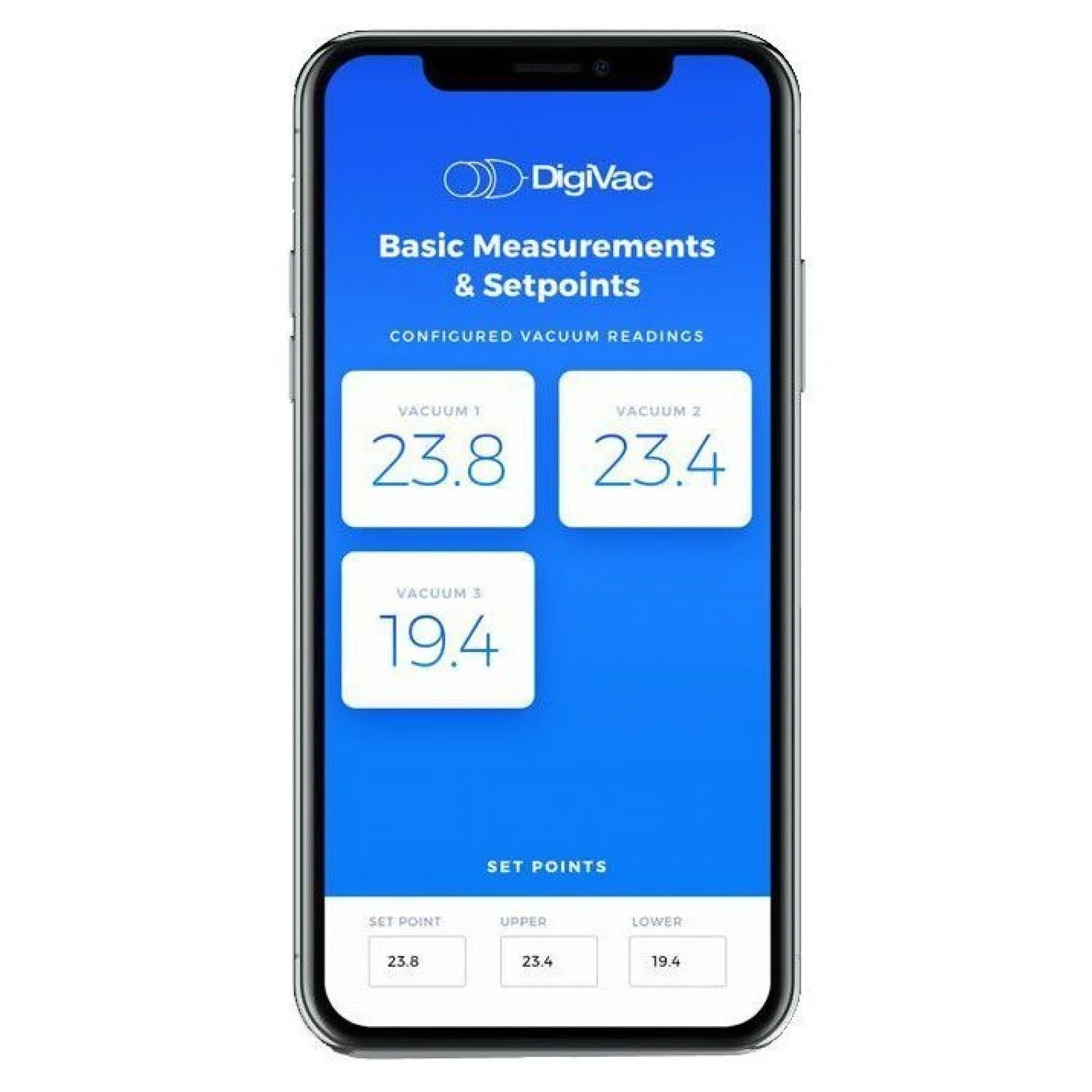

Wifi Connectivity
When a StrataVac is ordered with a wireless ethernet port, you are effectively able to transmit your vacuum readings to your computer. Rather than view your pressures on the small display screen, you can sync the gauge with the DigiVac ReAct software and view it on your desktop. Furthermore, this software allows you to control your StrataVac unit from your computer! If something within your testing parameters has changed and the system now needs to be controlled at a different pressure, simply set up communication with your computer and toggle the set points appropriately.
Capacitance Manometers
Having compatibility with capacitance manometers gives you another configuration to look for. With the use of a capacitance manometer that measures a specific pressure with more reliable accuracy than a thermal sensors, you can more easily control your system at a pressure that is suitable for your experiment. This pairing of the StrataVac and capacitance manometer is often utilized by those in labs doing research, as a calibration standard for other instruments, or as an in-house standard when performing tests. It seems that many in the vacuum field choose capacitance manometers whenever possible because it is isolated and particles cannot contaminate the sensor.
Features
- Vacuum Controller - Drive and combine up to 3 of your sensors | Save space, money, and avoid confusion by combining multiple tasks into one device. Can control vacuum with bleed or throttle valves from 10mT - 760T.
- Modular - Can be configured with up to 4 expansion boards to control multiple gauges at one time | Accepts different inputs based on driver board and sensor election | Possible different outputs including: analog recorder, RS232, Ethernet, SPDT relays and VLC
- Wide Range Accuracy - Configured with sensors based on the accuracy and range required to sense vacuum and display the pressure reading in user selectable units of Torr, mbar, or kilopascal
- Calibrated - Every STRATAVAC is calibrated and pretested under actual vacuum against a NIST standard
- Applications - Transfer Standard for calibrating other vacuum instruments, main reference gauge, research, and in-house standard
- WiFi Access - Can be used to view graph and plot historical data with VacuumNetwork.org, and as a vacuum transmitter to cloud-based services.
- Optional Bleed Type Vacuum Control - Controls vacuum level at a particular set-point between 30 milliTorr and 2000 milliTorr.
- See detail specs on DigiVac's website

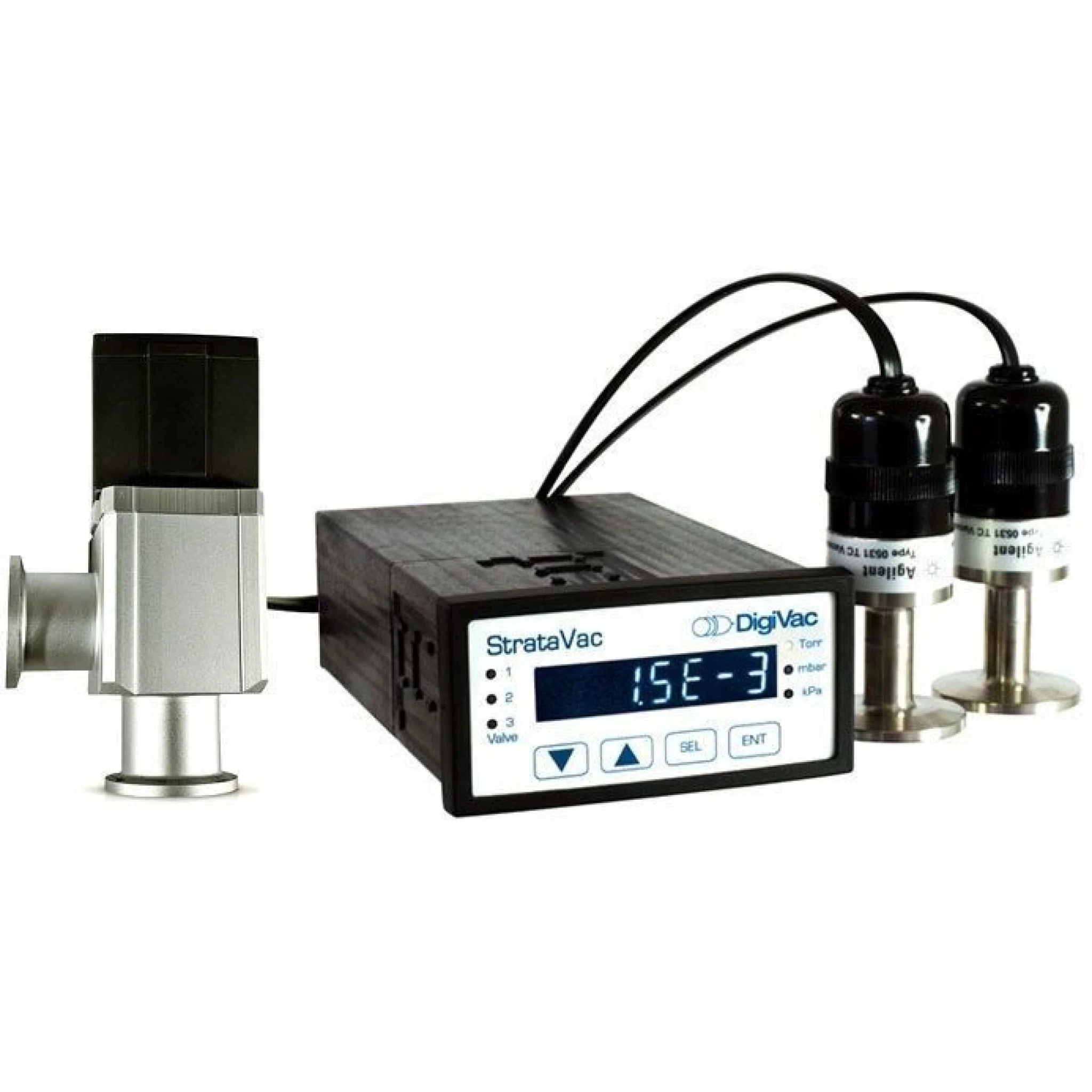

Included in this package
Part description | P/N | Quantity |

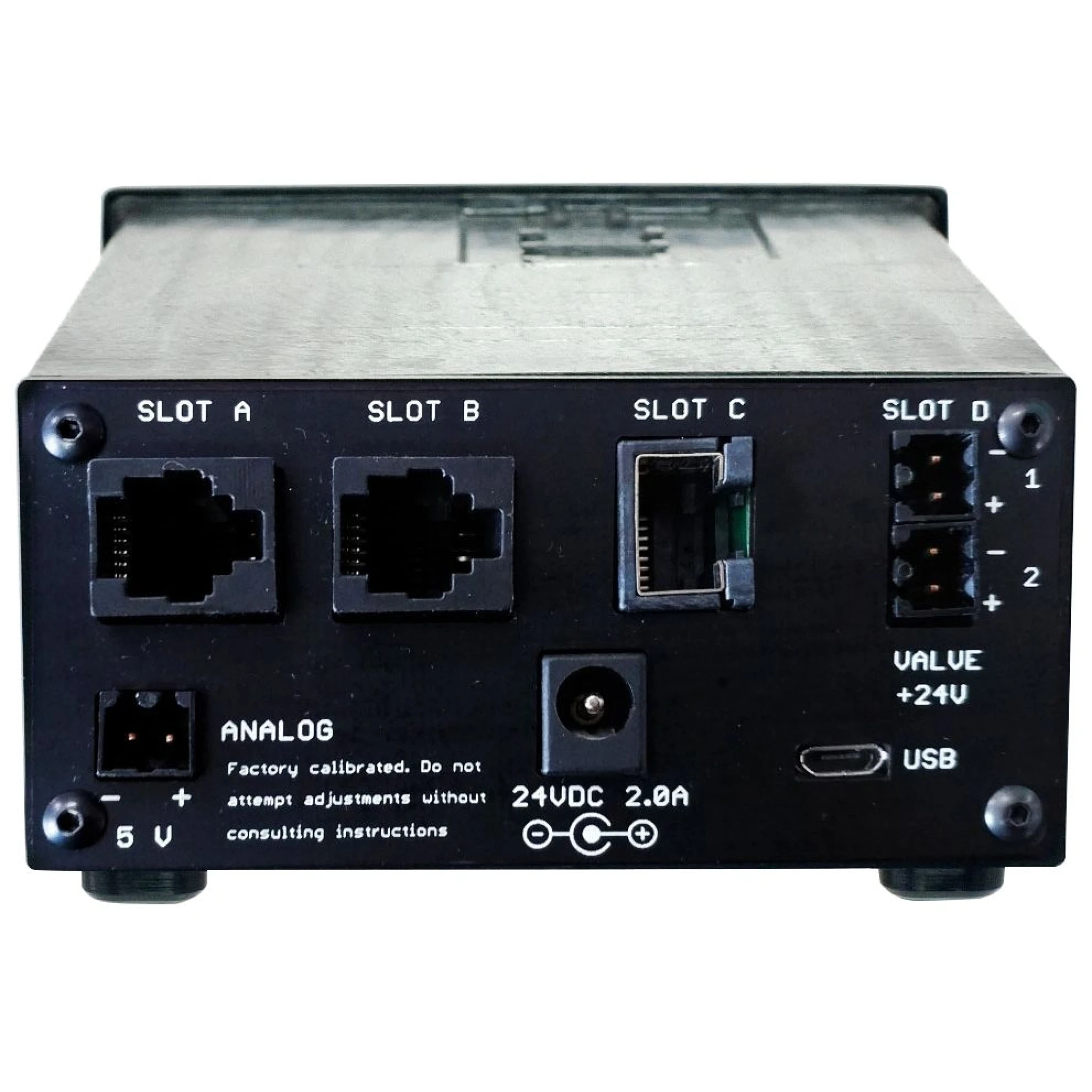

| StrataVac gauge with white 6 segment white LED display, indicator lights, 4 touch buttons, USB, 5V analog output, and 4 card slots | STR | 1 pc |
| StrataVac card to drive Agilent 531, 536 and equivalent gauge tubes | 531-STR | 2 pcs |
| StrataVac card to drive up to two 24 volt valves directly for isolation and throttle control | THR-VAL-STR | 1 pc |
| StrataVac card to enable the gauge to be accessed wirelessly, and a limited license to access VacuumNetwork.org | WiFi-STR | 1 pc |
| Varian/Agilent type 536 thermocouple vacuum gauge tube with baffle, 'TC Gauge', NW-25KF, Stainless Steel, LASER WELD | SEN-536-KF25 | 2 pcs |
| KF25 bellows electromagnetic Aluminum Valve used for isolation and vacuum valve control | VAL-BELL-KF25 | 1 pc |
| User's manual | 1 pc |
| Model | StrataVac Two-Head Distillation Kit |
| Units | Torr, mbar, kPa |
| Power | 100-240VAC 50/60Hz |
| Output | 5V |
| Vacuum range | 5E-9 - 1000 Torr |
| Range with Accuracy | 5E-4 - 1000 Torr |
| Vacuum interface | 1/8" male NPT or KF/NW |
| Vacuum reference | Absolute |
| Display | .38 inch high 6 digit red LED |
| Controls | 7 amp, 250 Volt (If applicable) |
| Telemetry options | RS232, ethernet |
| Mount | 1/8 DIN or bench top |
| Panel mount | Yes |
| Unit dimensions | 1.7 x 3.52 x 5.35 inches (HxWxDeep) |
| Shipping dimensions | 11 x 10 x 4 inches |
| Weight | 2 lbs |
| StrataVac 2018 WiFi addendum | Download |
| Product brochure | Download |
| Operators manual | Download |
Standard Package
| DigiVac StrataVac With Bracket | 1 pc |
| Desktop AC Adapters 60 W 24 V 2.5A with power cord | 1 pc |
| Agilent 536-KF25 sensor with Cable | 2 pc |
| KF25 bellows electromagnetic Aluminum Valve | 1 pc |
| Quick Start Guide | 1 pc |
