USA Lab PTFE Thermometer Adapter
Reference:
Manufacturer: USA Lab
| 14/20 & 24/40 | 3.5–6 mm The USA Lab PTFE Thermometer Adapter delivers a reliable, leak-free seal for thermometers and probes sized 3.5 mm, 5 mm, or 6 mm . A continuous port hole runs through the adapter and the thick PTFE body resists deformation under…
In stock
Customize your product
Payment Providers
More info
USA Lab PTFE Thermometer Adapter | 14/20 & 24/40 | 3.5–6 mm

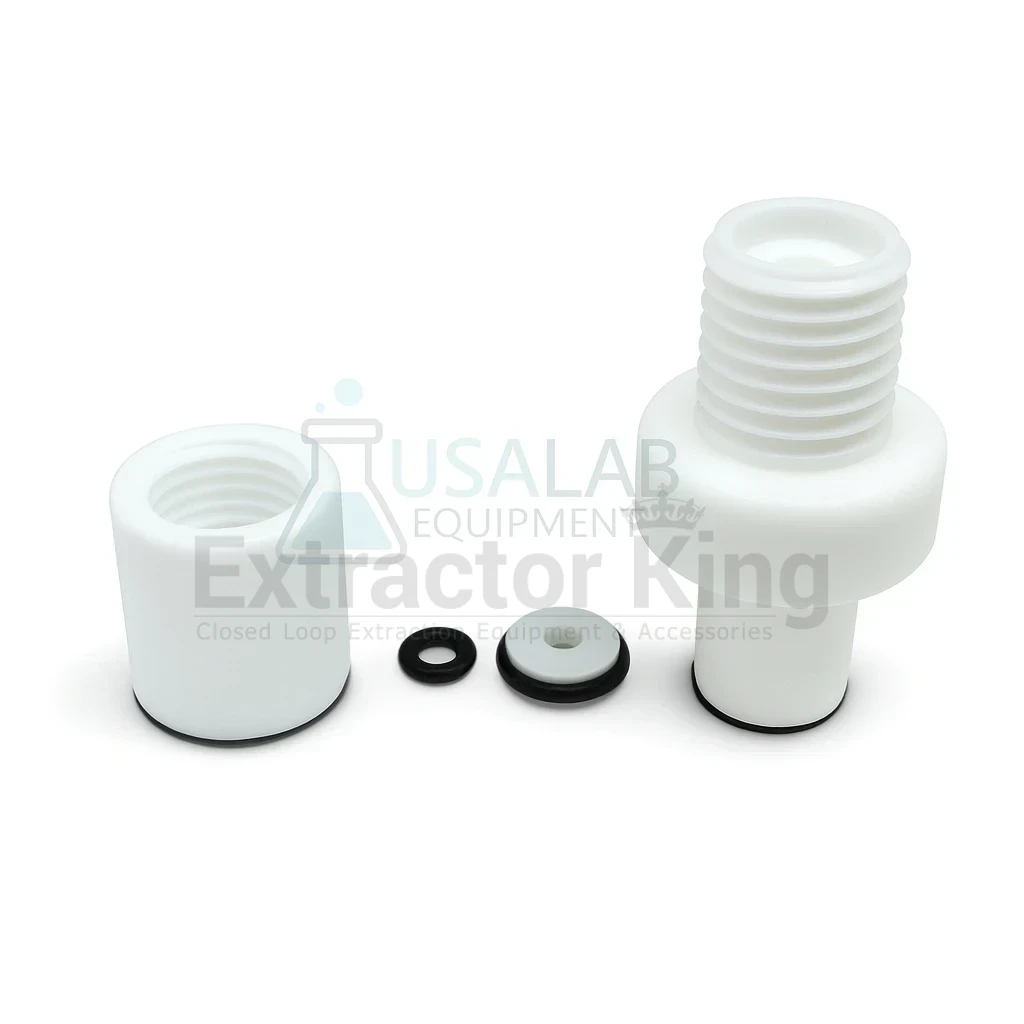

The USA Lab PTFE Thermometer Adapter delivers a reliable, leak-free seal for thermometers and probes sized 3.5 mm, 5 mm, or 6 mm. A continuous port hole runs through the adapter and the thick PTFE body resists deformation under clamp pressure, helping eliminate vacuum leaks during distillation, reflux, or monitoring.
Each adapter includes two compression gaskets—one for horizontal compression and one for vertical compression—so you can dial in a secure, airtight fit on standard taper joints.
Available in 14/20 and 24/40 joint sizes, this adapter is a durable upgrade for routine lab setups that demand dependable sealing and chemical resistance.
Why this PTFE Thermometer Adapter?
- Dependable vacuum performance — thick PTFE body plus compression gaskets help prevent leaks.
- Quick, adjustable clamping — secure your probe at the desired depth with horizontal or vertical compression.
- Versatile sizing — accepts 3.5 mm, 5 mm, or 6 mm probes and fits 14/20 or 24/40 glass joints.
- Solvent-ready build — PTFE and Buna materials suit common lab applications.
- Easy maintenance — simple to disassemble, clean, and re-seal between runs.
Technical Specifications
| Model | USA Lab PTFE Thermometer Adapter |
|---|---|
| Material | PTFE (body), Buna (gaskets) |
| Joint Size Options | 14/20 or 24/40 |
| Opening Size Options | 3.5 mm, 5 mm, or 6 mm |
| Through-Port | Yes — full-length bore |
| Seal Type | Horizontal & vertical compression |
| Chemical Resistance | Excellent (PTFE) |
| Included Components | Adapter + (1) horizontal gasket + (1) vertical gasket |
| Use Range | General laboratory service (PTFE-based) |
| Joint Standard | Standard taper glass joints |
| Probe Compatibility | Thermometers/probes Ø 3.5 / 5 / 6 mm |
| Leak Prevention | Thick PTFE body + compression gaskets |
| Applications | Distillation, reflux, vacuum and atmospheric monitoring |
| Cleaning | Disassemble design for quick cleaning |
FAQ
Which probe diameters does this adapter fit?The USA Lab PTFE Thermometer Adapter is designed for probes sized 3.5 mm, 5 mm, or 6 mm.
Choose between 14/20 or 24/40 standard taper joints to match your glassware.
A full-length port and thick PTFE body work with the included horizontal and vertical Buna compression gaskets to create an airtight seal.
Each adapter ships with the PTFE body plus two gaskets (one horizontal, one vertical) for a secure fit.
