USA Lab Vacuum Controller
Reference: USA-VC-001
Manufacturer: USA Lab
Vacuum Controller (VC-001) — Precision Digital Vacuum Control | USA Lab The USA Lab Vacuum Controller (VC-001) is a robust, modern instrument for accurate vacuum measurement and closed-loop control. Built with an isolated digital vacuum sensor, reliable…
In stock
Payment Providers
More info
Vacuum Controller (VC-001) — Precision Digital Vacuum Control | USA Lab

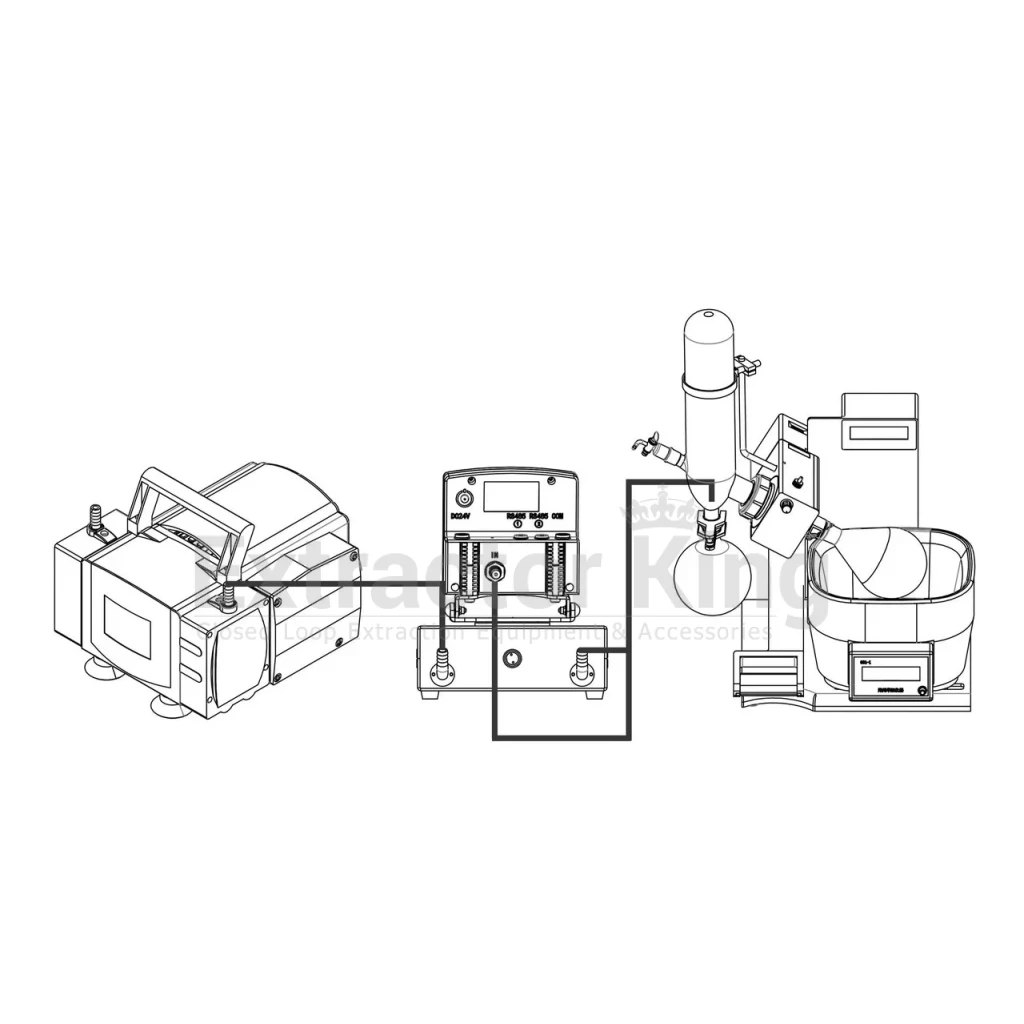

The USA Lab Vacuum Controller (VC-001) is a robust, modern instrument for accurate vacuum measurement and closed-loop control. Built with an isolated digital vacuum sensor, reliable valves, and industrial plumbing, it simplifies set-point regulation across rotary evaporation, vacuum drying, filtration, and R&D processes.
A bright 4.3" touch interface paired with large tactile buttons makes operation straightforward. Maintain precise saturation pressure with ±1 mbar adjustment accuracy and fine control down to 0.1 kPa increments. Compatible with diaphragm pumps, rotary vane pumps, circulating water vacuum pumps, and more.

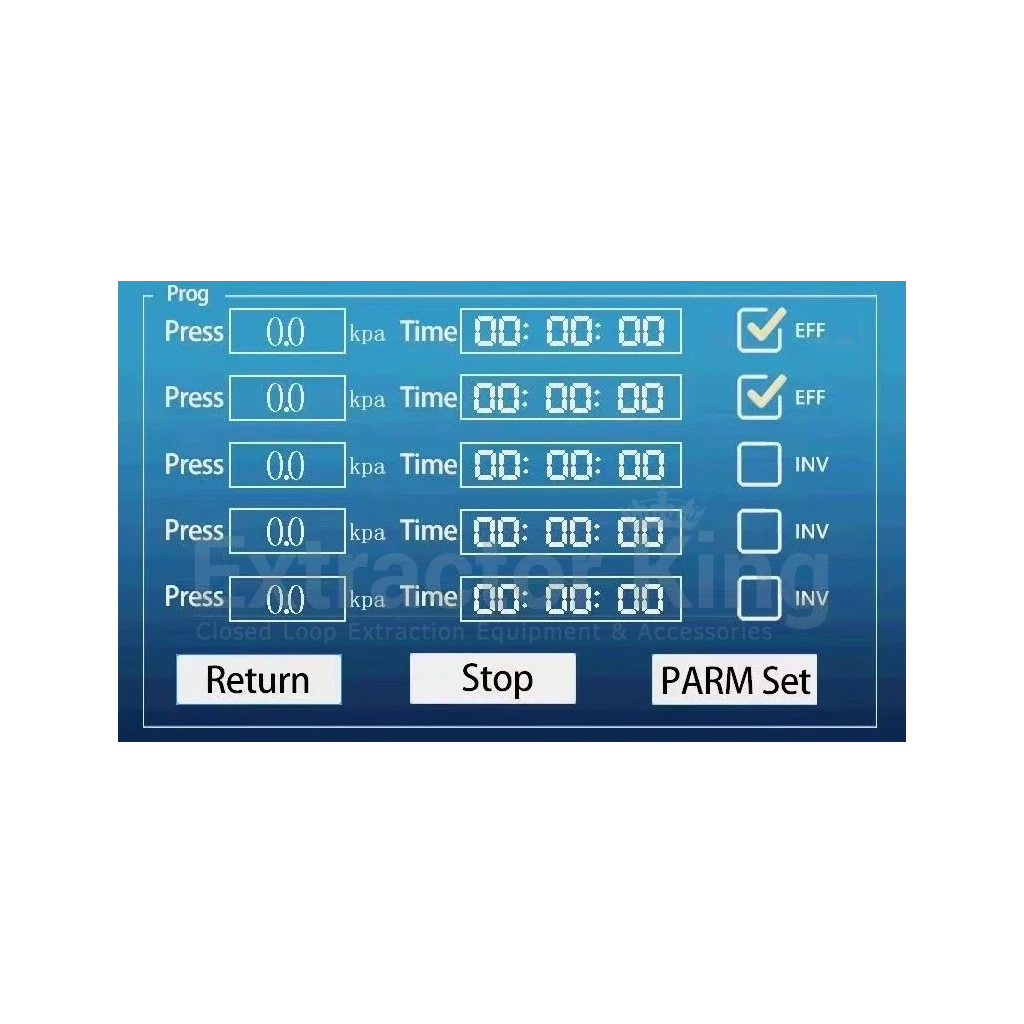

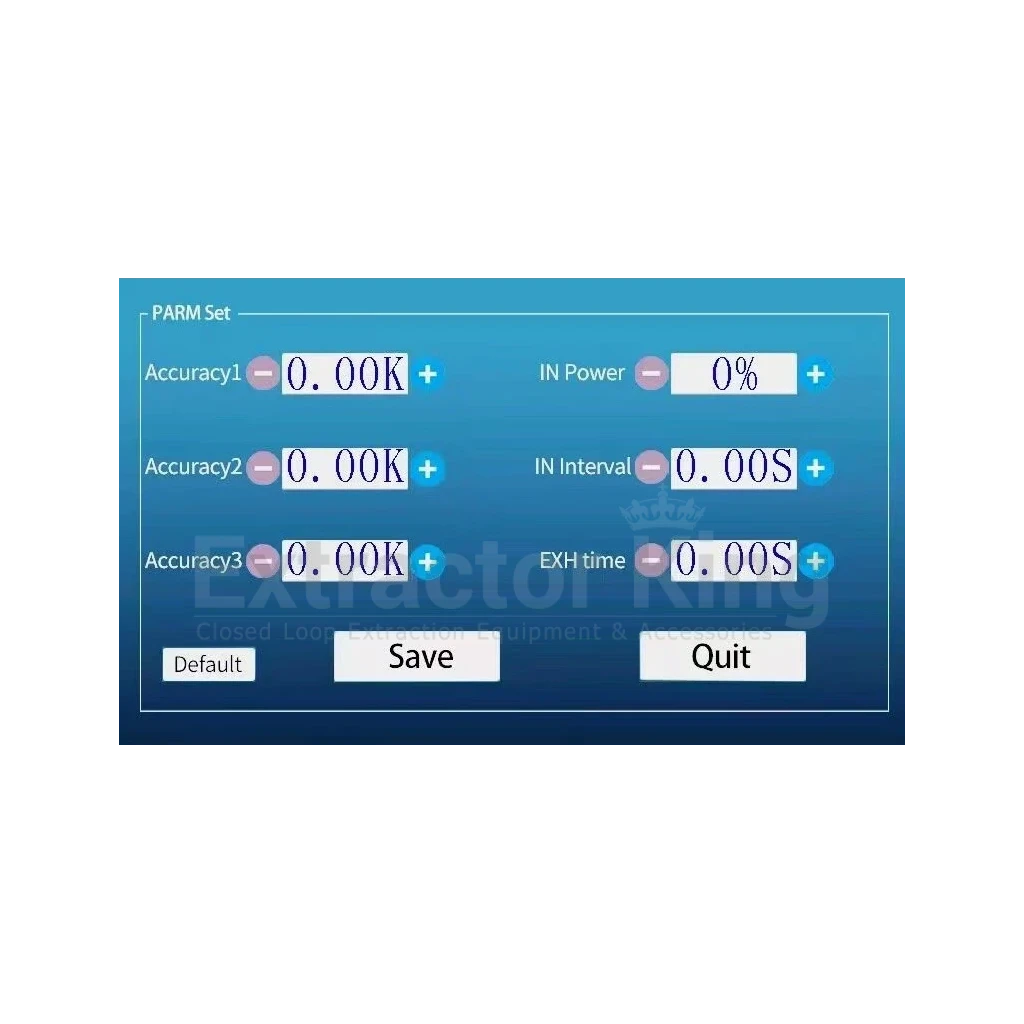

Program control modes, continuous pumping, and one-click pressure release help you stabilize sensitive chemistries and improve repeatability.
Verify fittings and materials compatibility before integration.
Why the USA Lab Vacuum Controller (VC-001)?
- Precise vacuum control — Regulates pressure within ±1 mbar; ideal for rotary evaporation and decompression reactions.
- Isolated digital sensor — Stable, accurate readings with robust valve and plumbing components.
- Program & continuous modes — Maintain set-points, run profiles, or hold steady vacuum with one click pressure release.

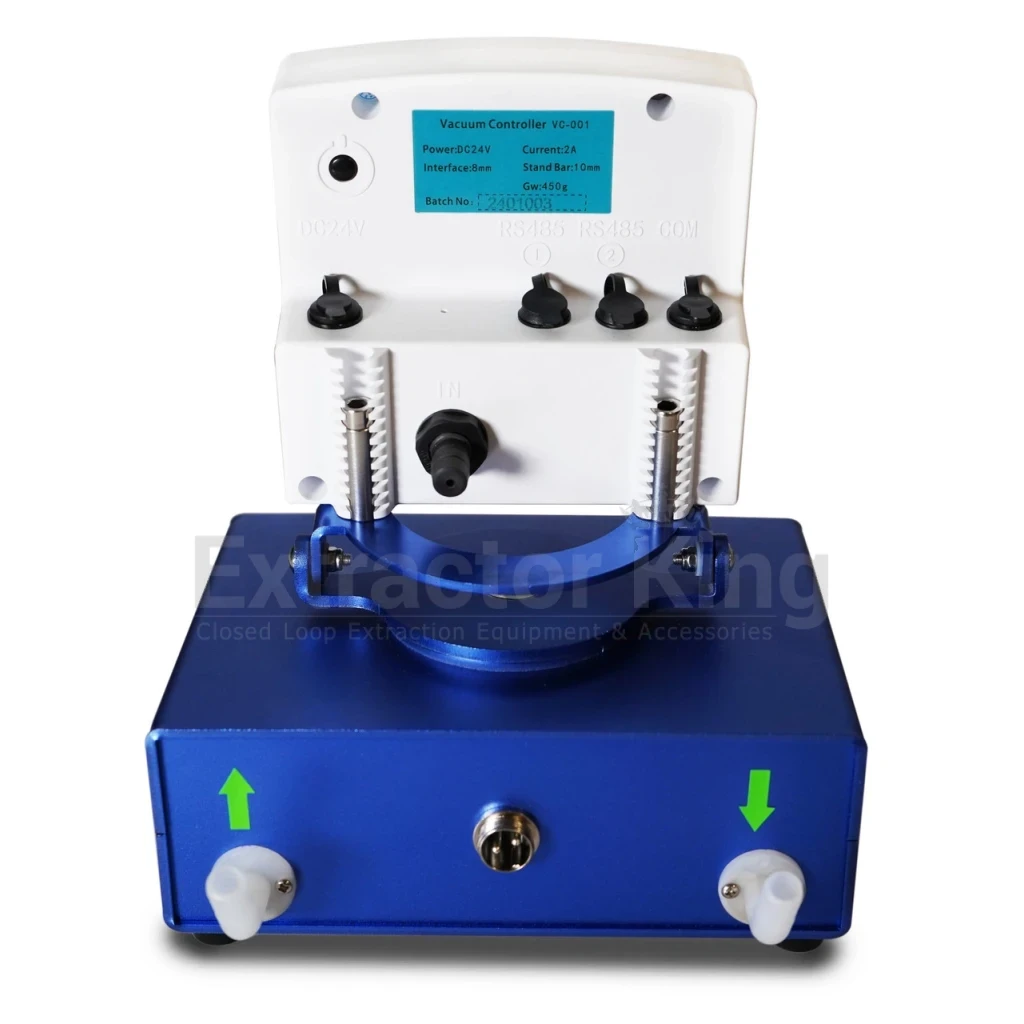

- Universal connectivity — 8 mm barb (pagoda) joint integrates with common lab tubing and traps.

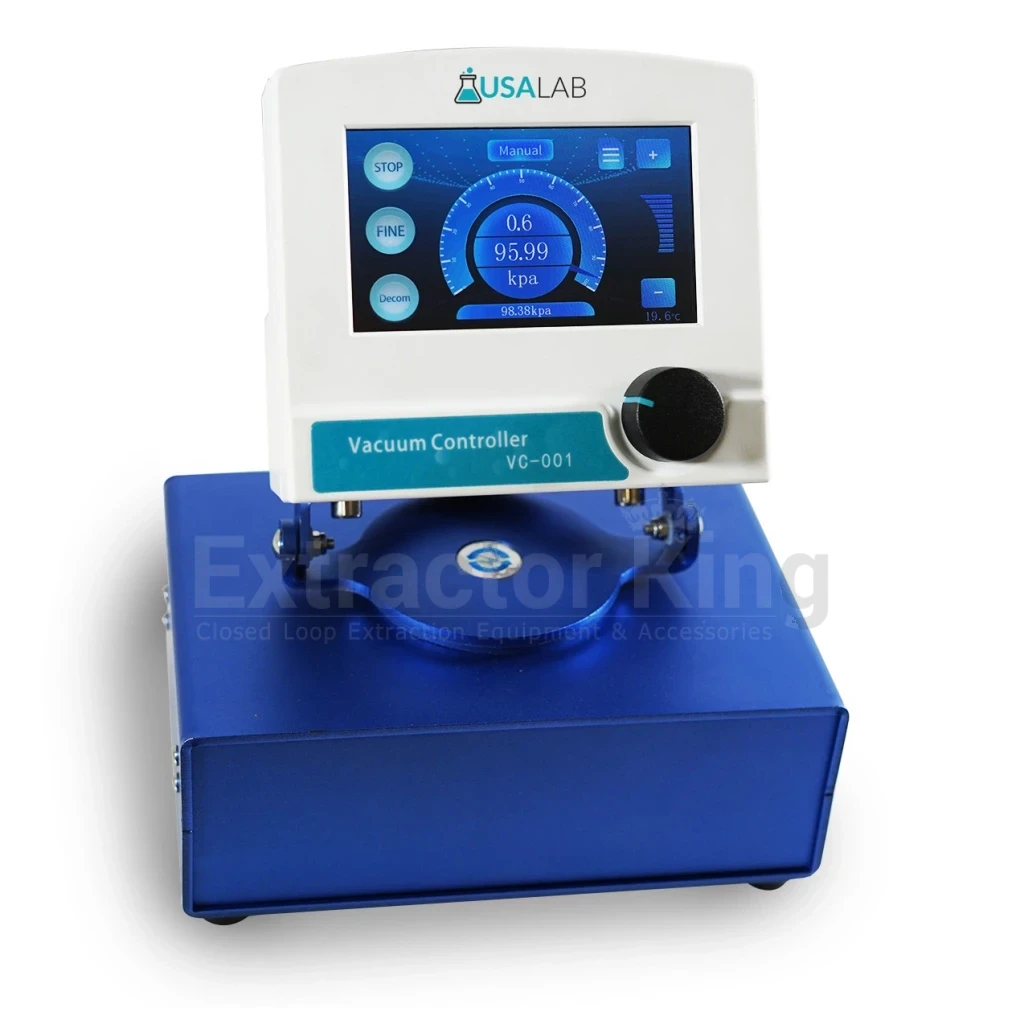

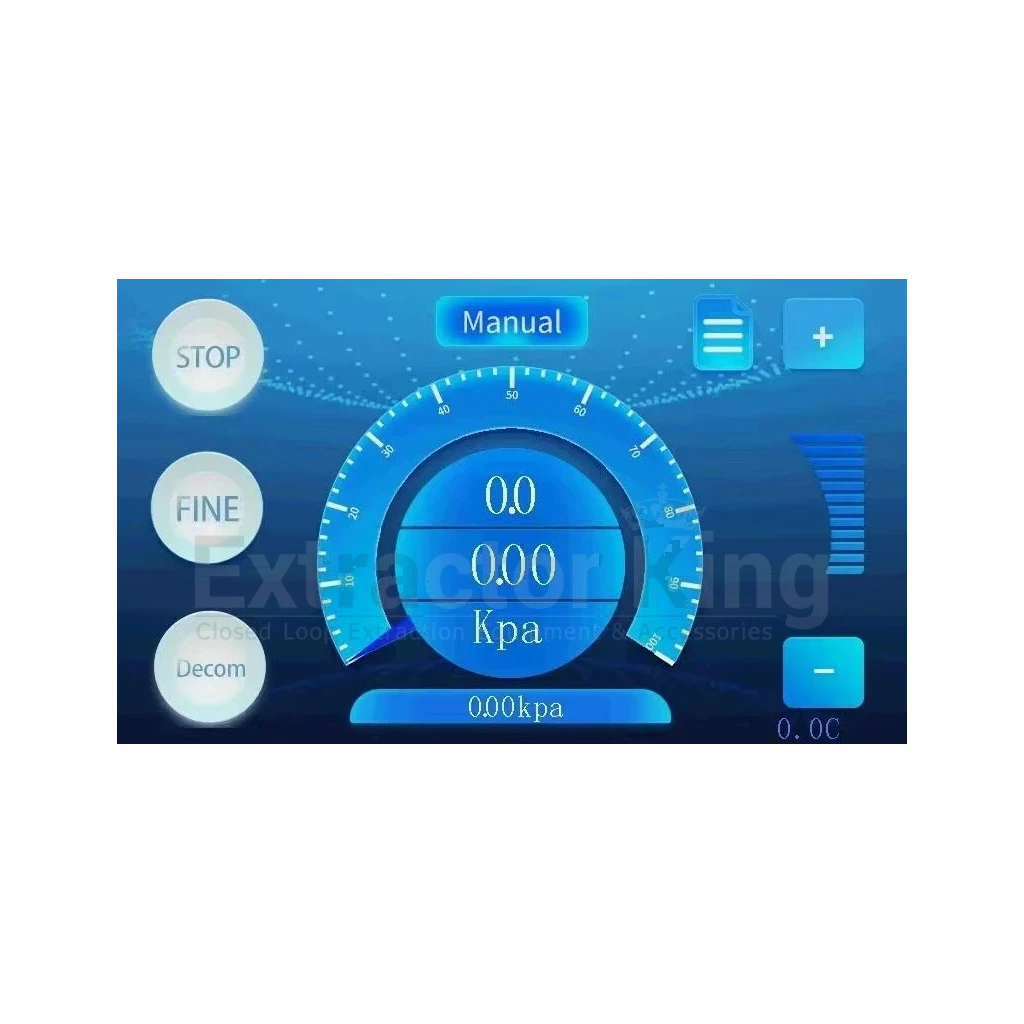

- User-friendly interface — 4.3" touch screen with large tactile buttons for gloved operation.
Technical Specifications
| Model | USA Lab Vacuum Controller (VC-001) |
|---|---|
| Measurement Range | 0–1013 mbar (0–101.3 kPa) |
| Adjustment Accuracy | ±1 mbar (fine control increments to 0.1 kPa) |
| Display | 4.3" touch screen with large tactile buttons |
| Functions | Program control, continuous pumping, one-click pressure release |
| Connection | 8 mm (3/8") pagoda (barb) joint |
| Ambient Temperature | 5–40 °C |
| Relative Humidity | ≤ 80% RH |
| Protection Class | IP21 |
| Dimensions (W×D×H) | 130 × 100 × 164 mm |
| Pressure Units | hPa, mbar, mmHg |
| Pump Compatibility | Diaphragm, rotary vane, circulating water vacuum pumps |
FAQ
What is the USA Lab Vacuum Controller (VC-001)?The USA Lab Vacuum Controller (VC-001) is a digital vacuum measurement and control device that maintains precise set-points for applications like rotary evaporation, drying, and filtration.
It offers adjustment accuracy of ±1 mbar with fine control increments to 0.1 kPa, enabling stable saturation pressure and repeatable results.
It is compatible with most diaphragm, rotary vane, and circulating water vacuum pumps when plumbed with the included 8 mm barb connection and appropriate traps/filters.
Yes. It includes program control, continuous pumping, and a one-click pressure release function for fast adjustments and process safety.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Brand | USA Lab |
| Power Requirements | 110-120V 50-60Hz |
| Warranty Term | 1 Year |
