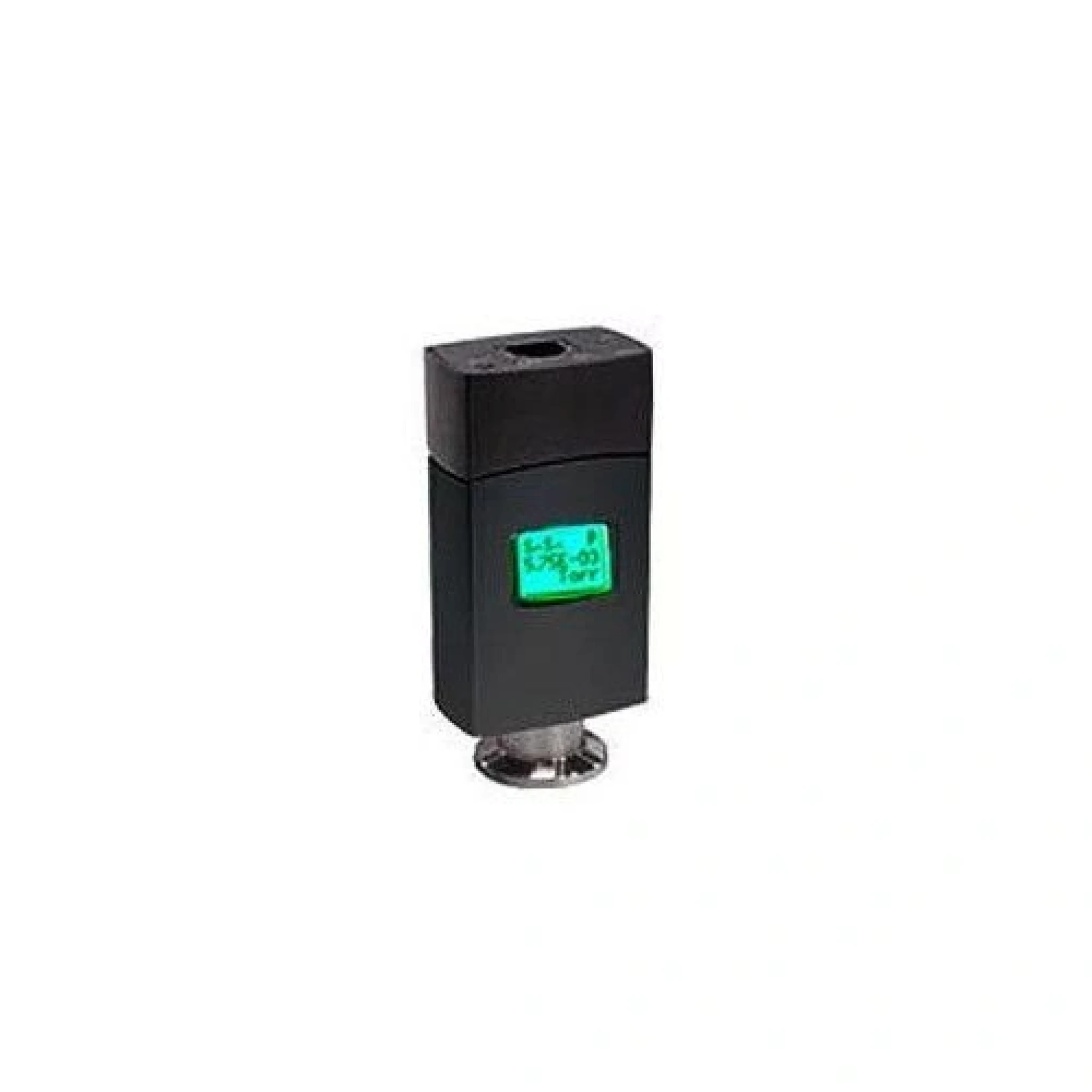

Agilent PCG-750 Pirani Capacitance Diaphragm High Vacuum Gauge (Gauge Only)
Reference:
Manufacturer: Agilent
In stock
Customize your product
Payment Providers
Standard Package
| Agilent PCG-750 | 1 pc |
| Manual | 1 pc |
| Pin Tool | 1 pc |
Overview
The Agilent PCG-750 combines a Pirani sensor with a capacitance diaphragm sensor in one gauge, so it reads from 5 x 10⁻⁵ mbar all the way up to atmosphere (1500 mbar). This model (PCG750KF16SD2) has tungsten filaments, setpoints, an LCD display reading in Torr, and an NW16 KF connection.
It comes with a manual and a pin tool. A 24 V power supply (AGPS45INT) can be added at checkout if you do not already have one.
Key features
- Measuring range 5 x 10⁻⁵ to 1500 mbar (3.8 x 10⁻⁵ to 1125 Torr)
- Pirani plus capacitance diaphragm sensors
- LCD display in Torr
- Setpoints
- Tungsten filaments
- NW16 KF connection
- 0 to 10.23 V analog output
Delivery and pickup
- Ships across Canada and to the USA by Purolator, UPS or FedEx - live rates at checkout.
- Free pickup in Langley, BC.
- We deliver orders of $1000 or more in the Lower Mainland and Fraser Valley ourselves.
Questions
Do I need a power supply?
The gauge runs from an external 24 V supply. If you do not have one, choose the 24 V power supply (AGPS45INT) at checkout.
How accurate is it near atmosphere?
Agilent states ±2.5% between 950 and 1050 mbar and ±5% from 100 to 950 mbar.
What is in the box?
The gauge, a manual and a pin tool.
| Model | PCG750KF16SD2 |
| Measuring range | 5 x 10⁻⁵ to 1500 mbar |
| Sensors | Pirani + capacitance diaphragm |
| Filament | Tungsten |
| Display | LCD, Torr |
| Setpoints | Yes |
| Flange | NW16 KF |
| Analog output | 0 to 10.23 V DC |
| Operating temperature | +10 to +50 °C |
