FYRA Vacuum Controller UL/CSA/CE certified
Reference:
Manufacturer: DigiVac
- Precision Vacuum Control & Intuitive Design
- Medium vacuum control: Seamless vacuum control range of 10 millitorr (10 microns) to 6 Torr; measurement 1 millitorr to 760 Torr
- Vacuum processing: Vacuum Drying, Sterilization, Lyophilization
- Unique Vacuum Control: proportional throttle and proportional bleed control all in one unique valve
In stock
Customize your product
Payment Providers
Description
FYRA Vacuum Gauge Controller

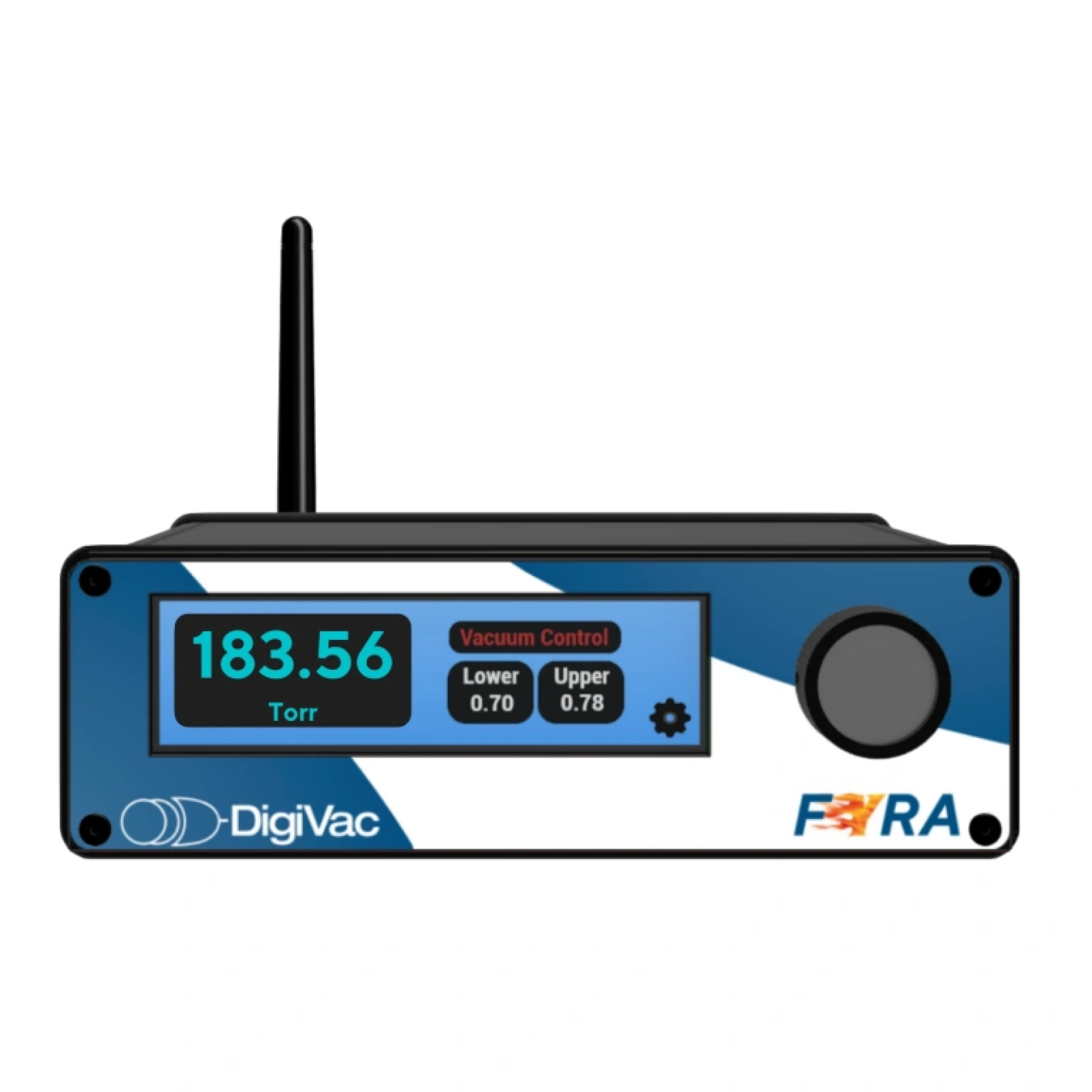

The DigiVac FYRA vacuum gauge controller is a UL Certified digital vacuum control instrument that is highly configurable and capable of driving multiple types of sensors (piezo, thermal, active, passive, and capacitance manometers). It employs a 3.9” capacitive touch screen and includes a tactile knob to easily interact with the vacuum gauge functions. FYRA can intuitively display and manage multiple sensors and control points.
Vacuum Science Simplified
We know vacuum applications can get complicated. FYRA was created to deliver scientific measurement and vacuum control simply with easy integration into almost any system in the market.

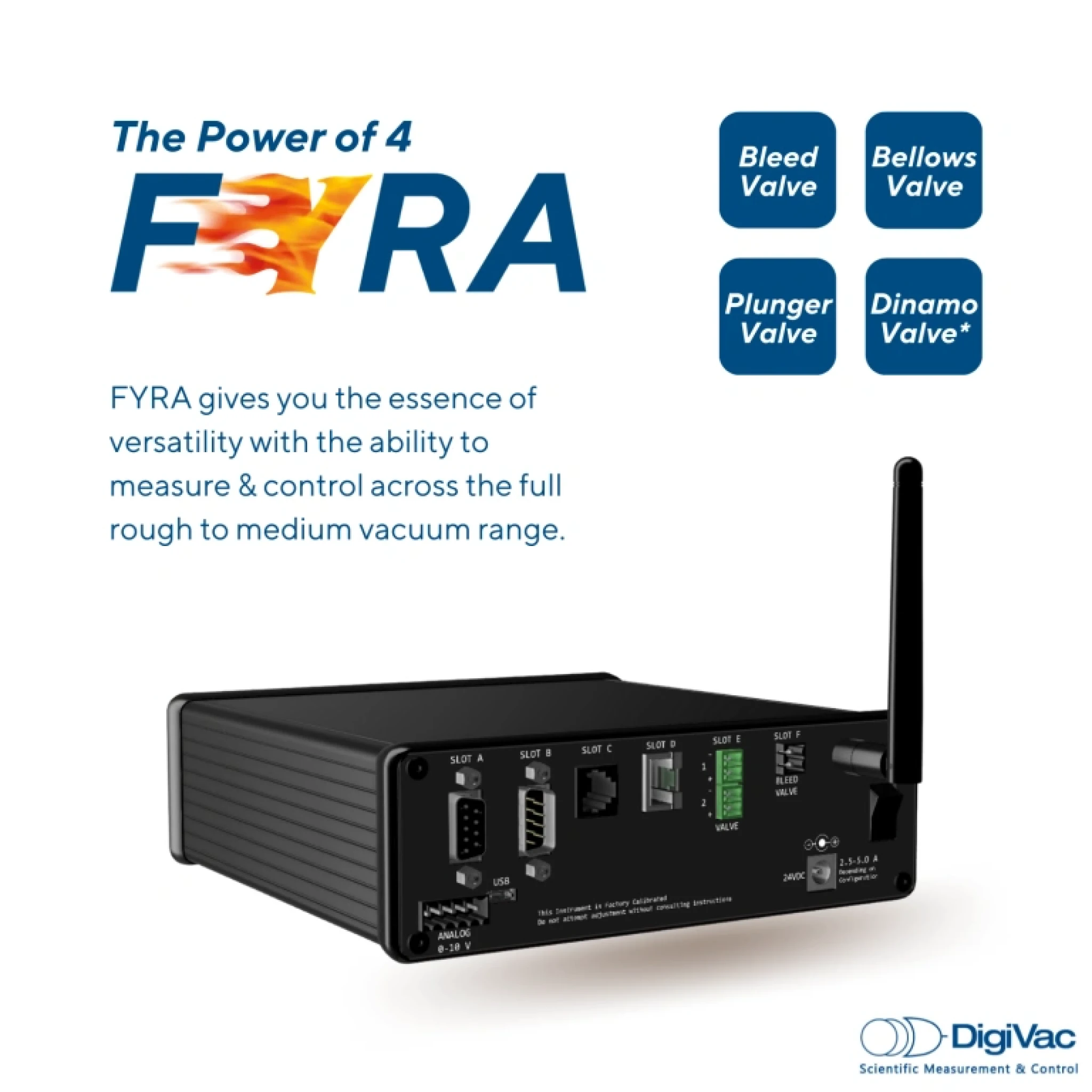

The Power of 4
FYRA gives you the essence of versatility with a touchscreen or dial interface and ability to measure and control from atmosphere to high vacuum range. Based on sensor choice, Ability to support measurement and control range of 10-10 Torr – 1000 Torr.
Digivac DINAMO Medium Vacuum Controller: This novel dual valve module design will make your start-up procedure much easier and quicker. The DINAMO will reduce the amount of time you spend opening and closing a bunch of valves in different locations.
Get More Flow with Dinamo! Great For Precise Micron Control in Medium Vacuum Applications
- Precision Vacuum Control & Intuitive Design
- Medium vacuum control: Seamless vacuum control range of 10 millitorr (10 microns) to 6 Torr; measurement 1 millitorr to 760 Torr
- Vacuum processing: Vacuum Drying, Sterilization, Lyophilization
- Unique Vacuum Control: proportional throttle and proportional bleed control all in one unique valve
- Sensor: Features Agilent 536 KF25 Vacuum Sensor
UNIQUE DUAL VALVE DESIGN | Dinamo | Ideal for the Medium Vacuum Range
- Manufactured and Designed by DigiVac
- Twice the Control | Fine proportional control and bleed control to vent to ATM all in one valve
- Pipe in Dry Gas for Clean Venting
- The Dinamo valve delivers precise vacuum control with the benefit of being able to pump down large vacuum chambers very quickly
UNMATCHED PRECISION CONTROL
- Innovative Valve Design with High Flow and Fine Vacuum Control
- Low Power Consumption
- Calibrated under actual vacuum against a NIST standard (NIST certification with documentation is an available option)
UNEQUALED FLOW
- Maximum Throughput
- Faster Pump Down
- Control at Deeper Vacuum Pressures
Datasheet
Operational Manual
| Units | Torr, mbar, kPa, Pa, microns (choose mTorr), millitorr (mTorr), mmHg, Hectopascal |
| Control Range | Ability to support 10-10 Torr – 1000 Torr |
| Dimensions | 6.5″x6.5″x2.5″ |

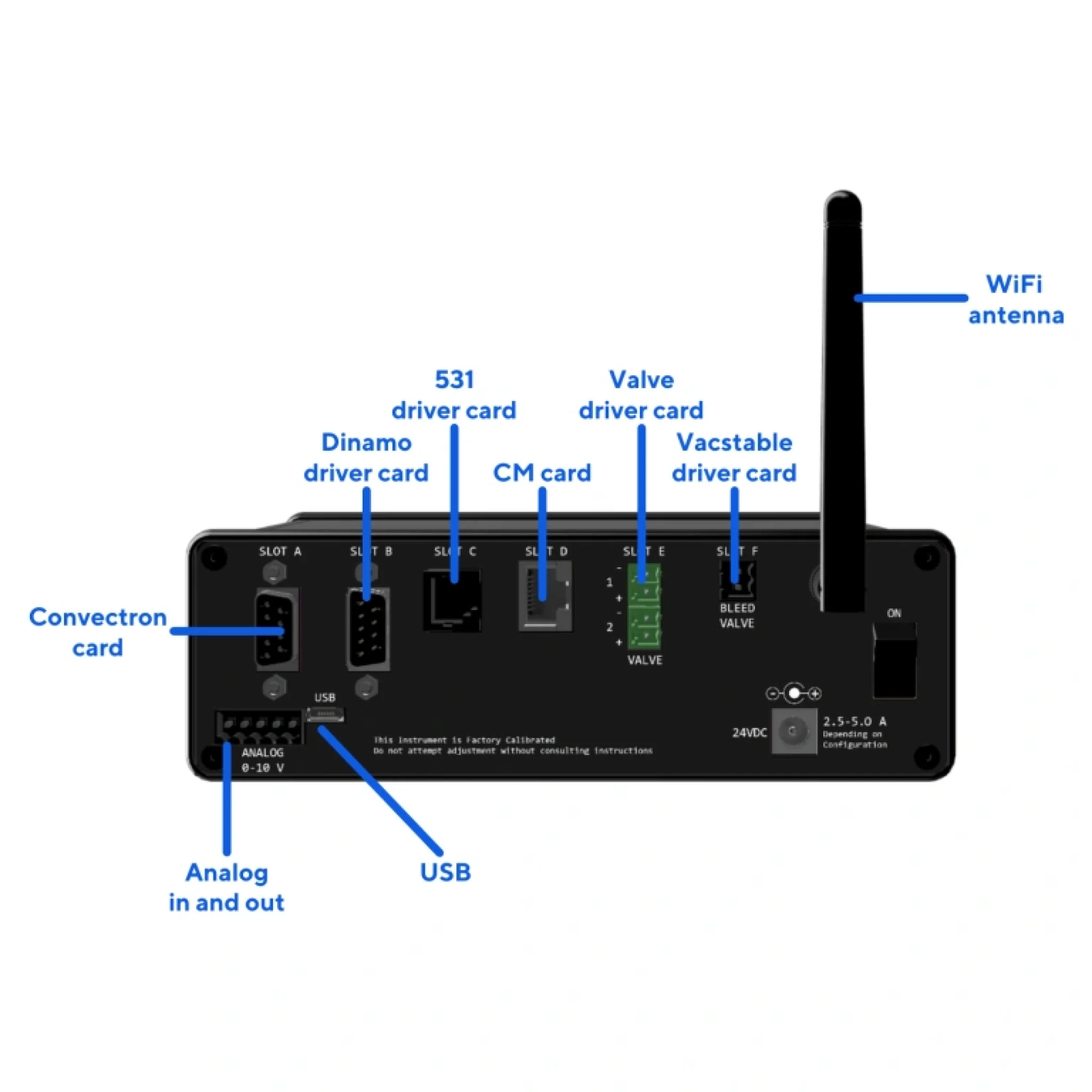

| Telemetry Options | USB, WiFi, 0-10 volts DC, Analog out, 0-10 volts DC Analog in |

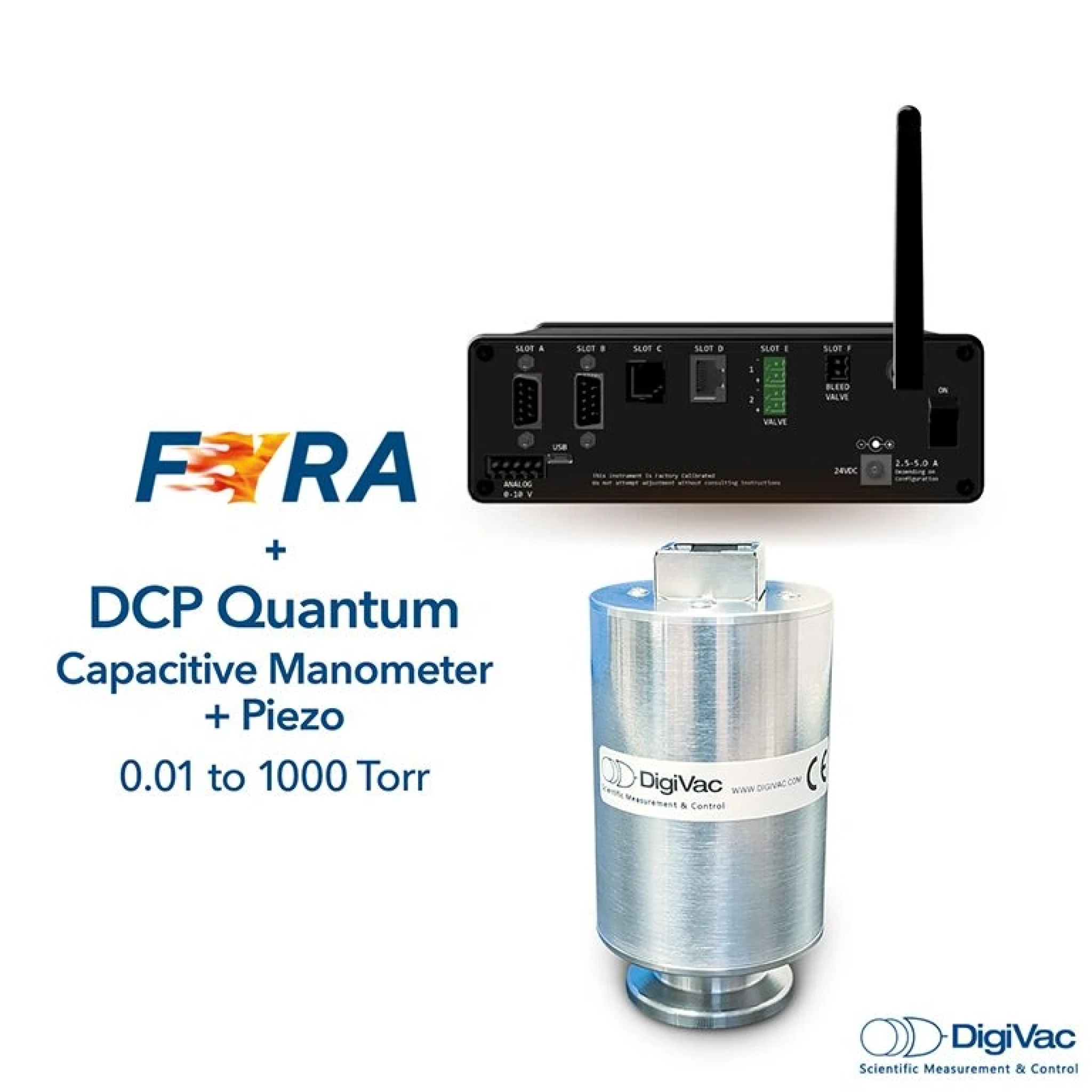

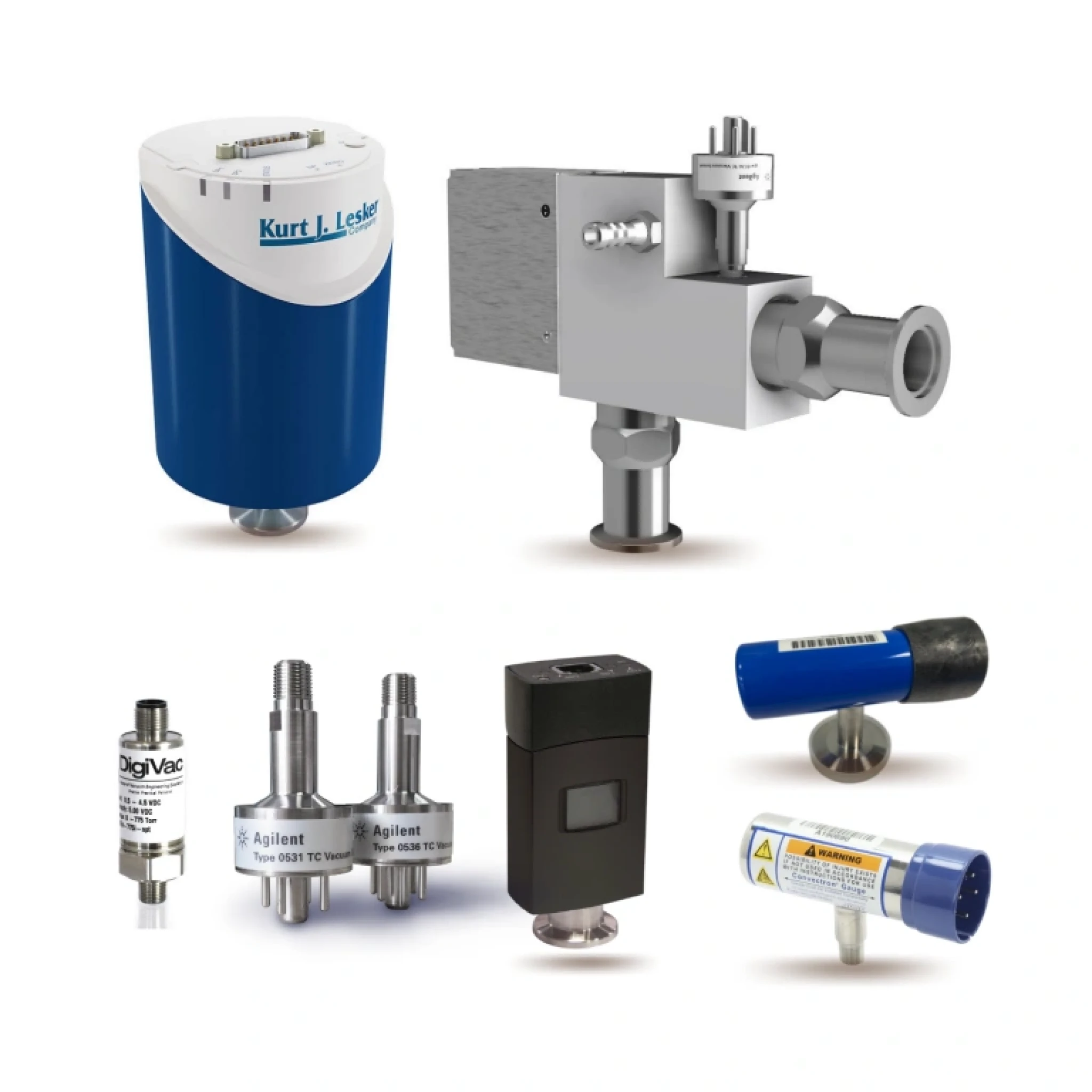

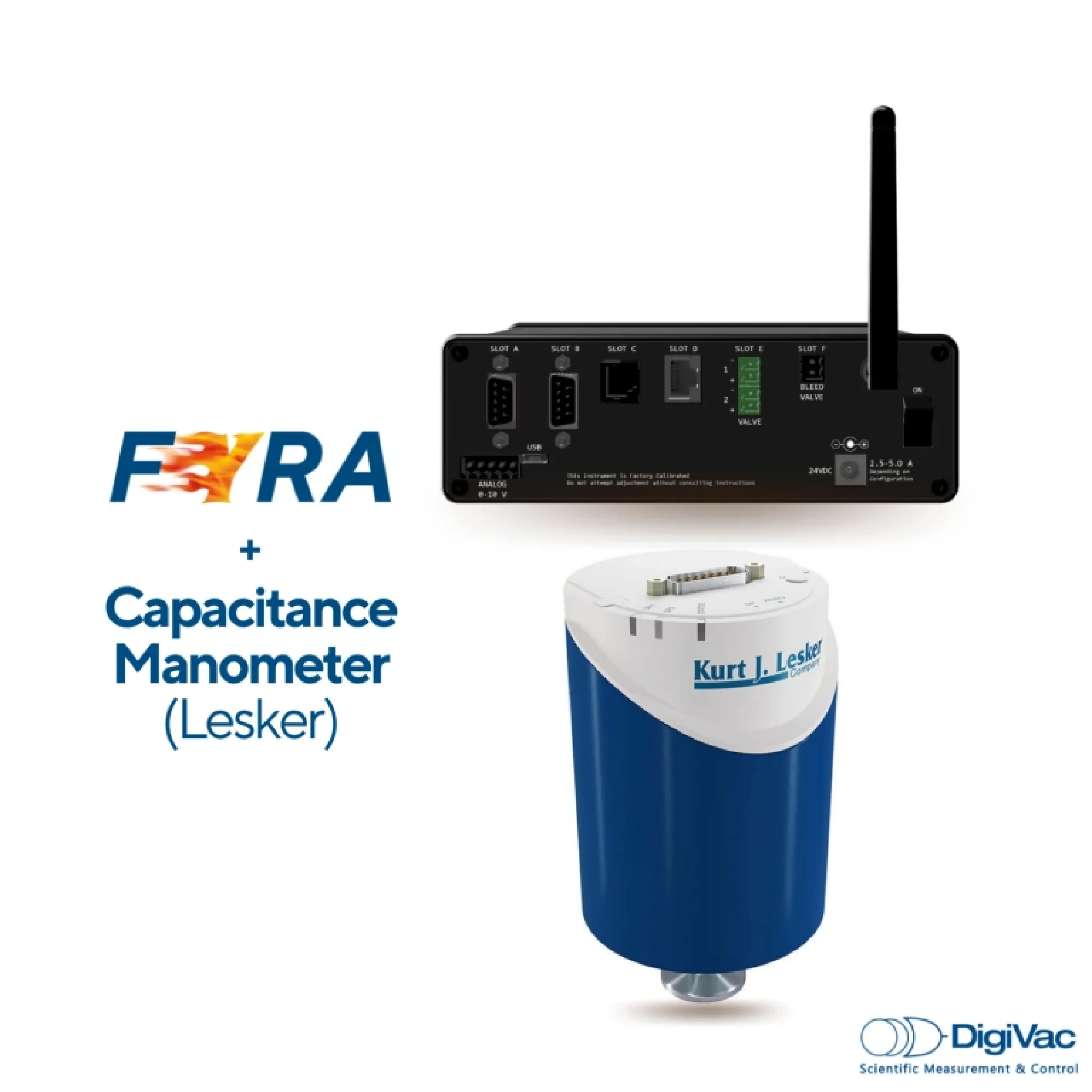

| Sensor Support | MKS Convectron: 275071 (1/8″ NPT), 275203 (KF16); DigiVac: SEN-VGT500, SEN-775i, Quantum (SEN-DPP, SEN-DCP, SEN-DPCP); Pfeiffer: PKR251, IKR251; Agilent: FRG700, PCG-750, PCG700, 531, 536, 531 equivalent, or PVG 500; Setra: 730 capacitance manometers; Inficon: PSG500, PSG550, Porter, SKY, Stripe, MAG, MPG & MPG400 |
| Valve Support | Dinamo, VacStable (Bleed), Solenoid-type Bellows and Plunger, 24V valves that are less than 24 Watts |
