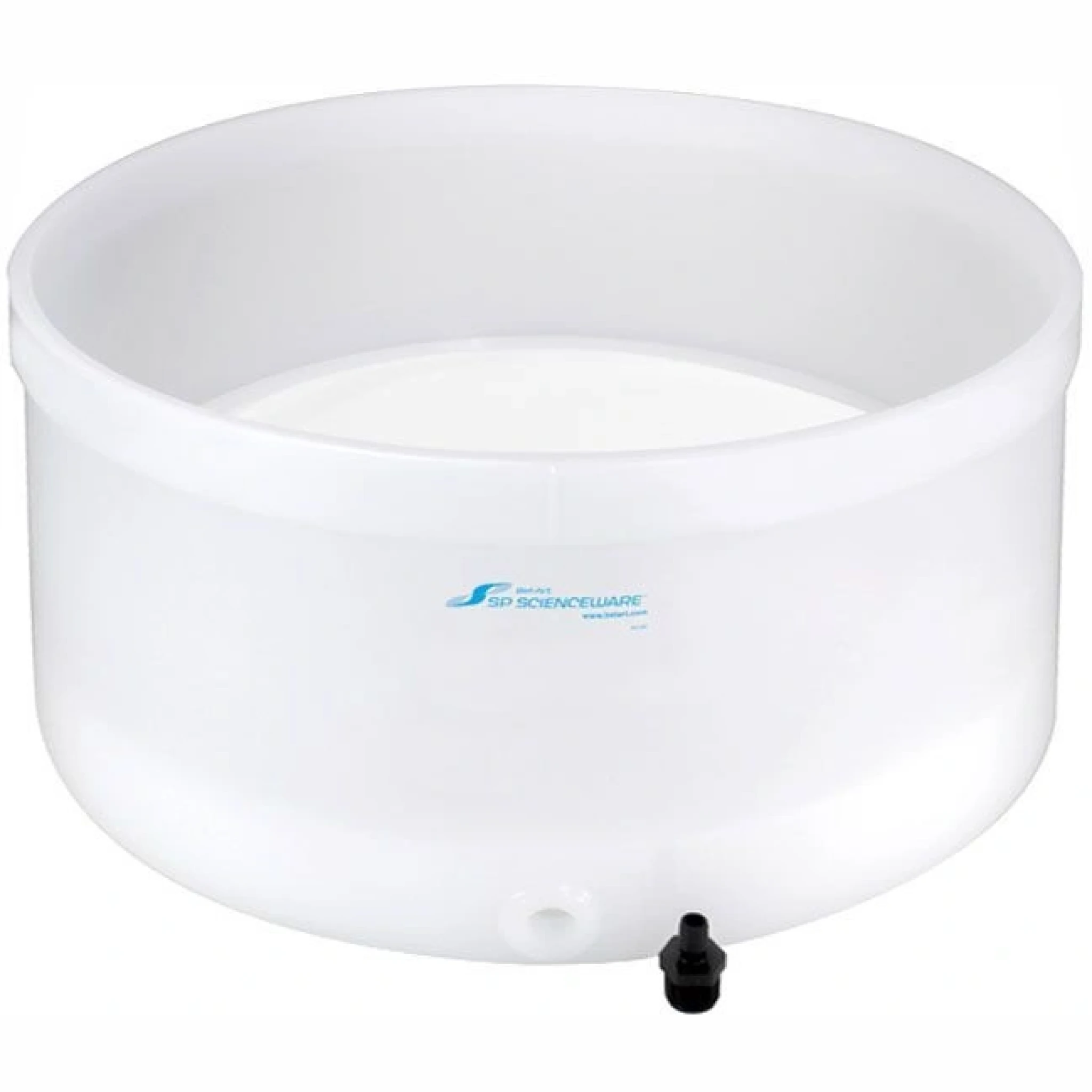

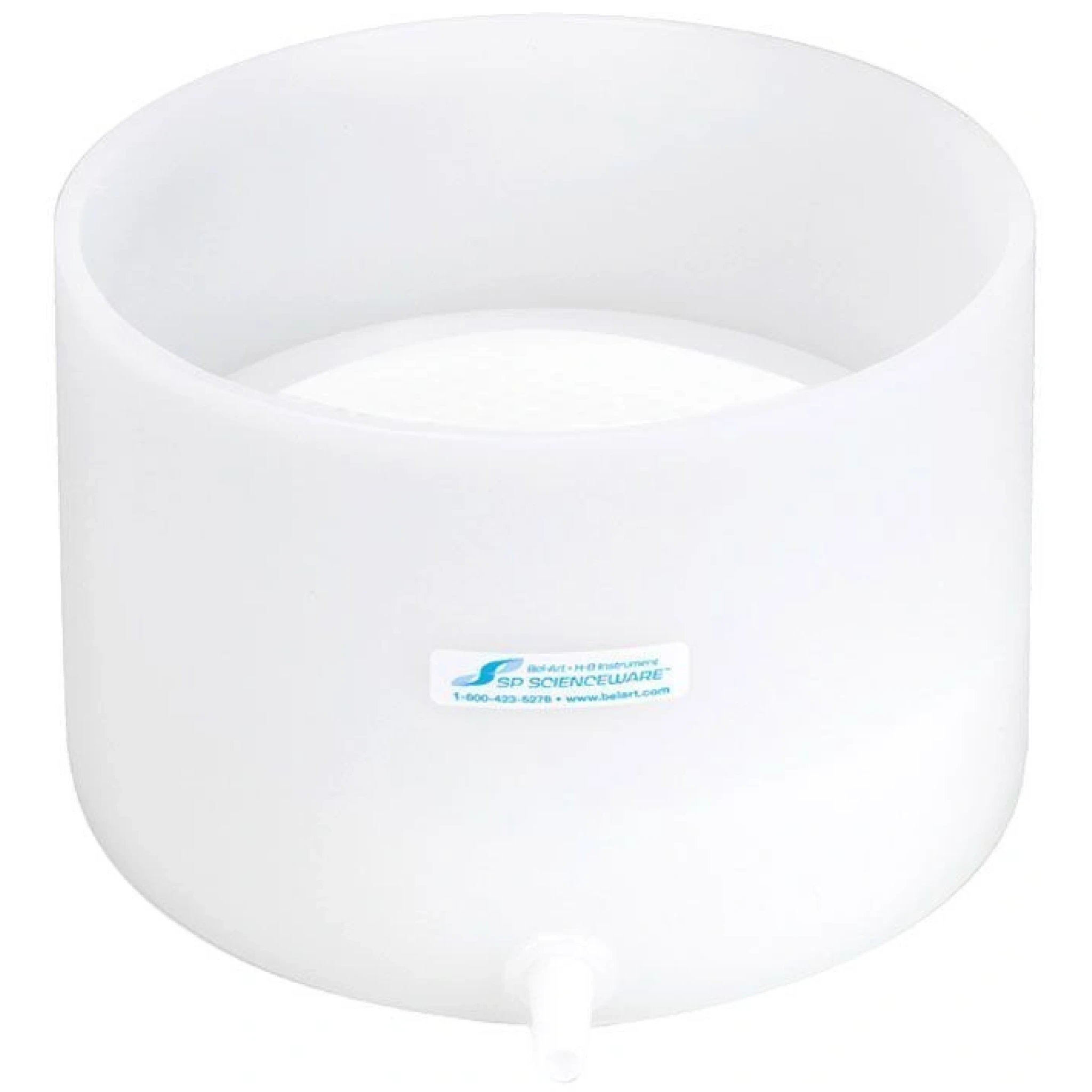

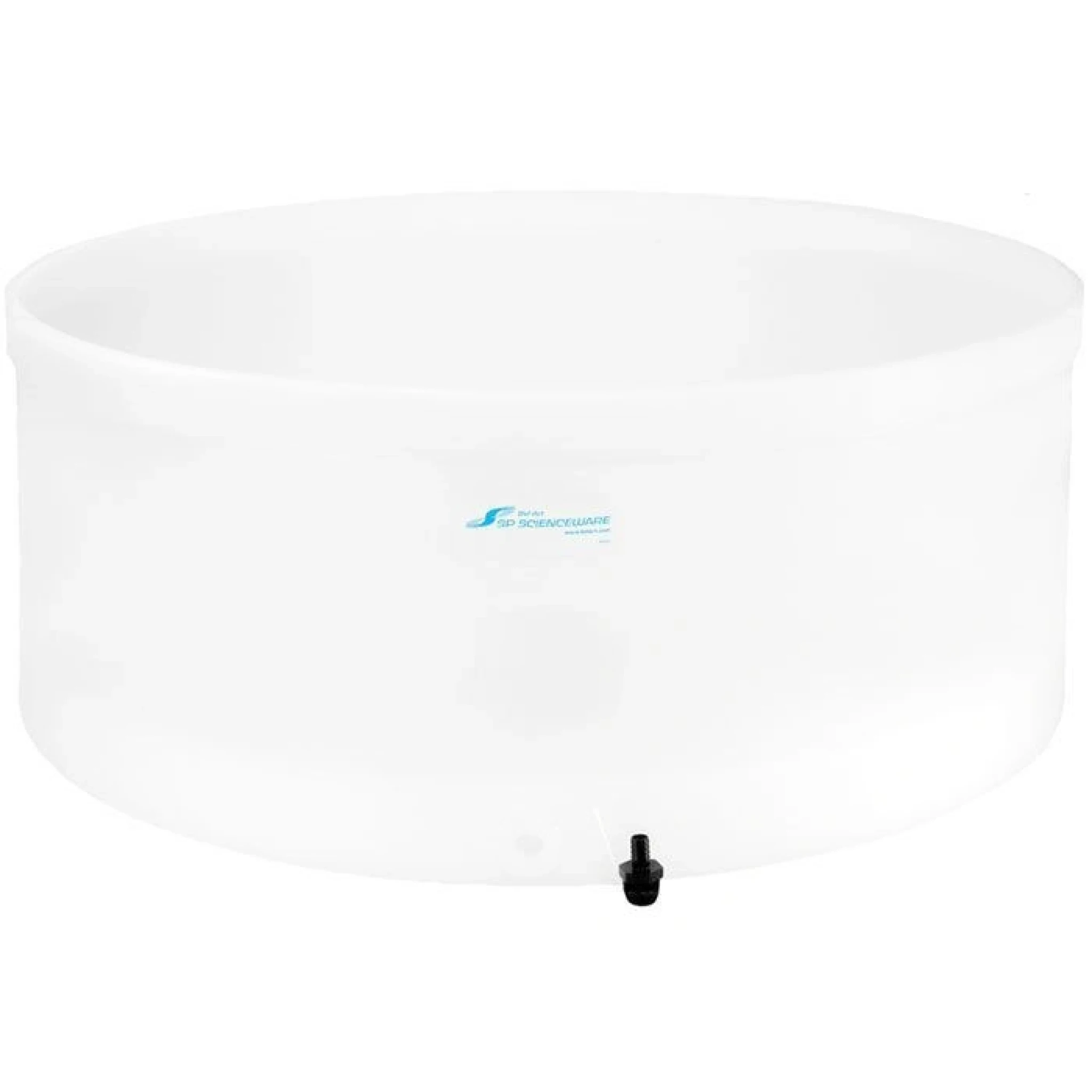

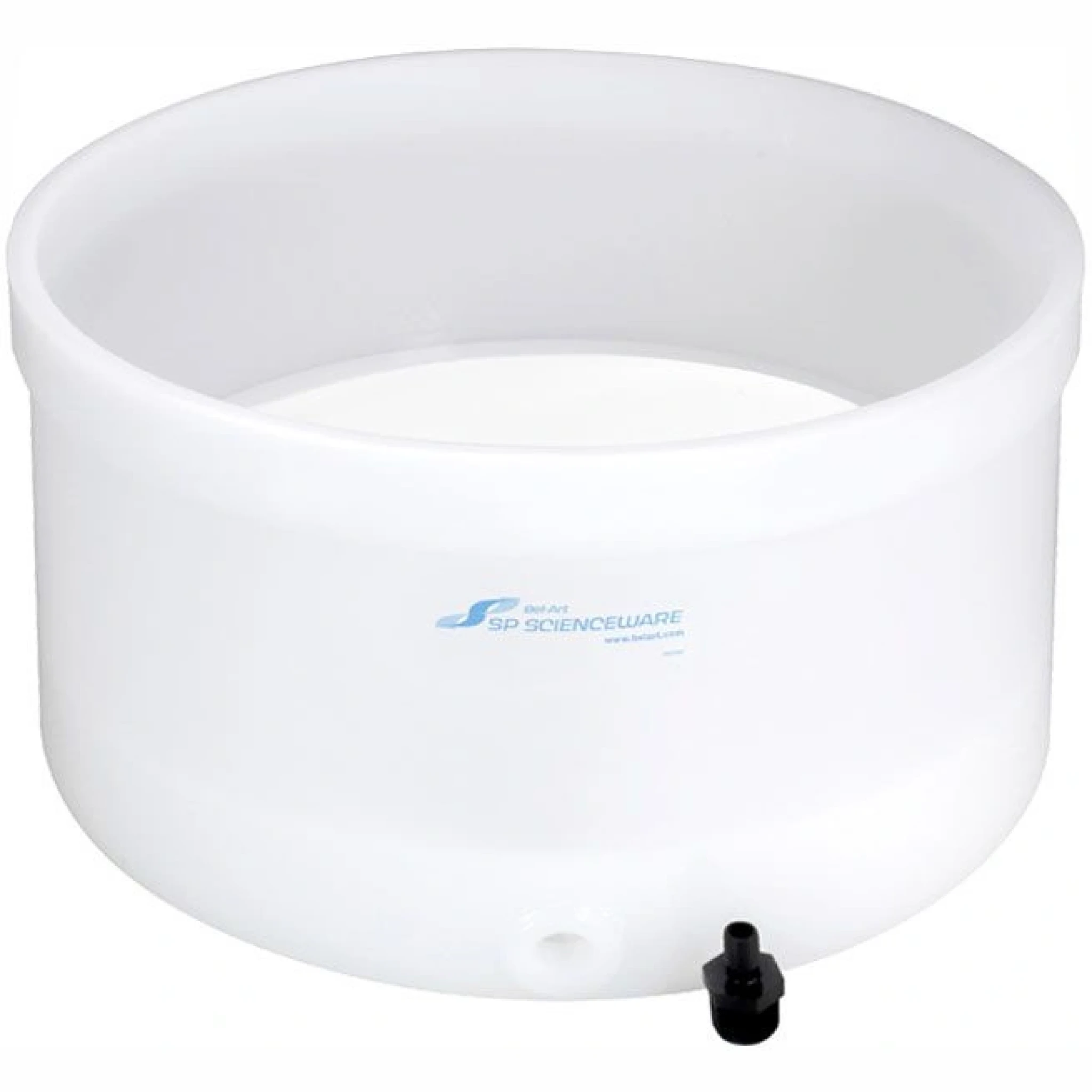

Bel-Art Polyethylene Buchner Funnel with Fixed Filter Plate

Features

• Removable hose barbed connector accepts 12.7mm (½") I.D. tube and threads into ¾" NPT bung on the funnel
• Fixed or removable Fritware^® Porous Filter Plates supported by a multiple ring grid; HDPE, 6.4mm (¼") thick, with a non-porous ring at the periphery of the plate which seals filter paper when used
• Fritware^® Porous Filter Plates available in two porosities (medium and coarse)
  • Medium is 45-90 microns
  • Coarse is 90-130 microns
• Use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF)
• Fixed or removable Perforated Filter Plates are made of 4.8mm (³/₁₆") thick HDPE with 4.8mm (³/₁₆") perforations on 11mm (⁷/₁₆") centers
• Perforated Filter Plates available in two versions (fixed or removable)
  • Fixed for coarse filtration or use with a cloth or paper filter
  • Removable for use in precious metals recovery; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF)
• Use the F36820-0118 Funnel Trowel to quickly and efficiently smooth fissures appearing during the filtration process
