800mm Filter Trolley Sambo Creek BABF800

CE certified, FDA compliant

Holds 20 liters of crude per batch, 10 gallons of 10:1 Solvent: Crude, 5+ liters of lipids.

Specifications:

• Diameter: 800mm (31.5 inches)
• Capacity: About 62 Gallons Total
• Height Minimum: 550mm
• Shell Material: Polypropylene

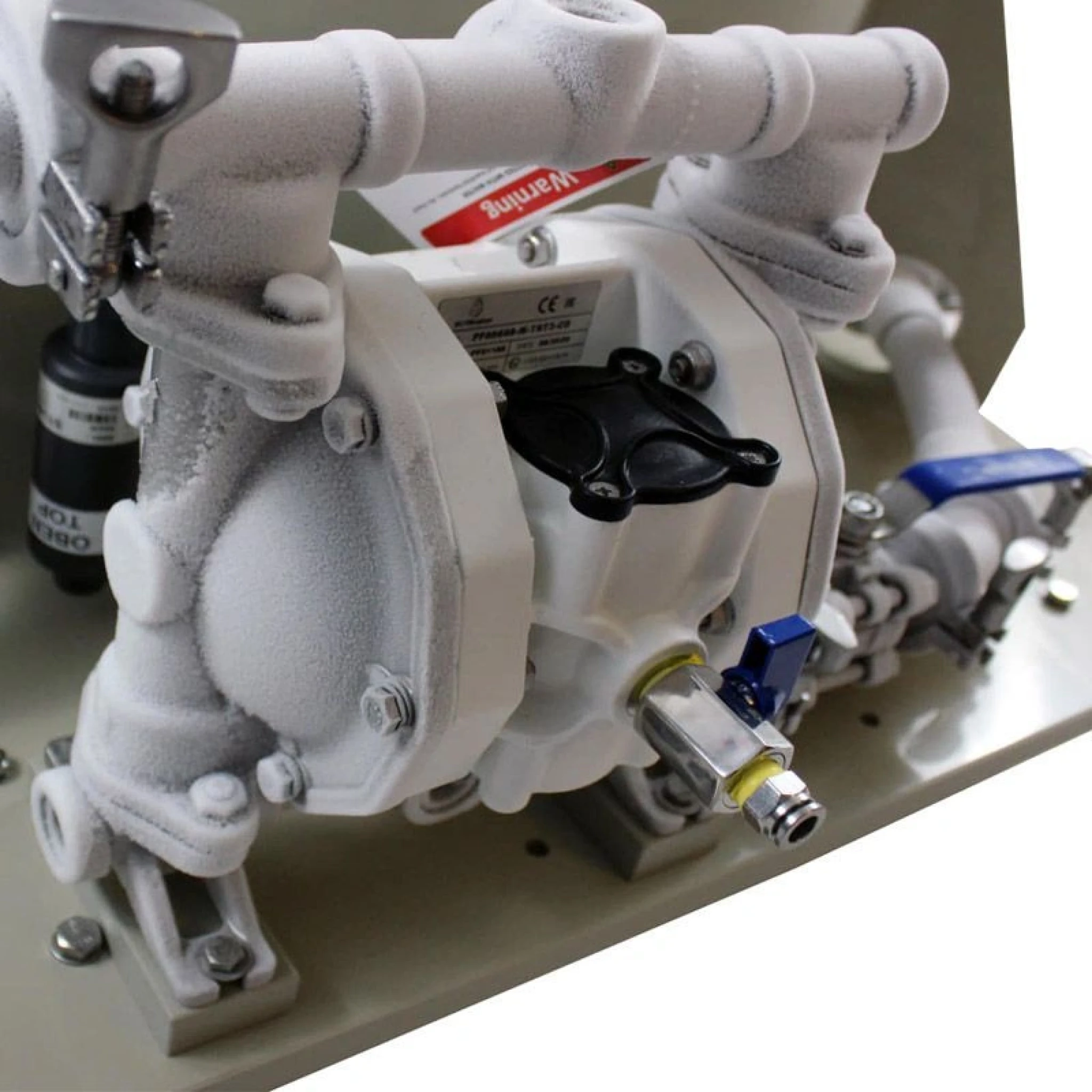

• AODD Pump: Debem 1” Polypropylene case, PTFE Diaphragms, ATEX Zone 2, C1D2 Compliant.
• Compressed Air Pressure: From 4 to 8 bar
• Absolute Pressure Minimum: 0.2 bar
• Compressed Air Pressure Consumption: From 150 to 420 l/min (14.8 CFM)
• Recommended Compressor (Not Included): 5HP 17.9 CFM at 100 PSI
• Box dimensions, 95 x 125 x 120cm, Gross Weight 120Kg.
• Made in Italy

Benefits:

• Built with FDA Food Grade Polypropylene
• Depth Filtration Capable
• Will not crack under extreme cold
• Safe to use with almost all organic solvents, except Pentane.
• High R-Value (Insulating Materials)
• Huge filtering capacity
• No Vacuum Pump required
• C1D2 Compliant. Explosion Proof. No source of sparks. No explosion risk.
• Easy to clean and disassemble
• Inexpensive filter paper
• Leak-proof filter paper installation with reusable gasket
• Filter slurries, solids, liquids, powders, etc...
• The included lid helps minimize evaporation
• Properly balanced, won’t flip over
• Highly mobile, mounted on casters

FDA Food Grade Pumps are available as an upgrade.

Where it excels:

· Filtering out lipids, fats and waxes from crude tinctures high in fats like those from CO2 and BHO/PHO crudes,

· Removing carbon from CIP process,

· Removing biomass particles from centrifuge streams.

· Perfect for small labs.

FEATURES

· CiD1 Compliant Pneumatically powered AODD pump

· Implosion safety valve mounted on casters

· German Polypropylene shell material

· Debem Brand AODD Pump

· Fume Hood Made in Italy

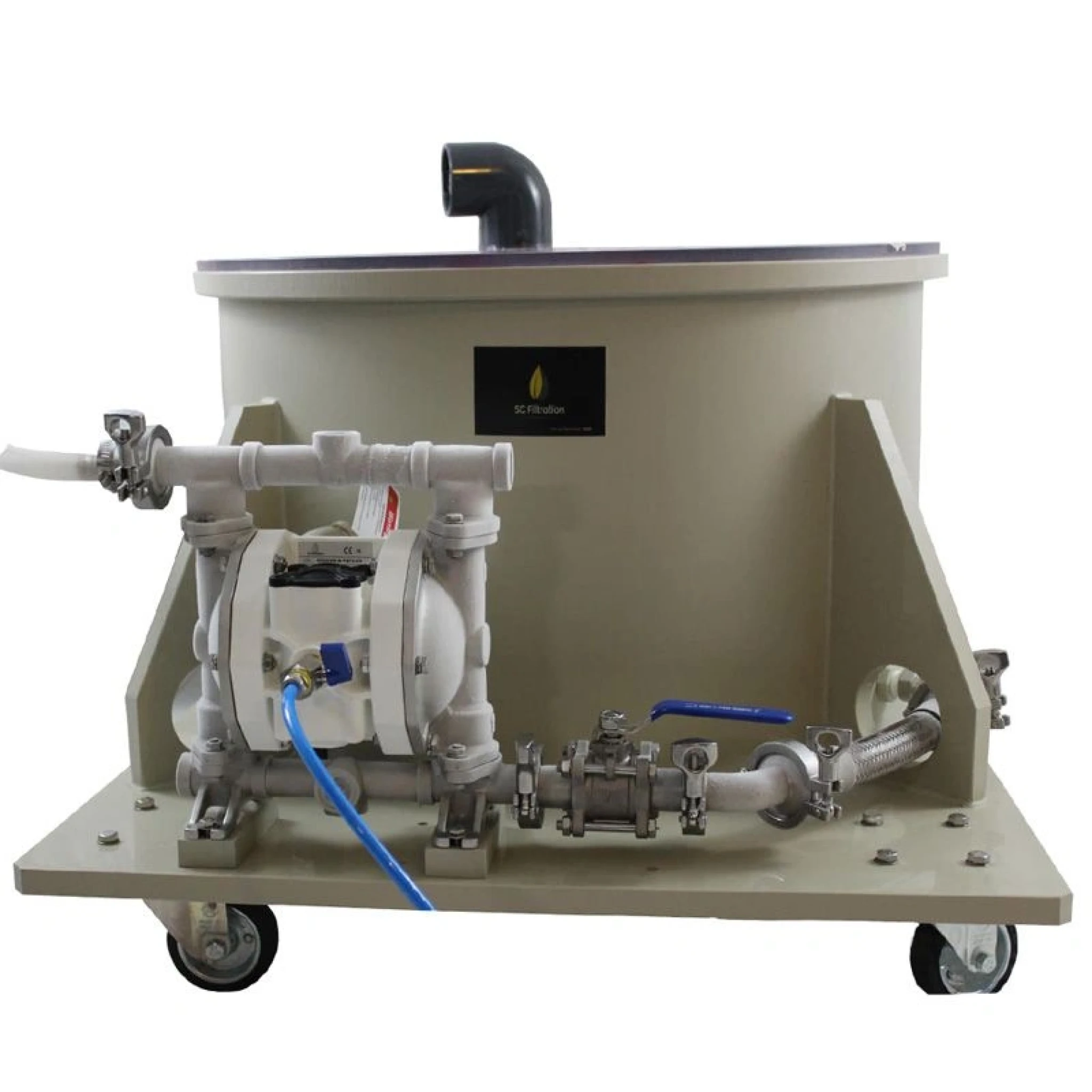

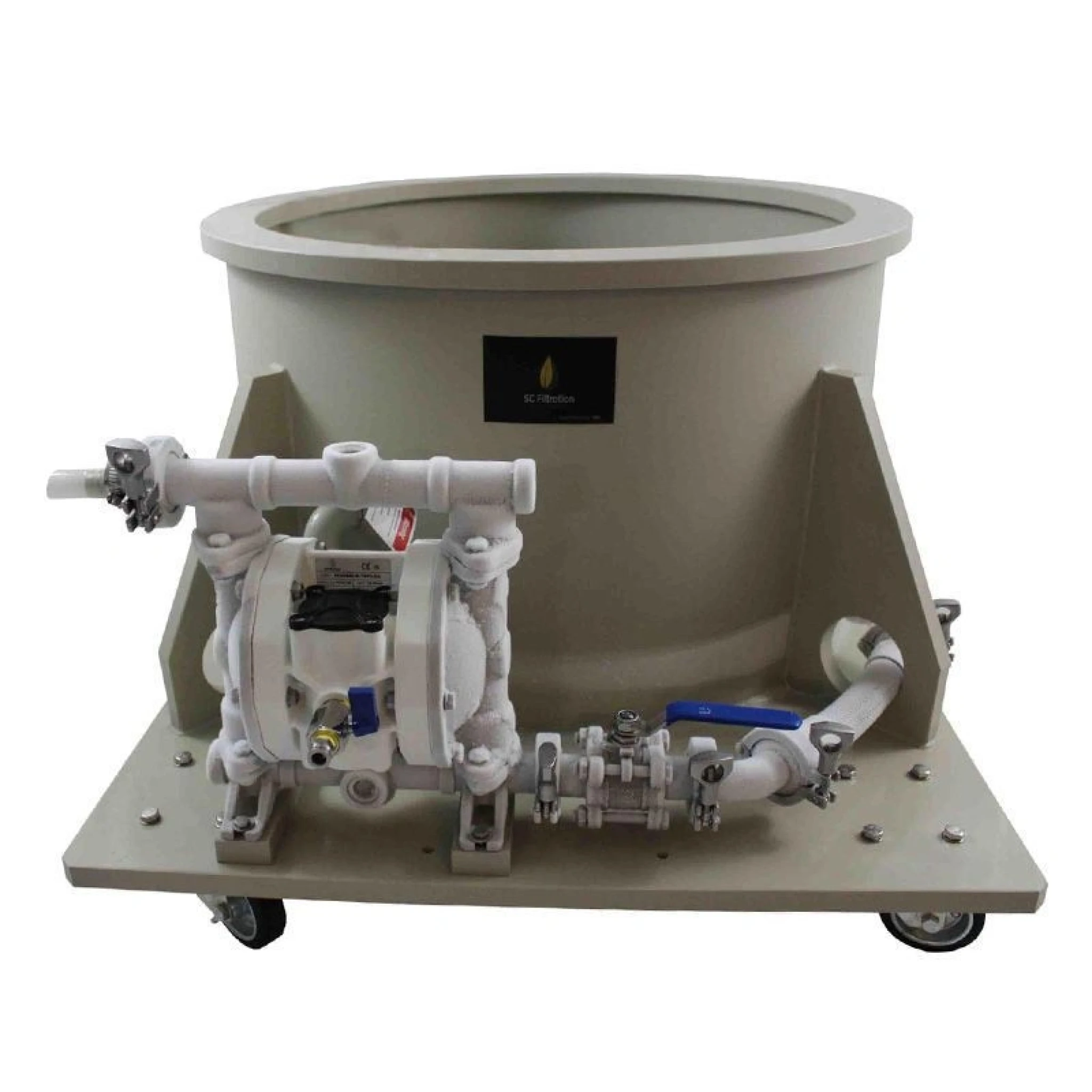

This is a Polypropylene molded plastic filter trolley. This machine is tough, durable, and almost indestructible. PP is impervious to Nitric, Hydrochloric, and similar acids or bases and easily handles Ethanol, Isopropyl, and most other solvents. Our trolley comes with an included diaphragm pump which does the job of active vacuum to filter through the filter paper; no vacuum pump is required. This is a pneumatic pump so there is no risk of sparks. An air compressor is required to supply this machine with compressed air. To operate we place filter paper over a removable grate, then place a seal around the filter paper to prevent leaks. This takes a few minutes to install and even faster to take apart. Add your tincture and begin filtering.

Advantages:

· Operating cost of $0.008-$0.025 per gram of crude.

· Depth Filtration Capable

· Easy to clean and disassemble

· Inexpensive consumables

· Leak-proof filter paper installation with reusable gasket

· High R-Value (Insulating Materials)

· Built with FDA Food Grade Polypropylene

· Will not crack under extreme cold

· ATEX Zone 2, C1D1 Compliant

· Large filtering reservoir

Optional Features:

· FDA Sanitary AODD Pumps

· Stainless Steel Sanitary Plumbing

· Steel Lid with Sanitary Fittings

· -40F Environment Upgrade
