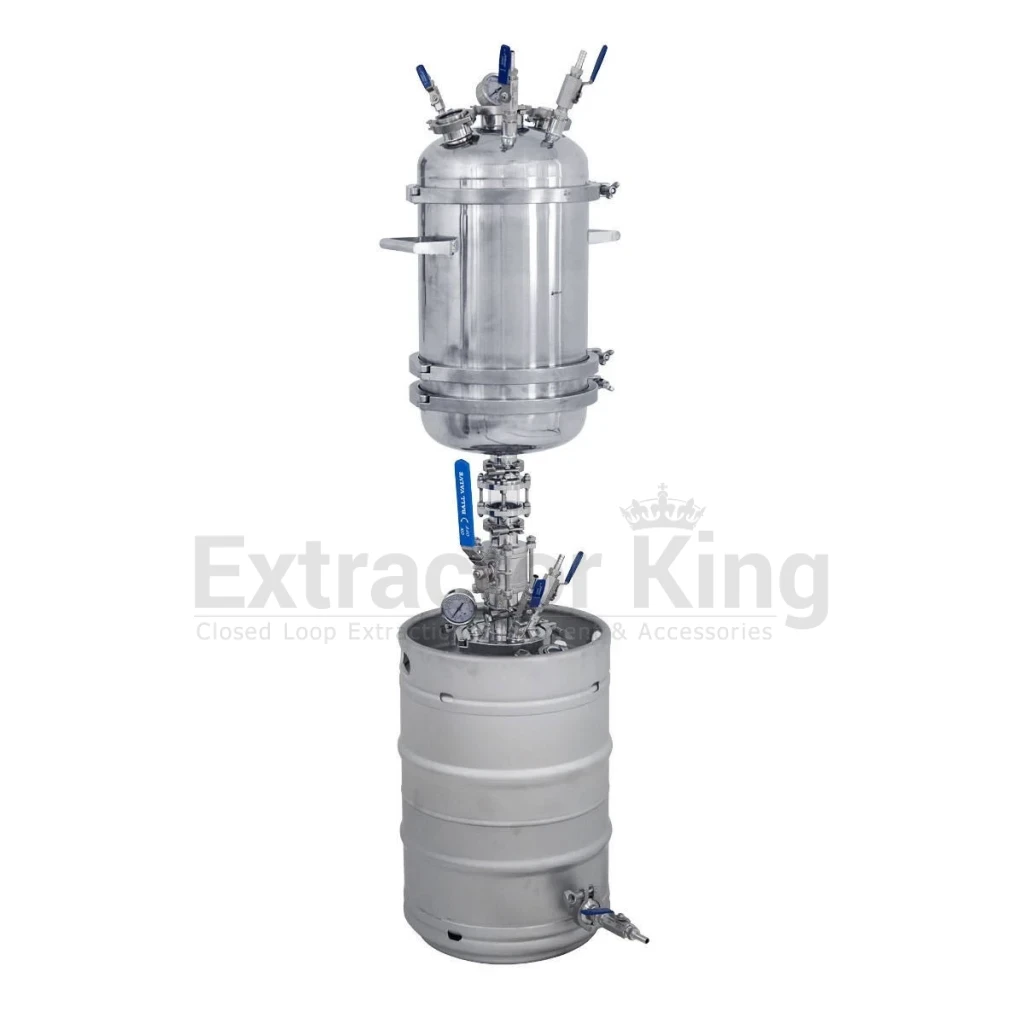

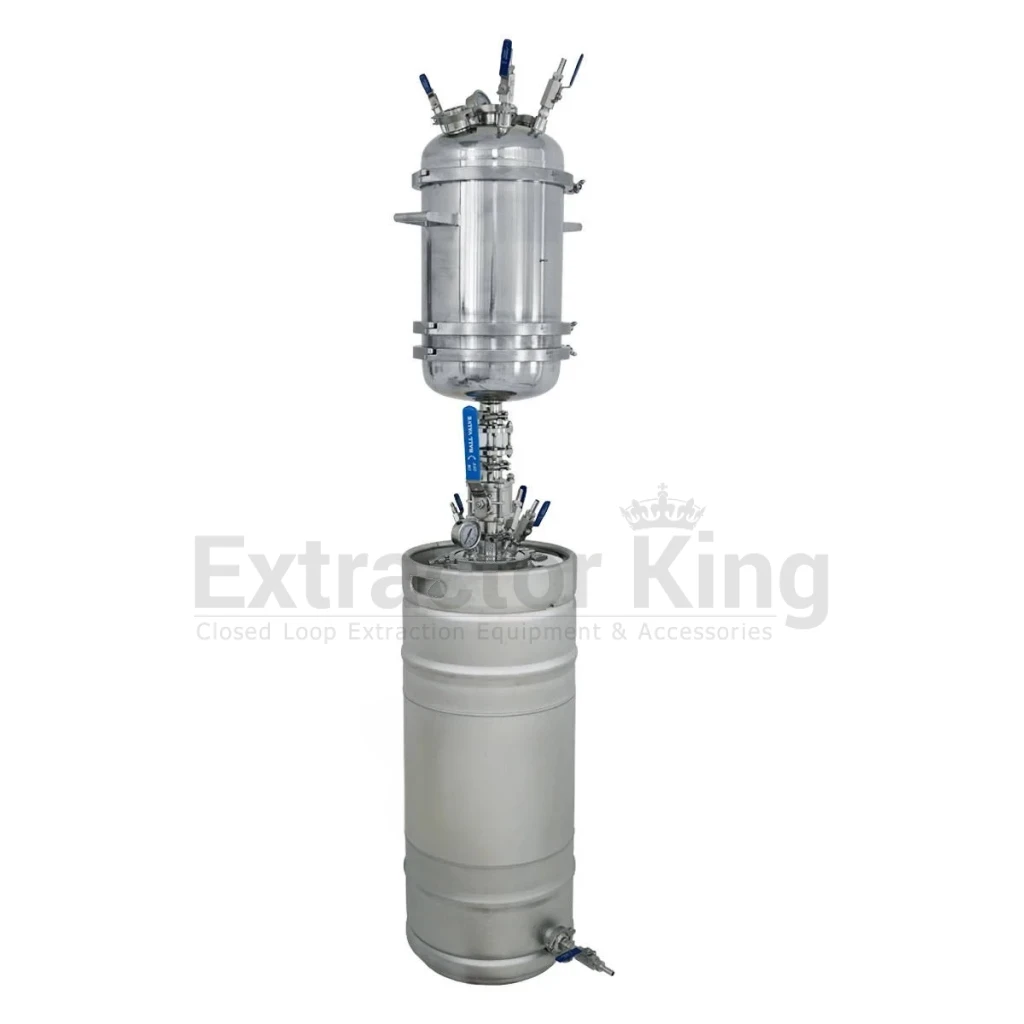

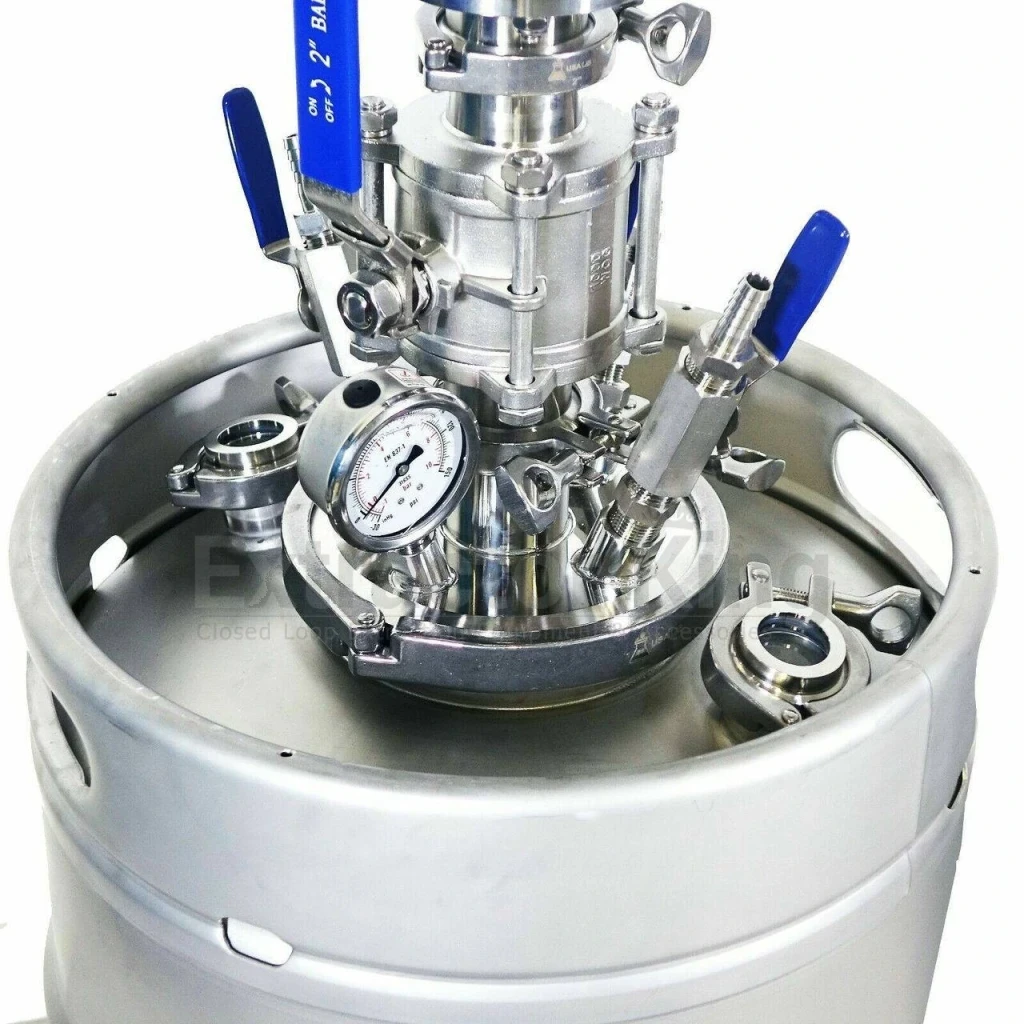

12" Pressurized Buchner Funnel with 50L or 100L Keg
Reference:
Manufacturer: USA Lab
The USA Lab 12" Buchner Funnel Kit With Lid allows for infeed , assisted pressure and pressure releasing all in one unit. We've designed this buchner funnel to allow the user to customize the unit and lid to whatever need they may have. This system feeds…
In stock
Customize your product
Payment Providers
More info
* Not for potable (drinking) water storage *
|
12BUCHNERKEG SPECIFICATIONS |
|
•Material: 304 Stainless Steel |
|

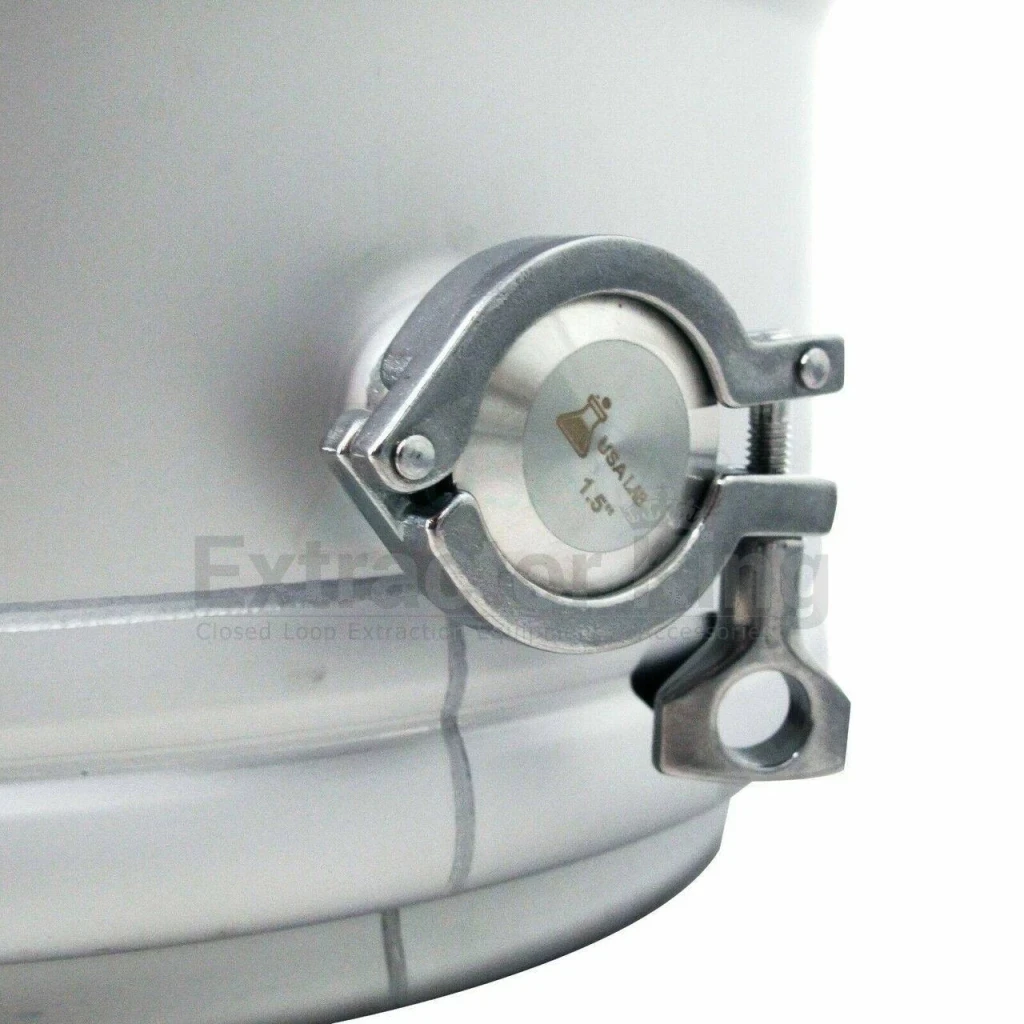

•Side Connections: 1.5" TC (1.5" to KF25 Included) |
|

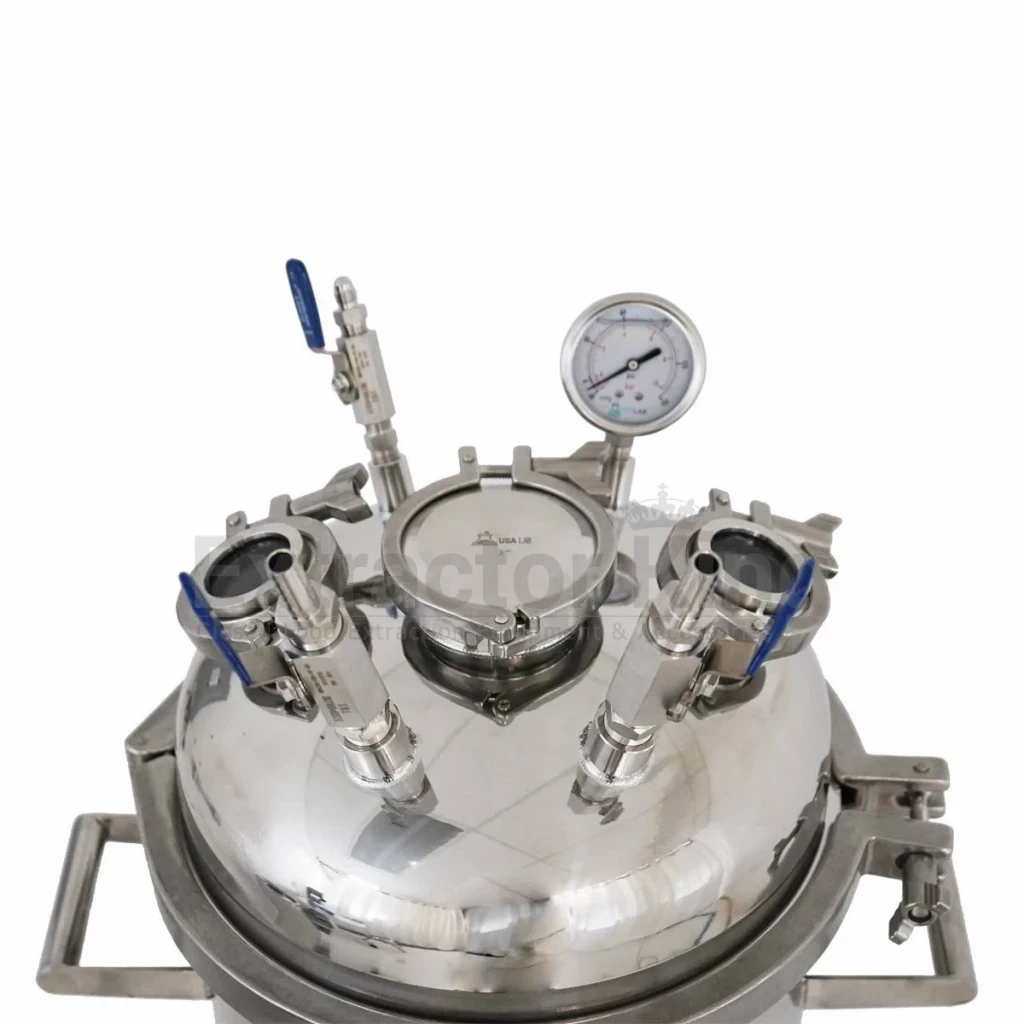

•Top Connection: 2x (3" TC for Glass), 2x (1/2"MNPT to 1/2" Barb), 1x (1/4"MNPT to 1/4"MJIC for Nitrogen), 1x (1/4" FNPT for Gauge) |
|

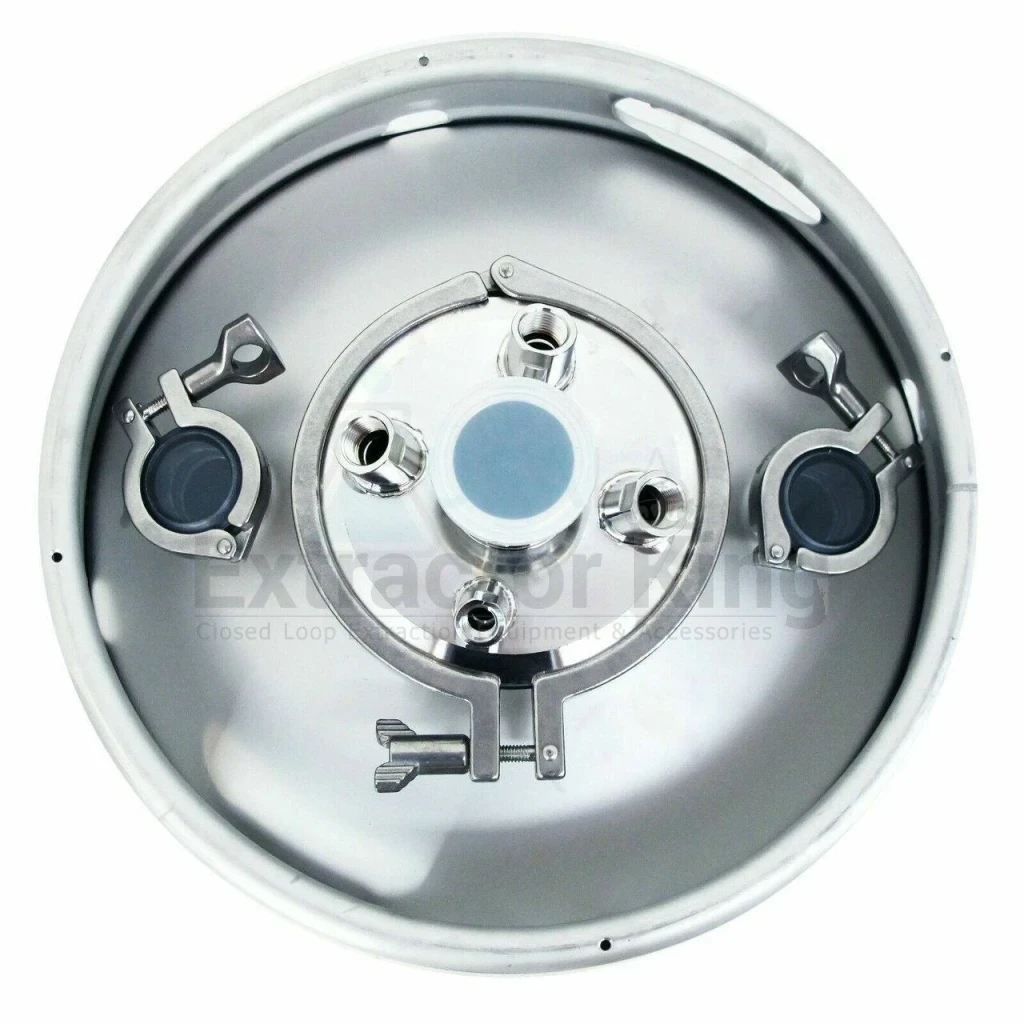

•Keg Connection: 2x (1.5" TC for Glass), 2x (1/2" FNPT to 1/2" Barb), 1x (1/2" FNPT to 1/4"MJIC for Nitrogen or Vacuum), 1x (1/4" FNPT for Gauge), 1x (2" TC for Top Port) |
|
•Keg Bottom Connection: 1.5" TC to 1/2" Barb |
|
•Buchner Capacity: 22L |
|
•Keg Capacity: 50L or 100L |
|
PACKING LIST |
|
|

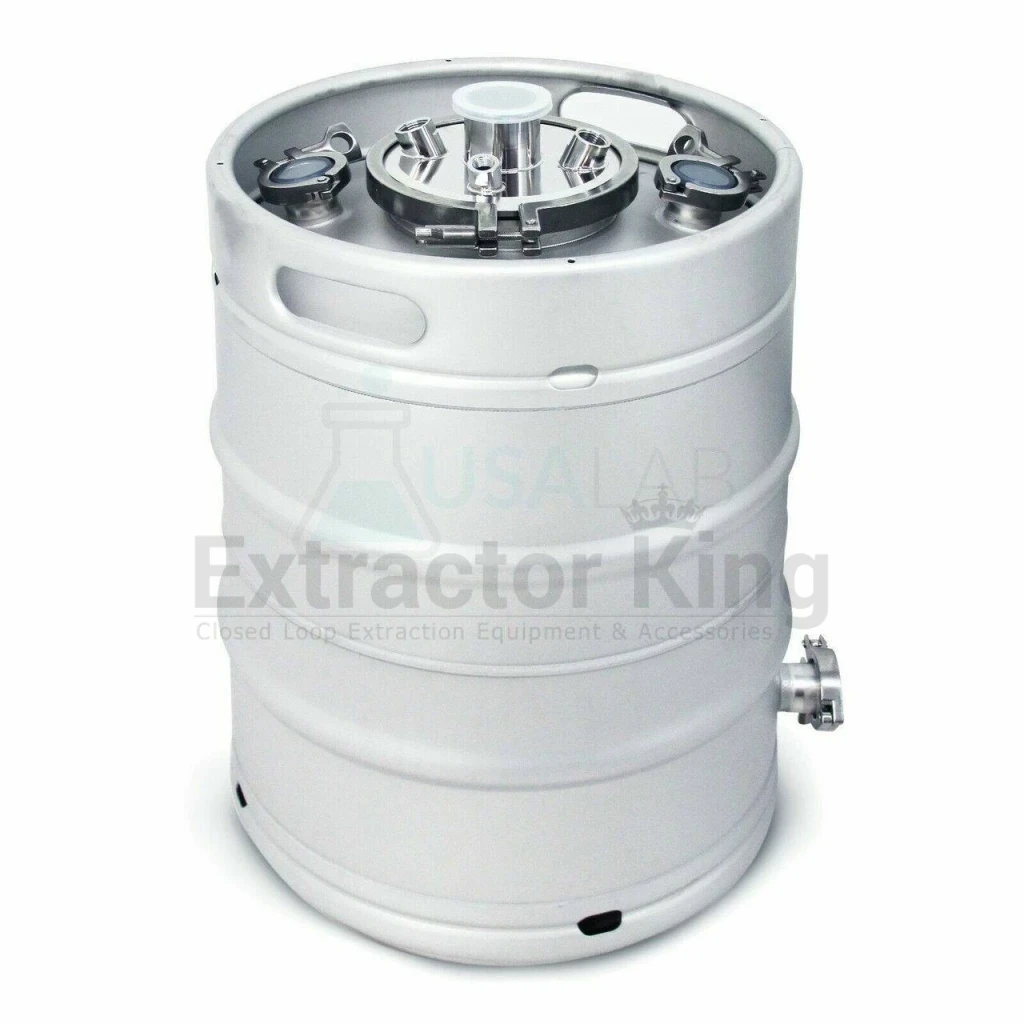

50L or 100L Keg with 1.5" TC Sight Glass |
1 pc |
|

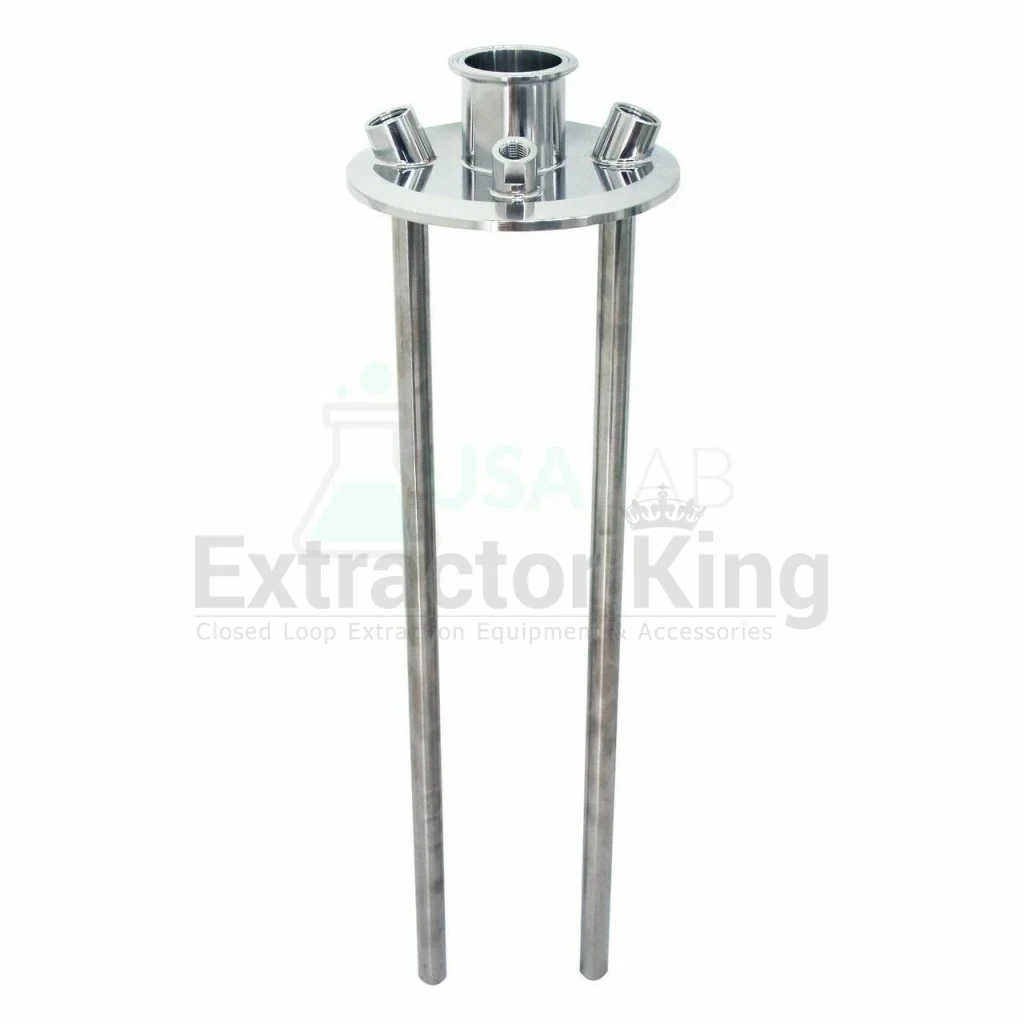

50L or 100L Keg Lid with Dip Tubes |
1 pc |
|

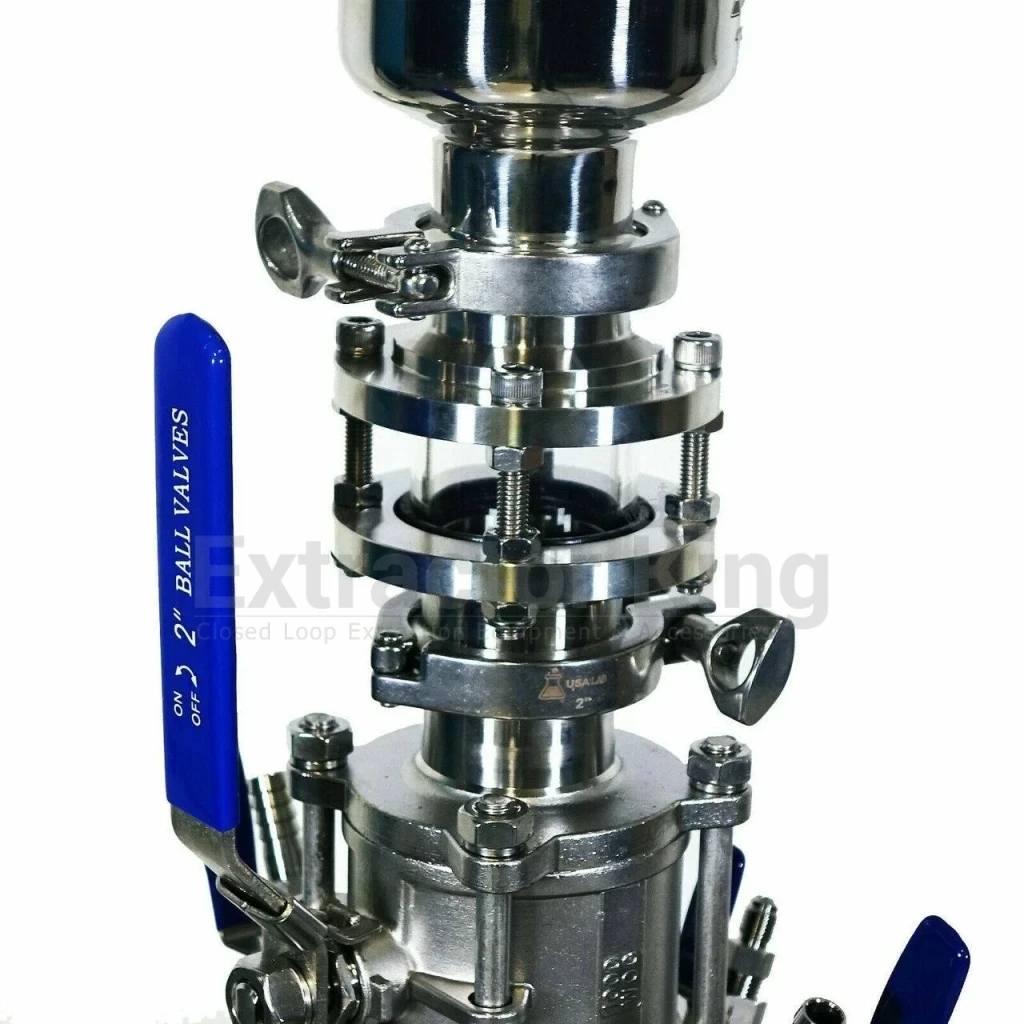

2" TC Ball Valve |
1 pc |
|
2" Short Sight Glass |
1 pc |
|
2" TC to 12" TC Hemi Reducer |
1 pc |
|
12" Filter Plate Kit |
1 pc |
|
12" x 12" TC Spool |
1 pc |
|
12" Hemi Lid with 2x 3" TC |
1 pc |
|
1.5" Borosilicate Sight Glass |
2 pcs |
|
2" Borosilicate Sight Glass |
2 pcs |
|
1.5" Buna-N Gasket |
1 pc |
|
2" Buna-N Gasket |
2 pcs |
|
12" Buna-N Gasket |
3pcs |
|
1.5" Standard Pressure Tri-Clamp |
3pcs |
|
2" Standard Pressure Tri-Clamp |
3 pcs |
|
4" Standard Pressure Tri-Clamp |
1 pc |
|
12" Standard Pressure Tri-Clamp |
3 pcs |
|
1/4" Superlok Valve |
2 pcs |
|
1/2" Superlok Valve |
5 pcs |
|
1/2" MNPT to 1/2" Barb |
5 pcs |
|
1/4" MNPT to 1/4" MNPT |
1 pc |
|
1/2" MNPT to 1/4" MNPT |
1 pc |
|
1/4" MNPT to 1/4" MJIC |
2 pcs |
|
1/2" MNPT to 1/2" MNPT |
5 pcs |
|
1/4" Gauge |
2 pcs |
|
1.5" TC to 1/2" FNPT |
1 pc |
Specifications
| Brand | USA Lab |
| Warranty Term | 1 Year |
