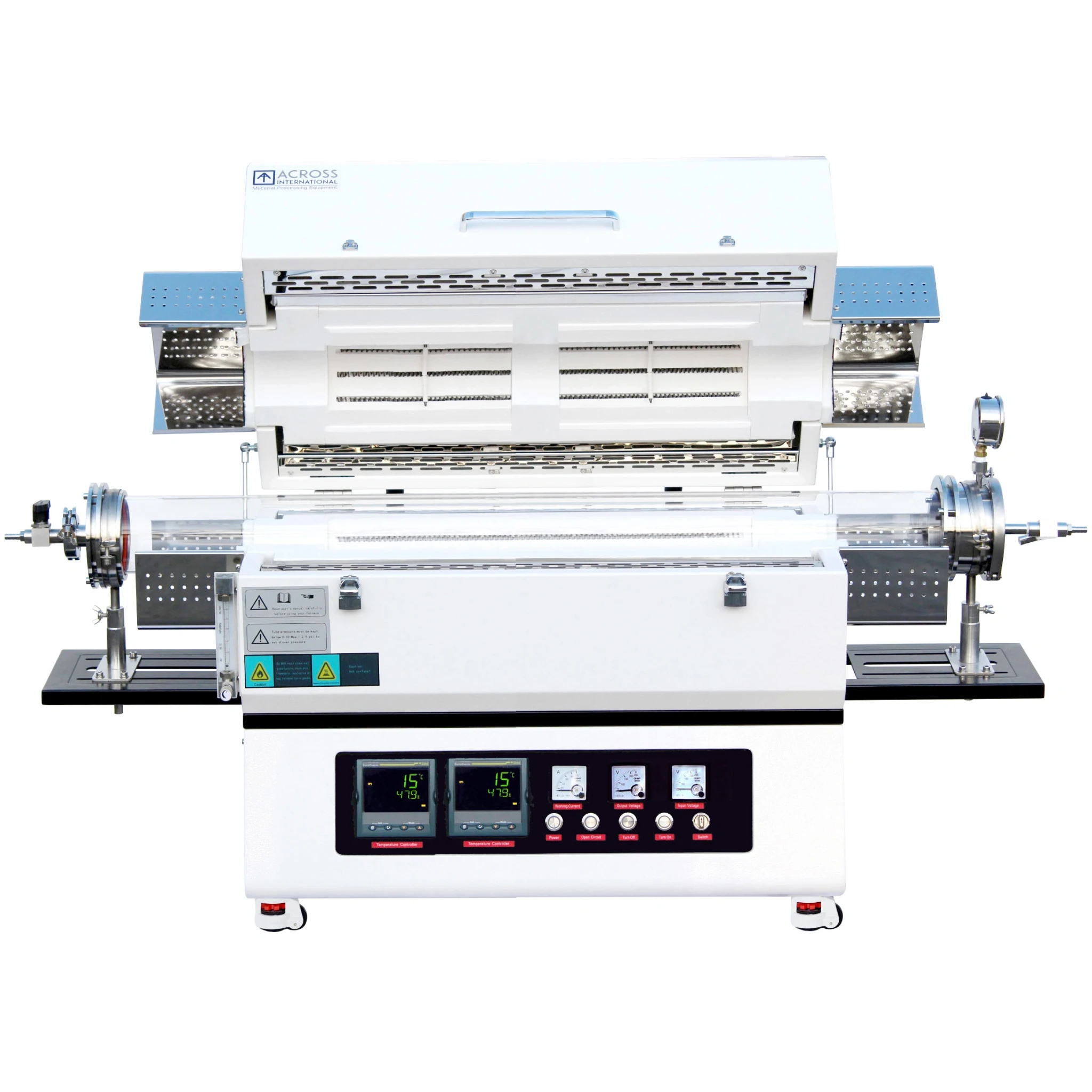

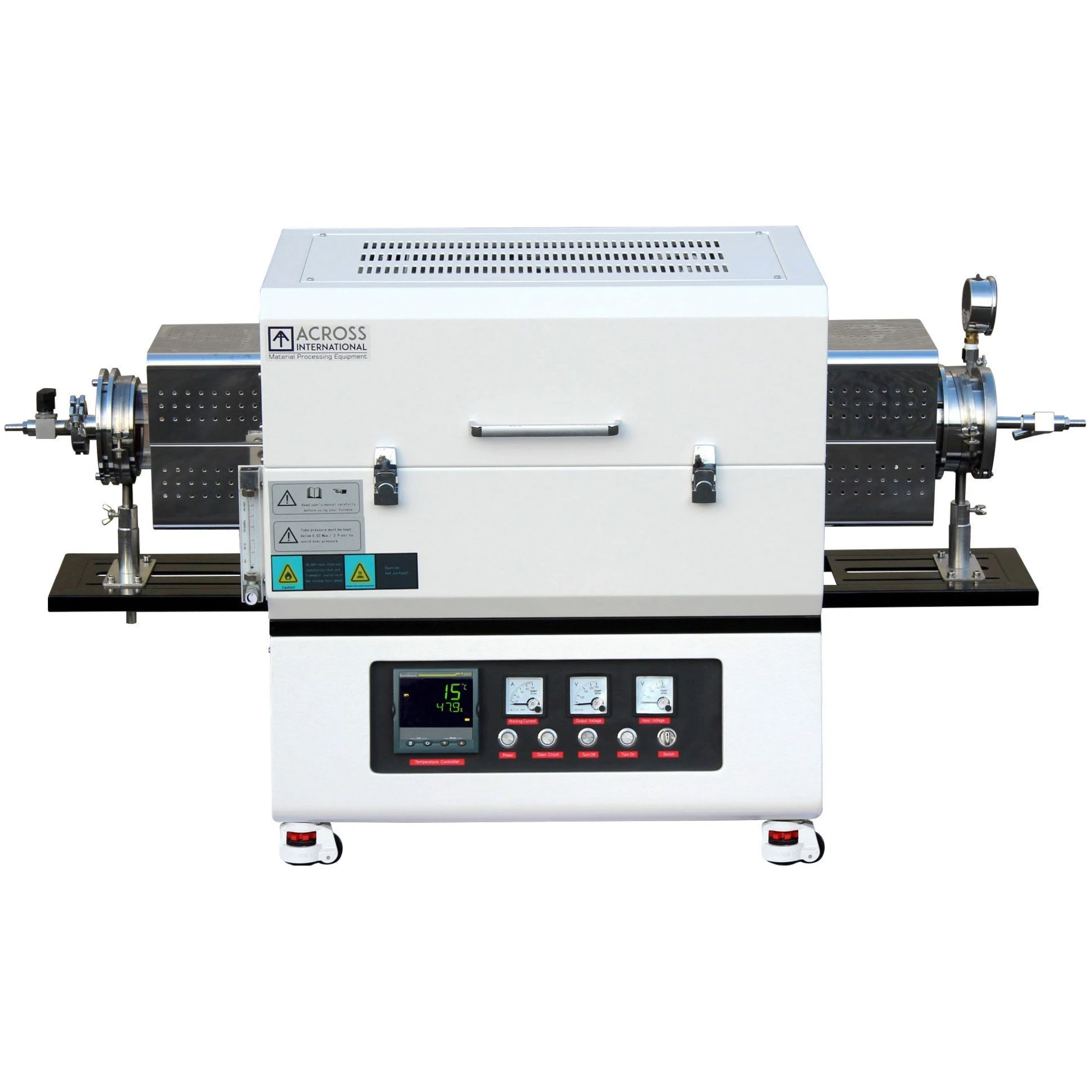

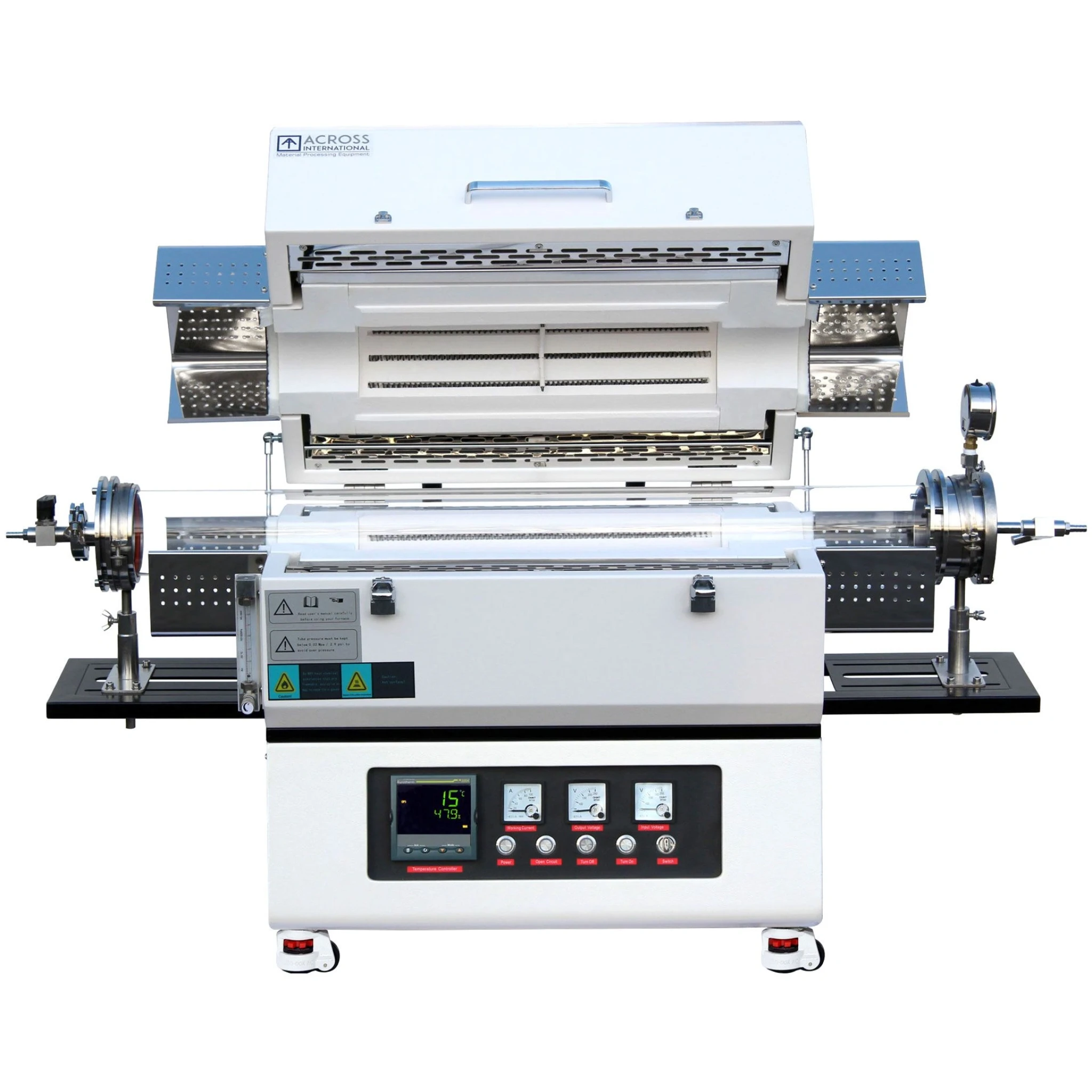

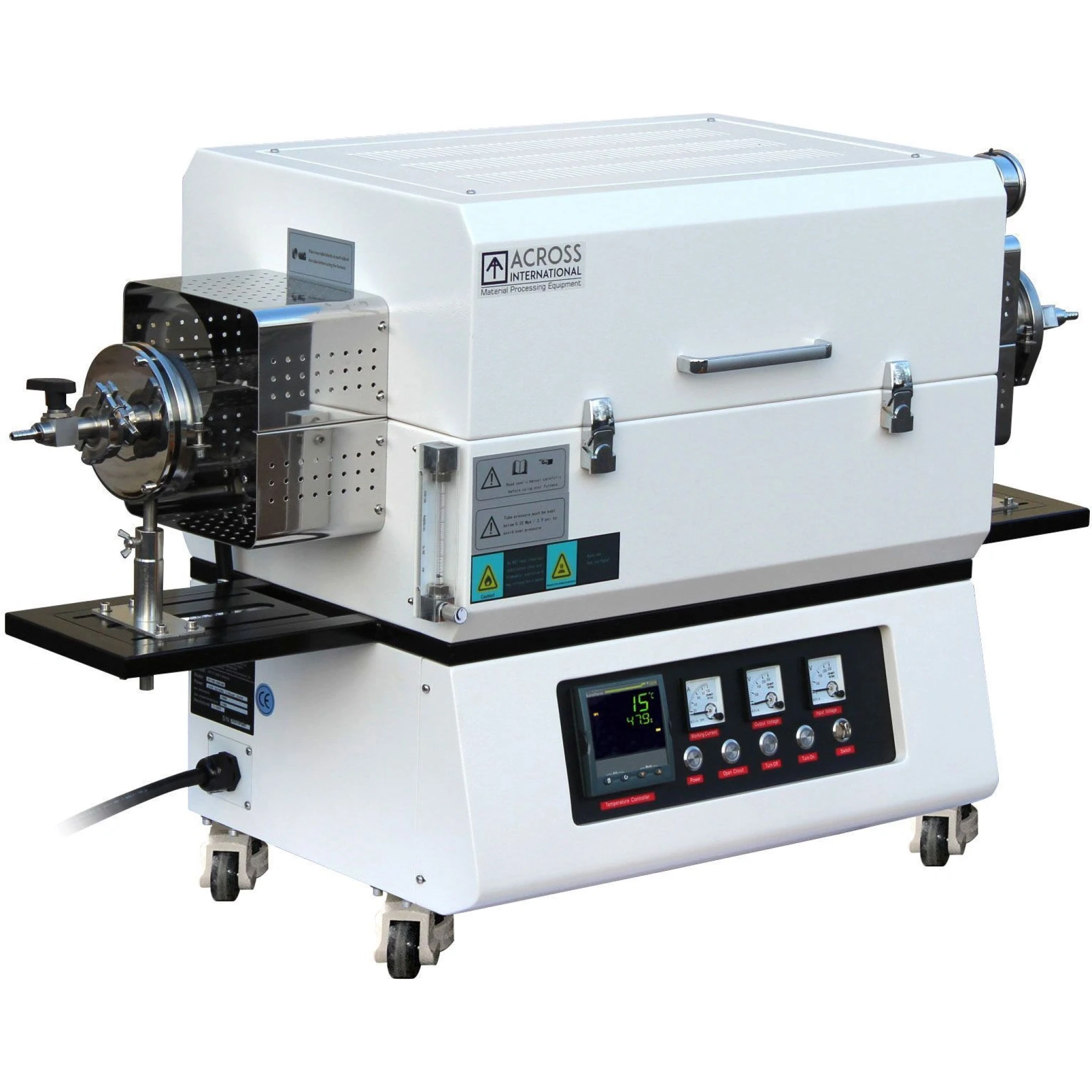

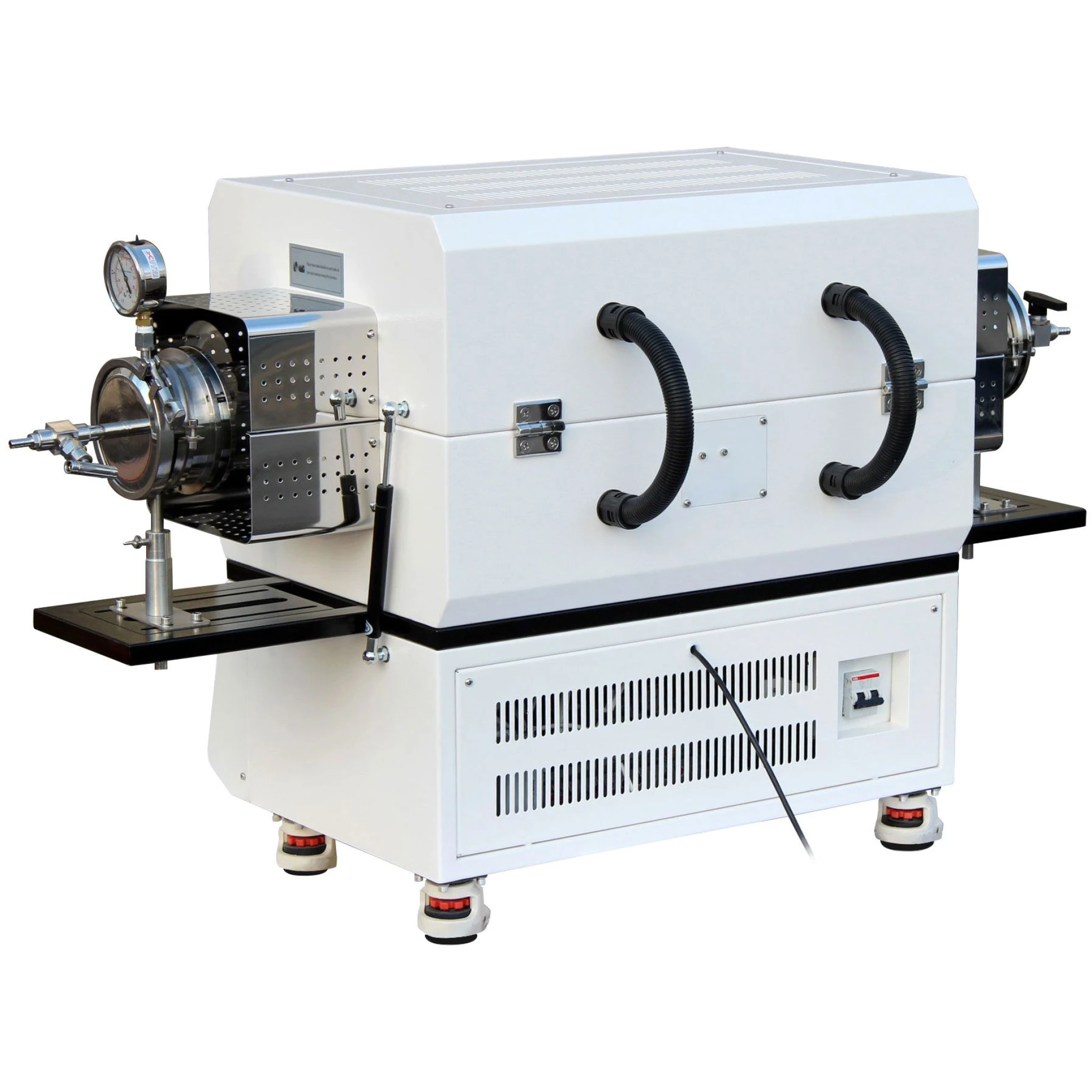

1200C 1-3 Zone Top-Open Tube Furnace w/ Kanthal Element
Reference:
Manufacturer: Across International
- Compact, portable and lightweight design.

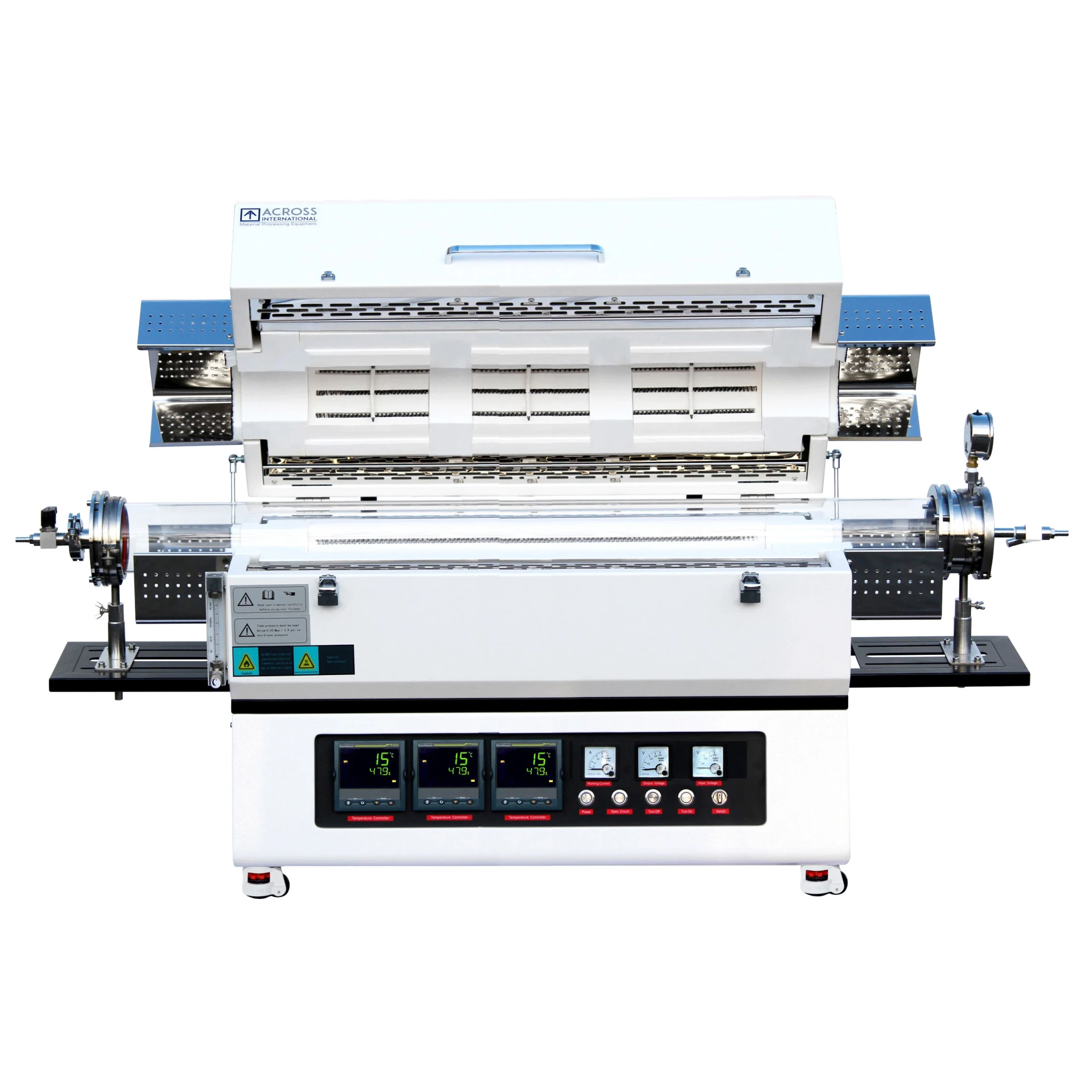

- Top-open split chamber furnace for fast and easy tube access.
- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
In stock
Customize your product
Payment Providers
Furnace operation is controlled by Eurotherm (UK) digital controller with built-in digital communication port, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Features
- Compact, portable and lightweight design.
- Top-open split chamber furnace for fast and easy tube access.
- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- ETL and CE certified, standard (optional, extra charge)
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

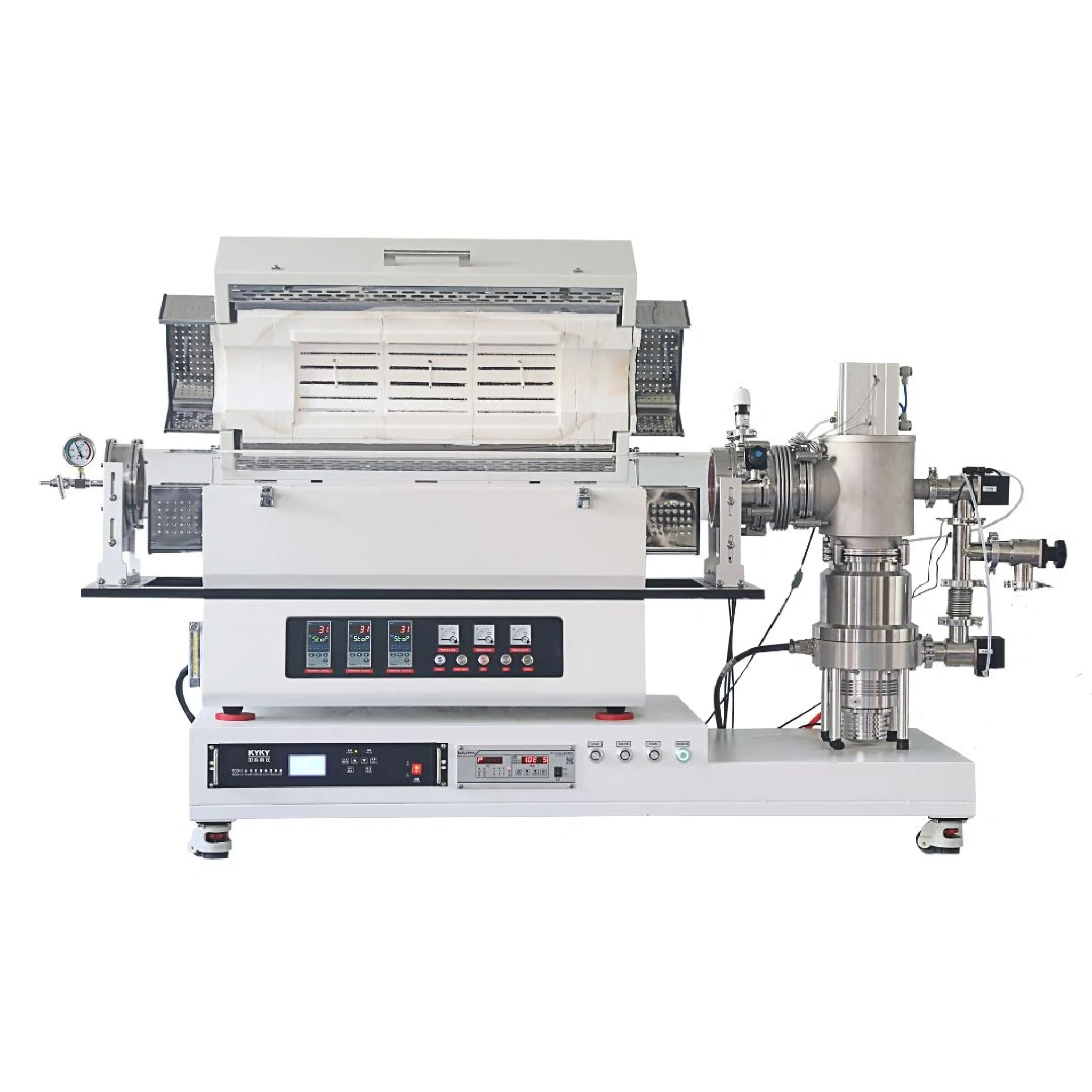

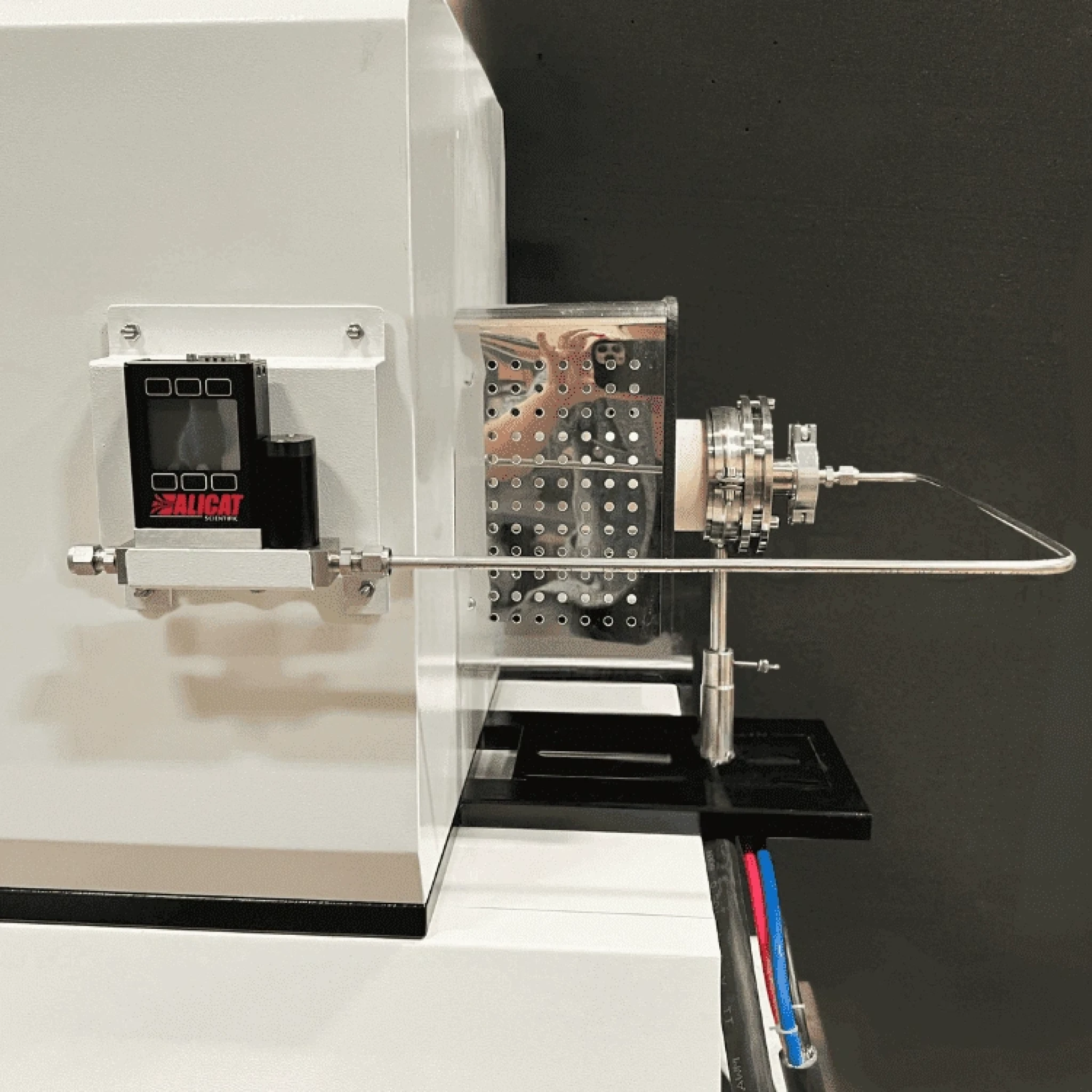

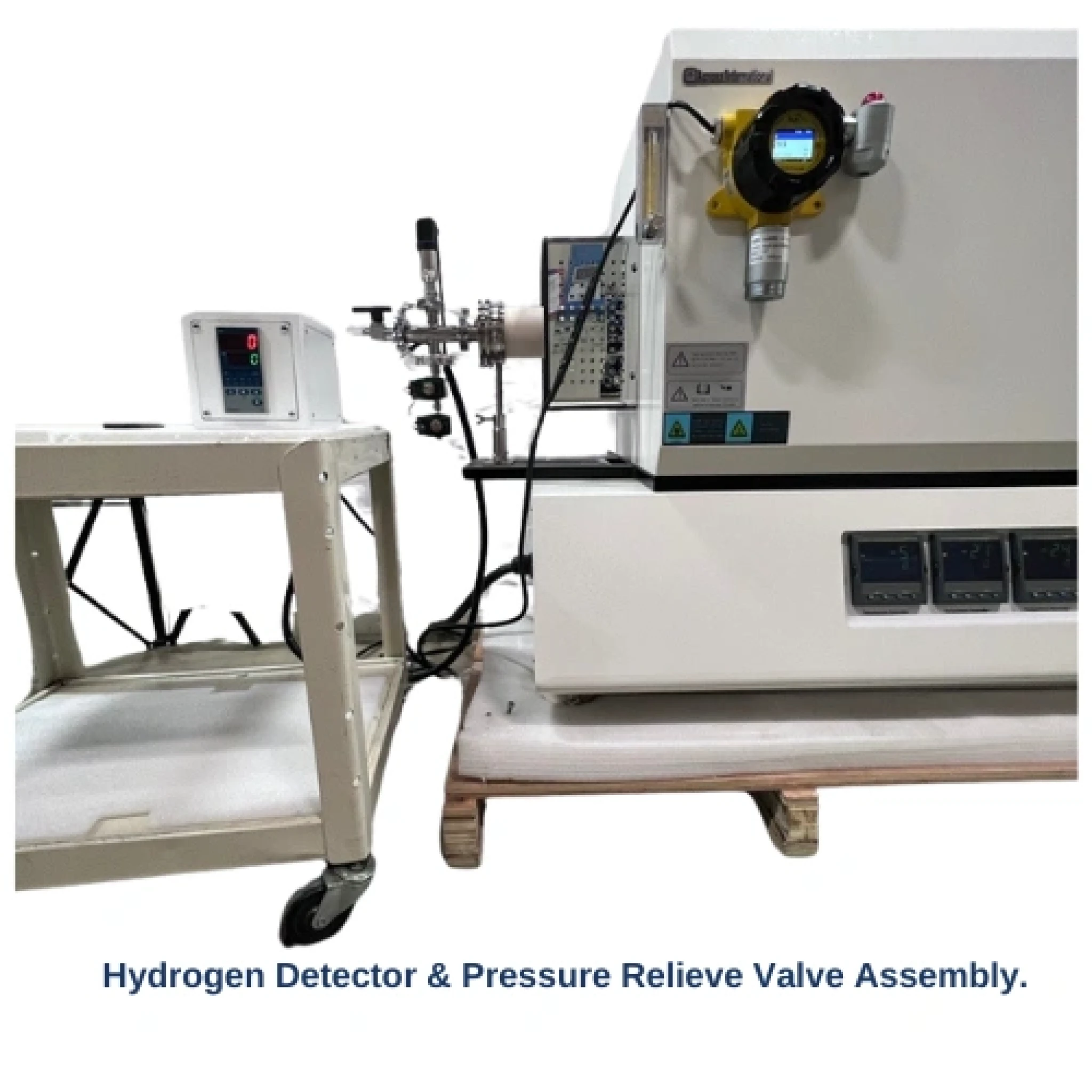

** All 3 pictures above for setup is for reference only. Actual setup can be configured many different ways based on user preference. The bracket plate for the mass flow controller can be magnetically attached and detached from the surface for ease of use**
Tubing sold separately
| Electrical requirements | 208-240VAC, 50/60 Hz, single phase |
| Tube material | Quartz |
| Maximum working temperature | 1200°C (2 hours maximum continuous run time) |
| Maximum constant working temperature | 1100°C |
| Constant working temperature under vacuum | 1000°C |
| Minimum working temperature | Ambient |
| Rated vacuum pressure | 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
| Rated positive pressure | 0.02 MPa / 150 torr / 3 psi |

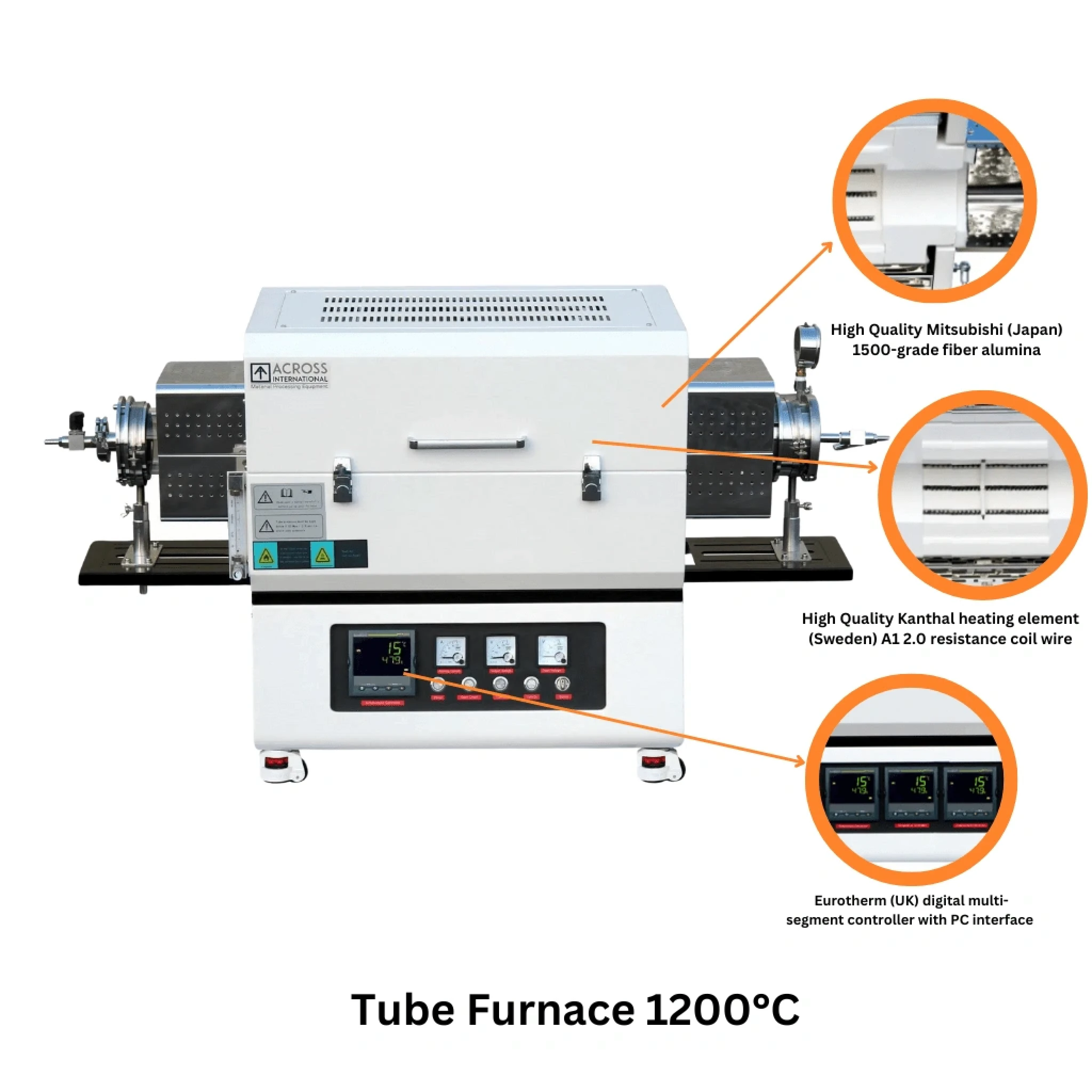

| Heating element type | Kanthal (Sweden) A1 2.0 resistance coil wire |
| Thermocouple type | K |
| Refractory lining | Mitsubishi (Japan) high quality 1500 grade fiber alumina |
| Temperature controller | Eurotherm (UK) digital multi-segment controller |
| Maximum heating rate | < 30°C / min |
| Heating zone length | 17.3" inches |
| Constant temperature zone length | 10 inches |
| Temperature controller precision | ± 1°C |
| Vacuum sealing flange kit | Stainless steel vacuum sealing flanges with one vacuum gauge, |
| Gas inlet/outlet | 1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread) |
| Certification | ETL tested to UL and CSA (Standard), CE (Standard) |
| Tube size (OD x length) | 60mm x 1m |
| Heating Zone(s) | 440mm |
| Maximum output | 2.5 kW |
| Furnace assembled (LxWxH) | 51 ¼" x 23 ¾" x 27 ¾" |
| Unit dimensions (LxWxH) | 52x24x28" |
| Shipping dimensions (LxWxH) | 46x21x36" |
| Shipping weight (Lb) | 270 |
| Tube size (OD x length) | 60mm x 1m |
| Heating Zone(s) | 205+205mm |
| Maximum output | 3 kW |
| Unit dimensions (LxWxH) | 52x24x28" |
| Shipping dimensions (LxWxH) | 60x32x36" |
| Tube size (OD x length) | 60mm x 1300mm |
| Heating Zone(s) | 205+205+205mm |
| Maximum output | 1.5 kW x 3 |
| Unit dimensions (LxWxH) | 60x24x28" |
| Shipping dimensions (LxWxH) | 68x32x36" |
Standard Package
| STF1200 top-open tube furnace | 1 pc |
| Quartz tube (60-100mm: 2 pcs, 150-250mm 1pc) | 1-2 pcs |
| Stainless steel vacuum sealing flanges w/ pressure gauge | 1 set |
| Clamp, O-ring, and Valve (Pre-installed on flange) | 1 Set |
| Flange O-rings | 8 pcs |
| Stainless steel hook | 1 pc |
Alumina thermal block (60-100mm: 2 pcs, 150-250mm 1pc) | 1-2 pcs |
| Crucibles | 5 pcs |
| Thermal gloves | 1 pair |
| Spare fuse | 2 pcs |
| USB/RS485 computer interface kit | 1 set |
| Allen Keys | 1 pc |
| 25A UL Fuse | 1 pc |
| 4A UL Fuse | 1 pc |
| Furnace and Eurotherm or Shimaden controller manual | 2 pcs |
| Eurotherm USB OR Shimaden CD for software | 1 pc |
