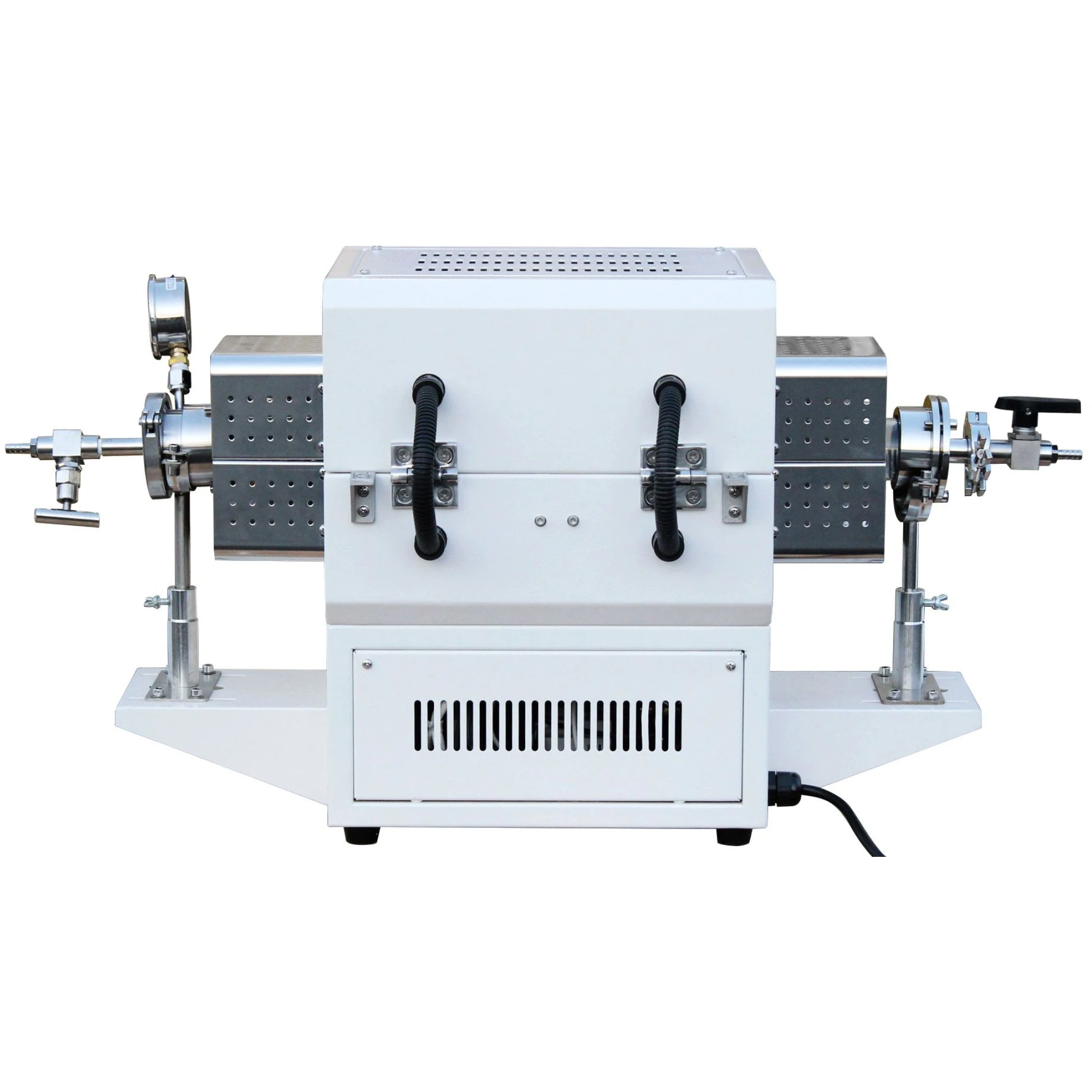

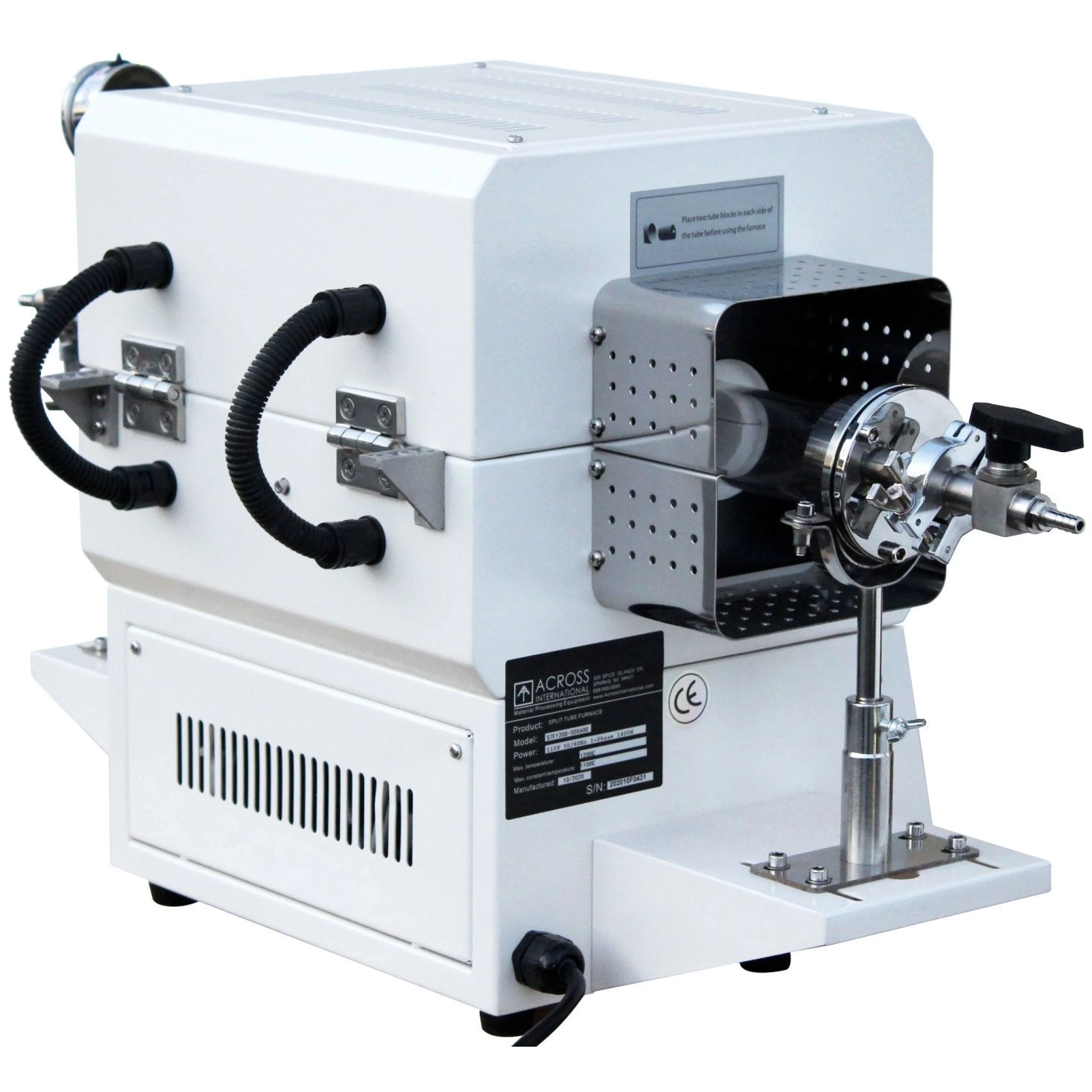

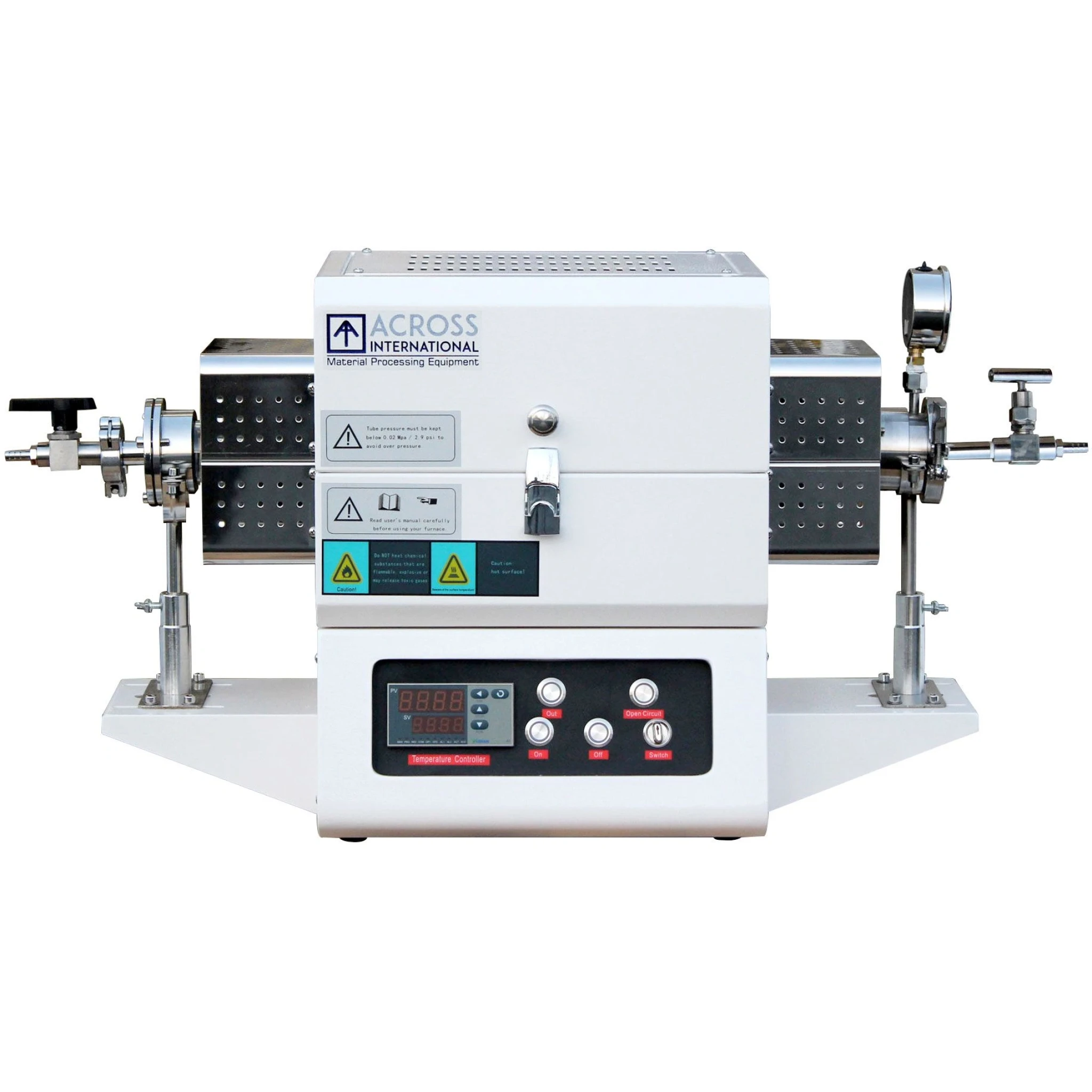

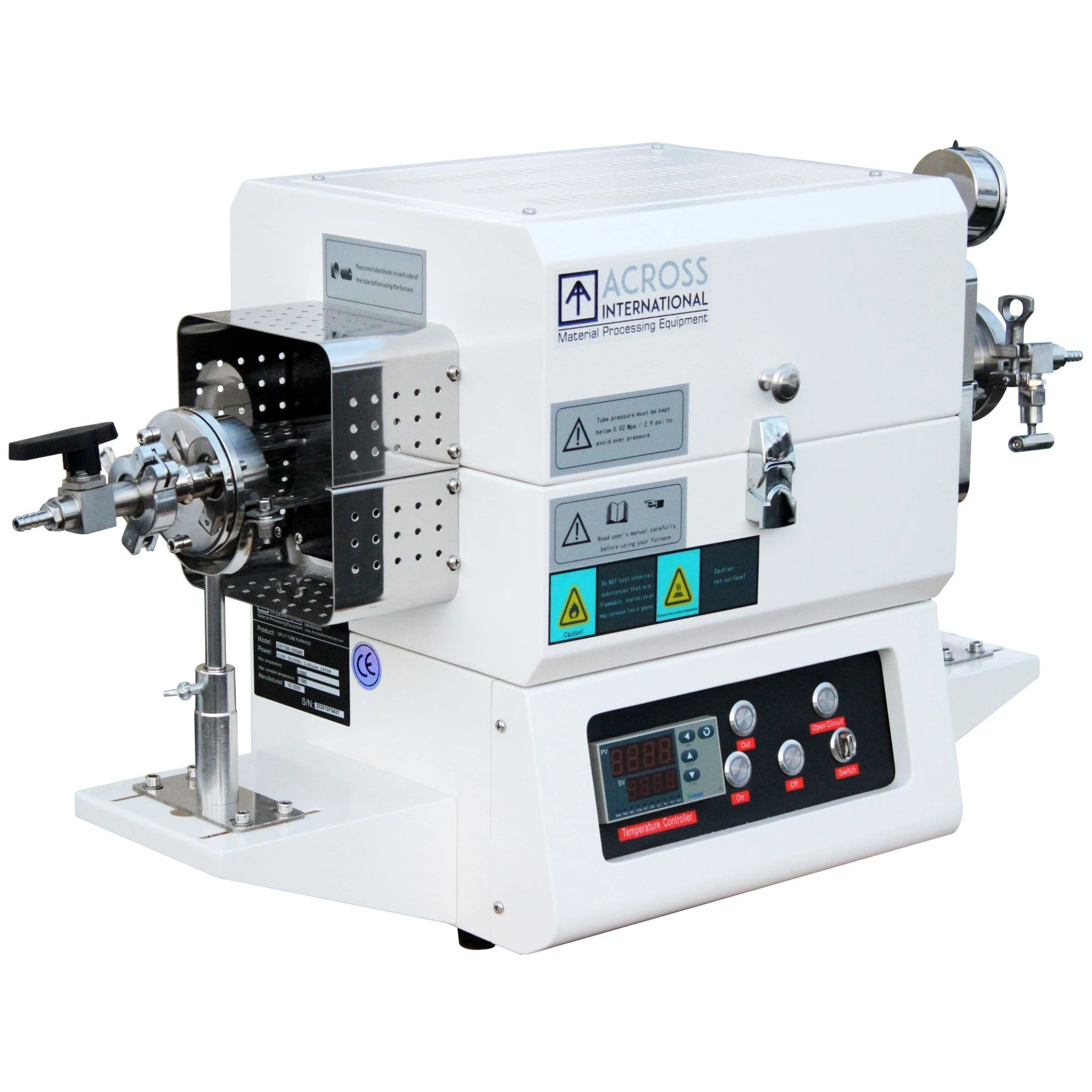

1200C 1-Zone 50mm OD Top-Open Tube Furnace with Quartz Tube
Reference:
Manufacturer: Across International
- Compact, portable and lightweight design.
- Top-open furnace chamber for fast and easy tube access.
- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
In stock
Customize your product
Payment Providers
STF1200 50x600mm (ODxlength) portable top-open tube furnaces feature spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by a 30-segment digital controller. All our furnaces are CE compliant.
Features
- Compact, portable and lightweight design.

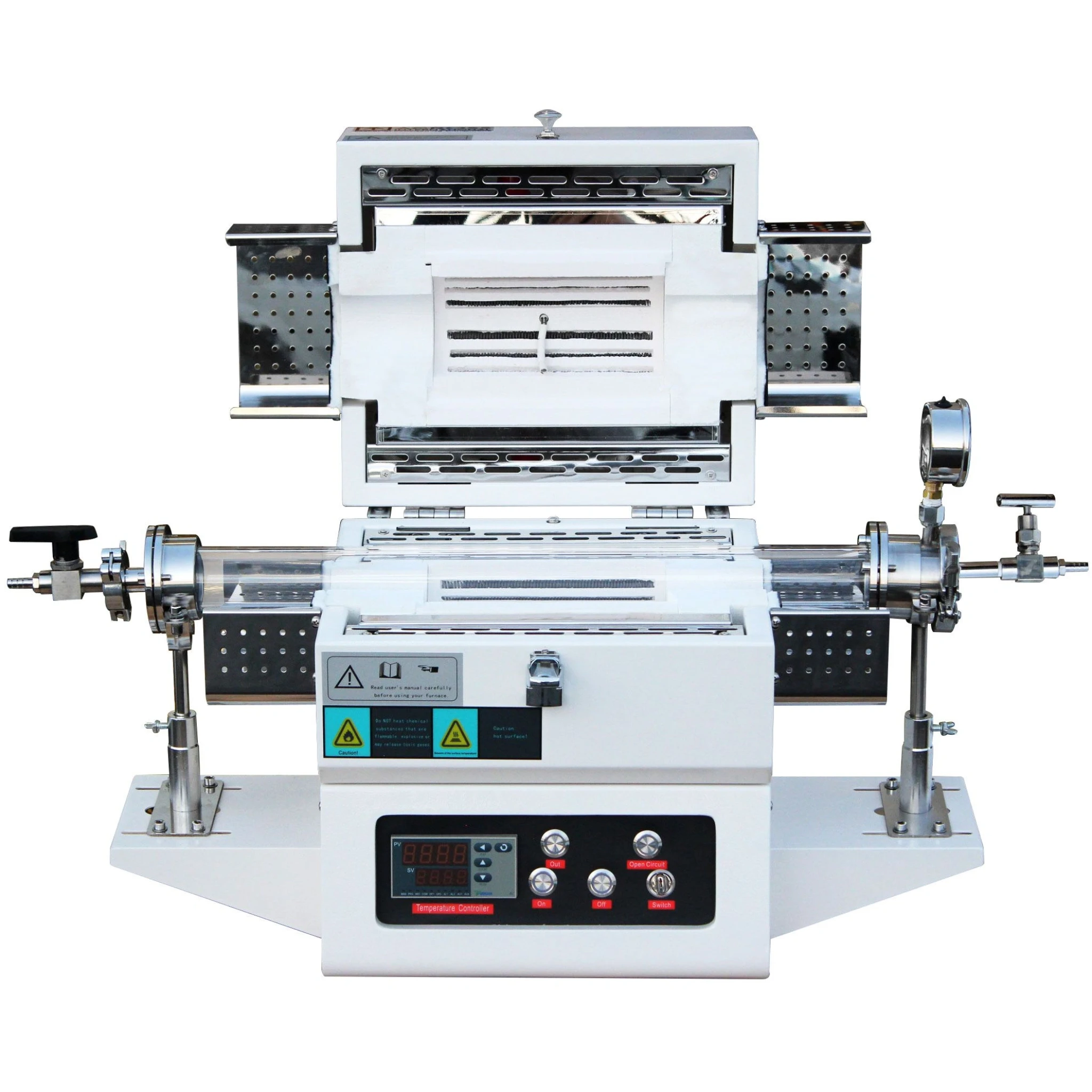

- Top-open furnace chamber for fast and easy tube access.
- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
- Long life type K thermocouple.
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

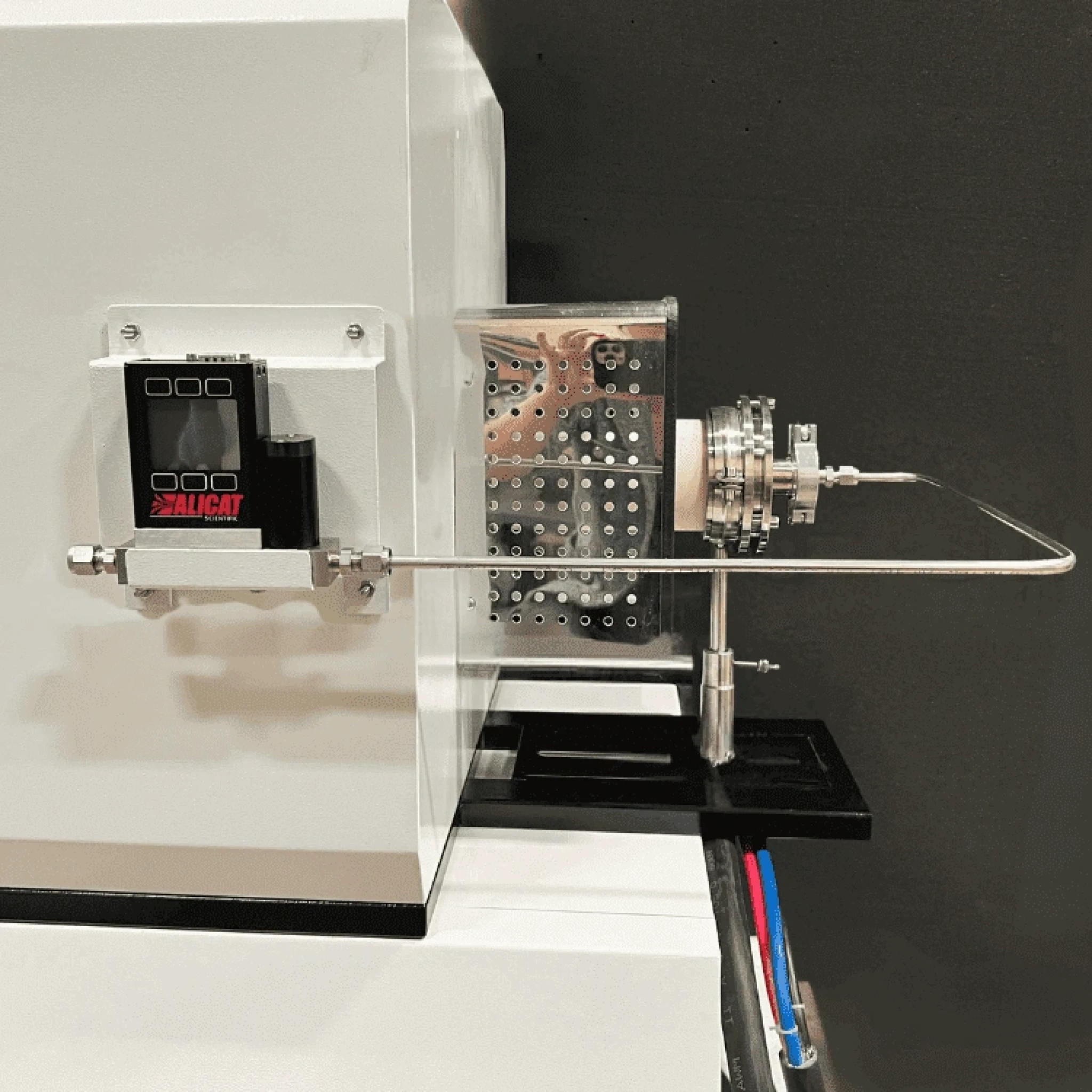

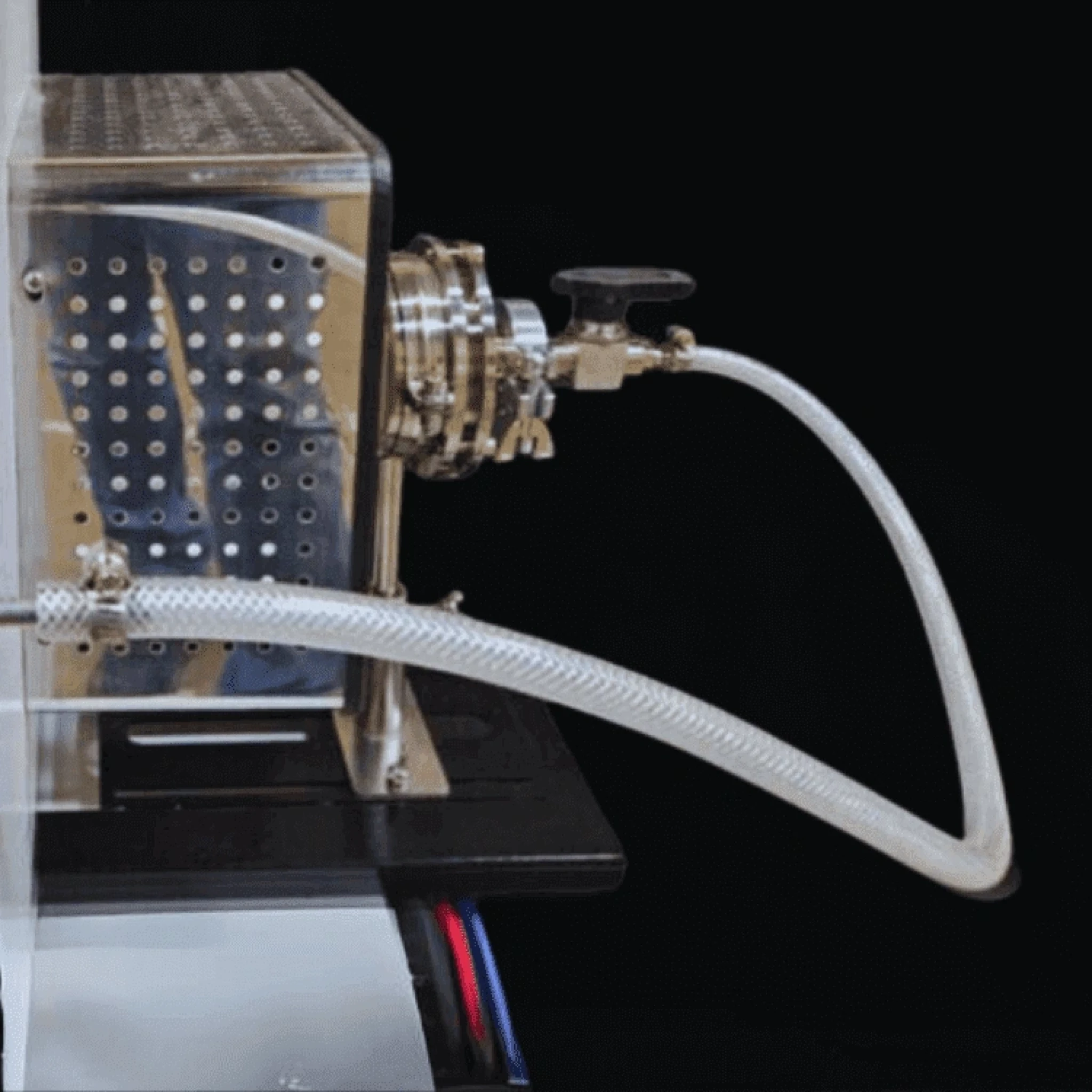

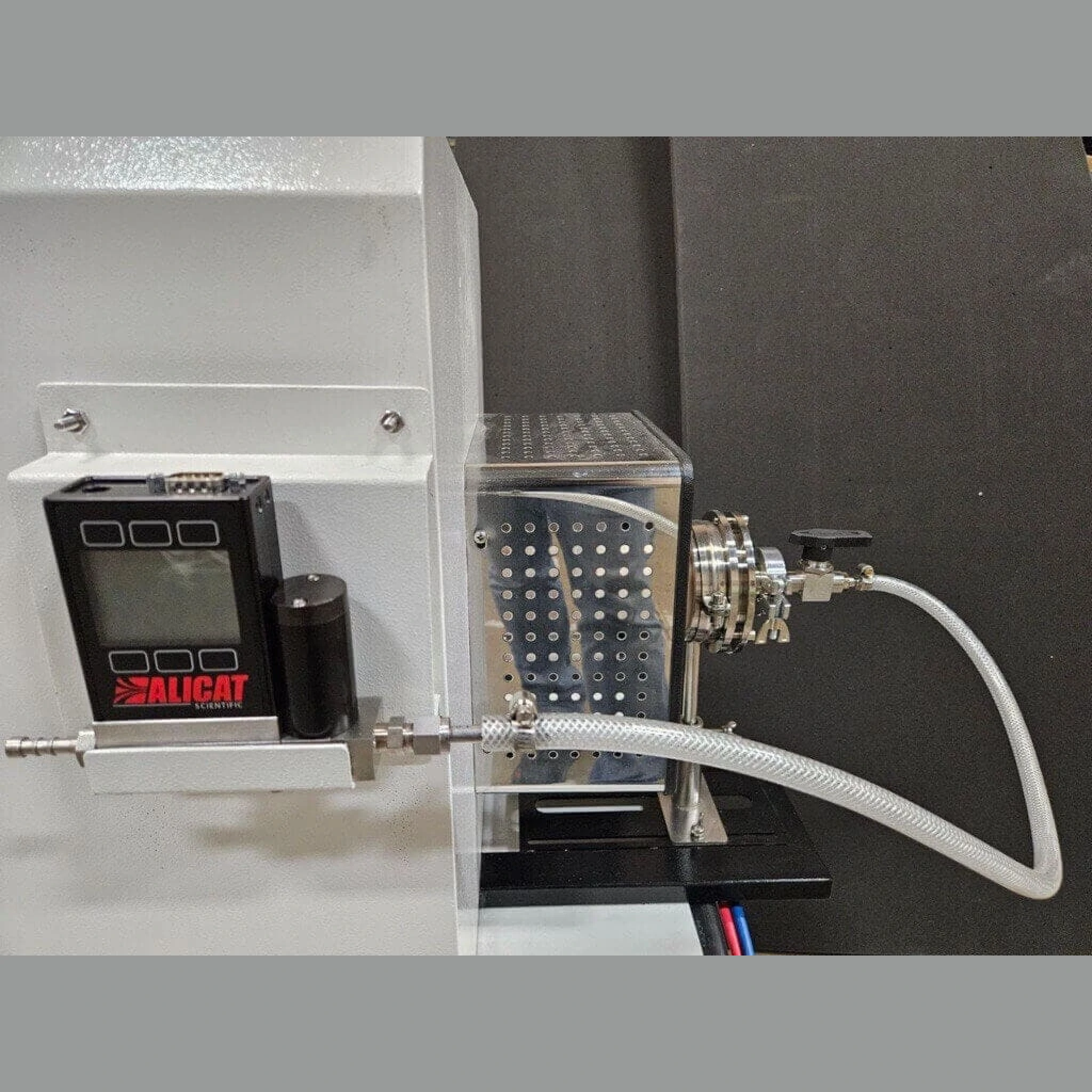

** All 3 pictures above for setup is for reference only. Actual setup can be configured many different ways based on user preference. The bracket plate for the mass flow controller can be magnetically attached and detached from the surface for ease of use**
Tubing sold separately
Alicat Mass Flow Controllers
Alicat 0-5 SLPM – 1/8” Female NPT port | $1,600.00 |
Alicat 0-5 SLPM – 1/4” Compression fitting port | $1,725.00 |
Alicat 0-10 SLPM – 1/8” Female NPT port | $1,600.00 |
Alicat 0-10 SLPM – 1/4” compression fitting port | $1,725.00 |
Alicat 0-20 SLPM – 1/8” Female NPT port | $1,600.00 |
Alicat 0-20 SLPM – 1/4” compression fitting port | $1,725.00 |
Alicat 0-500 SCCM – 1/8” Female NPT port | $1,600.00 |
Alicat 0-500 SCCM – 1/4” compression fitting port | $1,725.00 |
| Electrical requirements | 110V, 50/60Hz, 1~phase, 1500 watts |
| Tube | 50mm OD x 600mm L, Quartz |
| Maximum working temperature | 1200°C (2 hours maximum continuous run time) |
| Constant working temperature | 1100°C |
| Minimum working temperature | Ambient |
| Constant working temperature under vacuum | 1000°C |
| Rated vacuum pressure | 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
| Rated positive pressure | 0.02 MPa / 150 torr / 3 psi |
| Heating element type | Kanthal (Sweden) A1 2.0 resistance coil wire |
| Thermo couple type | K |
| Refractory lining | Mitsubishi (Japan) 1500-grade fiber alumina |
| Temperature controller | UDIAN 30-segment, single PID |
| Maximum heating rate | < 30°C / min |
| Heating zone length | 8" |
| Constant temperature zone length | 3" |
| Temperature controller precision | +/- 1°C |

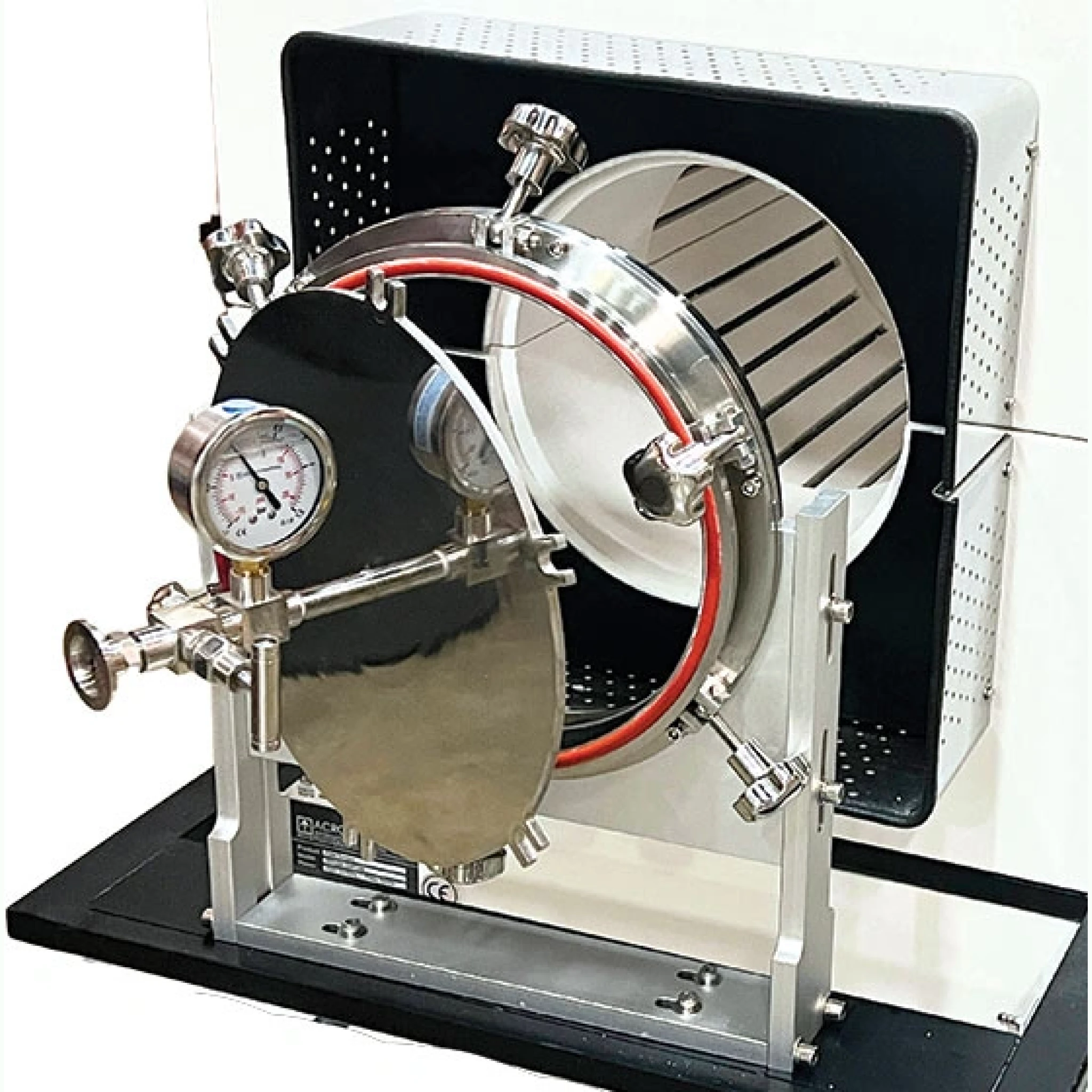

| Vacuum sealing flange kit | Stainless steel vacuum sealing flanges with one vacuum gauge, |
| Gas inlet/outlet | 1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread) |
| Unit dims w/o tube | 25.5 x 17 x 17.75" (WxDxH) without tube |
| Unit weight | Unit weight w/o tube/flange/thermal blocks: 61 lbs Unit weight w/ tube/flange/thermal blocks: 68 lbs |
| Shipping weight/dim | 120lbs/31x19x26 inch |
| Compliance | CE |
Standard Package
| STF1200 50mm OD top-open tube furnace | 1 pc |
| Quartz tube 50mm OD x 600mm L | 2 pcs |
| Stainless steel vacuum sealing flanges w/ pressure gauge | 1 set |
| O-ring (4 installed & 4 spares) | 8 pcs |
| Stainless steel hook | 1 pc |
| Alumina thermal block | 2 pairs |
| Spare fuse | 2 pcs |
| 5mm Allen Key | 1 pc |
| Thermal gloves | 1 pair |
| Crucibles | 5 pcs |
| Furnace operation manual | 1 pc |
