Tube furnace with Stainless Steel Tube 60mm - 350mm
Reference:
Manufacturer: Across International

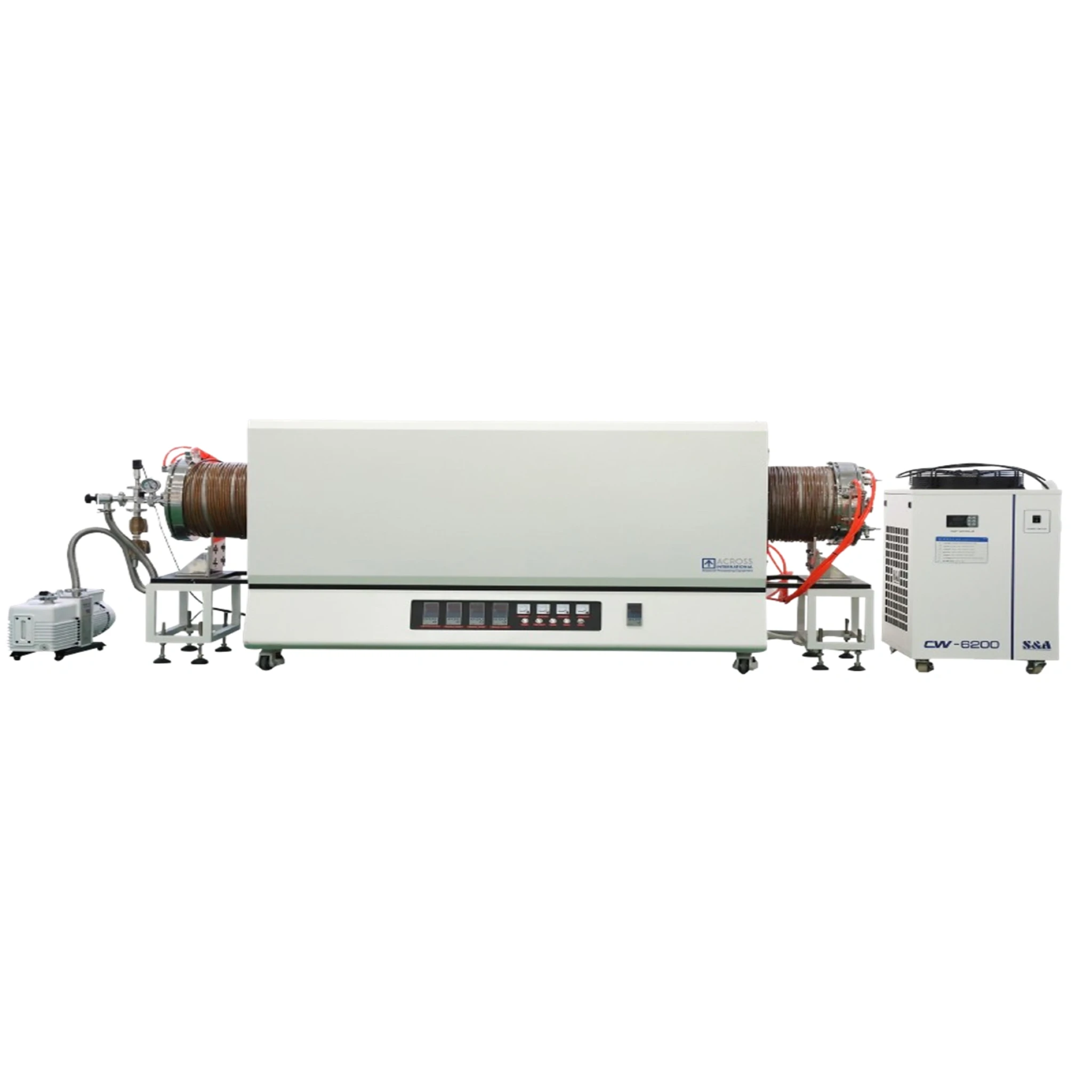

Tube furnace with Stainless Steel Tube 60mm - 350mm
Payment Providers
Call for Price
Tube furnace with Stainless Steel Tube
Stainless Steel tube size ranging from 60mm to 350mm
Model | TF1200-1200 |
Max Temp | Zone 1, Zone 2: 1000°C |
Constant Running Temp | Zone 1, Zone 2: 850°C |
Tube Material | 310S stainless steel tube |
Tube Size | OD 325mm (ID 305) X L 1300mm |
Power | 20KW |
Voltage | 480V 3-Phase |
Heating Elements | Kanthal A1 |
Chamber | Alumina Fiber |
Control Method | Eurotherm 30 segment control PID adjustment 485 communication connectors |
Control Accuracy | +/-1°C |
Max heating rate | ≤ 30°C/min |
Recommended heating rate | ≤ 15°C/min |
Heating Zone | 1st , 2nd Zone= 400mm+400mm= 800mm |
Thermocouple | 1st Zone: K type 2nd Zone： K type |
Cold Vacuum Level | Pa |
Model | FJ620 |
Input Voltage | 460-480V |
Inlet Flange | DN160 |
Pumping Rate L/S (to air) | 600 |
Ultimate Pressure (Pa) | Pa |
Cooling Method | Water Cooling |
Cooling Water Pressure(MPa) | 0.1-0.2 |
Water Cooling Temp | <25°C |
Environment Temp | 0-40°C |
Starting Pressure | <100 Pa |
Power | 1.5KW |
Voltage | 460V |
Speed | 1450rpm |
Inlet OD | KF40 |
Pumping Rate(L/S) | 6 |
Ultimate Pressure | Pa |
Accuracy | +-1% |
Vacuum Measurement Range | Pa |
Standard Package
Tube furnace with Stainless Steel Tube | 1 pc |
| Furnace manual | 1 pc |
