1500C 1-3 Zone Top-Open Tube Furnace with Alumina Tube and Sealing Flanges
Reference:
Manufacturer: Across International
- Compact, portable and lightweight design.
- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
In stock
Customize your product
Payment Providers

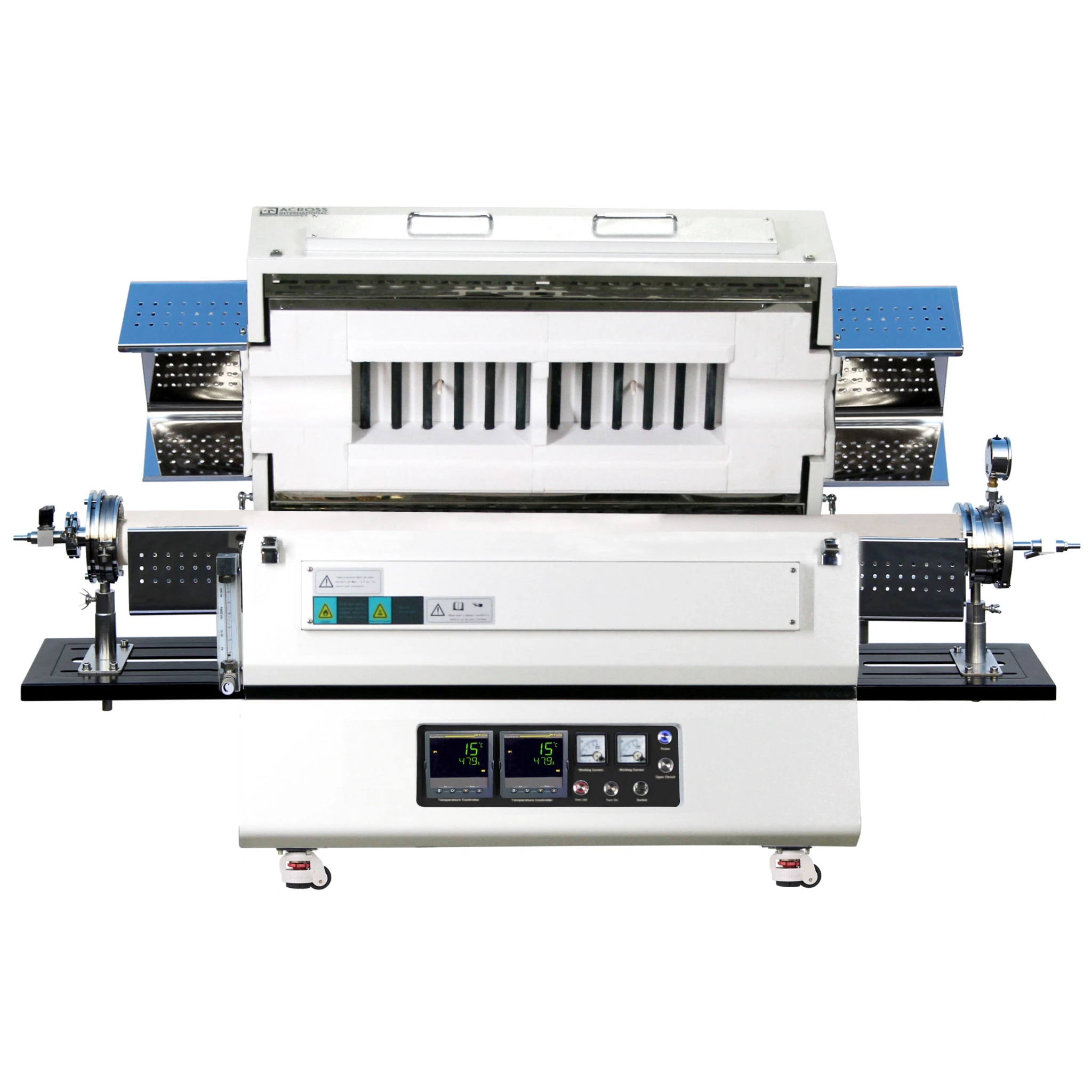

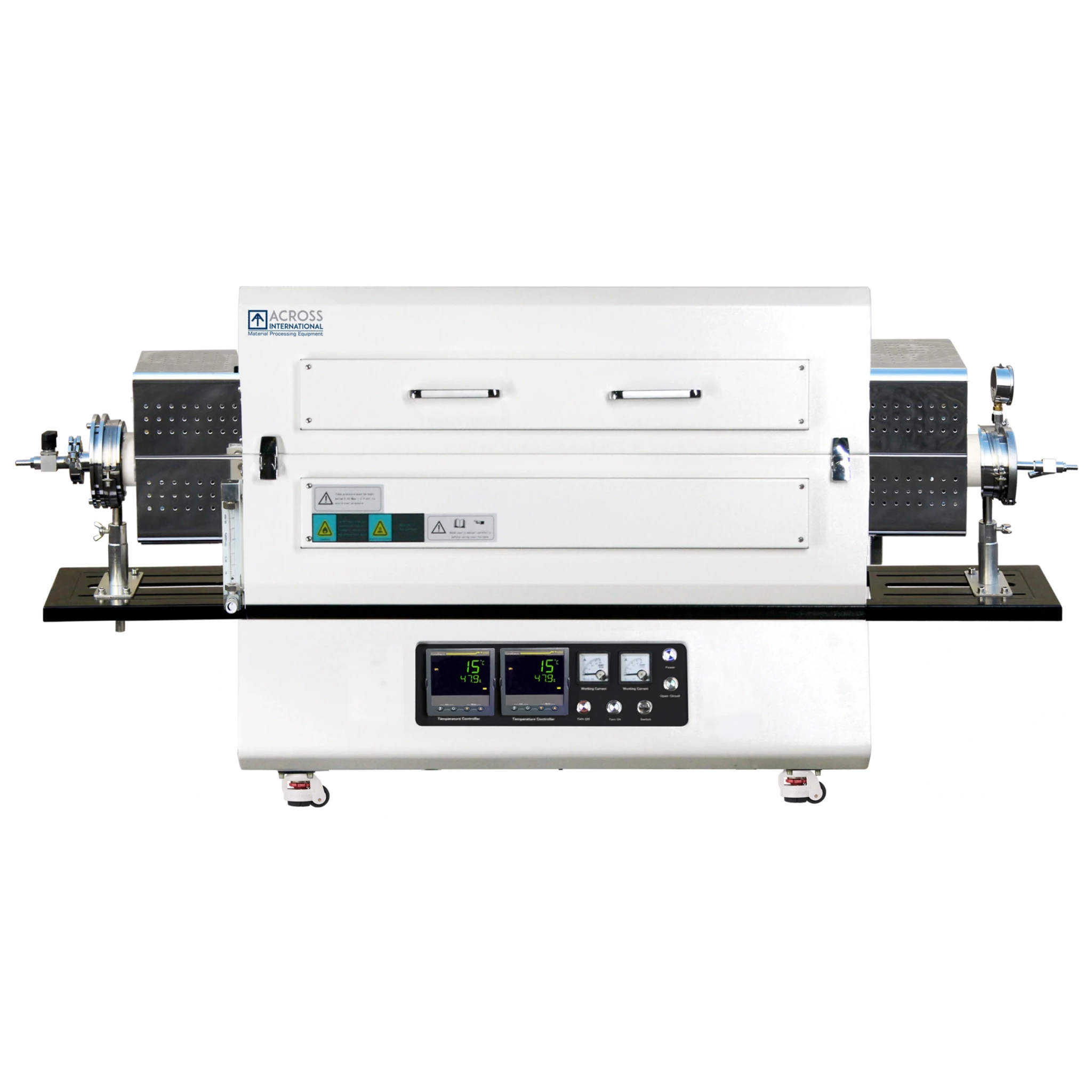

STF1500 series top-open tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Eurotherm (UK) digital multi-segment controller with built-in digital communication port, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Features
- Compact, portable and lightweight design.
- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

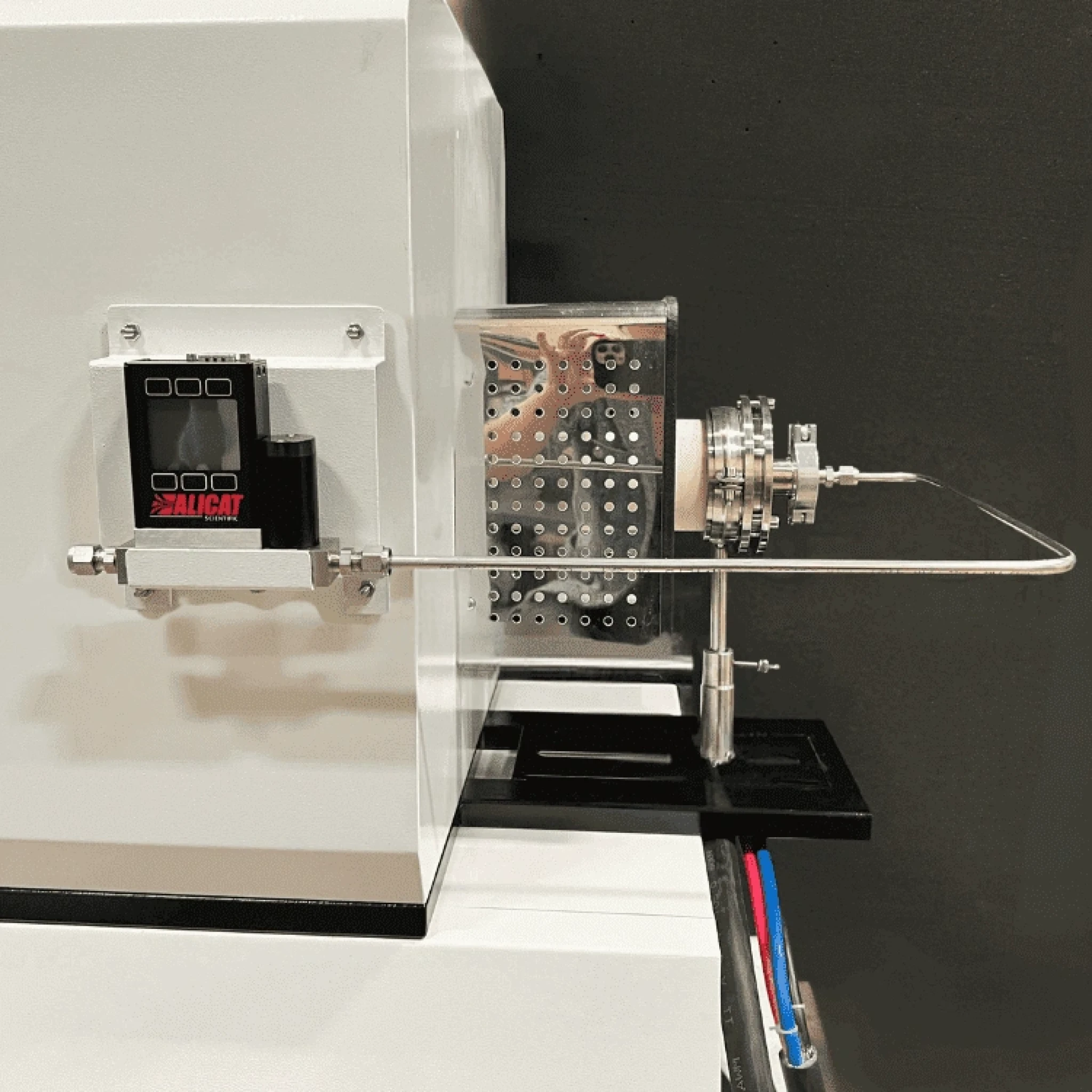

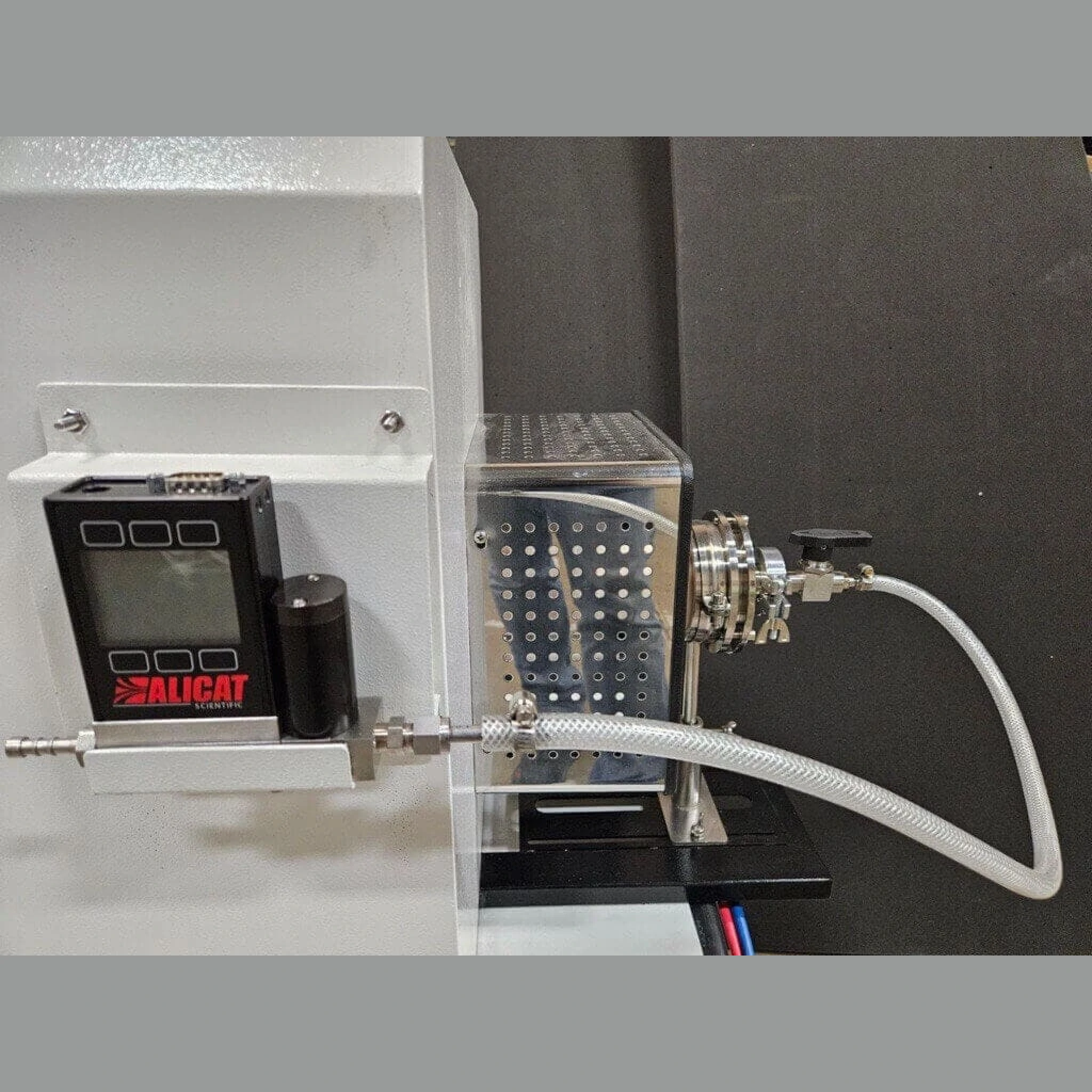

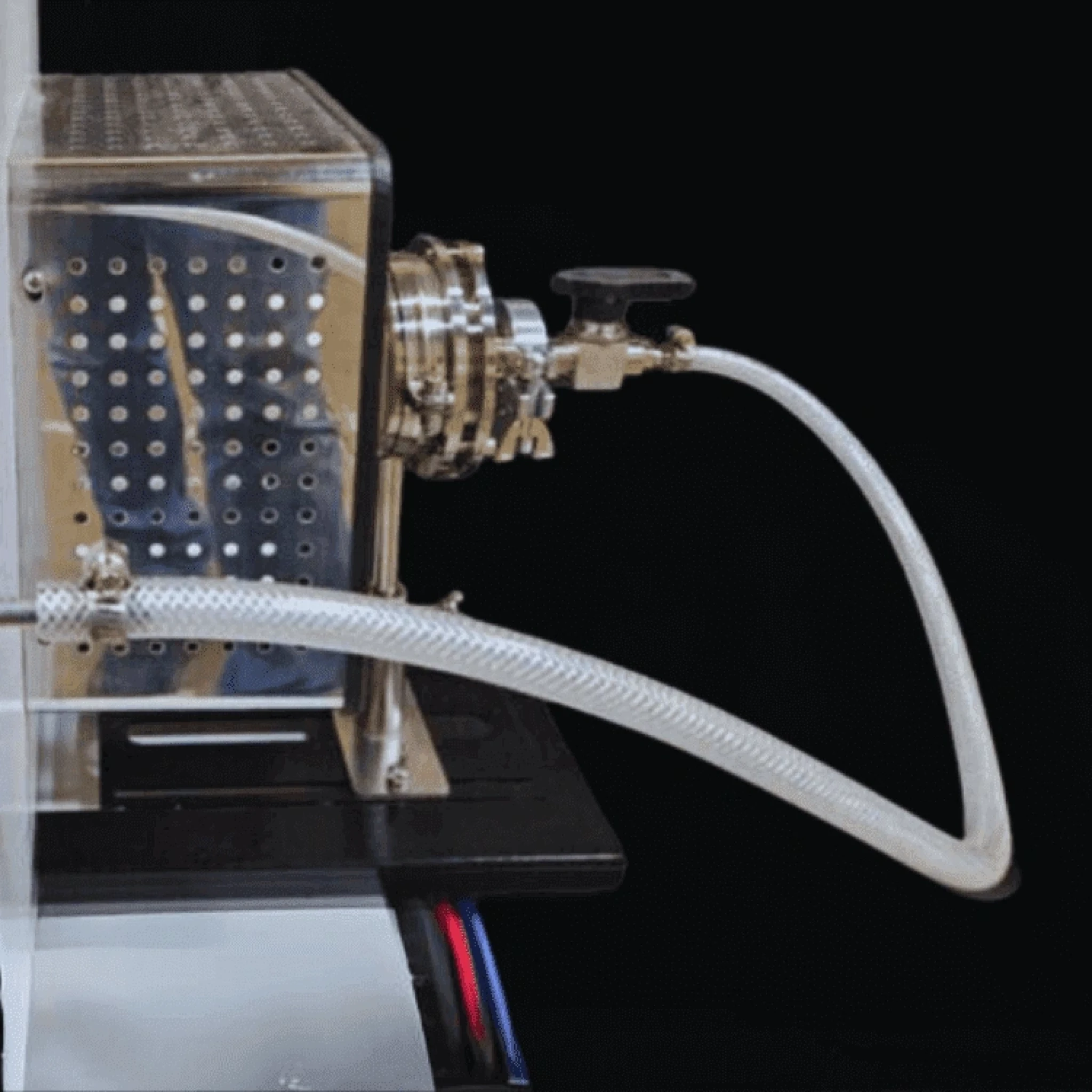

** All 3 pictures above for setup is for reference only. Actual setup can be configured many different ways based on user preference. The bracket plate for the mass flow controller can be magnetically attached and detached from the surface for ease of use**
Tubing sold separately
Alicat Mass Flow Controllers
Alicat 0-5 SLPM – 1/8” Female NPT port | $1,480.00 |
Alicat 0-5 SLPM – 1/4” Compression fitting port | $1,580.00 |
Alicat 0-10 SLPM – 1/8” Female NPT port | $1,480.00 |
Alicat 0-10 SLPM – 1/4” compression fitting port | $1,580.00 |
Alicat 0-20 SLPM – 1/8” Female NPT port | $1,680.00 |
Alicat 0-20 SLPM – 1/4” compression fitting port | $1,780.00 |
Alicat 0-500 SCCM – 1/8” Female NPT port | $1,480.00 |
Alicat 0-500 SCCM – 1/4” compression fitting port | $1,580.00 |
| Electrical requirements | 208-240 volts 50/60Hz single phase |
| Tube material | High purity (99%) Al2O3 alumina |
| Maximum / constant working temperature | 1500°C / 1400°C * 2 hours maximum continuous run time at maximum temperature |
| Rated vacuum pressure | 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
| Rated positive pressure | 0.02 MPa / 150 torr / 3 psi |
| Refractory lining | Mitsubishi (Japan) high quality 1600 grade fiber alumina |
| Heating element and thermocouple | Silicon carbide (SiC) / S-type |
| Temperature controller | Eurotherm (UK) digital multi-segment controller |
| Max heating rate | 5°C (41°F)/min above 1200°C and 10°C (50°F)/min below 1200°C (2192°F) |
| Heating zone length | 390mm |
| Constant heating zone | 130mm |
| Temperature controller precision | +/- 1°C |
| Vacuum sealing flange kit | Stainless steel vacuum sealing flanges with one vacuum gauge, two valves and four thermal ceramic blocks. |
| Zone | 1-Zone |
| Tube size (OD x L) | 60mmx1m |
| Heating zone | 15.4" |
| Maximum output | 6 kW |
| Eurotherm controller | 1 pc |
| Furnace dimensions (LxWxH) | 23x15x41" |
| Shipping dimensions (LxWxH) | 37x21x46" |
| Shipping weight (Lb) | 485 |
| Power | 6KW |
| electrical reqirement | 220v, single phase |
| max current | 33 |
| plug config | Circuit Breaker |
| Heating element | SiC |
| furnace cavity | Aluminia Fiber |
| thermo couple type | S |
| Tube | Ceramic Tube 60×1000 |
| Heating Zone（mm） | 390 |
| Constant Heating Zone（mm） | 130 |
| unit dims | 130×69×72(cm) |
| shipping dims | 125×72×100cm |
| unit/ship weight | 120/162Kg |
Standard Package
| STF1500 tube furnace | 1 pc |
| Stainless steel vacuum sealing flange set w/ pressure meter | 1 set |
| O-rings | 8 pcs |
| Alumina tube | 1 pc |
| Thermocouple - Type S | 1 pc |
| Spare heating element | 2 pcs |
| Stainless steel hook | 1 pc |
| Thermal block | 4 pcs |
| Thermal gloves | 1 pair |
| Spare fuse | 2 pcs |
| Crucibles | 5 pcs |
| USB/RS485 computer interface kit | 1 set |
| Furnace and Shimaden or Eurotherm controller manual | 2 pcs |
